How To Sublimate Bottles


Picture of How To Sublimate Bottles

How To Sublimate Bottles

With customers set to spend £1 billion on personalised gifts over the next 12 months, is now the time to take advantage? What better way than by offering the simple yet effective printed reusable water bottle? Take a look at our guide to sublimating bottles below...

Sublimating Bottles

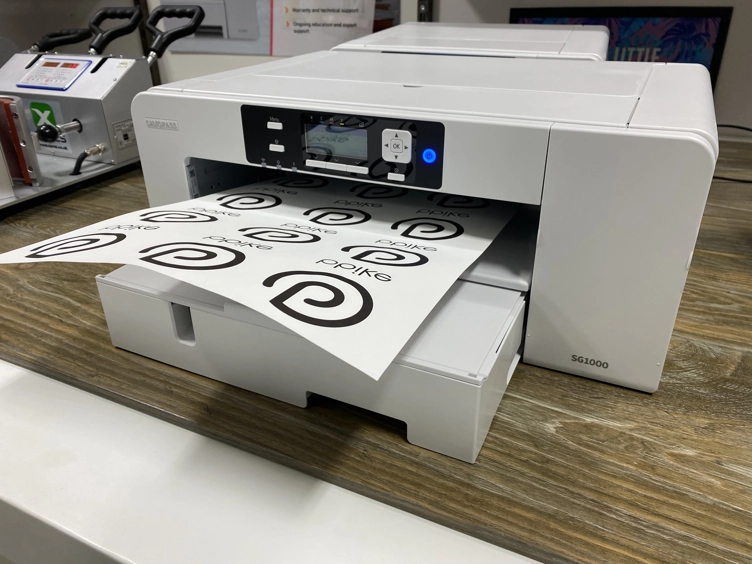

 1. Create your design and print in mirror image.

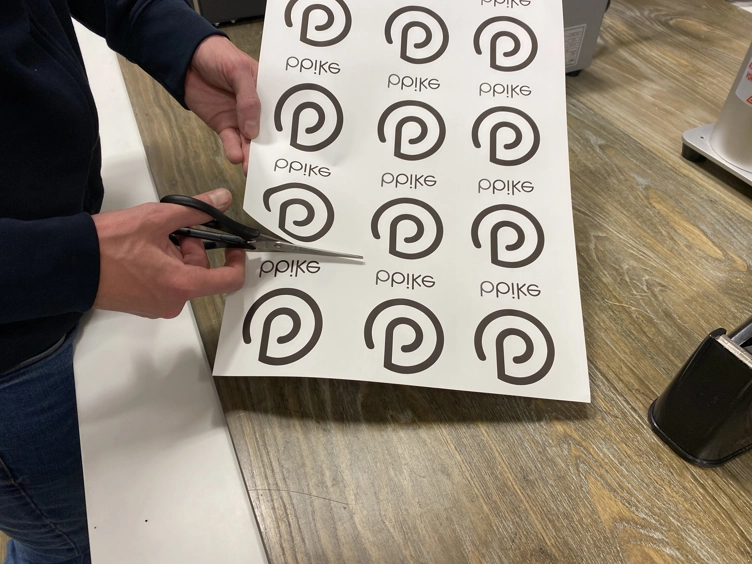

2. Once printed loosely cut around the design.

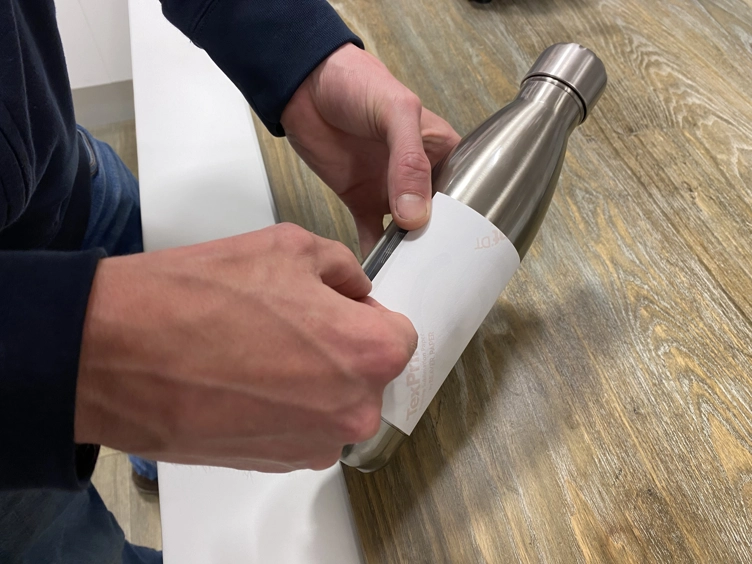

3. Position the design face down on the bottle and use heat tape to secure in place.

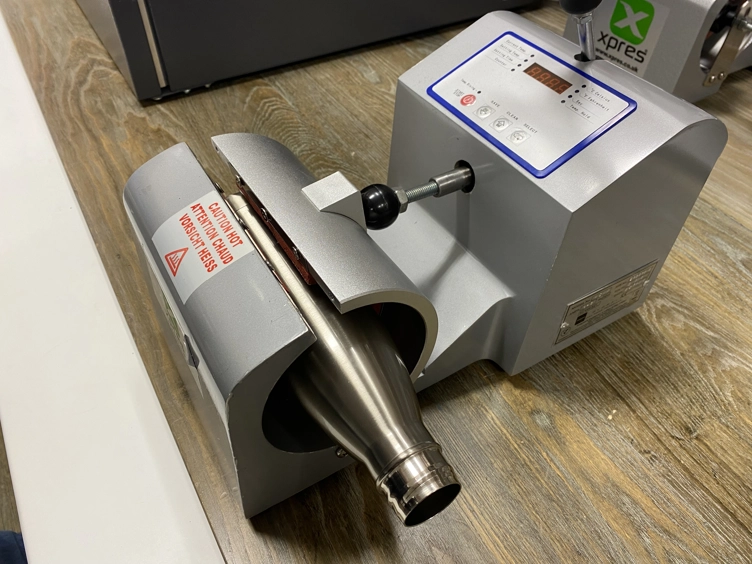

4. Remove the bottle lid and place in the mug press (porcelain mug element required). Press the bottle for 170 degrees for 170 seconds using medium pressure.

5. Once pressed, carefully remove the bottle from the heat press and peel the paper.

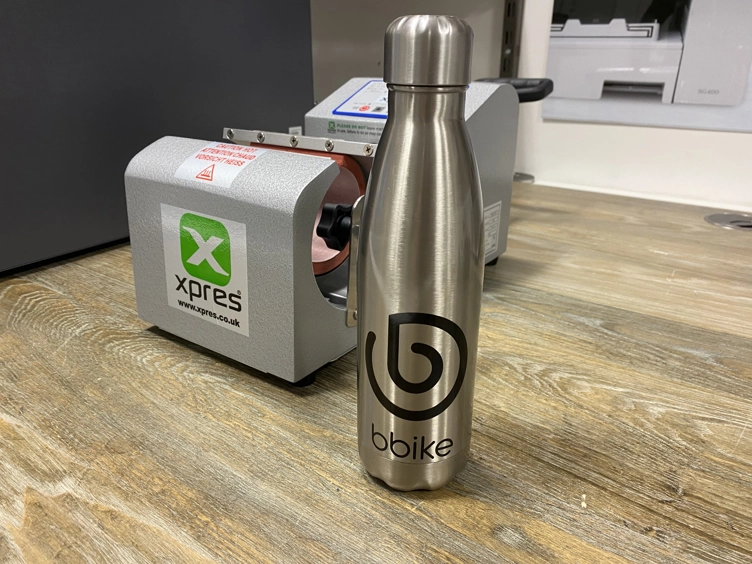

6. Your personalised water bottle is complete.



Shop Bottles

SKU: XPHTSBOTS

Sublimating Bottles

 1. Create your design and print in mirror image.

2. Once printed loosely cut around the design.

3. Position the design face down on the bottle and use heat tape to secure in place.

4. Remove the bottle lid and place in the mug press (porcelain mug element required). Press the bottle for 170 degrees for 170 seconds using medium pressure.

5. Once pressed, carefully remove the bottle from the heat press and peel the paper.

6. Your personalised water bottle is complete.



Shop Bottles

Speedy and efficient

Ideal for smaller batch orders

Excellent results with more complicated designs, giving you more freedom

Allows you to choose a design that can cover the vast majority of your product

Designs don’t crack, peel or fade



View Sublimation Blanks

View Sublimation Printers

1. What can I sublimate onto?

Garments with a polyester or a polyester mix fabric or various blanks with a special polymer coating (such as our mugs and coasters).

2. What equipment is required for sublimation?

Heat press (for mugs, a specific mug press is required)

Sublimation printer & ink

- Computer or tablet for designing

Heat transfer tape

Protection sheets/pillows

Sublimation paper

3. Why can’t I sublimate on dark garments?

It isn't possible to sublimate on dark coloured garments because there is no white sublimation ink.

4. Why does the image on my screen differ to the final printed result?

It is entirely possible for a print from a sublimation printer to look different to the image on your computer screen. This is because sublimation inks often change colour during the heat pressing process. As the ink reacts when it is heated, it sometimes becomes brighter and more vibrant than the image printed on the sublimation paper. We would highly recommend that, during your testing stage, you heat press the image on to a product to see the final result before beginning a batch order.

5. Can I use an iron instead of a heat press?

No. You need a continuous, even heat and pressure to be applied simultaneously to the entire surface area. This can only be effectively achieved using a heat press.
