    Mimaki UJF-3042HG Flatbed LED UV A3 Printer

    RRP £19,995.00

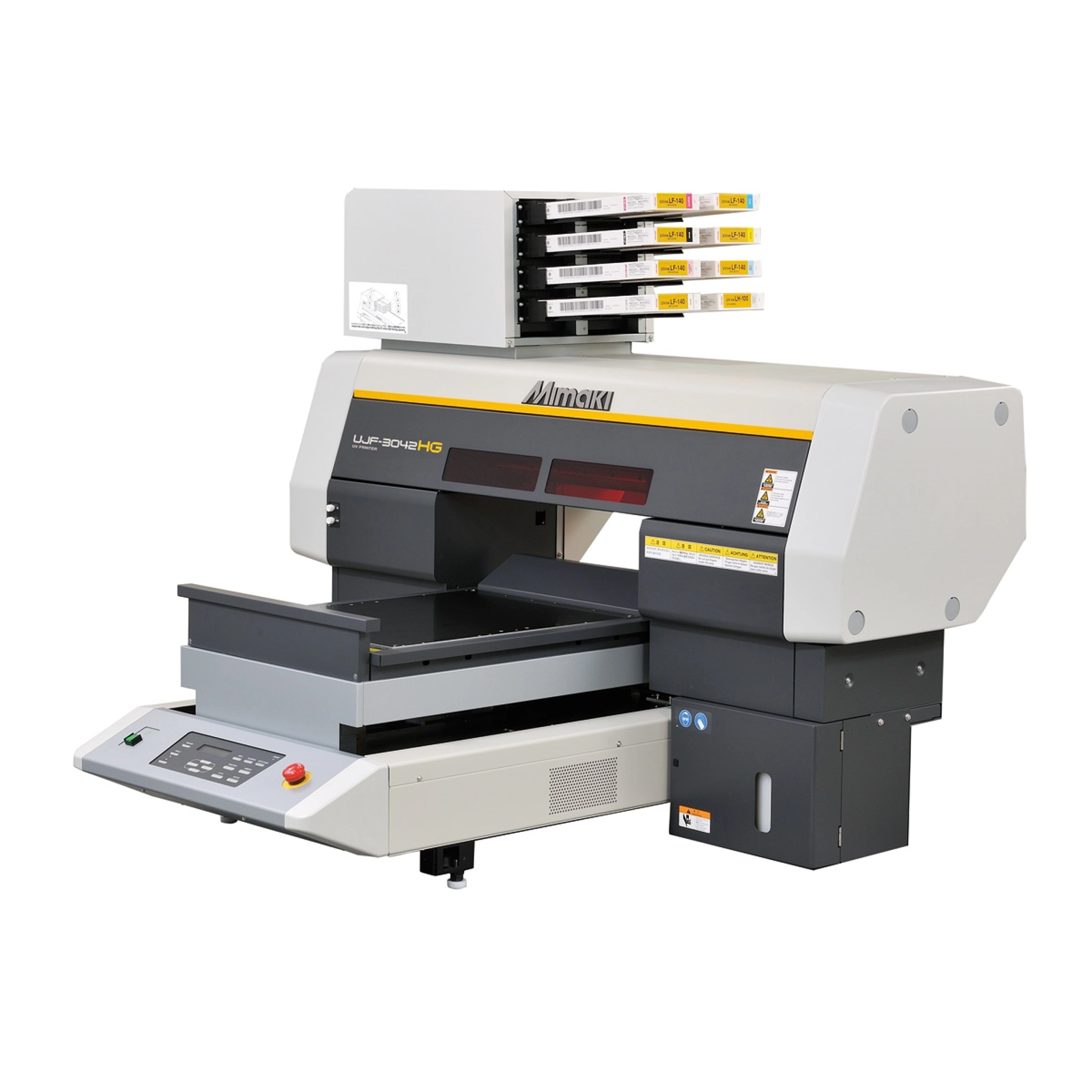

    Picture of Mimaki UJF-3042HG Flatbed LED UV A3 Printer

    Mimaki UJF-3042HG Flatbed LED UV A3 Printer

    Xpres Plus - VIEW OUR SITE DEDICATED TO VOLUME PRODUCTION SOLUTIONS!

    Virtual demo available - call to book!

    RRP £19,995.00

    Providing a unique solution for short runs and on-demand printing the UJF-3042HG offers unrivalled versatility and high quality print reproduction on an almost unbelievable range of materials, products and substrates.

    Providing a unique solution for short runs and on-demand printing the UJF-3042HG offers unrivalled versatility and high quality print reproduction on an almost unbelievable range of materials, products and substrates.

    SKU: XP1896
    Manufacturer: Mimaki

    Flatbed system offers a direct print on a wide range of applications

    The flatbed ink jet printer "UJF3042HG" enables printing on a wide range of printing application by direct printing on A3 size (420 x 297mm) with 150mm high. Digital data printing provides more detailed and flexible responses to customer's needs than the printing method using print plates.

    6-color, white and clear ink achieves eye-catching print results.

    Six-color inks are set up by adding two ink slots. Higher-definition and more beautiful gradation than four-color printing can be achieved by using six colors. Furthermore, white and clear inks add value to printed products by providing under/over-coating on transparent or colored materials as well as glossy /matte finish.

    3 different types of UV inks available

    LH-100 / 4 Color (K,C,M,Y) + W,CL - LF-200 / 4 Color (K,C,M,Y) + W - LF-140 / 6 Color (K,C,M,Y,Lc,Lm) + W * LH-100 clear

    “MCT(Mimaki Circulation Technology)”

    Automatic ink circulation system “MCT” (Mimaki Circulation Technology) prevents pigment sedimentation. This system provides efficient white ink consumption, thus reducing white ink waste. Additionally, the “MCT” offers more stable white ink-jetting.

    Providing a unique solution for short runs and on-demand printing the UJF-3042HG offers unrivalled versatility and high quality print reproduction on an almost unbelievable range of materials, products and substrates.

    UJF-3042HG
    Print head On-demand piezo print head
    Resolution 720×600 dpi, 1,440×1,200 dpi
    UV inkKind LH-100 (C/M/Y/K/W/Cl)
    LF-200 (C/M/Y/K/W)
    LF-140(C/M/Y/K/Lc/Lm/W)
    Capacity 220 ml ink cartridge / 600 ml ink container
    Inkjet primer PR-100
    (220 ml ink cartridge / 600 ml ink container)
    Max. print size Width:300 mm (11.8")  Length:420 mm (16.5")
    Media sizesMax. size Width:364 mm (14.3")  Length:463 mm (16.2")
    Thickness Up to 150 mm (5.9")
    Weight Up to 5 kg (11.0 lbs)
    UV technology UV LED unit
    Interface USB2.0
    Power requirements AC100V – 240V ± 10 % / below 0.5 kVA
    Dimensions (W×D×H) / Weight 1,200 mm × 970 mm × 770 mm / 130 kg (47.2 " x 38.1 " x 30.3 " / 286.6 lbs)
    Products specifications
    Applications Promotional
    Applications Merchandising
    Ink Type UV
