    Mimaki UJF3042 MkII EX Flatbed UV Printer (excludes inks)

    RRP £25,995.00

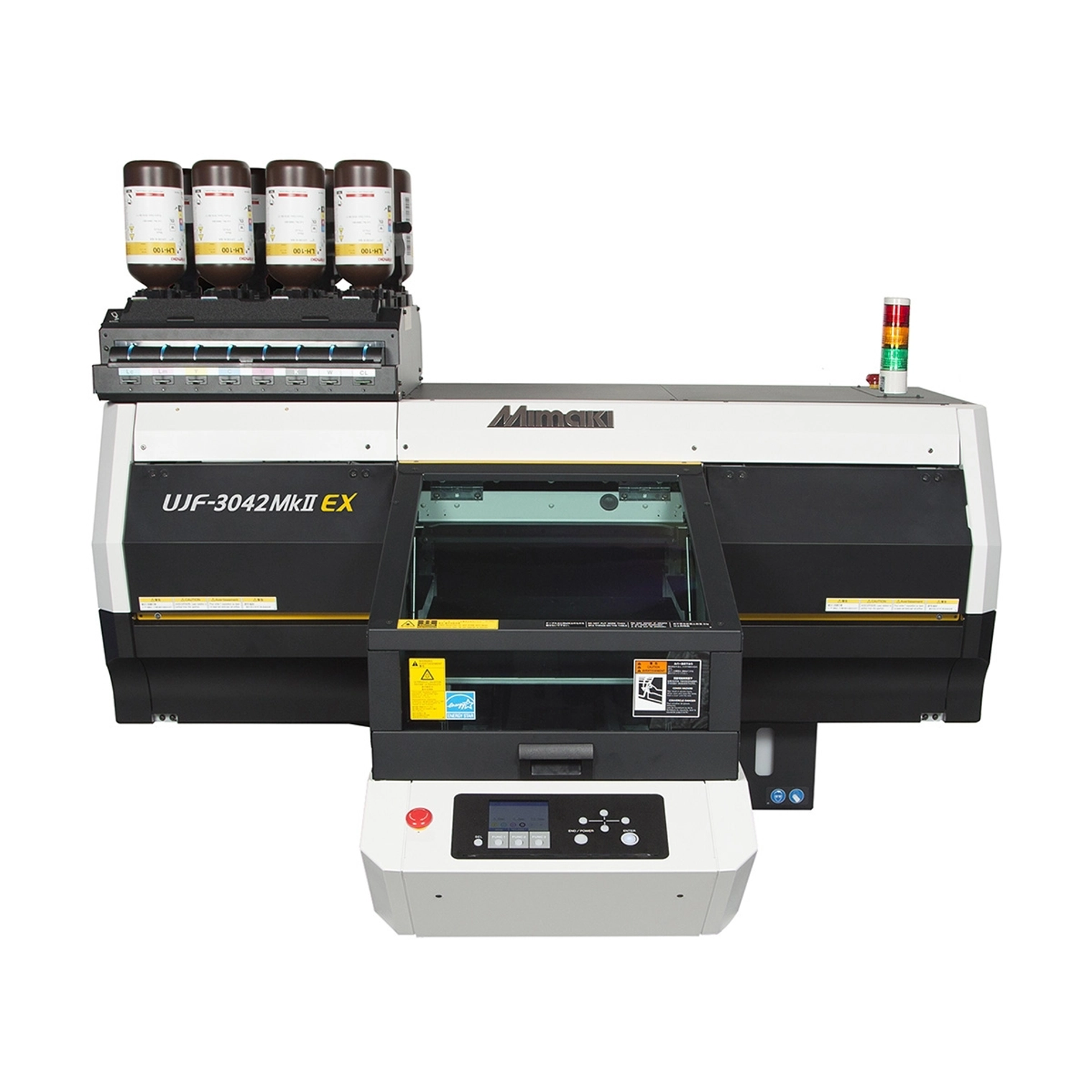

    Picture of Mimaki UJF3042 MkII EX Flatbed UV Printer (excludes inks)

    Mimaki UJF3042 MkII EX Flatbed UV Printer (excludes inks)

    Xpres Plus - VIEW OUR SITE DEDICATED TO VOLUME PRODUCTION SOLUTIONS!

    Virtual demo available - call to book!

    RRP £25,995.00

    The Mimaki UJF-3042MkII EX is the EXTRA model of "UJF-3042MkII" of which high productivity, excellent machine performance and beauty of print are reserved to upgrade the configuration from the 3 print heads to 4.

    UJF-3042MkII EX
    Printhead On-demand piezo printhead
    (4 printheads arranged in a staggered line)
    Print resolution Maximum: 1200 x 1200 dpi
    Maximum printable area Width: 300mm
    Length: 420mm (A3 size)
    InkType/Color LH-100 (C, M, Y, K, Lc, Lm, W, Cl)
    LUS-120 (C, M, Y, K, Lc, Lm, W, Cl)
    LUS-150 (C, M, Y, K, W)
    PR-200 (Primer)
    Packaging LH-100, LUS-120, PR-200: 250 ml bottle / 1 L bottle
    LUS-150: 1 L bottle
    MediaThickness 153 mm (6 in) or less
    Weight 5 kg (11 lb) or less
    Certifications VCCI class A / FCC class A / ETL UL 60950-1 / CB /
    CE Marking (EMC, Low voltage, Machinery directive, and RoHS)/ REACH / Energy Star / IEC60825-1
    Interface Ethernet / USB2.0
    Noise level Standby mode: 55dB or less (FAST-A, measured1 m away from the source)
    Continuous operation: 65 dB or less
    Discontinuous operation: 70 dB or less
    Power supply Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz
    Power consumption 1,000W or less
    Operational environmentTemperature 20 - 30 degC (68 - 86 degF)
    Humidity 35 - 65%Rh
    Recomended Temperature 20 - 25 degC (68 - 77 degF)
    Thermal gradient ±10 degC (±50 degF) /h or less
    Dust level Equivalent to a general office floor level
    RIP software RasterLink6 (Bundled)
    Dimensions (W × D × H) *1 1,355 mm × 1,290 mm × 856 mm
    (53.4 in × 50.8 in × 33.7 in)
    Weight 135 kg (297.6 lb)

    *1: The height (H) does not count the height of ink bottle.
    - Inks would not be cured when printing speed is faster than that of draft mode.

    • Some of the screens and printing samples in this website are artificial renderings.
    • Specifications are subject to change without notice.
    • All trademarks or registered trademarks are the property of their respective owners.
    • Inkjet printers print using extremely fine dots, thus colors may vary slightly following replacement of the printing heads. Also note that if using multiple printer units, colors may vary slightly among the units due to slight individual differences among the units.
    SKU: XP1816
    Brand: Mimaki

    The Mimaki UJF-3042MkII EX is the EXTRA model of "UJF-3042MkII" of which high productivity, excellent machine performance and beauty of print are reserved to upgrade the configuration from the 3 print heads to 4.

    UJF-3042MkII EX
    Printhead On-demand piezo printhead
    (4 printheads arranged in a staggered line)
    Print resolution Maximum: 1200 x 1200 dpi
    Maximum printable area Width: 300mm
    Length: 420mm (A3 size)
    InkType/Color LH-100 (C, M, Y, K, Lc, Lm, W, Cl)
    LUS-120 (C, M, Y, K, Lc, Lm, W, Cl)
    LUS-150 (C, M, Y, K, W)
    PR-200 (Primer)
    Packaging LH-100, LUS-120, PR-200: 250 ml bottle / 1 L bottle
    LUS-150: 1 L bottle
    MediaThickness 153 mm (6 in) or less
    Weight 5 kg (11 lb) or less
    Certifications VCCI class A / FCC class A / ETL UL 60950-1 / CB /
    CE Marking (EMC, Low voltage, Machinery directive, and RoHS)/ REACH / Energy Star / IEC60825-1
    Interface Ethernet / USB2.0
    Noise level Standby mode: 55dB or less (FAST-A, measured1 m away from the source)
    Continuous operation: 65 dB or less
    Discontinuous operation: 70 dB or less
    Power supply Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz
    Power consumption 1,000W or less
    Operational environmentTemperature 20 - 30 degC (68 - 86 degF)
    Humidity 35 - 65%Rh
    Recomended Temperature 20 - 25 degC (68 - 77 degF)
    Thermal gradient ±10 degC (±50 degF) /h or less
    Dust level Equivalent to a general office floor level
    RIP software RasterLink6 (Bundled)
    Dimensions (W × D × H) *1 1,355 mm × 1,290 mm × 856 mm
    (53.4 in × 50.8 in × 33.7 in)
    Weight 135 kg (297.6 lb)

    *1: The height (H) does not count the height of ink bottle.
    - Inks would not be cured when printing speed is faster than that of draft mode.

    • Some of the screens and printing samples in this website are artificial renderings.
    • Specifications are subject to change without notice.
    • All trademarks or registered trademarks are the property of their respective owners.
    • Inkjet printers print using extremely fine dots, thus colors may vary slightly following replacement of the printing heads. Also note that if using multiple printer units, colors may vary slightly among the units due to slight individual differences among the units.
