    Mimaki UJV100-160 UV Roll to Roll Printer

    RRP £0.00


    Picture of Mimaki UJV100-160 UV Roll to Roll Printer

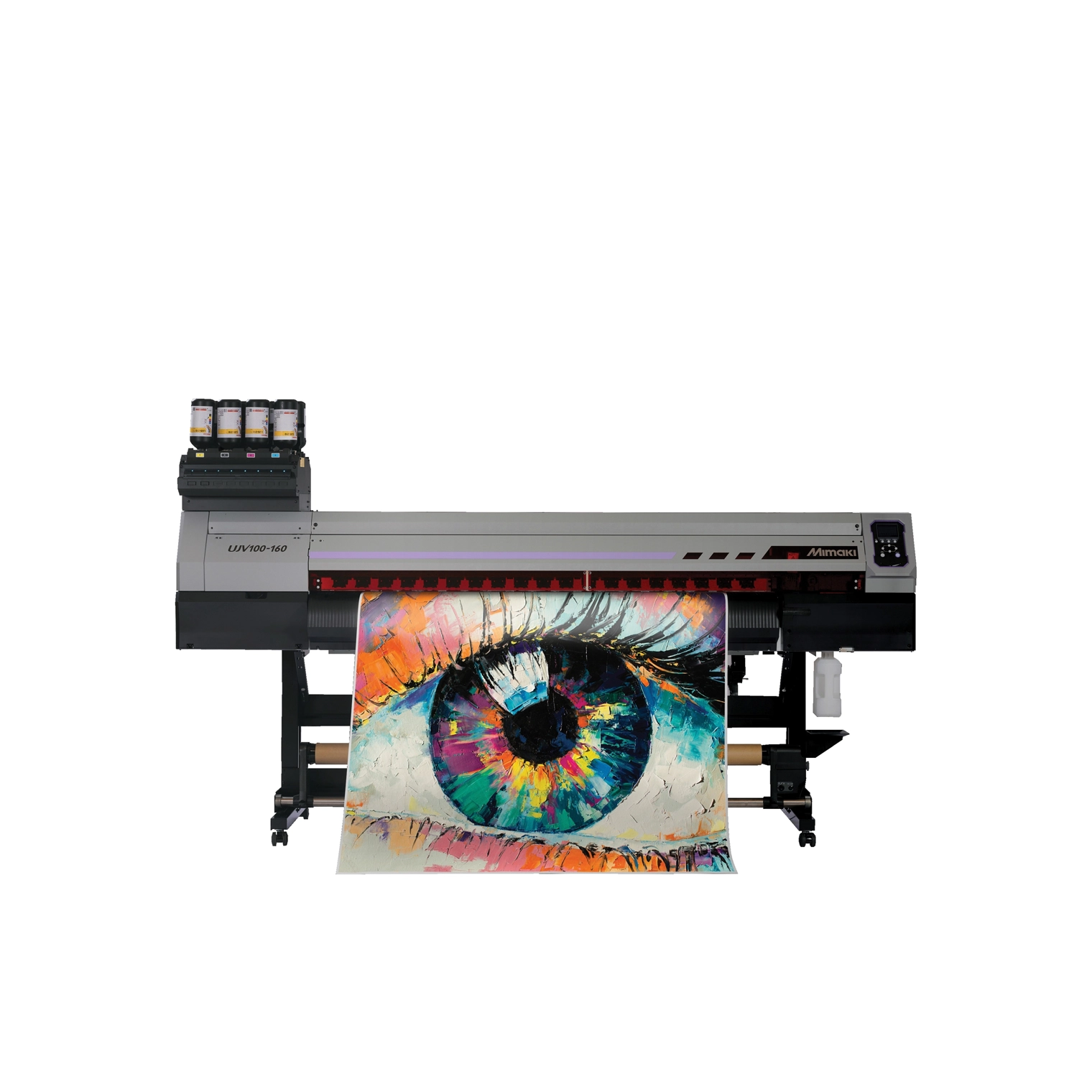

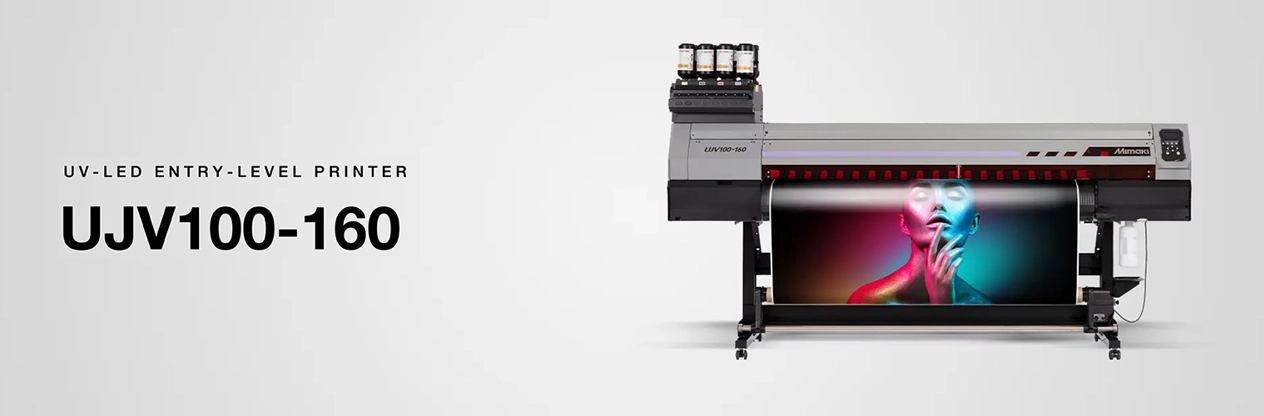

    Mimaki UJV100-160 UV Roll to Roll Printer

    Xpres Plus - VIEW OUR SITE DEDICATED TO VOLUME PRODUCTION SOLUTIONS!

    Virtual demo available - call to book!

    RRP £0.00

    i h

    The UJV100-160 LED UV Roll to Roll Inkjet Printer is fully eqipped with the latest Mimaki functions. Advanced print technology for high image quality, stable operation, high productivity and improved usability.

    SKU: XP1812

    The UJV100-160 LED UV Roll to Roll Inkjet Printer is fully eqipped with the latest Mimaki functions. Advanced print technology for high image quality, stable operation, high productivity and improved usability.

    Products specifications
    Print Heads On-demand piezo head (2 staggered layout)
    Max Print Resolution 360 dpi, 720 dpi, 900 dpi, 1200 dpi
    Ink Type UV-curable ink LUS-170 (C, M, Y, K, W, Cl)
    Ink Type UV-curable ink LUS-210 (C, M, Y, K, W, Cl)
    Ink Capacity 1L bottle
    Max Print Width 1,610 mm (63.4 in)
    Max Media Width 1,620 mm (63.8 in)
    Thickness 1 mm or lower
    Roll Outer Diameter φ250 mm or less
    Max Roll Weight 45 kg or less
    Certifications VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, ENERGY STAR®, RCM, EAC
    Interfaces USB2.0 / Ethernet 1000BASE-T
    Power Supply Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz
    Operating Conditions Temperature: 20–30 °C (68–86 °F)
    Operating Conditions Humidity: 35–65% Rh (Non condensing)
    Dimensions 2,775 x 700 x 1,475 mm (109.3 x 27.6 x 58.1 in)
    Weight 167 kg (368.2 lb)
    Reliable functions of UJV100-60
    DAS (Dot Adjustment System)

    DAS is a new feature that automates conventional dot placement (dot position and feeding correction) for maximum image quality, saving operators time and reducing manual errors.

    After changing media and printing conditions, the ink dot position and media feeding amount must be adjusted accordingly. The new DAS function automatically does this, eliminating the need for manual labor and reducing the possibility of manual errors. N.B. DAS may not be able to automatically adjust some media.

    DAS prints a dedicated pattern onto the media, which is then read by the sensor mounted on the carriage to automatically adjust:



    Minimum ink dot size of 4pl

    Beautiful print results without a grainy appearance.

    Three different ink dot sizes ensure fantastic image quality without a grainy appearance.

    “MAPS4” supported (Mimaki Advanced Pass System)

    By printing the border of the path in a gradation tone, banding (horizontal stripes), uneven colour, and glossy stripes are reduced to achieve smooth printing.

    No drying time

    The ink is instantly cured by UV irradiation, so you can start the next process (e.g. lamination) immediately after printing, without having to wait for the ink to dry.
