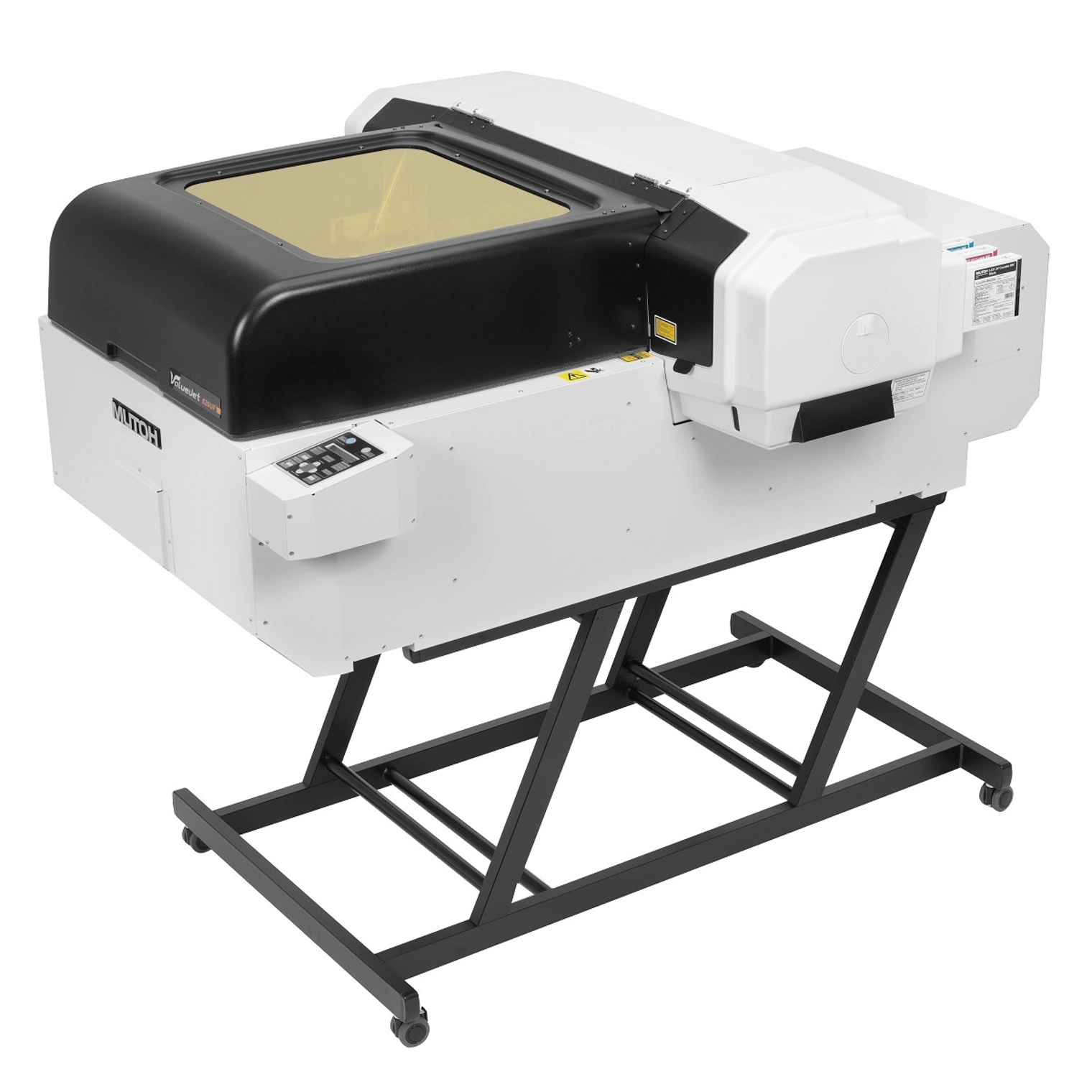

Mutoh ValueJet 626UF Printer
The Mutoh ValueJet 626UF is a 6 colour (CMYK, White & Varnish) A2-sized flatbed LED UV printer with integrated vacuum bed, offering a media size of 594 mm (23.39”) x 483 mm (19”).Out Of Stock
The Mutoh ValueJet 626UF is a 6 colour (CMYK, White & Varnish) A2-sized flatbed LED UV printer with integrated vacuum bed, offering a media size of 594 mm (23.39”) x 483 mm (19”).
The VJ-626UF allows direct printing on a wide variety of flexible and solid materials up to 150 mm thick and its advanced technology means that media thickness is measured automatically.
An energy-efficient latest generation LED UV lamp ensures prints dry instantly, meaning they're usable immediately and produced using minimum energy consumption. The printer's reduced working temperatures also allow printing onto heat sensitive substrates.
Compared to 'classic' UV printing, Mutoh LED UV technology gives you state-of-the-art health and safety and environmental benefits: no o-zone generation and it's free from heavy metals like mercury and lead. Moreover, Mutoh’s LED UV inks and varnish do not contain any hazardous air pollutants, they're completely VOC-free and as such do not need an air purification system.
Both flex and rigid inks are available.
ValueJet 626UF - Technical Key Specifications |
||||
| Print Technology | Drop-on-demand Micro Piezo Inkjet Technology | |||
| Print Head | 1 | |||
| Nozzle Configuration | 180 nozzles x 8 lines | |||
| Drop Mass Range (pl) | 3.9 to 26.9 | |||
| LED UV lamp life | 14.250 hours | |||
ValueJet 626UF - Media Specifications |
||||
| Size Print Table | 594 mm (23.39"") x 483 mm (19”) | |||
| Max. Print Area | 584 mm (22.99”) x 473 mm (18.62"") | |||
| Max. Media Thickness | Up to 150 mm (5.91"") | |||
| Max. Media Weight | 6kg | |||
| Media Drying System | Long life LED UV curing lamp | |||
| Table Height | Automatic table lift system with obstacle detection laser | |||
| Vacuum System | Standard integrated - Strength electronically adjustable | |||
| Compatibility * | ABS, Aluminium, Ceramic, Glass, PC, PE, PET, PMMA, PS, PP, PU, PVC | |||
| * : Ink adhesion will vary among media type and brand. The level of required adhesion on the final graphic depends on handling and usage. Individual testing is required in function of your specific application. In some cases the bond can be improved by using and adhesion promoter/primer. | ||||
ValueJet 626UF - Performance |
||||
| 4-colour setup | 6-colour setup | |||
| CMYK | CMYK only | 100 % White or Varnish | CMYK + White + Varnish * | |
| Speed in tables per hour (excl. unloading / loading time) | ||||
| 1440 x 1440 Uni | 3.4 | 1.4 | 3.4 | 0.5 |
| 720 x 1440 Uni | 6.8 | 3.2 | 6.8 | 1.3 |
| 720 x 1080 Bi | 9.0 | 4.6 | 9.0 | 1.8 |
| Data size for 1 table : 473 mm x 583 mm = 0.276 m² Weaving: i-Weave UV - carriage movement : Data Width * : Multi table mode - Table returns to origin for each layer |
||||
ValueJet 626UF - Ink Specifications |
||||
| Ink Type | LED UV inks - Rigid and Flexible types | |||
| Ink Colours / Volume | CMYK & Varnish - 220 ml cassette / 800 ml packs White - 220 ml cassette / 500 ml pack |
|||
| Ink Setup | CMYK (CCMMYYKK) CMYK + White + Varnish (CMYK+2xWh+2xVa) |
|||
| Ink Consumption * | 2.72 ml / table | |||
| * : Average ink consumption at @720 dpi - coverage of 67 % | ||||
ValueJet 626UF - Power Consumption |
||||
| During Printing | < 300 Watt | |||
| Power Supply | AC 100-120 V / AC 200-240 - 60/50 Hz - ≤ 4.0 A / ≤ 2.0 A | |||
| Noise | Printing : < 67.2 dB / Standby : < 47.5 dB | |||
ValueJet 626UF - Connectivity / Interface |
||||
| Ethernet | 10 BASE-T; 100 BASE-TX | |||
ValueJet 626UF - Recommended Working Environment |
||||
| Temperature | 20 °C - 32 °C with Δt: max. 2 °C/h | |||
| Humidity | 40 % - 60 % (no condensation) with ΔRH: max. 5 % RH/h | |||
ValueJet 626UF - Machine Measurements |
||||
| Width x Depth x Height | 1190 x 1535 mm unit only : 605 mm / On stand : 1255 mm |
|||
| Weight | 120 kg (unit) - 21 kg (stand) |
