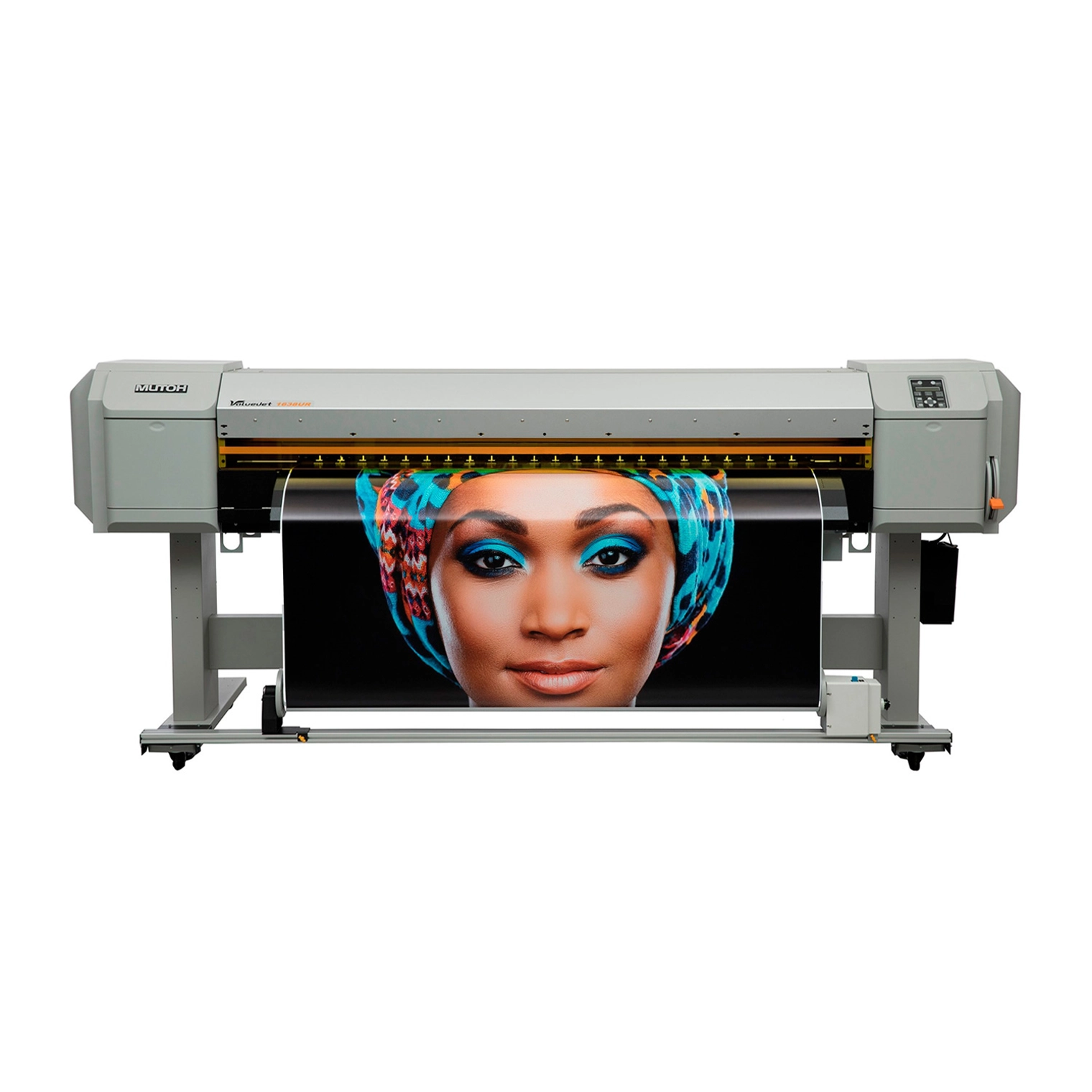

Mutoh VJ1638UR Hybrid 64" LED UV Printer
Mutoh VJ1638UR Hybrid 64" LED UV Printer (ink not included) OFFER INCLUDES FREE4 x sets of Mutoh's Flexible LED UV Ink 220ml cassettes (32) worth2,080
Sku: XP2438
Out Of Stock
Mutoh VJ1638UR Hybrid 64" LED UV Printer (ink not included)
OFFER INCLUDES FREE 4 x sets of Mutoh's Flexible LED UV Ink 220ml cassettes (32) worth £2,080
ValueJet 1638UH - Technical Key Specifications |
||||
| Print Technology | Drop-on-demand Micro Piezo Inkjet Technology | |||
| Print Head | 2 (staggered setup) | |||
| Nozzle Configuration | 180 nozzles x 8 lines (each head) | |||
| Drop Mass Range (pl) | 3.8 to 28 | |||
| Head Heights | Automatic* | |||
| * : Media thickness is measured electronically and head height is automatically adjusted | ||||
| LED UV lamp life | 14.250 hours | |||
ValueJet 1638UH - Roll Media Specifications |
||||
| Min./Max. Media Width | 182 mm (7.17"") / 1625 mm (63,97”) | |||
| Max. Print Width | 1615 mm (63,58”) | |||
| Max. Media Thickness | 15 mm | |||
| Media Measurements * | Ø 150 mm / 2” & 3” / 30 kg | |||
| * : Standard non-motorised roll-off system | ||||
| Ink Drying System | 2 Long life LED UV curing lamps | |||
ValueJet 1638UH - Rigid Media Specifications |
||||
| Min./Max. Media Width | 182 mm (7.17"") / 1625 mm (63,97”) | |||
| Max. Print Width | 1615 mm (63,58”) | |||
| Max. Media Length | 200 (7.87"") - 1200 mm (47.24"") | |||
| Max. Media Thickness | 15 mm | |||
| Max. Media Weight | 15 kg | |||
| Ink Drying System | 2 Long life LED UV curing lamps | |||
ValueJet 1638UH - Performance |
||||
| 4-colour setup | 6-colour setup | |||
| CMYK | CMYK only | White only | Layer print * | |
| 1440 x 1440 Uni | 2.86 m²/h | 0.72 m²/h | 2.86 m²/h | 0.37 m²/h |
| 1440 x 1440 Bi | 5.68 m²/h | 1.42 m²/h | 5.68 m²/h | 0.73 m²/h |
| 720 x 1440 Uni | 5.72 m²/h | 2.75 m²/h | 5.72 m²/h | 1.39 m²/h |
| 720 x 1440 Bi | 11.35 m²/h | 5.47 m²/h | 11.35 m²/h | 2.75 m²/h |
| 720 x 1080 Bi | 14.23 m²/h | 6.83 m²/h | 14.23 m²/h | 3.45 m²/h |
| 720 x 720 Bi | 22.71 m²/h | 11.27 m²/h | 22.71 m²/h | 5.50 m²/h |
| * : CMYK + White + Varnish | ||||
ValueJet 1638UH - Ink Specifications |
||||
| Ink Type | LED UV inks - Rigid and Flexible types | |||
| Ink Colours / Volume | CMYK + Varnish : 220 ml cassette / 800 ml bag * White : 220 ml cassette / 500 ml bag * |
|||
| * : 800 ml / 500 ml pack requires optional adapter |
||||
| Ink Setup | CMYK (CCMMYYKK) CMYK + White + Varnish (CMYK+2xWh+2xVa) |
|||
| Compatibility | ABS, Aluminium board, Cardboard, Fluted & corruga- ted boards, Glass, heat sensitive flex media like Polyolefin-based (PVC-Free) self-adhesive films, Non-woven, PC, PE, PET, PES, PMMA (acrylic), PP, PS, PVC * | |||
| * : Ink adhesion will vary among media type and brand. Some media may require a primer or may benefit from corona treatment. Individual testing is required in function of your choice of material, brand and specific application. |
||||
ValueJet 1638UH - Power Consumption |
||||
| During Printing | < 700 Watt | |||
| In Stand-by / Sleep | < 55 W / < 25 W | |||
| Power Supply | AC 100-120 V / AC 200-240 - 60/50 Hz - ≤ 4.0 A / ≤ 2.0 A | |||
ValueJet 1638UH - Recommended Working Environment |
||||
| Temperature | 20 °C - 32 °C with Δt: max. 2 °C/h | |||
| Humidity | 40 % - 60 % (no condensation) with ΔRH: max. 5 % RH/h | |||
ValueJet 1638UH - Machine Measurements |
||||
| Width x Depth x Height | 2983 x 818 x 1261 mm (roll) 2983 x 2730 x 1261 mm (rigid)
|
|||
| Weight | 197 kg (printer + stand) |
