Roland LEF2-300D

RRP £0.00


Picture of Roland LEF2-300D

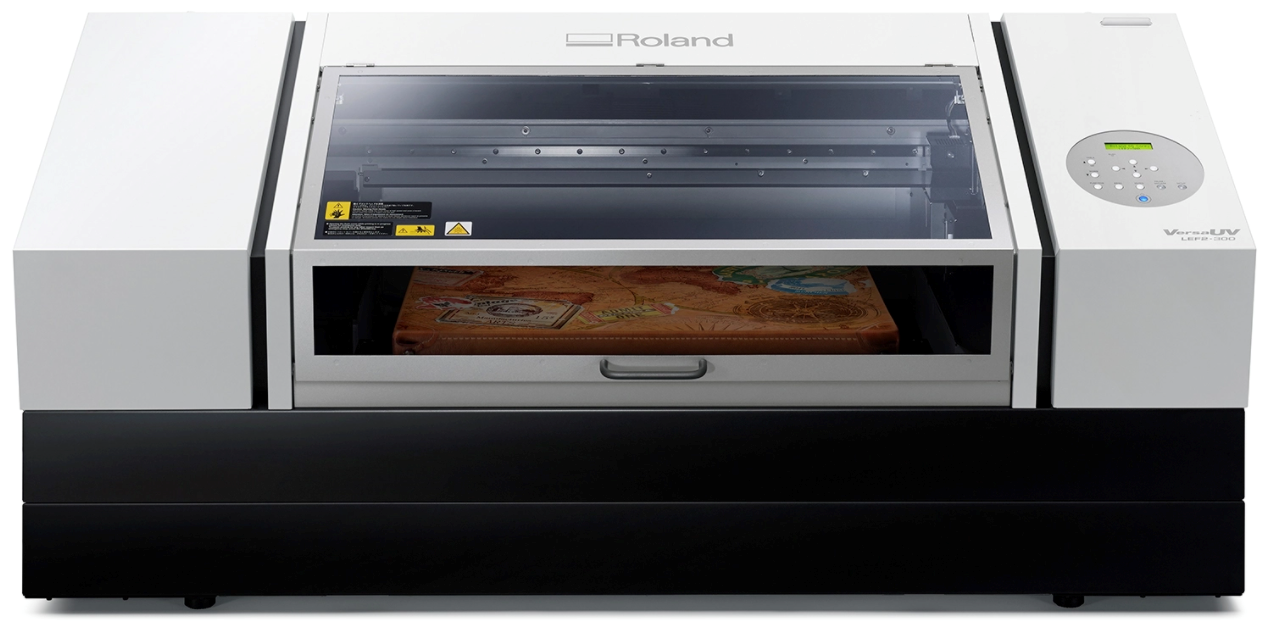

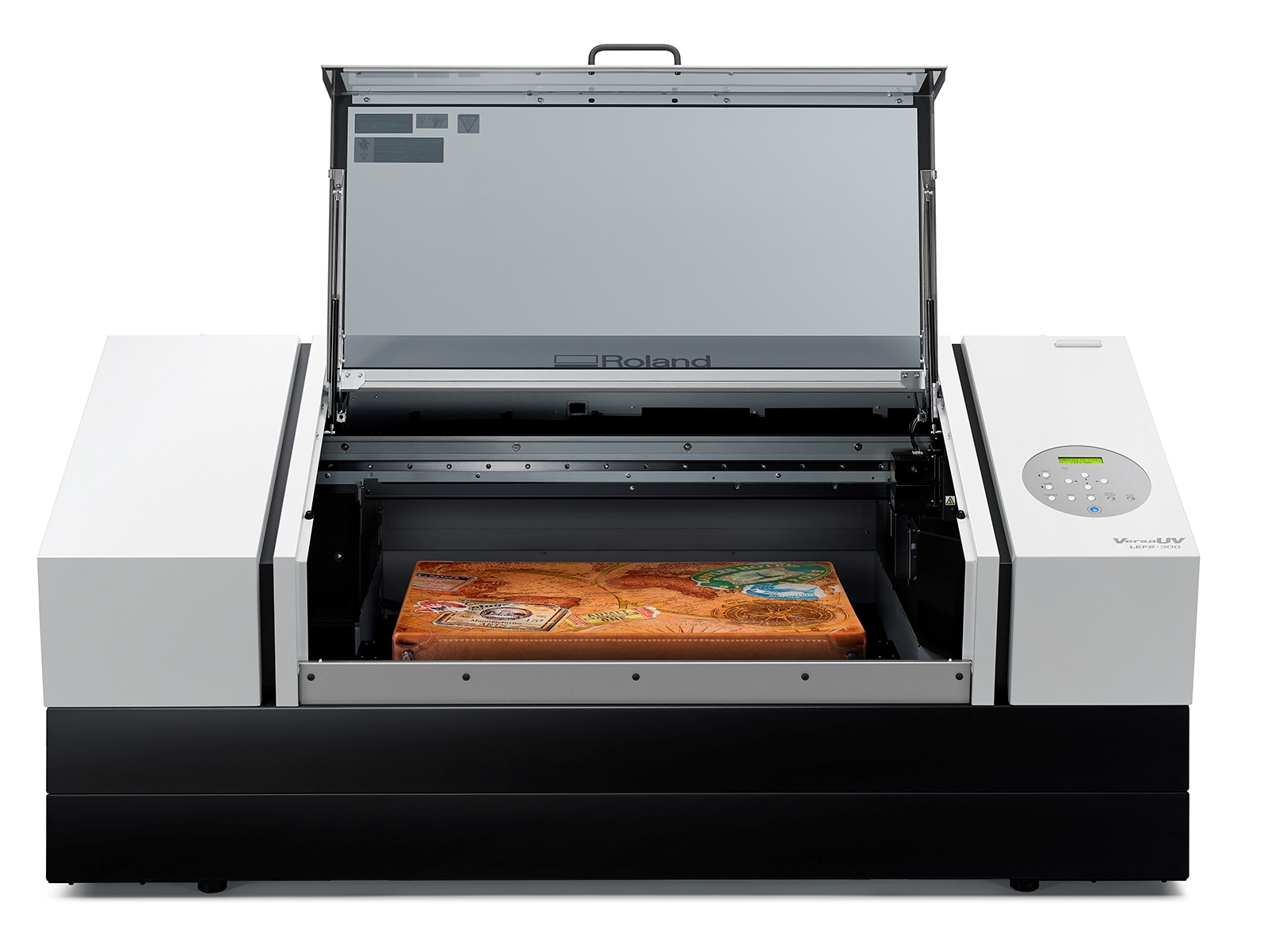

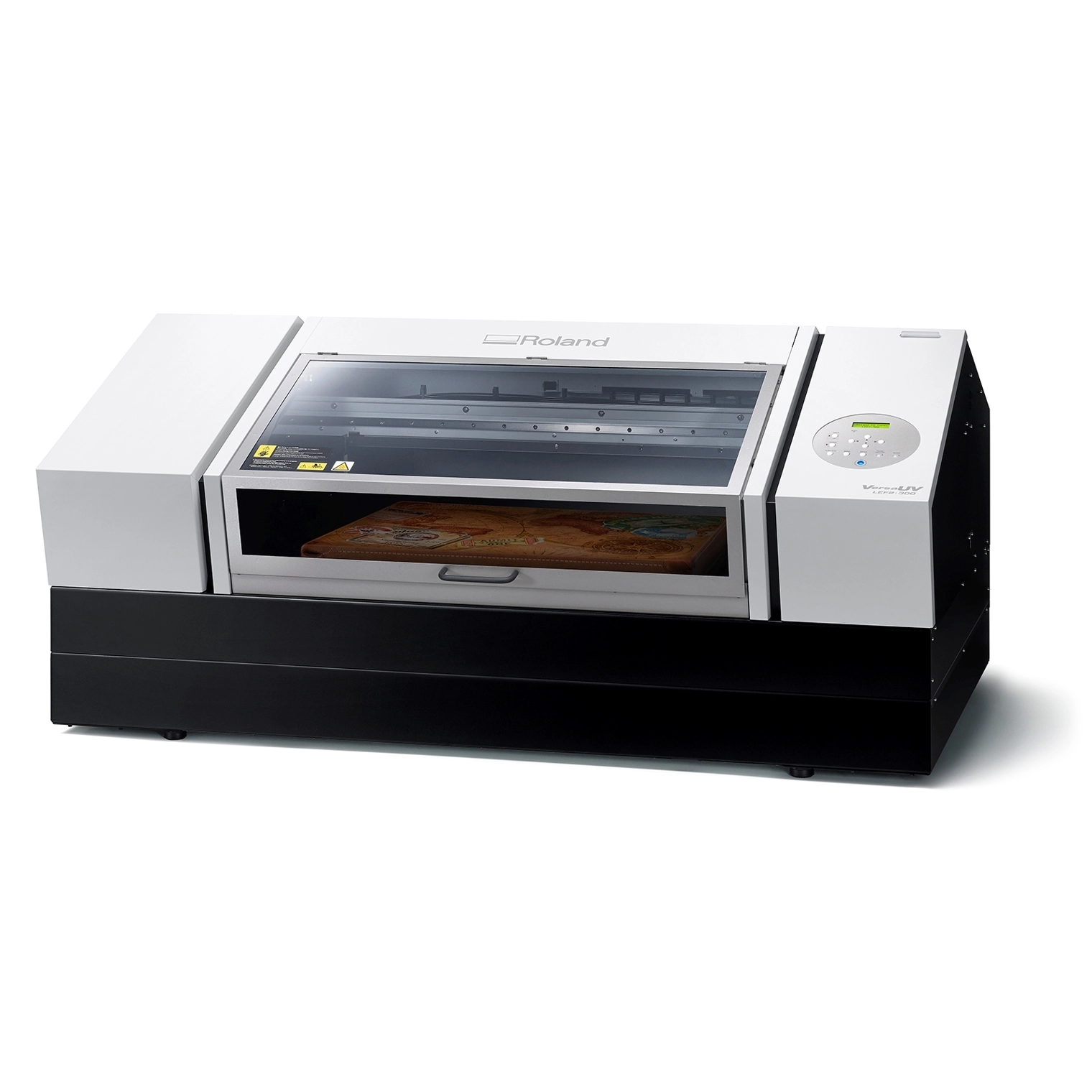

Roland LEF2-300D

Call 01332 855 085

RRP £0.00

Your customers want something unique. Give them something extraordinary with the Roland LEF2-300D: among the latest generation of Roland’s award-winning benchtop UV printers.

Simple to operate and packed with potential, the LEF2 series enables direct printing onto a huge range of materials and objects up to 200mm thick – producing stunning colour, realistic textures and stylish embossed effects.

SKU: XP1000
Brand: Roland

Simple to operate and packed with potential, the LEF2 series enables direct printing onto a huge range of materials and objects up to 200mm thick – producing stunning colour, realistic textures and stylish embossed effects.

Model LEF2-300D
Printing technology Piezoelectric inkjet
Media Width

Max. 800 mm (31.5 in.)

Length

Max 360 mm (14.2 in.)

Thickness

Max. 200 mm (7.87 in.)*1

Weight

Max. 8 kg (18 lb.) (When using a spacer table: Max. 2 kg (4.4 lb.))

Printing width/length

Max. 770 (w) × 330 (l) mm (30.3 × 13 in.)

Ink Type

ECO-UV (EUV4) 220 cc cartridge, ECO-UV (EUV4) 500 cc cartridge (White ink is not available in 500 cc cartridges.)

Colours

Six colours (Cyan, Magenta, Yellow, Black, White and Gloss × 2)
Six colours (Cyan, Magenta, Yellow, Black, White and Gloss) and Primer

Ink-curing unit

Built-in UV-LED lamp x 2

Print resolution (dots per inch) Max. 1440 dpi
Distance accuracy*1

±0.3 mm (±11.8 mil) or ±0.3% of the specified distance, whichever is greater

Position reproducibility*2

±0.2 mm (±7.9 mil) or ±0.1% of the specified distance, whichever is greater

Connectivity Ethernet (10Base-T/100Base-TX, automatic switching)
Power-saving function Automatic sleep feature
Power requirements

AC100 to 240 V ± 10%, 2.1 A, 50/60 Hz

Power consumption During operation Approx. 178 W
Sleep mode Approx. 18 W
Acoustic noise level During operation 60 dB (A) or less
During standby 49 dB (A) or less
Dimensions

1560(W)×955(D)×676(H)mm(61.4[W] x 37.6 [D] × 26.6 [H] in.) [When the ink-cartridge tray is attached; 1866 × 955 × 676 mm (73.5 × 37.6 × 26.6 in.) ]

Weight 166 kg (366 lb)
Environment Power on*2 Temperature: 20 to 32°C (68 to 90°F)  (22°C/72°F or higher recommended)
Humidity: 20 to 80% RH (no condensation)
Power off Temperature: 5 to 40°C (41 to 104°F)
Humidity: 20 to 80% RH (no condensation)
Included items Roland VersaWorks 6 RIP software, power cable, cleaning liquid, drain bottle, manuals, etc.

*1 Use a spacer table for printing targets with a thickness of 0 to 100mm (0to3.94in.).
*2 Temperature for LEF2-300 and LEF2-300D is 23°C (73°F) and for LEF2-200 is 25°C (77°F). Humidity: 50% RH.

Specifications, designs and dimensions listed may be subject to change without notice.

Products specifications
Printing Methods Piezoelectric inkjet
Max Media Width 800 mm (31.5 in.)
Media Length Max 360 mm (14.2 in.)
Media Thickness Max. 200 mm (7.87 in.) Use a spacer table for printing targets with a thickness of 0 to 100mm (0 to 3.94in.).
Media Weight Max. 8 kg (18 lb.) (When using a spacer table: Max. 2 kg (4.4 lb.))
Print Area Max. 770 (w) × 330 (l) mm (30.3 × 13 in.)
Ink Type ECO-UV (EUV4) 220 cc cartridge, ECO-UV (EUV4) 500 cc cartridge (White ink is not available in 500 cc cartridges.)
Number of Inks Six colours (Cyan, Magenta, Yellow, Black, White and Gloss × 2) Six colours (Cyan, Magenta, Yellow, Black, White and Gloss) and Primer
Ink-curing unit Built-in UV-LED lamp x 2
Max Print Resolution Max. 1440 dpi
Distance Accuracy ±0.3 mm (±11.8 mil) or ±0.3% of the specified distance, whichever is greater
Position reproducibility ±0.2 mm (±7.9 mil) or ±0.1% of the specified distance, whichever is greater
Connectivity Ethernet (10BASE-T/100BASE-TX, automatic switching
Power-saving function Automatic sleep feature
Power Supply AC100 to 240 V ± 10%, 2.1 A, 50/60 Hz
Paper Consumption During Operation: Approx. 178 W. Sleep Mode: Approx. 18 W
Acoustic noise level During operation: 60 dB (A) or less. During standby: 49 dB (A) or less
Dimensions 1560(W)×955(D)×676(H)mm(61.4[W] × 37.6 [D] × 26.6 [H] in.) [When the ink-cartridge tray is attached; 1866 × 955 × 676 mm (73.5 × 37.6 × 26.6 in.) ]
Weight 166 kg (366 lb.)
Environmental During Operation: Temperature: 20 to 32°C (68 to 90°F) (22°C (72°F) or higher recommended), Humidity: 35 to 80% RH (no condensation). Not operating: Temperature: 5 to 40°C (41 to 104°F), Humidity: 20 to 80% RH (no condensation)
Included items VersaWorks 6 RIP software, power cable, cleaning liquid, drain bottle, manuals, etc.
Downloads

TRUE-TO-LIFE PRINTS WITH EXCEPTIONAL IMAGE QUALITY AND SPECIAL EFFECTS

With the VersaUV LEF2 series you can print photos, graphics and finely-detailed text with stunning quality. Plus, create lifelike textures, simulated 3D embossing and Braille text, as well as gloss and matt finishes, on a huge range of substrates and objects. White ink is also available to print as a base layer, for vivid colours that pop on dark, coloured or clear media.

FROM HARD TO SOFT MATERIALS, FROM FLAT TO CURVED OBJECTS

Materials up to 100 mm (3.94 in.) thick can be loaded, and a height tolerance of 2 mm facilitates printing on irregular and curved objects. Furthermore, the LEF2-300D supports a maximum thickness of 200 mm (7.87 in.) in the height direction, allowing you to print not only on thicker materials, but also on a wider variety of shapes by incorporating a more diverse assortment of jigs.

The VersaUV LEF2 series also supports an optional rotary axis jig for printing onto bottles and other cylindrical objects.

PRINT DIRECTLY ONTO A WIDE RANGE OF MEDIA

Low-temperature UV-LED lamps instantly cure ink on the surface of
material, allowing you to print directly onto PVC and plastics, canvas, wood, leather, fabric, and more. Optional on-board Primer provides increased adhesion on substrates such as acrylic and glass and a vacuum table holds thin and tricky-to-handle media in place.

PRINT JUST ONE OR MANY – ON DEMAND

Print several items or just one at a time, on demand. Create prototypes, check the finish of a printed image, produce unique gifts, or print volume runs of customised items. The fully-enclosed cover, quiet, clean operation and stylish design make the LEF2 series ideal for use in retail locations, production print rooms, design studios and manufacturing environments.

With a host of intuitive features and advanced functions to simplify high quality print jobs. Including:

- Start Timer Function Set a time for your LEF2 to automatically complete set-up procedures so you can start printing as soon as your materials are loaded.

- Multiple Print Function When printing the same data continuously, you can perform the next print job just by pressing the start button on the machine, without returning to the software.

- Roland DG Printer Status Monitor The LEF2 supports smart printing operations so you can manage your print production remotely.

POWERFUL VersaWorks 6 RIP SOFTWARE INCLUDED

VersaWorks 6 RIP software is equipped with a user-friendly menu of advanced functions to maximise performance.

Automatically generate White, Clear (gloss) and Primer ink layers directly in the RIP software for streamlined production.

Accurately match colours when producing high-volume work or using multiple LEF2 printers. When combined with cotodesign, Roland’s latest design and print management software, the LEF2 series becomes a complete design-order-print solution for the in-store customisation of gift items and apparel.
