    Roland TrueVis SG2-640 Print & Cut

    RRP £12,499.00

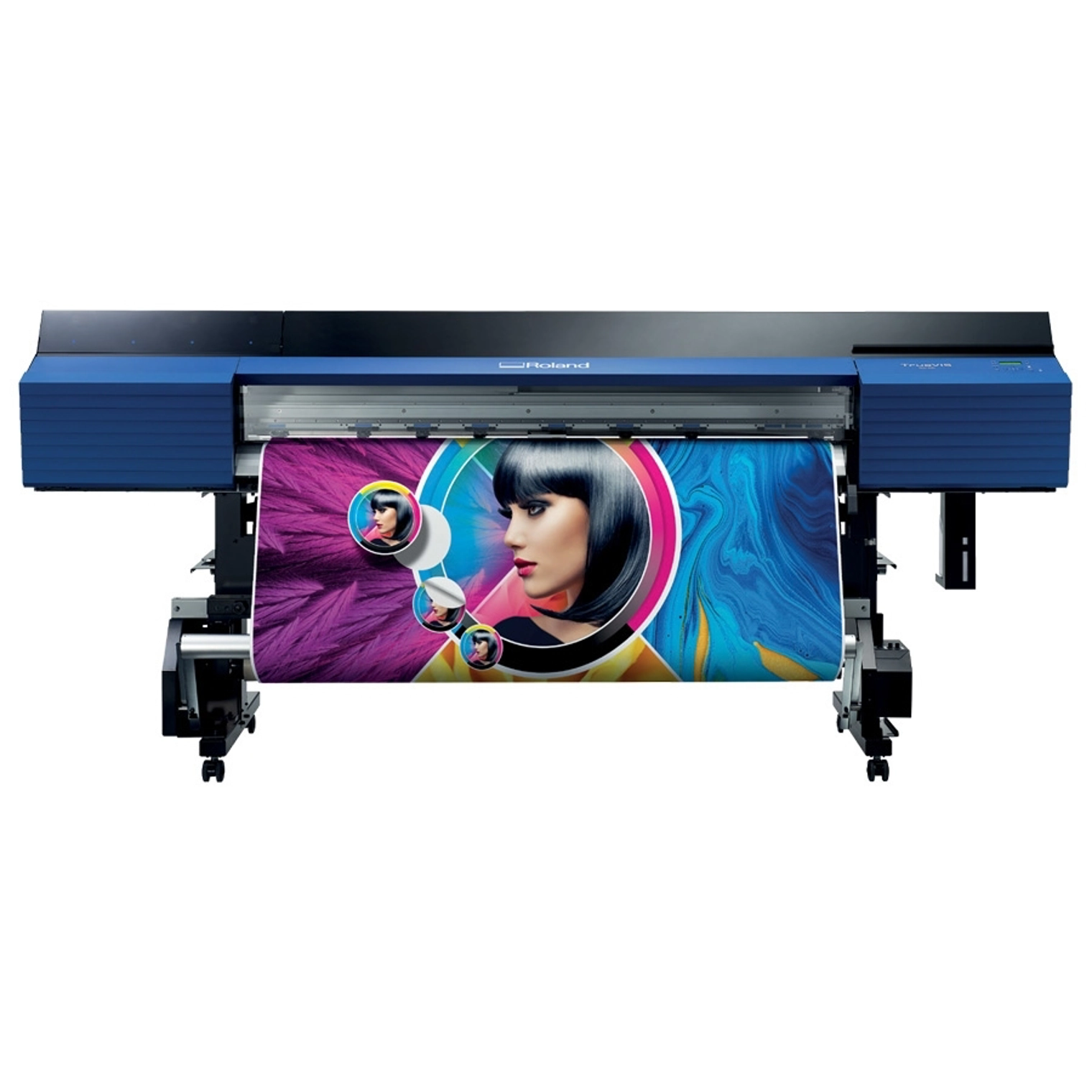

    Picture of Roland TrueVis SG2-640 Print & Cut

    Roland TrueVis SG2-640 Print & Cut

    Xpres Plus - VIEW OUR SITE DEDICATED TO VOLUME PRODUCTION SOLUTIONS!

    Virtual demo available - call to book!

    RRP £12,499.00

    Meet the TrueVIS SG2 series: a true partner for your business. Whether you are just starting out or are looking to take your business to the next level, SG2 printer cutters deliver the trusted quality of the award-winning TrueVIS brand with a streamlined workflow and the super-fast same-day turnaround speeds you need.

    TR2 inks produce stunning, vibrant colours across a huge range of applications - from signs, labels and heat transfers, to car wraps and so much more.

    Available in 3 sizes, the SG2 series combines impressive performance with incredible value and is certified by the industry’s leading media manufacturers. Show your customers what you can do with TrueVIS SG2.

    A take up unit is available with this printer/cutter as an optional extra.

    Model  SG2-640 SG2-540 SG2-300
    Printing method

    Piezo ink-jet method

    Media Width 315 to 1625 mm (12.4 to 64 in.) 275 to 1371 mm (10.8 to 54 in.) 182 to 762 mm (7.2 to 30 in.)
    Thickness Max. 1.0 mm (39 mil) with liner for printing. Max. 0.4 mm (16mil) with liner and 0.22 mm (9 mil) without liner, for cutting
    Roll outer diameter Max. 210 mm (8.3 in.)
    Roll weight Max. 40 kg (88 lb.) Max. 30 kg (66 lb) Max. 25 kg (55 lb.)
    Core diameter (1) 76.2 mm (3 in.) or 50.8 mm (2 in.)
    Printing / cutting width (2) Max. 1600 mm (63 in.) Max. 1346 mm (53 in.) Max. 736 mm (29 in.)
    Ink Type  TrueVIS INK TR2 500 cc pouch
    Colours Four colours (Cyan, Magenta, Yellow and Black)
    Printing resolution (dots per inch) Max. 1200 dpi
    Cutting speed  10 to 300 mm/s (0.4 to 11.8 in./s)
    Blade force (3) 30 to 500  gf
    Blade Type Roland CAMM-1 series blade
    Offset 0.000 to 1.500 mm (0.0 to 59.1 mil)
    Software resolution (when cutting) 0.025 mm/step (0.98 mil/step)
    Distance accuracy (when printing) (4) (5) Error of less than ±0.3% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater
    Distance accuracy (when cutting) (4) Error of less than ±0.4% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater. When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made): Error of less than ±0.2% of distance travelled or ±0.1 mm (±3.9 mil), whichever is greater.
    Repeatability (when cutting) (4) (6) ±0.1 mm (±3.9 mil) or less
    Alignment accuracy for printing and cutting (4) (7) ±0.5 mm (±19.7 mil) or less
    Alignment accuracy for printing and cutting when reloading media (4) (8) Error of less than ±0.5% of distance travelled, or ±3 mm (±0.2 in.), whichever is greater
    Media heating system (9) Print heater set temperature: 30 to 45°C (86 to 112°F) Dryer set temperature: 30 to 50°C (86 to 122°F)
    Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
    Power-saving function Automatic sleep feature
    Power requirements AC 100 to 120 V ±10%, 8.0 A, 50/60 Hz or AC 220 to 240 V ±10%, 4.1 A, 50/60 Hz AC 100 to 120 V ±10%, 5.4 A, 50/60 Hz or AC 220 to 240 V ±10%, 2.7 A, 50/60 Hz
    Power consumption During operation  Approx. 1090 W  Approx. 710 W
    Sleep mode Approx. 40 W
    Acoustic noise level During operation 63 dB (A) or less
    During standby
    SKU: XP2020
    Brand: Roland

    Meet the TrueVIS SG2 series: a true partner for your business. Whether you are just starting out or are looking to take your business to the next level, SG2 printer cutters deliver the trusted quality of the award-winning TrueVIS brand with a streamlined workflow and the super-fast same-day turnaround speeds you need.

    TR2 inks produce stunning, vibrant colours across a huge range of applications - from signs, labels and heat transfers, to car wraps and so much more.

    Available in 3 sizes, the SG2 series combines impressive performance with incredible value and is certified by the industry’s leading media manufacturers. Show your customers what you can do with TrueVIS SG2.

    A take up unit is available with this printer/cutter as an optional extra.

    Model  SG2-640 SG2-540 SG2-300
    Printing method

    Piezo ink-jet method

    Media Width 315 to 1625 mm (12.4 to 64 in.) 275 to 1371 mm (10.8 to 54 in.) 182 to 762 mm (7.2 to 30 in.)
    Thickness Max. 1.0 mm (39 mil) with liner for printing. Max. 0.4 mm (16mil) with liner and 0.22 mm (9 mil) without liner, for cutting
    Roll outer diameter Max. 210 mm (8.3 in.)
    Roll weight Max. 40 kg (88 lb.) Max. 30 kg (66 lb) Max. 25 kg (55 lb.)
    Core diameter (1) 76.2 mm (3 in.) or 50.8 mm (2 in.)
    Printing / cutting width (2) Max. 1600 mm (63 in.) Max. 1346 mm (53 in.) Max. 736 mm (29 in.)
    Ink Type  TrueVIS INK TR2 500 cc pouch
    Colours Four colours (Cyan, Magenta, Yellow and Black)
    Printing resolution (dots per inch) Max. 1200 dpi
    Cutting speed  10 to 300 mm/s (0.4 to 11.8 in./s)
    Blade force (3) 30 to 500  gf
    Blade Type Roland CAMM-1 series blade
    Offset 0.000 to 1.500 mm (0.0 to 59.1 mil)
    Software resolution (when cutting) 0.025 mm/step (0.98 mil/step)
    Distance accuracy (when printing) (4) (5) Error of less than ±0.3% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater
    Distance accuracy (when cutting) (4) Error of less than ±0.4% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater. When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made): Error of less than ±0.2% of distance travelled or ±0.1 mm (±3.9 mil), whichever is greater.
    Repeatability (when cutting) (4) (6) ±0.1 mm (±3.9 mil) or less
    Alignment accuracy for printing and cutting (4) (7) ±0.5 mm (±19.7 mil) or less
    Alignment accuracy for printing and cutting when reloading media (4) (8) Error of less than ±0.5% of distance travelled, or ±3 mm (±0.2 in.), whichever is greater
    Media heating system (9) Print heater set temperature: 30 to 45°C (86 to 112°F) Dryer set temperature: 30 to 50°C (86 to 122°F)
    Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
    Power-saving function Automatic sleep feature
    Power requirements AC 100 to 120 V ±10%, 8.0 A, 50/60 Hz or AC 220 to 240 V ±10%, 4.1 A, 50/60 Hz AC 100 to 120 V ±10%, 5.4 A, 50/60 Hz or AC 220 to 240 V ±10%, 2.7 A, 50/60 Hz
    Power consumption During operation  Approx. 1090 W  Approx. 710 W
    Sleep mode Approx. 40 W
    Acoustic noise level During operation 63 dB (A) or less
    During standby
