    Roland TrueVis VG2-540 Print and Cut

    RRP £13,999.00

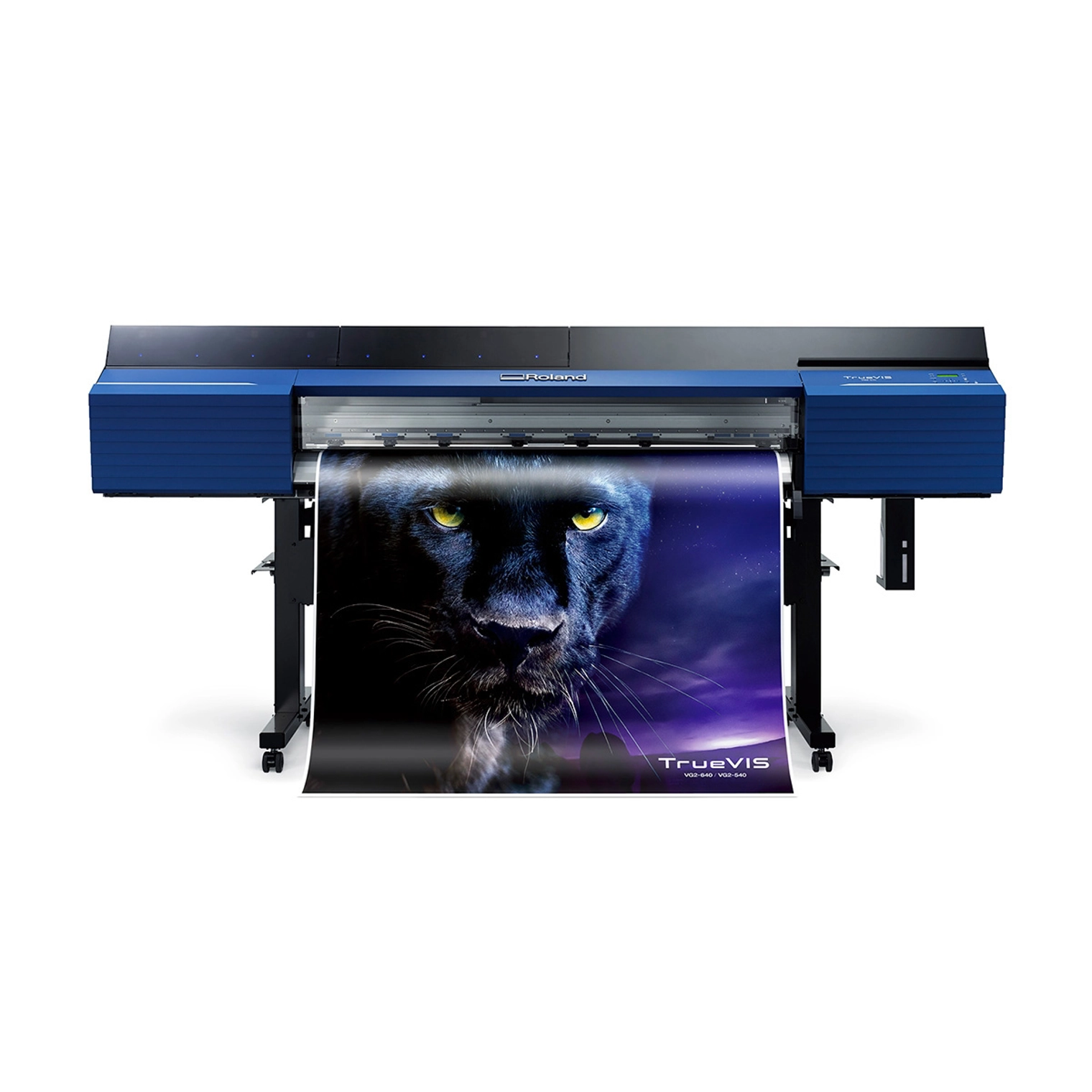

    Picture of Roland TrueVis VG2-540 Print and Cut

    Roland TrueVis VG2-540 Print and Cut

    Xpres Plus - VIEW OUR SITE DEDICATED TO VOLUME PRODUCTION SOLUTIONS!

    Virtual demo available - call to book!

    RRP £13,999.00

    With more than 40 exciting enhancements from the previous award-winning VG series, Roland TrueVIS VG2 printer/cutters are engineered to meet, then exceed the quality and production needs of today's most demanding print professionals with prints that can be finished in as little as 6 hours.

    Roland TrueVis VG2-540 Printer/Cutter

    With more than 40 exciting enhancements from the previous award-winning VG series, Roland TrueVIS VG2 printer/cutters are engineered to meet, then exceed the quality and production needs of today’s most demanding print professionals with prints that can be finished in as little as 6 hours.

    Featuring new TR2 ink with Orange and new colour management presets for superior colour reproduction, the VG2 offers industry-leading print and cut accuracy with smart new automated pinch rollers. Plus, prints are certified for quality and reliability with 3MTM and AveryTM product warranty available.

    Exceed your customers’ expectations and beat your competition. Trust your instincts – choose TrueVIS VG2!

    Key features:
    • New TR2 ink increases breadth of colour gamut for greater impact and visibility
    • Sharp new cutting features
    • Improved workflow
    • New media take-up system
    • Nozzle mask function
    • Roland DG mobile panel
    • Includes VersaWorks 6 RIP Software

    Take up unit an optional extra.

    Specification:

    <td colspan="2" style="box-sizing: border-box; padding: 8px; font-size: 14px; border-right: 1px solid #e

    Model VG2-640 VG2-540
    Printing method Piezoelectric inkjet
    Media Width 315 to 1625 mm (12.4 to 64 in.) 275 to 1371 mm (10.8 to 54 in.)
    Thickness Max. 1.0 mm (39 mil) with liner, for printing
    Max. 0.4 mm (16 mil) with liner and 0.22 mm (9 mil) without liner, for cutting
    Roll outer diameter Max. 210 mm (8.3 in.)
    Roll weight Max. 40 kg (88 lb.) Max. 30 kg (66 lb.)
    Core diameter*1 76.2 mm (3 in.) or 50.8 mm (2 in.)
    Printing/cutting width*2 Max. 1600 mm (63 in.) Max. 1346 mm (53 in.)
    Ink Type TrueVIS INK TR2 500 cc pouch (White 250 cc)
    Colours Eight colours (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black and White)
    Eight colours (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black and Orange)
    Four colours (Cyan, Magenta, Yellow and Black)
    Printing resolution (dots per inch) Max. 1200 dpi
    Cutting speed 10 to 300 mm/s (0.4 to 11.8 in/s)
    Blade force*3   30 to 500 gf
    Blade Type Roland CAMM-1 series blade
    Offset 0.000 to 1.500 mm (0.0 to 59.1 mil)
    Software resolution (when cutting) 0.025 mm/step (0.98 mil/step)
    Distance accuracy (when printing)*4*5 Error of less than ±0.3% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater
    Distance accuracy (when cutting)*4 Error of less than ±0.4% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater. When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made): Error of less than ±0.2% of distance travelled or ±0.1 mm (±3.9 mil), whichever is greater
    Repeatability (when cutting)*4*6 ±0.1 mm (±3.9 mil) or less
    Alignment accuracy for printing and cutting *4 ±0.5 mm (±19.7 mil) or less
    Alignment accuracy for printing and cutting when reloading media*4*8 Error of less than ±0.5% of distance travelled, or ±3 mm (±0.2 in.), whichever is greater

    Media heating system*9

    Print heater set temperature: 30 to 45°C (86 to 112°F) Dryer set temperature: 30 to 50°C (86 to 122°F)
    Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
    Power-saving function Automatic sleep feature
    Power requirements AC 100 to 120 V ±10%, 8.0 A, 50/60 Hz or AC 220 to 240 V ±10%, 4.1 A, 50/60 Hz
    Power consumption During operation Approx. 1090 W
    Sleep mode Approx. 40 W
    Acoustic noise level During operation 63 dB (A) or less
    During standby 53 dB (A) or less
    Dimensions (with stand) 2945 (W) × 730 (D) × 1310 (H) mm
    (116 [W] × 28.8 [D] × 51.6 [H] in.)
    2685 (W) × 730 (D) × 1310 (H) mm
    (105.8 [W] × 28.8 [D] × 51.6 [H] in.)
    SKU: XP2012
    Manufacturer: Roland

    Roland TrueVis VG2-540 Printer/Cutter

    With more than 40 exciting enhancements from the previous award-winning VG series, Roland TrueVIS VG2 printer/cutters are engineered to meet, then exceed the quality and production needs of today’s most demanding print professionals with prints that can be finished in as little as 6 hours.

    Featuring new TR2 ink with Orange and new colour management presets for superior colour reproduction, the VG2 offers industry-leading print and cut accuracy with smart new automated pinch rollers. Plus, prints are certified for quality and reliability with 3MTM and AveryTM product warranty available.

    Exceed your customers’ expectations and beat your competition. Trust your instincts – choose TrueVIS VG2!

    Key features:
    • New TR2 ink increases breadth of colour gamut for greater impact and visibility
    • Sharp new cutting features
    • Improved workflow
    • New media take-up system
    • Nozzle mask function
    • Roland DG mobile panel
    • Includes VersaWorks 6 RIP Software

    Take up unit an optional extra.

    Specification:

    <td colspan="2" style="box-sizing: border-box; padding: 8px; font-size: 14px; border-right: 1px solid #e

    Model VG2-640 VG2-540
    Printing method Piezoelectric inkjet
    Media Width 315 to 1625 mm (12.4 to 64 in.) 275 to 1371 mm (10.8 to 54 in.)
    Thickness Max. 1.0 mm (39 mil) with liner, for printing
    Max. 0.4 mm (16 mil) with liner and 0.22 mm (9 mil) without liner, for cutting
    Roll outer diameter Max. 210 mm (8.3 in.)
    Roll weight Max. 40 kg (88 lb.) Max. 30 kg (66 lb.)
    Core diameter*1 76.2 mm (3 in.) or 50.8 mm (2 in.)
    Printing/cutting width*2 Max. 1600 mm (63 in.) Max. 1346 mm (53 in.)
    Ink Type TrueVIS INK TR2 500 cc pouch (White 250 cc)
    Colours Eight colours (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black and White)
    Eight colours (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black and Orange)
    Four colours (Cyan, Magenta, Yellow and Black)
    Printing resolution (dots per inch) Max. 1200 dpi
    Cutting speed 10 to 300 mm/s (0.4 to 11.8 in/s)
    Blade force*3   30 to 500 gf
    Blade Type Roland CAMM-1 series blade
    Offset 0.000 to 1.500 mm (0.0 to 59.1 mil)
    Software resolution (when cutting) 0.025 mm/step (0.98 mil/step)
    Distance accuracy (when printing)*4*5 Error of less than ±0.3% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater
    Distance accuracy (when cutting)*4 Error of less than ±0.4% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater. When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made): Error of less than ±0.2% of distance travelled or ±0.1 mm (±3.9 mil), whichever is greater
    Repeatability (when cutting)*4*6 ±0.1 mm (±3.9 mil) or less
    Alignment accuracy for printing and cutting *4 ±0.5 mm (±19.7 mil) or less
    Alignment accuracy for printing and cutting when reloading media*4*8 Error of less than ±0.5% of distance travelled, or ±3 mm (±0.2 in.), whichever is greater

    Media heating system*9

    Print heater set temperature: 30 to 45°C (86 to 112°F) Dryer set temperature: 30 to 50°C (86 to 122°F)
    Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
    Power-saving function Automatic sleep feature
    Power requirements AC 100 to 120 V ±10%, 8.0 A, 50/60 Hz or AC 220 to 240 V ±10%, 4.1 A, 50/60 Hz
    Power consumption During operation Approx. 1090 W
    Sleep mode Approx. 40 W
    Acoustic noise level During operation 63 dB (A) or less
    During standby 53 dB (A) or less
    Dimensions (with stand) 2945 (W) × 730 (D) × 1310 (H) mm
    (116 [W] × 28.8 [D] × 51.6 [H] in.)
    2685 (W) × 730 (D) × 1310 (H) mm
    (105.8 [W] × 28.8 [D] × 51.6 [H] in.)
    Products specifications
    Width 268.5cm
    Height 131cm
    Depth 73cm
    Weight 188kg
    Max Print Width 134.6cm
    Ink TrueVis Ink TR2 500 cc pouch (White 250cc)
    Power During operation: 1090W, sleep mode: 40W
    Printing Speed 10 to 300mm/s
    Extra Information Weight and Dimensions given include the stand
