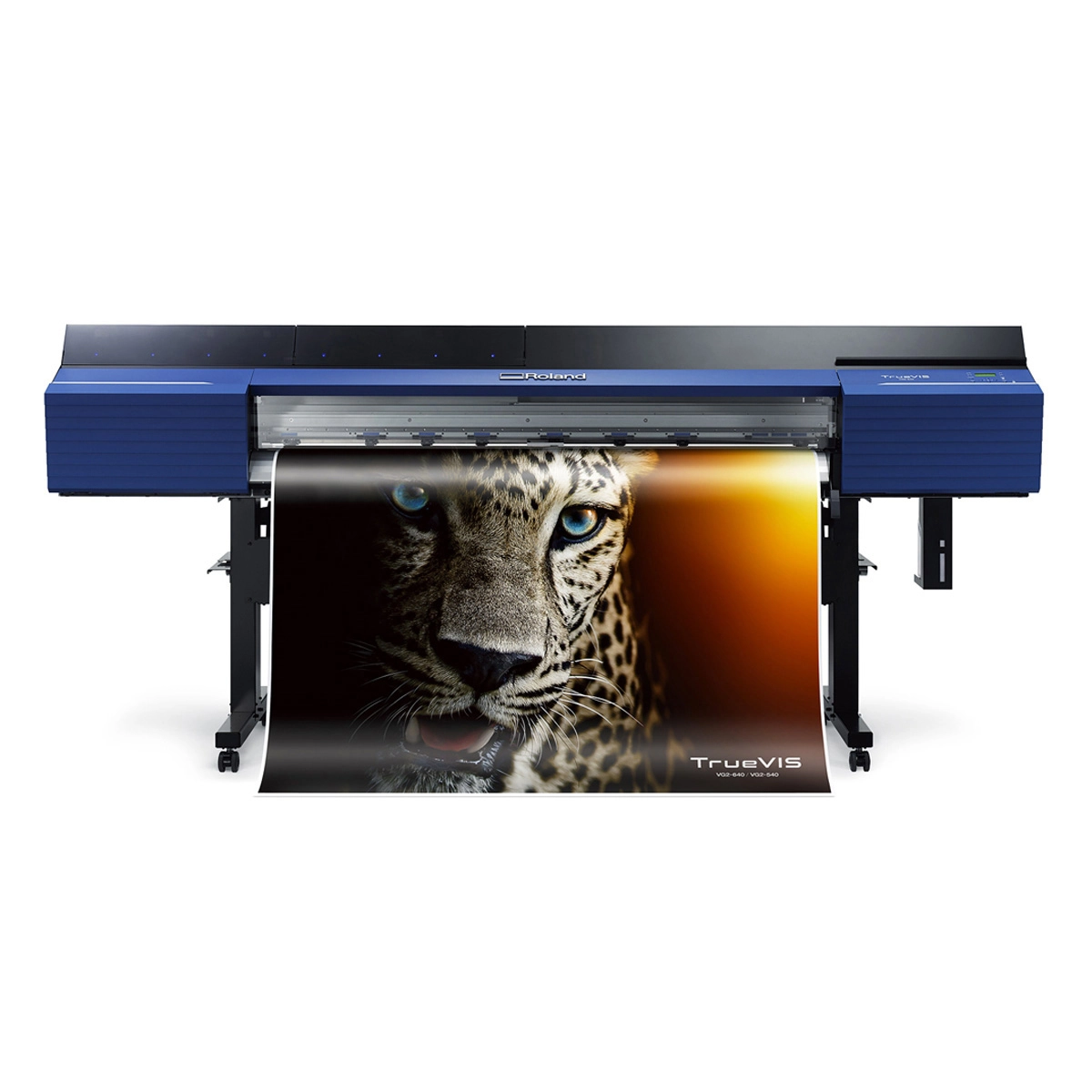

Roland TrueVis VG2-640 Print and Cut

RRP £15,799.00

Roland TrueVis VG2-640 Print and Cut

- VIEW OUR SITE DEDICATED TO VOLUME PRODUCTION SOLUTIONS!

Virtual demo available - call to book!

RRP £15,799.00

Featuring new TR2 ink with Orange and new colour management presets for superior colour reproduction, the VG2 offers industry-leading print and cut accuracy with smart new automated pinch rollers. Plus, prints are certified for quality and reliability with 3MTM and AveryTM product warranty available.

Exceed your customers’ expectations and beat your competition. Trust your instincts – choose TrueVIS VG2!

Key features:
• New TR2 ink increases breadth of colour gamut for greater impact and visibility
• Sharp new cutting features
• Improved workflow
• New media take-up system
• Nozzle mask function
• Roland DG mobile panel
• Includes VersaWorks 6 RIP Software

Take up unit an optional extra.

Specification:

<td colspan="2" style="box-sizing: border-box; padding: 8px; font-size: 14px; border-right: 1px solid #e

Model		VG2-640	VG2-540
Printing method		Piezoelectric inkjet
Media	Width	315 to 1625 mm (12.4 to 64 in.)	275 to 1371 mm (10.8 to 54 in.)
	Thickness	Max. 1.0 mm (39 mil) with liner, for printing Max. 0.4 mm (16 mil) with liner and 0.22 mm (9 mil) without liner, for cutting
	Roll outer diameter	Max. 210 mm (8.3 in.)
	Roll weight	Max. 40 kg (88 lb.)	Max. 30 kg (66 lb.)
	Core diameter*1	76.2 mm (3 in.) or 50.8 mm (2 in.)
Printing/cutting width*2		Max. 1600 mm (63 in.)	Max. 1346 mm (53 in.)
Ink	Type	TrueVIS INK TR2 500 cc pouch (White 250 cc)
	Colours	Eight colours (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black and White) Eight colours (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black and Orange) Four colours (Cyan, Magenta, Yellow and Black)
Printing resolution (dots per inch)		Max. 1200 dpi
Cutting speed		10 to 300 mm/s (0.4 to 11.8 in/s)
Blade force*3		30 to 500 gf
Blade	Type	Roland CAMM-1 series blade
	Offset	0.000 to 1.500 mm (0.0 to 59.1 mil)
Software resolution (when cutting)		0.025 mm/step (0.98 mil/step)
Distance accuracy (when printing)45		Error of less than ±0.3% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater
Distance accuracy (when cutting)*4		Error of less than ±0.4% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater. When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made): Error of less than ±0.2% of distance travelled or ±0.1 mm (±3.9 mil), whichever is greater
Repeatability (when cutting)46		±0.1 mm (±3.9 mil) or less
Alignment accuracy for printing and cutting *4		±0.5 mm (±19.7 mil) or less
Alignment accuracy for printing and cutting when reloading media48		Error of less than ±0.5% of distance travelled, or ±3 mm (±0.2 in.), whichever is greater
Media heating system*9		Print heater set temperature: 30 to 45°C (86 to 112°F) Dryer set temperature: 30 to 50°C (86 to 122°F)
Connectivity		Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function		Automatic sleep feature
Power requirements		AC 100 to 120 V ±10%, 8.0 A, 50/60 Hz or AC 220 to 240 V ±10%, 4.1 A, 50/60 Hz
Power consumption	During operation	Approx. 1090 W
	Sleep mode	Approx. 40 W
Acoustic noise level	During operation	63 dB (A) or less
	During standby	53 dB (A) or less
Dimensions (with stand)		2945 (W) × 730 (D) × 1310 (H) mm (116 [W] × 28.8 [D] × 51.6 [H] in.)	2685 (W) × 730 (D) × 1310 (H) mm (105.8 [W] × 28.8 [D] × 51.6 [H] in.)

SKU: XP2013

Brand: Roland

Overview
Specifications
Reviews
Downloads
Finance
Enquire

<td colspan="2" style="box-sizing: border-box; padding: 8px; font-size: 14px; border-right: 1px solid #e

Model		VG2-640	VG2-540
Printing method		Piezoelectric inkjet
Media	Width	315 to 1625 mm (12.4 to 64 in.)	275 to 1371 mm (10.8 to 54 in.)
	Thickness	Max. 1.0 mm (39 mil) with liner, for printing Max. 0.4 mm (16 mil) with liner and 0.22 mm (9 mil) without liner, for cutting
	Roll outer diameter	Max. 210 mm (8.3 in.)
	Roll weight	Max. 40 kg (88 lb.)	Max. 30 kg (66 lb.)
	Core diameter*1	76.2 mm (3 in.) or 50.8 mm (2 in.)
Printing/cutting width*2		Max. 1600 mm (63 in.)	Max. 1346 mm (53 in.)
Ink	Type	TrueVIS INK TR2 500 cc pouch (White 250 cc)
	Colours	Eight colours (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black and White) Eight colours (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black and Orange) Four colours (Cyan, Magenta, Yellow and Black)
Printing resolution (dots per inch)		Max. 1200 dpi
Cutting speed		10 to 300 mm/s (0.4 to 11.8 in/s)
Blade force*3		30 to 500 gf
Blade	Type	Roland CAMM-1 series blade
	Offset	0.000 to 1.500 mm (0.0 to 59.1 mil)
Software resolution (when cutting)		0.025 mm/step (0.98 mil/step)
Distance accuracy (when printing)45		Error of less than ±0.3% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater
Distance accuracy (when cutting)*4		Error of less than ±0.4% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater. When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made): Error of less than ±0.2% of distance travelled or ±0.1 mm (±3.9 mil), whichever is greater
Repeatability (when cutting)46		±0.1 mm (±3.9 mil) or less
Alignment accuracy for printing and cutting *4		±0.5 mm (±19.7 mil) or less
Alignment accuracy for printing and cutting when reloading media48		Error of less than ±0.5% of distance travelled, or ±3 mm (±0.2 in.), whichever is greater
Media heating system*9		Print heater set temperature: 30 to 45°C (86 to 112°F) Dryer set temperature: 30 to 50°C (86 to 122°F)
Connectivity		Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function		Automatic sleep feature
Power requirements		AC 100 to 120 V ±10%, 8.0 A, 50/60 Hz or AC 220 to 240 V ±10%, 4.1 A, 50/60 Hz
Power consumption	During operation	Approx. 1090 W
	Sleep mode	Approx. 40 W
Acoustic noise level	During operation	63 dB (A) or less
	During standby	53 dB (A) or less
Dimensions (with stand)		2945 (W) × 730 (D) × 1310 (H) mm (116 [W] × 28.8 [D] × 51.6 [H] in.)	2685 (W) × 730 (D) × 1310 (H) mm (105.8 [W] × 28.8 [D] × 51.6 [H] in.)

Products specifications

Width	294.5cm
Height	131cm
Depth	73cm
Weight	204kg
Max Print Width	160cm
Ink	TrueVis Ink TR2 500 cc pouch (White 250cc)
Power	During operation: 1090W, sleep mode: 40W
Printing Speed	10 to 300mm/s
Extra Information	Weight and Dimensions given include the stand

0 review(s)

Write your own review Close

Product can be reviewed only after purchasing it
Only registered users can write reviews

Downloads

Finance

Finance options are available for the loading.... These may vary on a case by case basis and should be discussed with a member of the Xpres team.

Xpres are not the lender, but are acting on the customers behalf to arrange contact between our finance partners.

Enquire About Finance

Your name *

Your email *

Enquiry *

Roland TrueVis VG2-640 Printer/Cutter

With more than 40 exciting enhancements from the previous award-winning VG series, Roland TrueVIS VG2 printer/cutters are engineered to meet, then exceed the quality and production needs of today’s most demanding print professionals with prints that can be finished in as little as 6 hours.

Featuring new TR2 ink with Orange and new colour management presets for superior colour reproduction, the VG2 offers industry-leading print and cut accuracy with smart new automated pinch rollers. Plus, prints are certified for quality and reliability with 3MTM and AveryTM product warranty available.

Exceed your customers’ expectations and beat your competition. Trust your instincts – choose TrueVIS VG2!
