Roland VersaStudio BN-20 Desktop Printer Cutter

£0.00


Picture of Roland VersaStudio BN-20 Desktop Printer Cutter

Roland VersaStudio BN-20 Desktop Printer Cutter

Call 01332 855 085

£0.00

The Roland VersaStudio BN 20 is a colour print and cut solution that’s small enough to sit on a desktop yet offers many of the proven benefits of the wide format VersaCAMM range at a substantially lower price.

Call 01332 855 085

SKU: XP1970
Brand: Roland

Utilising durable Roland Eco-Sol Max inks and offering the versatility of metallic and white ink options.

Utilising durable Roland Eco-Sol Max inks and offering the versatility of metallic and white ink options.

Products specifications
Width 99.5cm
Height 29.1cm
Depth 58.5cm
Weight 35kg
Max Print Width 48cm
Power During operation: 90W, sleep mode: 5.5W
Printing Speed 10 to 150mm/s
Ink Type Roland ECO-SOL MAX
Ink CMYK + White, CMYK + Metallic
Downloads


PRINTER/CUTTER

BN-20A

PRICE

£5,099

INK TYPE

ECO-SOL MAX 3

INK CONFIGURATION

CMYK

SPECIAL FEATURES

A HIGH-SPEED PRINT MODE
FOR INCREASED
PRINT SPEED

PRINTER/CUTTER

BN-20

PRICE

£5,699

INK TYPE

ECO-SOL MAX

INK CONFIGURATION

CMYK + WHITE
(Eco-Sol Max 2)
CMYK + METALLIC

SPECIAL FEATURES

AN AUTOMATED INK CIRCULATION SYSTEM
RECIRCULATES WHITE INK
AND REDUCES INK WASTE

ADDITIONAL PRINTING ON DARK, CLEAR, AND METALLIC MEDIA

PRINTER/CUTTER

BN-20D

PRICE

£5,699

INK TYPE

SP-G DTF INK

INK CONFIGURATION

CMYK + WHITE

SPECIAL FEATURES

A COMPLETE OEKO-TEX CERTIFIED
DIRECT-TO-FILM SOLUTION

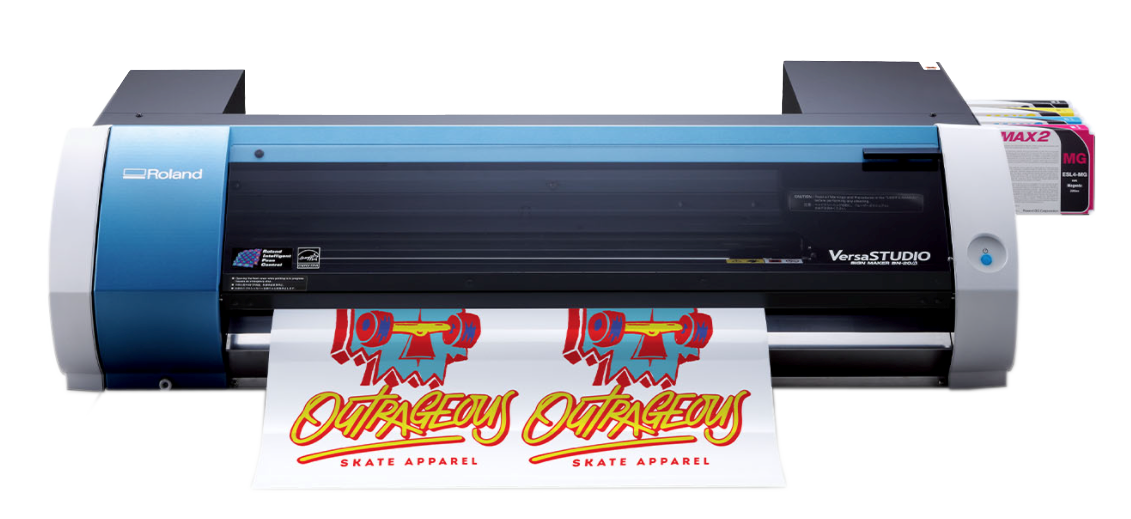

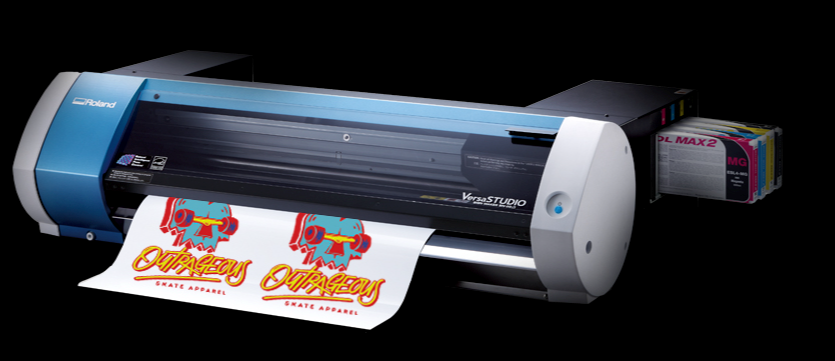

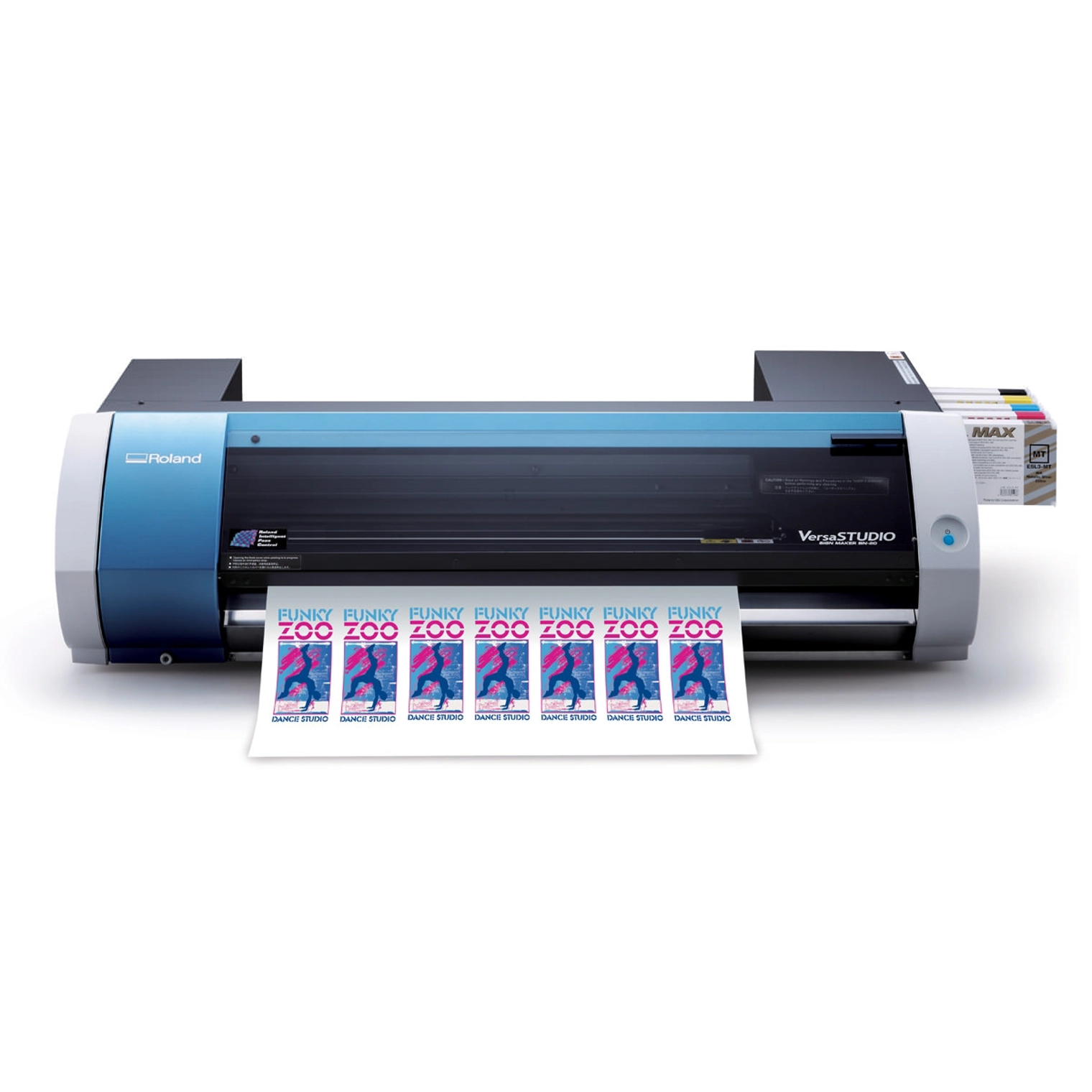

Roland VersaStudio BN-20 Desktop Printer Cutter

The BN-20 enables you to print graphics up to A2 size or 480 mm wide (18.9”), including crop marks for easy finishing. Featuring its own print management and design software, the BN-20 is a complete business solution in a box.

Why Xpres?
  • - Free technical support
  • - Specialist delivery and installation
  • - Free training
  • - 1 year warranty
  • - Includes Versaworks
  • - Lease options available



Applications

The World’s first desktop print and cut solution for cost effective, profitable production of personalised clothing including workwear and sportswear, caps, bags and other textile accessories in addition to signage & trophies, vehicle graphics and printed labels.

  • - Posters and decals
  • - Cut vinyl signage
  • - Heat Transfers for garment decoration
  • - Labels and decals for outdoor display
  • - POS and POP
  • - Mobile phone and laptop wraps
  • - Window signs and graphics
  • - Packaging designs
Features

The VersaStudio BN-20 inkjet printer/cutter easily handles coated and uncoated materials in rolls up to 508mm by 30m. Perfect for a variety of applications including labels, decals, heat transfer appliqués and posters.

  • - Professional Ink Options. CMYK, CMYK+W (White), CMYK+Mt (Metallic)
  • - Easy control of cutting. Integrated contour cutting with 300g downward force
  • - Low Maintenance, High Reliability
  • - Easy to load media feed
  • - R-Works an easy to use design package
  • - RolandCare included
  • - Supported by the latest powerful Roland VersaWorks Dual software
How it works
  • 1. Import artwork into the Versaworks software (supplied), and then size and duplicate artwork as required.
  • 2. Load selected media and the BN-20 will print and cut your logo.
  • 3. Position the transfer on the garment and apply using a heat press.
Specifications

VersaStudio BN-20

Printing/cutting width: Maximum 480 mm

Ink Cartridges: Roland ECO-SOL MAX

Ink Configurations: CMYK + White, CMYK + Metallic

Printing resolution: Max 1440 dpi

Cutting speed: 0.4 (10 mm/s) to 5.9 in/s (150 mm/s)

Blade force: 30 to 300gf

Print Heater Temperature: Fixed at 95°F (35°C)

Connectivity: USB 2.0

Dimensions/Weight: 995 W x 585 D x 291 H mm (39.2" W x 23" D x 11.5" H), 35kg (79.4 lbs)

Included Items: Power cord, USB cable, blade, blade holder, Rolandsoftware Package, Software RIP, User's Manual, etc



Acceptable media

Width: 150 to 515 mm

Printing Thickness: Maximum 1.0 mm with liner

Cutting Thickness: Maximum 4 mm with liner

Roll Weight: Maximum 6 kg

Roll Outer Diameter: Maximum 150 mm

Core Diameter: 50.8 mm or 76.2 mm cores


For further details of the BN20 download the PDF brochure using the attachment button above.

Please note: This item will require specialist delivery and installation which we will have to arrange with the customer, additional costs may occur. Price does not include inks.
