Roland VersaSTUDIO MPX-90S

£0.00


Picture of Roland VersaSTUDIO MPX-90S

Roland VersaSTUDIO MPX-90S

Call 01332 855 085

£0.00

Step into the personalisation market and create a wide range of custom engraved products.

Call 01332 855 085

SKU: XP8155
Brand: Roland

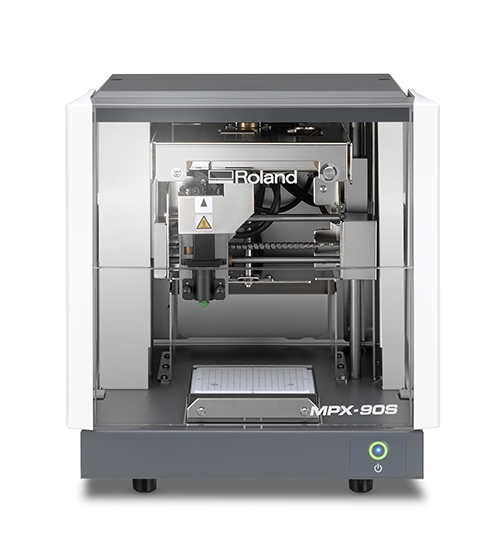

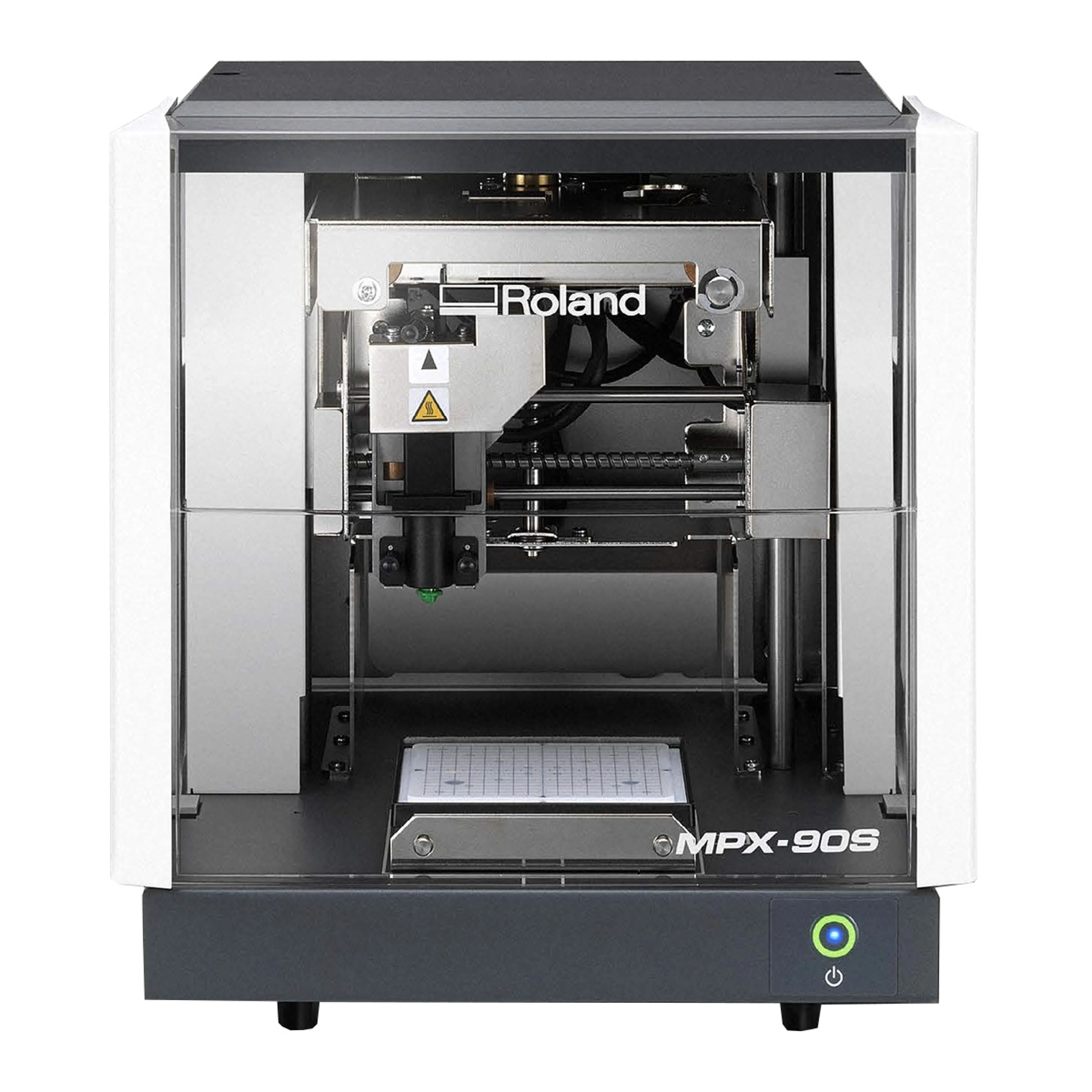

The VersaSTUDIO MPX-90S metal engraving machine is a cost-effective, user-friendly way to mark gold, steel, silver, titanium, brass and aluminium.

The VersaSTUDIO MPX-90S metal engraving machine is a cost-effective, user-friendly way to mark gold, steel, silver, titanium, brass and aluminium.

Model MPX-90S
Imprintable material Gold, silver, copper, platinum, brass, aluminum, iron, stainless steel, etc. *1
Loadable material size (width) × (length) × (thickness)
Max. 100 mm × 200 mm × 40 mm
Imprint area Max. 80 mm × 80 mm
Resolution High resolution 529 dpi
Photo 353 dpi
Text 265 dpi
Vector 1058 dpi
Imprint direction Unidirectional imprinting or bidirectional imprinting *2
Imprint speed (Default) High resolution 33 mm/sec
Photo 50 mm/sec
Text 33 mm/sec
 Vector 24 mm/sec
Interface USB
Power requirements Dedicated AC adapter Input  100 to 240 VAC, 50/60 Hz
Output  19 VDC, 2.1 A
Rated current 1.6 A
Power consumption Approx. 24 W
Operating noise 70 dB (A) or less
Operating environment Temperature: 10 to 30°C (50 to 86°F), humidity: 35 to 80%RH (no condensation)
External dimensions (width) × (depth) × (height) 286 mm × 383 mm × 308 mm (11.26 in. × 15.08 in. × 12.13 in.)
Weight 10.8 kg
Included items AC adapter, power cord, test-use imprinting material, USB cable, Safety Precautions, etc.

*1 Vickers hardness [HV] of the imprinting surface must be 200 or less.
*2 Selectable with Windows driver

System Requirements for USB Connection

Model MPX-90S
Computer Model preinstalled with Windows 11, 10, or 8.1 (32- or 64-bit), or upgraded computer originally preinstalled with Windows 8.1 or later
USB cable
Use the included USB cable.
Products specifications
Max Print Speeds 50 mm/s
Print Area 80x80 mm
Suitable For Gold, silver, copper, platinum, brass, aluminum, iron, stainless steel, etc.
Resolution (DPI) High Resolution: 529, Photo: 353, Text: 265, Vector: 1058.
Interfaces USB
Power Input: 100 to 240 VAC, 50/60 Hz, Output: 19 VDC, 2.1 A
Power Consumption Approx. 24 W
Acoustic noise level 70 dB (A) or less
Operating Conditions Temperature: 10 to 30°C (50 to 86°F), humidity: 35 to 80%RH (no condensation)
Dimensions 286 mm × 383 mm × 308 mm (11.26 in. × 15.08 in. × 12.13 in.)
Weight 10.8 kg
Included items AC adapter, power cord, test-use imprinting material, USB cable, Safety Precautions, etc.
Downloads

Pocket-sized Personalisation

The MPX-90S lets you create a wide range of custom engraved products easily and quickly. Simple to use without special expertise and filled with profit-making potential, this is a perfect solution to start your venture into personalisation with very little initial capital.

Less Space - More Opportunity

Start producing personalised products today. You can fit your entire business on an office desk or a kitchen table and create the foundation to build something even bigger in the future.

Engrave Photos on Metal

With the MPX-90S solution, you have everything you need to print text, logos and even photos onto metal items. In a matter of minutes, you can turn inexpensive blank items into highly desirable and lucrative products.

Profit with Personalisation

Today's customers want to buy one-of-a-kind gifts and they will gladly spend extra to get the perfect present. The MPX-90S gives you the power to create a wide variety of applications and capitalise on this growing trend.
