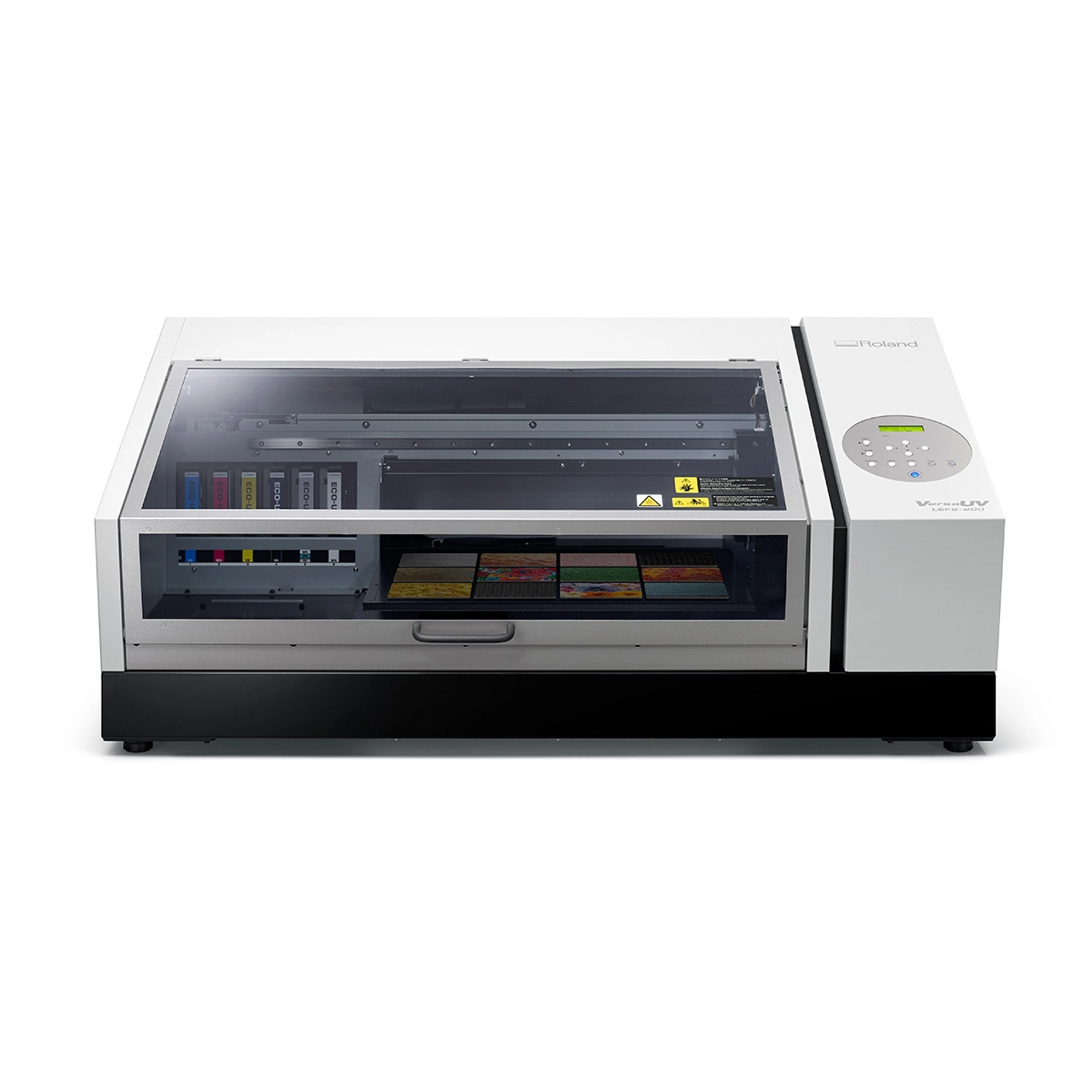

Roland VersaUV LEF2-200 Flatbed UV Printer

Brand: Roland

Special offer: Save £1,500 on the LEF2-200 or customers who purchase the LEF2-200 at full price will receive the 8107021064 BOFA extraction cabinet free of charge.Now it’s even easier to add amazingly lifelike graphics and textures - plus premium finishes including simulated embossing - to almost anything. The LEF2-200 is the latest addition to our award-winning VersaUV LEF series of flatbed printers.

Featuring a 0.5m (20”) print width in a great stylish design, the LEF2-200 offers brilliant colour printing capabilities on a vast array of materials, including three-dimensional items up to 100mm thick, in a simple-to-operate printer.

Sku: XP1986-2
£21,699.00
Finance available from £452.95 p/m
01332 855 085



From hard to soft material, from flat to curved objects: Roland LEF2-200 personalises everything

From hard to soft material, from flat to curved objects: Roland LEF2-200 personalises everything







Versatile Printing

One UV printer, one UV ink, one RIP software. The combination has been designed around your needs to work as a single system seamlessly. With an LEF2-200 UV printer you can:

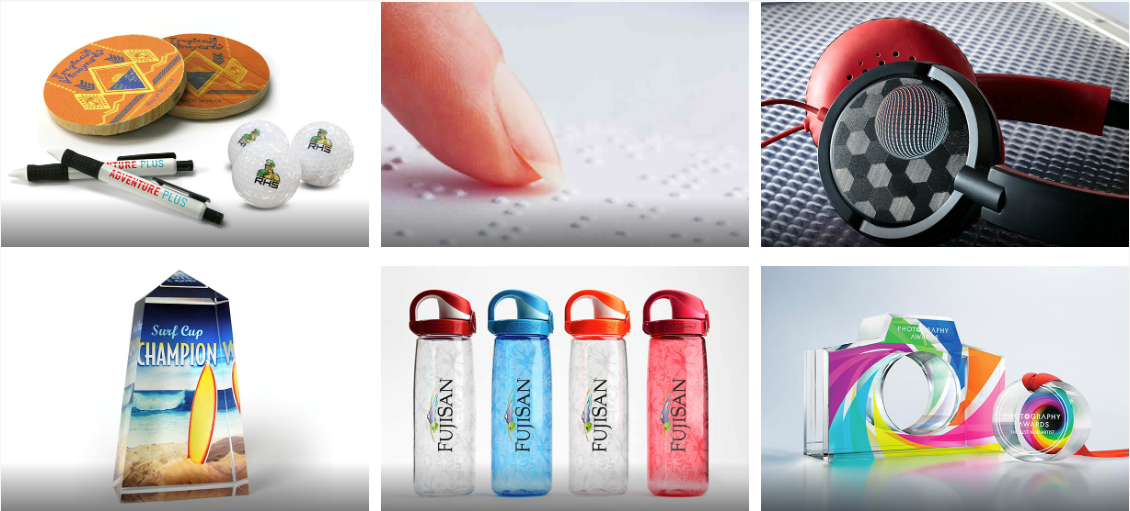

Print colourful images on demand, to personalise or customise small or medium-sized items, from a single object up to a short-run production run.

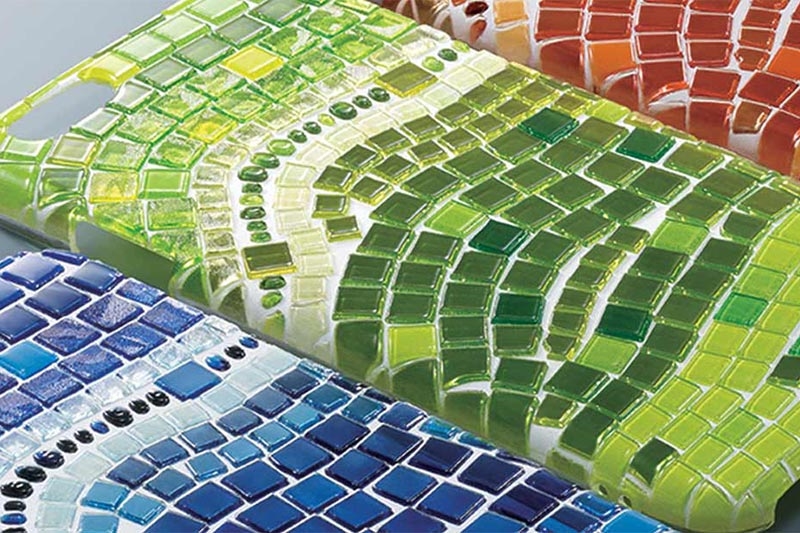

Produce 3D embossed and special effects using UV clear ink, enabling spot gloss or matt finishes directly on the substrate.

Create genuinely unique custom-textured effects like water droplets, simulated wood and leather and many more.

Achieve colourful graphics on dark and clear substrates utilising Roland’s UV white ink.

Print around complex corners, curves and a vast array of shapes.

Image directly onto materials that are normally more difficult to adhere ink to, such as acrylic and glass*, using the onboard Roland primer.

*For best primer results, it is strongly recommended that users test for adhesion on specific substrates before final production.





Easy to Use

The Roland LEF2-200 UV printer is built with ease-of-use in mind, so that you can focus on maximising your productivity with a series of powerful built-in features:

A Start Timer function completes the setup procedures of printhead cleaning and white ink circulation automatically by a designated time. So that you could, for example, start the printer before you arrive in the office and get printing immediately after loading the materials.

An automatic media height system for detecting the thickness of the substrate. Just load the item on the printing table, and the LEF2-200 will check it automatically and prepare to print.

Bundled Roland VersaWorks 6 RIP software, developed to make your printing operation quick and easy.

Recall specific media settings for your most popular applications without losing time by inputting them each time.

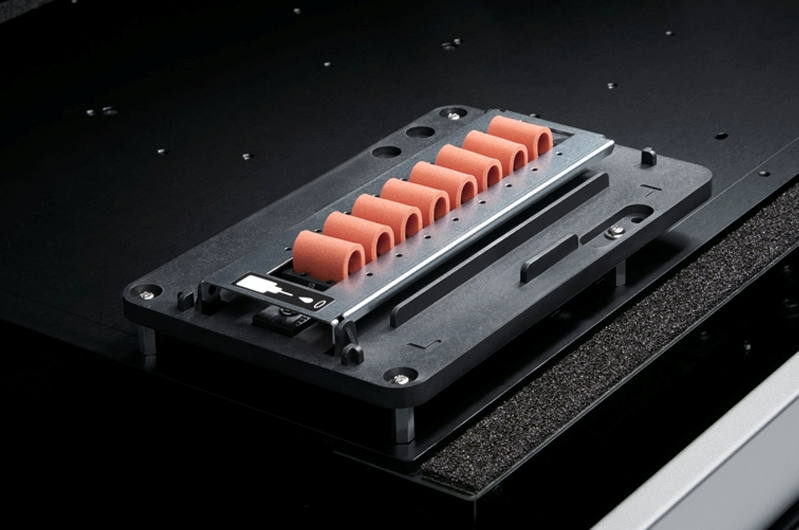

A special positioning jig is provided to align items easily on the printing table.

A built-in LED alignment system to set the origin point of your print quickly.

A built-in Ethernet connection, allowing you to connect your LEF2-200 to your existing network and print from anywhere.





New Concept Design

Whatever your primary business, LEF2-200 has been designed to match every working environment. Clean lines, stylish design, ergonomic control panel, easy access to the printing area and ink slots, sealed cartridges – they all add up to a great machine. When working, LEF2-200 is very quiet and can be used unobtrusively in spaces such as design bureau, production rooms and retail stores.





Print Gloss and 3D Embossed Finishes

In addition to full-colour printing, with LEF2-200 you can produce premium UV quality gloss and matt finishes as well as amazingly lifelike textures including simulated 3D embossing with multiple layers of UV clear ink. Seventy-two ready-to-use texture patterns are included to use immediately after installation, or you can create your own personalised special effects.





Print many – or just one with UV technology

With VersaUV LEF2-200, you can print as few as one item at one time, on demand.

It gives you the versatility to create prototypes, check the finish of a printed image, produce a special one-of-a-kind gift, or print a small volume of items in-house.

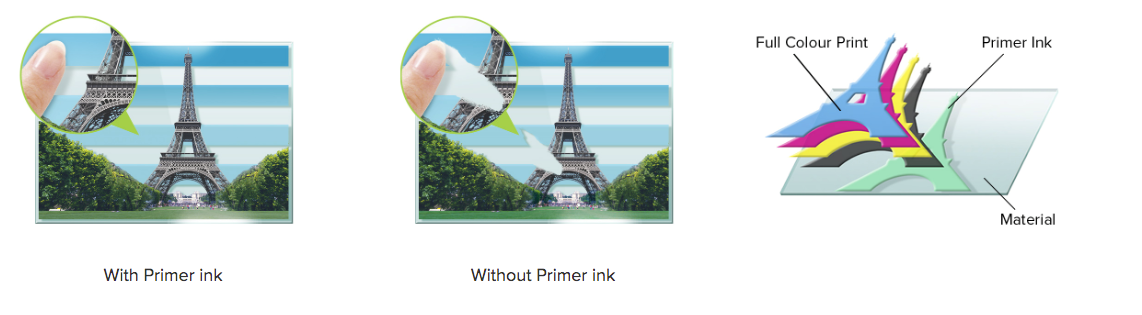

On-Board Primer



Previously, when you wanted to print on a material to which ink doesn’t easily adhere, it was necessary to apply a primer coat manually. The LEF2-200 features an optional on-board primer* cartridge for priming objects quickly and conveniently on a variety of different substrates. Users can easily prepare an object for customisation by first printing primer ink directly from a file in the VersaWorks 6 RIP software before printing the full-colour graphic. It makes adding graphics to challenging materials like acrylic much cleaner and more efficient.



Ink adhesion results may vary depending on the substrate and printing conditions. For best results, test print before final production.







Perfect results with ECO-UV ink options

LEF2-200 is equipped with ECO-UV ink offered in CMYK, white and gloss. It instantly dries and produces wide colour gamut results with sharp details and vibrant colour density. ECO-UV requires no degassing and stretches around curves and irregular surfaces without cracking.

ECO-UV inks are incredibly durable, giving indoor graphics resistance against scratches and chemicals, while outdoor graphics last up to six months and upward of two years when a gloss ink layer is applied as a finish. ECO-UV ink is supplied in mess-free 220ml cartridges that are safe after curing.





Ink Efficiency and Consistency

The LEF2-200 UV Printer has an Automated Ink Circulation System that significantly lowers running costs while maintaining sharp image quality and brilliant colours, even on longer print runs. Controlled ink circulation ensures that ink pigments can’t settle in the ink lines, resulting in smooth ink consistency and density.





Powerful VersaWorks 6 RIP Software Included

The VersaUV LEF2-200 includes the latest VersaWorks 6 RIP software, featuring an intuitive interface for smooth operation and job management and 64-bit native support and dual-core operation for processing PDF, EPS, PS and PDF 2.0 files with precision and high speeds.

With VersaWorks 6, you can automatically generate white, clear (gloss) and primer ink layers directly in the RIP software with a Special Color Layer Generation feature.

The Color-Matching function ensures consistent colour between multiple same-model printers. If you have more than one LEF2-200 UV Printers, you can produce reliable, high-volume work.*

Furthermore, VersaWorks 6 allows you to add several print files (e.g. white, CMYK and clear layers) into one job group to print them continuously.

Should a print head clog, a new Nozzle Mask function allows you to continue printing while using half of the print head.

If you work with a challenging material that needs extra curing, you can perform additional UV curing using VersaWorks 6 directly on the specific area that has been printed.

Variable data printing is also available, making it easy to produce printed objects with serialised numbers and names.

  • Valid only when using the same model printers with the same ink type and configuration. Files must be printed with the same print settings including “Media Type” and “Print Quality.”





High Reliability and Safety

The LEF2-200 adopts a new cleaning system. A Head Refresh feature removes any ink remaining on the printheads and cleans the printhead surface to maintain the health of your printer. Should a print head clog, a new Nozzle Mask function allows you to continue printing while using half of the printhead. The airtight cover protects operators from UV light and prevents dust from settling onto the surface of materials while printing.

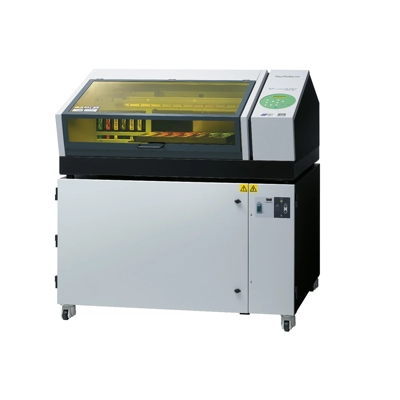

An optional air filter system is available for the LEF2-200. It can be placed easily underneath the machine and includes an activated carbon filter which effectively removes the odour and volatile substances that occur during printing.





Energy efficient, ozone free and mist filters

The LEF2-200 UV printer simply plugs-in to a standard electrical outlet. Using a fraction of the power that other flatbed printers demand, an LEF offers significant savings on electrical costs per year.

The LEF2-200 uses LED lamps for UV-curing that last up to ten times longer than conventional UV lamps and can be instantly switched on or off, giving the user a true on-demand production without the typical warm-up time. In addition, the LEF2 automatically enters a low-power mode when it is not used for an extended period.

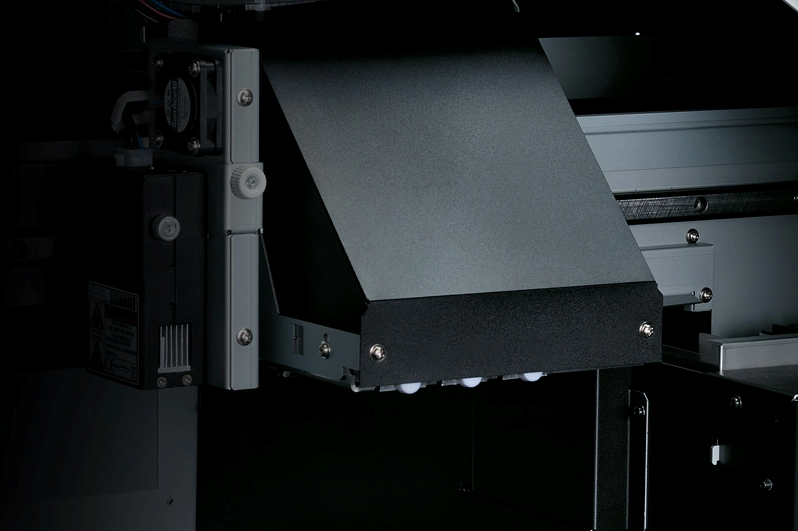

To ensure optimum print quality around the curvatures of objects, LEF2-200 incorporates a mist filter, catching the residual ink that mists when printing off the edge or curve of a product. It cuts down on overspray and keeps the ink from settling on the printer’s internal components. Filters are designed to be easily replaceable by the end user.







Roland Intelligent Pass Control

This patent-pending system precisely controls dot placement between passes, allowing the LEF2-200 UV Printer to produce smooth gradations and exceptional solid colours, while achieving faster throughput and optimal image quality in all print modes, including at higher speeds.





RolandCare Included

Built to provide years of reliable service – even in the most demanding print environments – the Roland LEF2-200 also comes with a one-year RolandCare Original warranty*.

Roland DG has earned a reputation for long-lasting, high-performance devices, backed by first-rate customer service. This support includes expert technical assistance, videos and free Roland software updates for the lifetime of the machine.

Roland DG's international ISO certifications are your assurance of quality products and service.

*Terms and conditions apply. See warranty page for details.







Finance Calculator

Finance options are available for this product. These may vary on a case by case basis and should be discussed with a member of the Xpres team.

Xpres are not the lender, but are acting on the customers behalf to arrange contact between our finance partners.


£


Weekly Equivalent £86.77
24 Monthly Payments £375.99
Total Cost £9023.76
Tax Relief @ 19% £1714.51
Cost of Finance £7309.25
Model LEF2-200
Printing technology Piezoelectric inkjet
Media Width Max. 538 mm (21.2 in.)
Length Max. 360 mm (14.2 in.)
Height Max. 100 mm (3.94 in.)
Weight Max. 5kg (11 lb.)
Printing width and length Max. 508 (W) x 330 (L) mm (20 x 13 in.)
Ink Type ECO-UV (EUV, EUV4) 220 cc cartridge
Colours 5 colours (Cyan, Magenta, Yellow, Black, White)
5 colours (Cyan, Magenta, Yellow, Black, White) and Primer
6 colours (Cyan, Magenta, Yellow, Black, White and Gloss)
Ink-curing unit UV-LED lamp
Print resolution (dots per inch) Max. 1440 dpi
Distance accuracy*1 Error of less than ±0.3% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater.
Connectivity Ethernet (10BASE-T/100BASE-TX, automatic switching)
Power-saving function Automatic sleep feature
Power requirements AC 100 to 240 V ±10%, 1.8 A (50/60 Hz)
Power consumption During operation Approx. 149 W
Sleep mode Approx. 13 W
Acoustic noise level During operation 60 dB (A) or less
During standby 49 dB (A) or less
Dimensions 1202 (W) x 962 (D) x 549 (H) mm (47.4 x 37.9 x 21.7 in.)
Weight 110 kg (242.5 lb)
Environment During operation Temperature: 20 to 32°C (68 to 90°F) (22°C/72°F or higher recommended)
Humidity: 35 to 80% RH (no condensation)
Power off Temperature: 5 to 40°C (41 to 104°F), Humidity: 20 to 80% RH (no condensation)
Included items Roland VersaWorks 6 Software RIP, cleaning liquid, drain bottle, user's Manual, power cable, etc.
