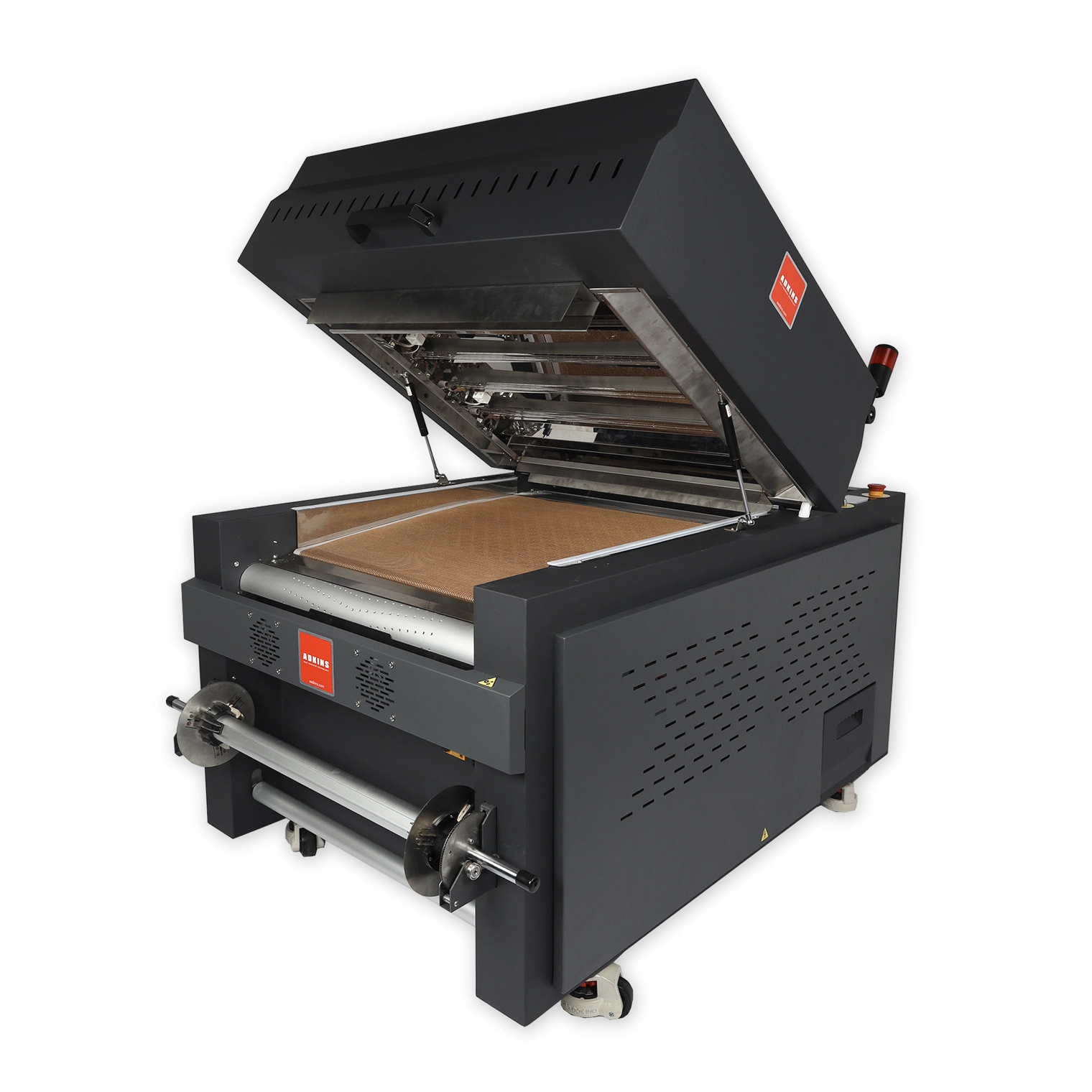

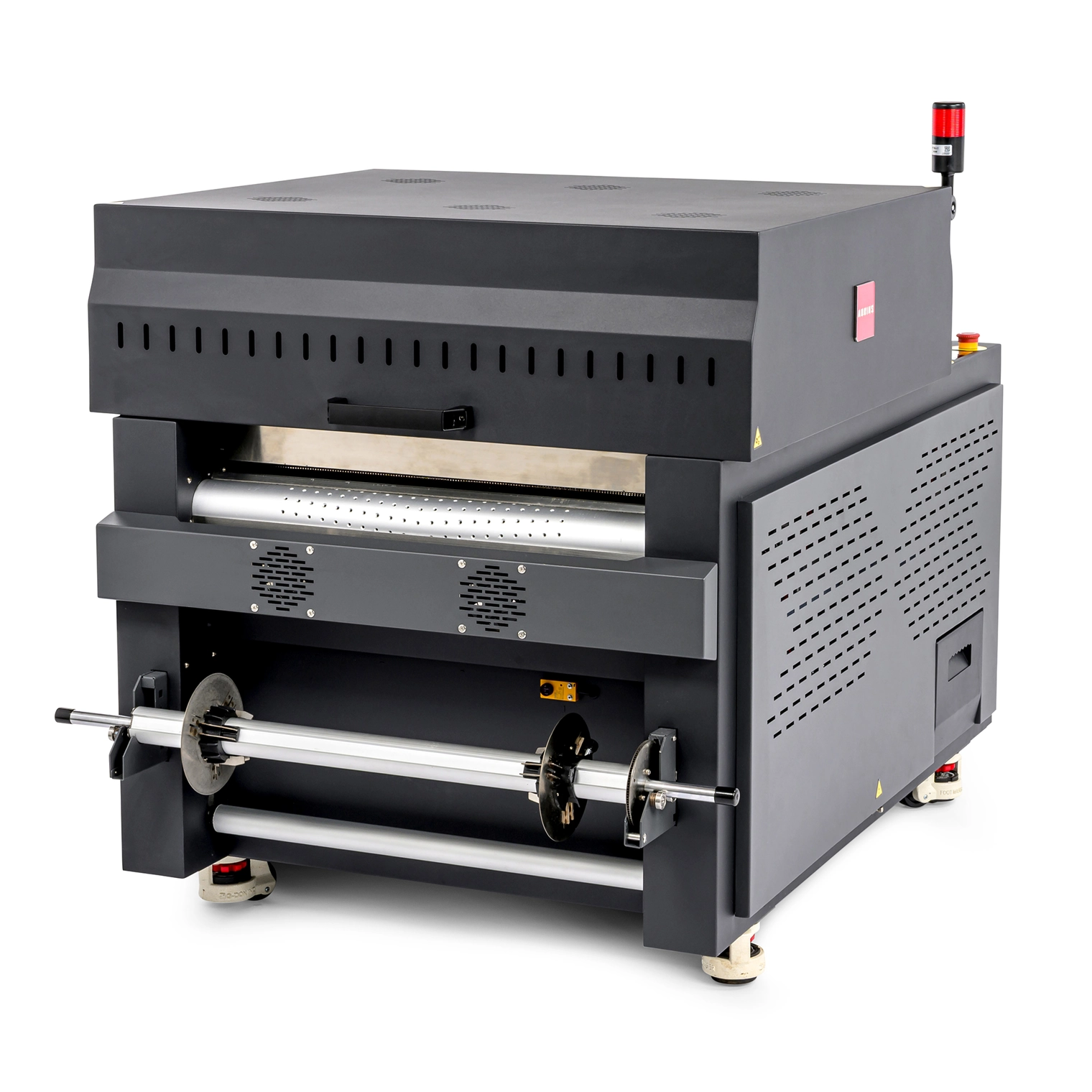

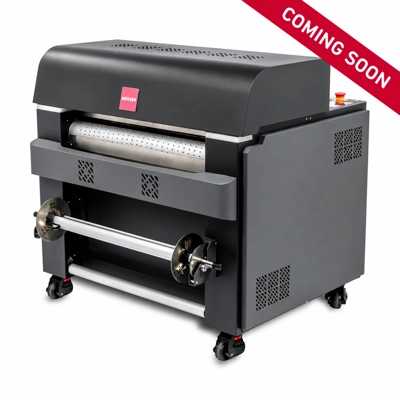

Adkins DTF Inline Compact 600

Brand: Adkins

Designed and tested to integrate with various industry leading DTF printers while delivering demanding volume without compromising output quality. Featuring automatic operating mode, fast curing times and low power consumption for reduced energy costs.

The Compact 600 delivers all expected DTF shaker curer features and much more in a space saving design to provide a versatile yet extremely efficient and reliable solution for your DTF production and workflow.

Key Features:

• 60cm max media width in compact space saving design.

• Low operating power consumption using domestic plug.

• Versatile efficient production using automatic feed speed detection.

• Built in medical grade filtration for cleaner operating environment.



Sku: XP1356
£3,385.00
Finance available from £70.66 p/m
01332 855 085

Versatile space saving curing solution for efficient roll to roll DTF production


Machine Features:

  • • Compatible with industry leading printer brands.
  • • Reliably powder, cure & filter at speeds of 20 l/m per hour.
  • • Film feed speed detection for easy printer integration.
  • • Built-in filtration and extraction for safer operation.
  • • Replaceable medical grade filters for easy maintenance.
  • • Low powder warning light for uninterrupted workflow.
  • • Digital touch screen for intuitive control.
  • • Heavy duty build and reliability synonymous with Adkins.
Operation Voltage
220-240V AC (UK-13A / EU-16A)
Power Consumption
1.8kw (average)
Circuit Breaker
15A
Max Media Width
60cm
Dimensions
98(w) x 114(h) x 143(d) cm
Weight
(net) 192KG
Package Size
101(w) x 121(h) x 146(d) cm
Package Weight
275KG
Minimum Workable Area
257(w) x 150(h) x 210(d) cm
Heating Elements
4 x Top / 4 x Bottom
Heat Up Time
Approx 7mins (100 degrees)
Oil Removal
Sealed oil collection and drainage tap
Powder Collection
Powder tray accessible from either side
