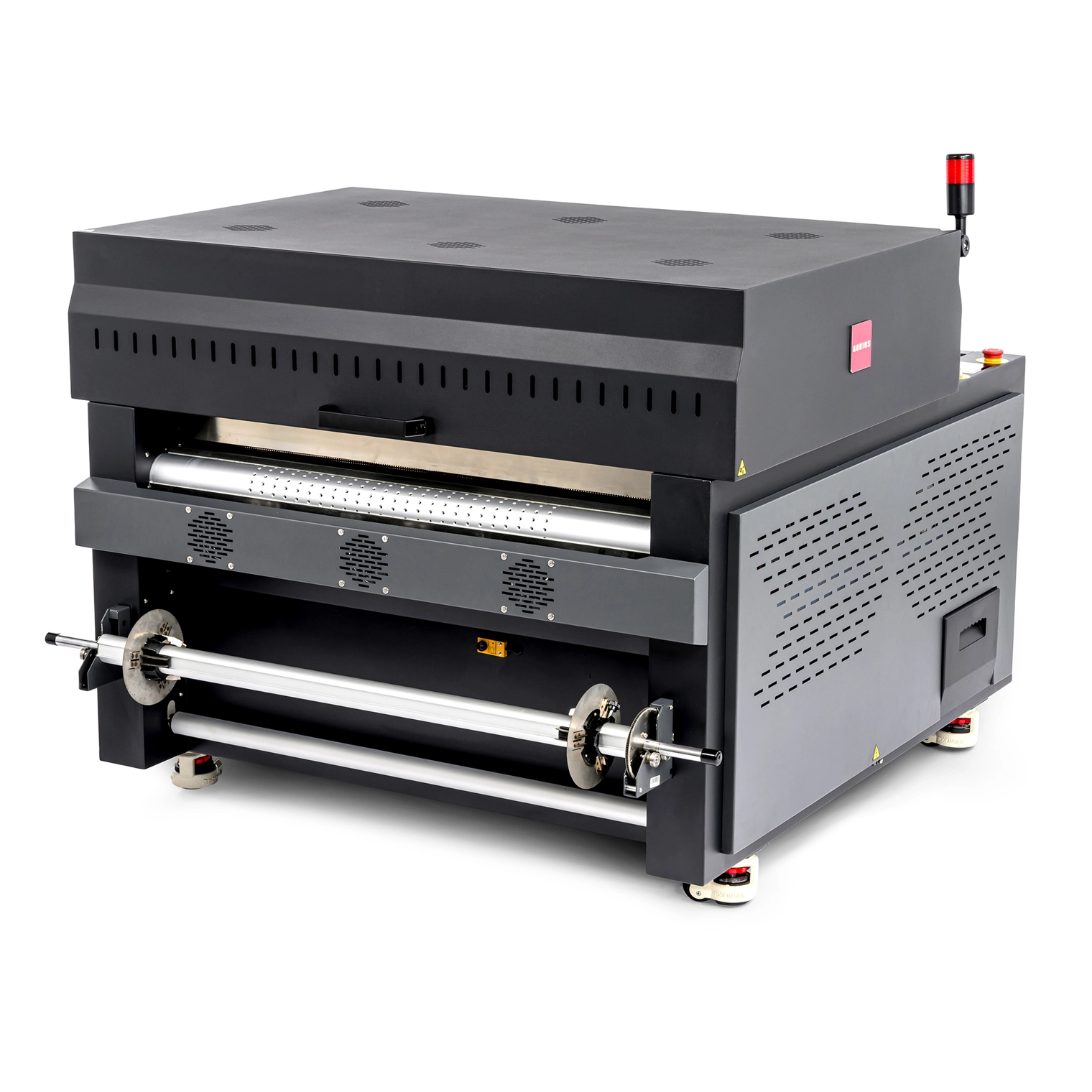

Adkins DTF Inline Compact 900

Designed to achieve demanding volume without compromising output quality or reliability. Featuring automatic operating mode, fast curing times and low power consumption for reduced energy costs. The Compact 900 delivers all expected DTF shaker curer features and much more in a space saving design to provide a versatile yet extremely efficient and reliable solution for your DTF production and workflow.

Key Features:

  • 90cm max media width.
  • Energy efficient 1.9kw power consumption.(13 amp 3 pin).
  • Built in, medical grade filtration.
  • Powered by standard domestic plug.
Sku: XP1358

In Stock

£4,495.00
Finance available from £93.83 p/m
01332 855 085



Versatile space saving curing solution for efficient roll to roll DTF production



Features:

  • • Powered by standard domestic plug.
  • • Compatible with industry leading printer brands.
  • • Reliably powder, cure & filter at speeds of 20 l/m per hour.
  • • Built-in filtration and extraction for safer operation.
  • • Replaceable medical grade filters with automatic on-screen replacement reminders for easy maintenance.
  • • Thoughtful humidity and temperature sensor to help manage your DTF production environment.
  • • Low powder warning light for uninterrupted workflow.
  • • Digital touch screen with feature explanations for intuitive control.
  • • Machine tracking interfaces for simple diagnostics.
  • • Heavy duty build and reliability synonymous with Adkins.



Operation Voltage
220-240V AC (UK-13A / EU-16A)
Power Consumption
2.1kw (average)
Circuit Breaker
15A
Max Media Width
90cm maximum
Dimensions
131(w) x 114(h) x 145(d) cm
Weight
(net) 228KG
Package Size
133(w) x 121(h) x 147(d) cm
Package Weight
310KG
Minimum Workable Area
177(w) x 150(h) x 210(d) cm
Heating Elements
6 x Top / 5 x Bottom
Heat Up Time
Approx 15mins (100 degrees)
Oil Removal
Sealed oil collection and drainage tap
Powder Collection
Powder tray accessible from either side
