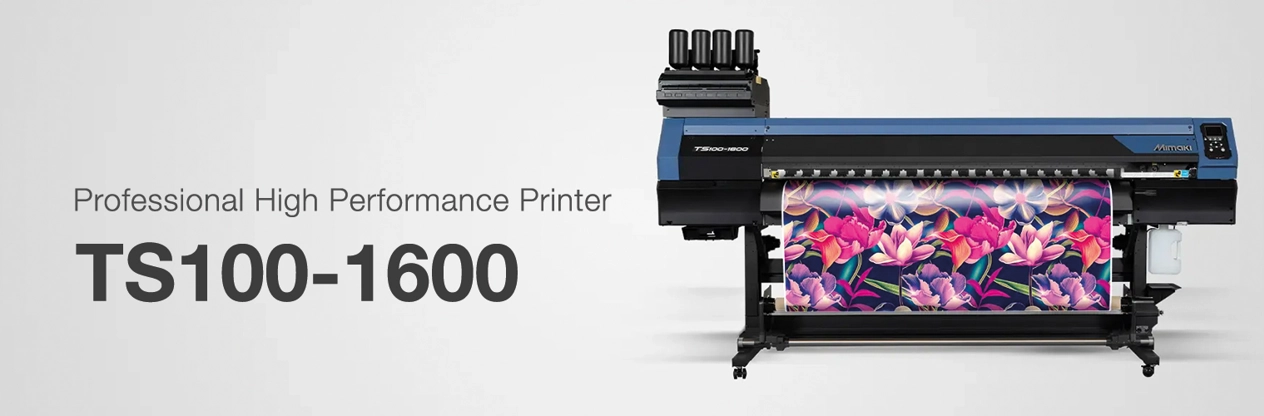

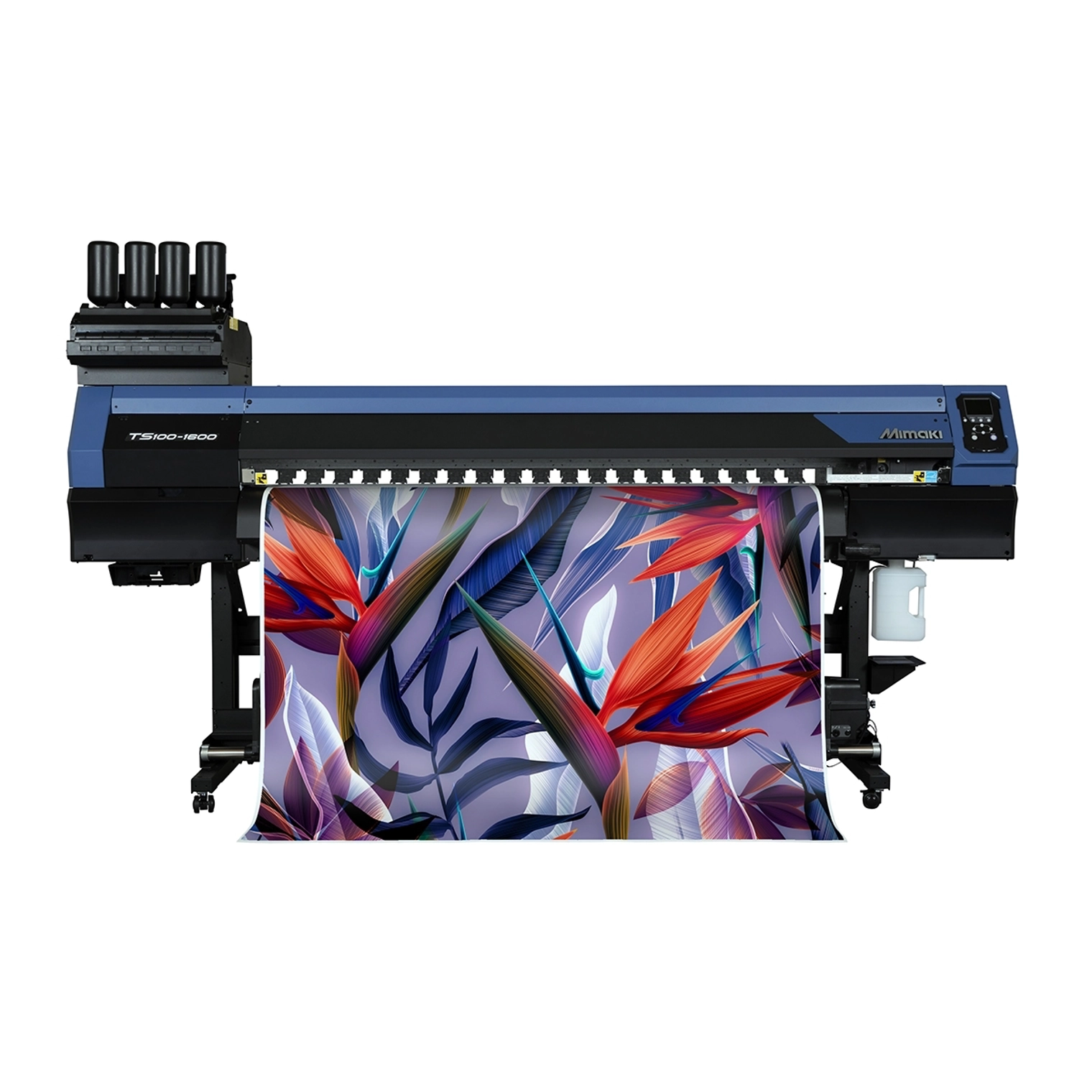

    Mimaki TS100-1600 Dye Sublimation Printer

    RRP £9,995.00


    Picture of Mimaki TS100-1600 Dye Sublimation Printer

    Mimaki TS100-1600 Dye Sublimation Printer

    Xpres Plus - VIEW OUR SITE DEDICATED TO VOLUME PRODUCTION SOLUTIONS!

    Virtual demo available - call to book!

    RRP £9,995.00

    Developed specifically for the dye sub and textile industry, the Mimaki TS100-1600 delivers cost effective dye sublimation printing while maintaining high quality and productivity.

    Perfectly suited to the creation of fashion, apparel, sportswear, furnishings and PoS, this low cost but very versatile dye sublimation printer can double the print speed of conventional models!

    SKU: XP1822
    Brand: Mimaki

    Developed specifically for the dye sub and textile industry, the Mimaki TS100-1600 delivers cost effective dye sublimation printing while maintaining high quality and productivity.

    Perfectly suited to the creation of fashion, apparel, sportswear, furnishings and PoS, this low cost but very versatile dye sublimation printer can double the print speed of conventional models!

    Printhead On-demand piezo head(2 staggered layout)
    Print resolution 360dpi, 600dpi, 720 dpi, 900 dpi
    Maximum drawing width 1,610 mm (63 in)
    Maximum media width 1,620 mm (64 in)
    Ink Set 4C (BL,M,Y,K)
    Ink Type/Color Sb610(BL,M,Y,K)
    Package size 1L Ink pack
    Media thickness 1.0 mm or less
    Rolled media diameter 250 mm or less
    Rolled media weight 45 kg (99 lb) or less
    Interface USB 2.0 / Ethernet
    Power supply Single-phase AC100 ­­­– 120V / AC200 – 240V+10%/ 50/60Hz+1Hz
    Power consumption (AC100V)1.44kW / (AC200V)1.92kW
    Operational environment Temperature: 20 – 30 °C ( 68 – 86 °F ) Humidity: 35 – 65% Rh (Non condensing)
    Dimensions (W × D × H) 2,775 × 700 × 1,475 mm (109 x 28 x 58 in )
    Weight 166 kg (366 lb)
    Products specifications
    Applications Textiles
    Applications Sportswear
    Applications Soft signage
    Ink Type Dye Sub
    Print Heads On-demand piezo head (2 staggered layout)
    Resolution (DPI) 360, 600, 720, 900
    Max Media Width 1,620 mm (64 in)
    Roll Outer Diameter 250 mm or less
    Max Roll Weight 45 kg (99 lb) or less
    Ink 4C (BL,M,Y,K)
    Ink Type Sb610 (BL,M,Y,K)
    Ink Capacity 1L bottle
    Interfaces USB 2.0 / Ethernet
    Power Supply Single-phase AC100 ­­­– 120V / AC200 – 240V+10%/ 50/60Hz+1Hz
    Power (AC100V)1.44kW / (AC200V)1.92kW
    Operating Conditions Temperature: 20 – 30 °C ( 68 – 86 °F ) Humidity: 35 – 65% Rh (Non condensing)
    Size 2,775 × 700 × 1,475 mm (109 x 28 x 58 in )
    Weight 166 kg (366 lb)
    Downloads

    Finance



    Finance options are available for the loading.... These may vary on a case by case basis and should be discussed with a member of the Xpres team.

    Xpres are not the lender, but are acting on the customers behalf to arrange contact between our finance partners.









    Enquire About Finance

    Create...

    Fashion and Apparel, Sportswear, Home Furnishing and Upholstery Fabrics, Soft signage, Textile retail, PoS, Exhibition Graphics, Wall art and Much more…

    Double Print Speed of Conventional Models!

    Maximum print speeds of 70 m²/h!

    This powerful model can reach double the print speed of other conventional Mimaki textile printers. The necessary volume of printed textiles can be produced on demand, with the unnecessary inventory being eliminated. It can simplify the production site and production management, allowing you to focus on higher value-added jobs.

    TxLink™4 Lite

    More advanced textile RIP software for professional use.

    Much smoother gradation expression with 16-bit rendering.

    Specify the amount of ink and the Lab value to get the ideal colour with the new colour replacement function.

    The Parallel RIP and Load Balancing functions are gret when connecting multiple printers which support the improvement of print efficiency.

    RIP processing of up to 8 jobs can be performed in parallel for multiple pieces of print data, as well as a large number of copy prints being simultaneously printed on multiple printers.

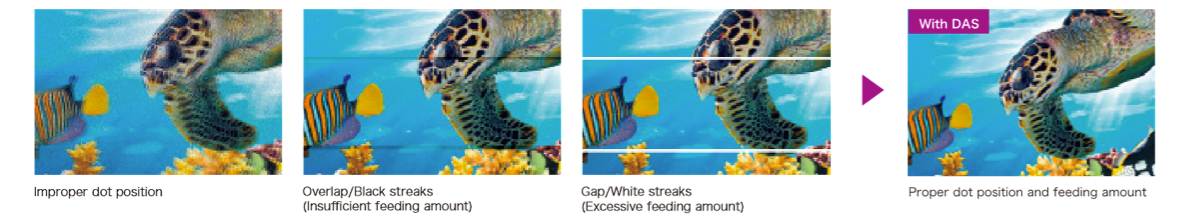

    DAS (Dot Adjustment System)

    DAS is the function to print a dedicated pattern to the media and read by the sensor mounted on the carriage to adjust automatically:

    • Dot position (Dot jetting position at the bi-direction)
    • Feeding amount (Media feeding amount)

    After changing a media and a printing condition, the ink dot position and media feeding amount must be adjusted accordingly. Since DAS automatically applies them, printing can be performed without labor and variation of adjustment by the operator.

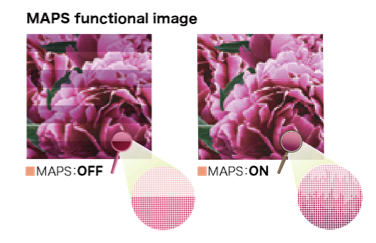

    MAPS4

    MAPS functionality reduces banding.

    In ordinary textile printers, the straight pass boundaries often results in bandings and discoloration due to slight misalignment. The "MAPS (Mimaki Advanced Pass System)" functionality provides gradation to printed pass boundaries and maintains stable print quality by reducing banding and uneven colour.

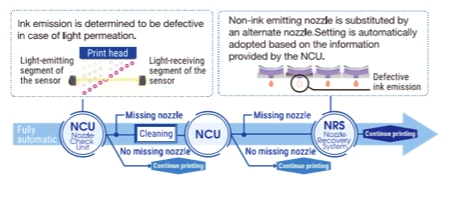

    NCU/NRS

    Employed to monitor missing nozzles.

    The sensor automatically detects the condition of nozzles. When the NCU (Nozzle Check Unit) detests a missing nozzle, it automatically performs cleaning. Is there is a nozzle problem left unsolved by the cleaning, the NRS (Nozzle Recovery System) automatically replaces the defective nozzles with other nozzles, and enables users to continue their operation without waiting for service personnel. The NRS is supported from the one-pass printing to apply the fastest print mode.

    Mimaki Genuine Dye Sublimation Ink Sb610

    The TS100-1600 can differentiate to jet into 5,13 or 19 pl. Three different ink sizes are enabled to achieve high-quality prints with rich tonal range and fine expression with reduced granular feeling. The optimal drop size for each mode is embedded in the different profiles of the TS100-1600.

    The high-density and fastness ink provides vivid colours and high colour reproducibility, which is suitable for fashion clothing, sports wear and soft signs etc.

    It can be used for a wide range of products, from original items such as team wear, bags and stage costumes to larger volume production.

    Since the Sb610 is excellent it its stability during the continuous discharging and also when left unattended for suspension of operation. It can output without stress, which greatly contributes to productivity at site.

    This dye sublimation ink uses 1L bottles for the first time, reducing replacement frequency and cost.

    The Sb160 has obtained the "ECO PASSPORT" certification, as defined by the Oeko-Tex International Community based in Switzerland. This certifies that the dyes and pigments used to colour textile products, as well as the chemicals used to add functionality, do not contain harmful ingredients.
