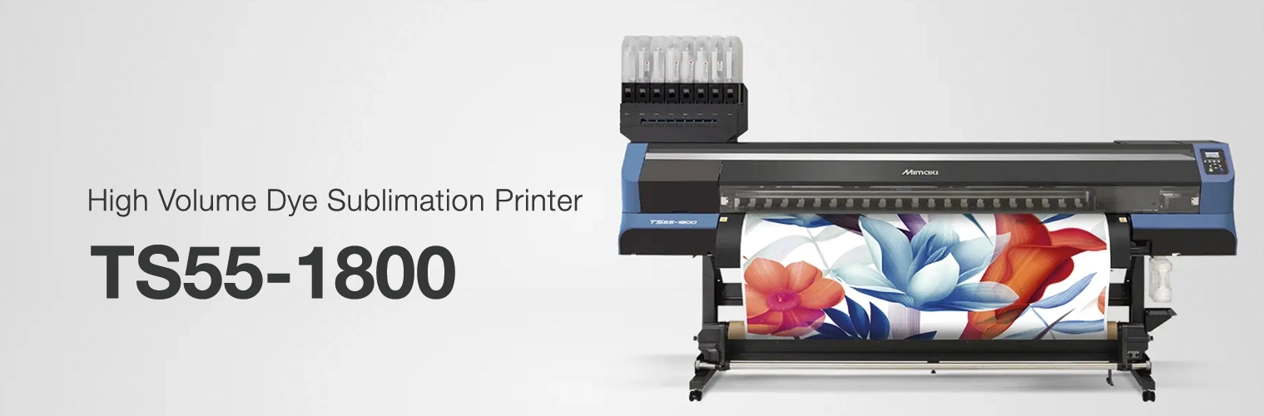

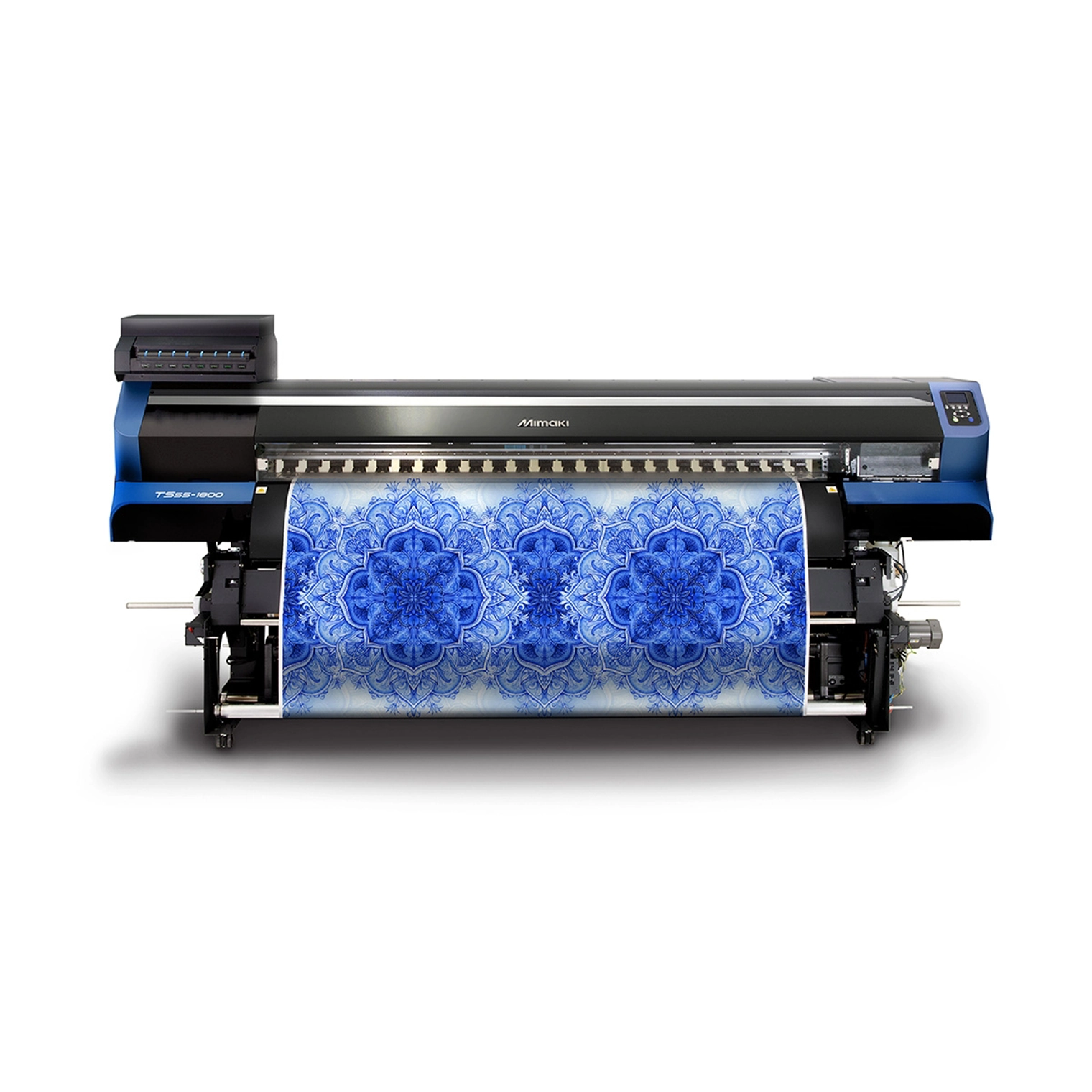

    Mimaki TS55-1800 Dye Sublmation Printer

    RRP £24,995.00


    Picture of Mimaki TS55-1800 Dye Sublmation Printer

    Mimaki TS55-1800 Dye Sublmation Printer

    Xpres Plus - VIEW OUR SITE DEDICATED TO VOLUME PRODUCTION SOLUTIONS!

    Virtual demo available - call to book!

    RRP £24,995.00

    Mimaki TS55-1800 Dye Sublmation Printer is designed for users that demand productivity at high quality at high speed.

    Mimaki TS55-1800 Dye Sublmation Printer is designed for users that demand productivity at high quality at high speed.

    Available in 2L packs (with dual BMYK or BMYK Lb Lm Fluor pink and Fluor yellow) or cost efficient 10L tanks (with dual BMYK) the Sb610 ink sets, allows you to grow your business profitably. This OEKO-TEX certified ink is suitable to print skin-friendly clothing and other textiles such as bed linen and table cloths.

    With the launch of the TS55-1800 TxLink3 is upgraded to TxLink4. This dedicated textile RIP software features new functionalities and improvements on usability such as: 16Bit engine improving rendering and RIP speed, effective nesting saving media and variable data printing.

    SKU: XP1820
    Brand: Mimaki

    Create…

    Interior fabrics, sports and fashion apparel, flags, tapestry and much more…

    The (R)evolution of Textile Printing

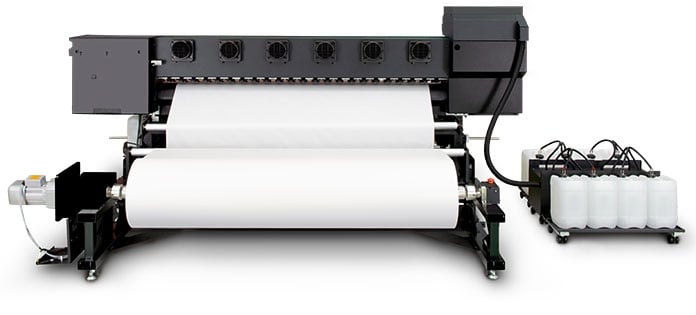

    Utilized with a plotter roll for small runs or with a mini jumbo roll for long runs, the TS55-1800 grows alongside with your company.

    Included Features

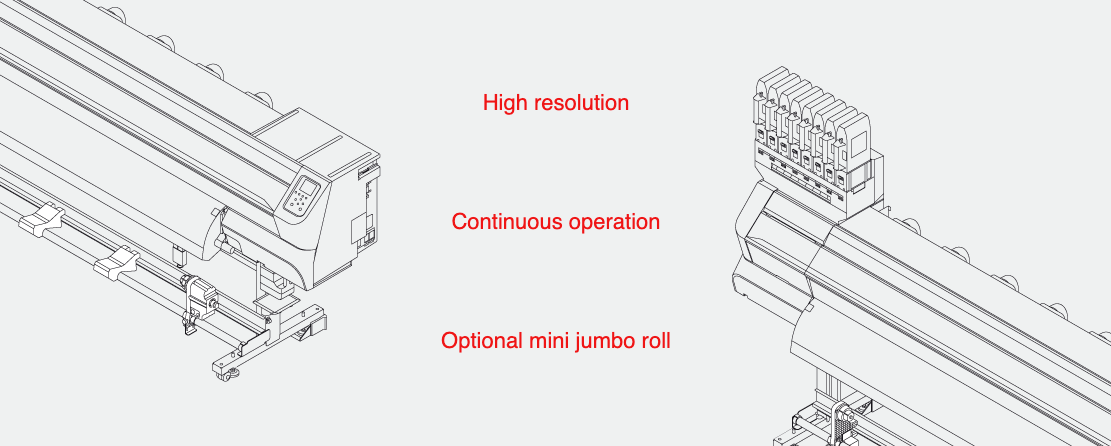

    Possible to print on high resolution (480 x 600DPI). with a higher ink density using one-pass printing at 140m2/h. With the Optional Mini Jumbo Roll it reaches a level of productivity at market disruptive pricing2. Continuous operation with Mimaki’s Nozzle Check Unit and the Nozzle Recovery System. Available in very competitive 2L packs or low cost 10L tanks, the new Sb610 ink sets allows you to grow your business profitably. Upgraded with the newest TxLink4. This dedicated textile RIP software features new functionalities and improvements on usability.

    Mimaki TS55-1800 Dye Sublmation Printer is designed for users that demand productivity at high quality at high speed.

    Available in 2L packs (with dual BMYK or BMYK Lb Lm Fluor pink and Fluor yellow) or cost efficient 10L tanks (with dual BMYK) the Sb610 ink sets, allows you to grow your business profitably. This OEKO-TEX certified ink is suitable to print skin-friendly clothing and other textiles such as bed linen and table cloths.

    With the launch of the TS55-1800 TxLink3 is upgraded to TxLink4. This dedicated textile RIP software features new functionalities and improvements on usability such as: 16Bit engine improving rendering and RIP speed, effective nesting saving media and variable data printing.

    Printhead Head Assy Stagger layout
    Print resolution 480/600/1,200dpi
    Max. print width 1,940 mm (76.4 in)
    Max. media width 1,950 mm (76.8 in)
    Rolled media weight 45 kg (99.2 lb) or less
    Ink slot No. 8
    Ink set 4-colors / 6-colors / 7-colors / 8-colors
    Ink Type/Color Sb610 (Bl/M/Y/K/Lbl/Lm/Lk/Fy/Fp)*1
    Capacity 2L Ink pack
    Certifications VCCI Class A / FCC Class A / Compliant with IEC 62368-1, ETL /
    CE Marking (EMC, Low voltage, Machinery directive, and RoHS)/
    CB Report / REACH / Energy Star / RCM / EAC
    Interface Ethernet 1000BASE-T (Recommended) / USB 2.0 Hi-speed
    Power Single phase AC100 – 120V/ AC200 – 240V x1
    Power consumption (AC100V) 1.44kW or less / (AC200V) 1.92kW or less
    Operational environment Temperature: 20 – 30 °C (68 – 86 °F)
    Humidity: 35 – 65% Rh (Non condensing)
    Dimensions (W × D × H) 3,240 x 713 x 1,857 mm (127.5 x 28.0 x 73.1 in)
    Weight 202 kg (445.3 lb)
    Products specifications
    Applications Textiles
    Applications Sportswear
    Applications Soft signage
    Ink Type Dye Sub
