    Mimaki UCJV300-160 UV LED Print and Cut

    RRP £23,995.00


    Picture of Mimaki UCJV300-160 UV LED Print and Cut
    Picture of Mimaki UCJV300-160 UV LED Print and Cut
    Picture of Mimaki UCJV300-160 UV LED Print and Cut
    Picture of Mimaki UCJV300-160 UV LED Print and Cut

    Mimaki UCJV300-160 UV LED Print and Cut

    Xpres Plus - VIEW OUR SITE DEDICATED TO VOLUME PRODUCTION SOLUTIONS!

    Virtual demo available - call to book!

    RRP £23,995.00

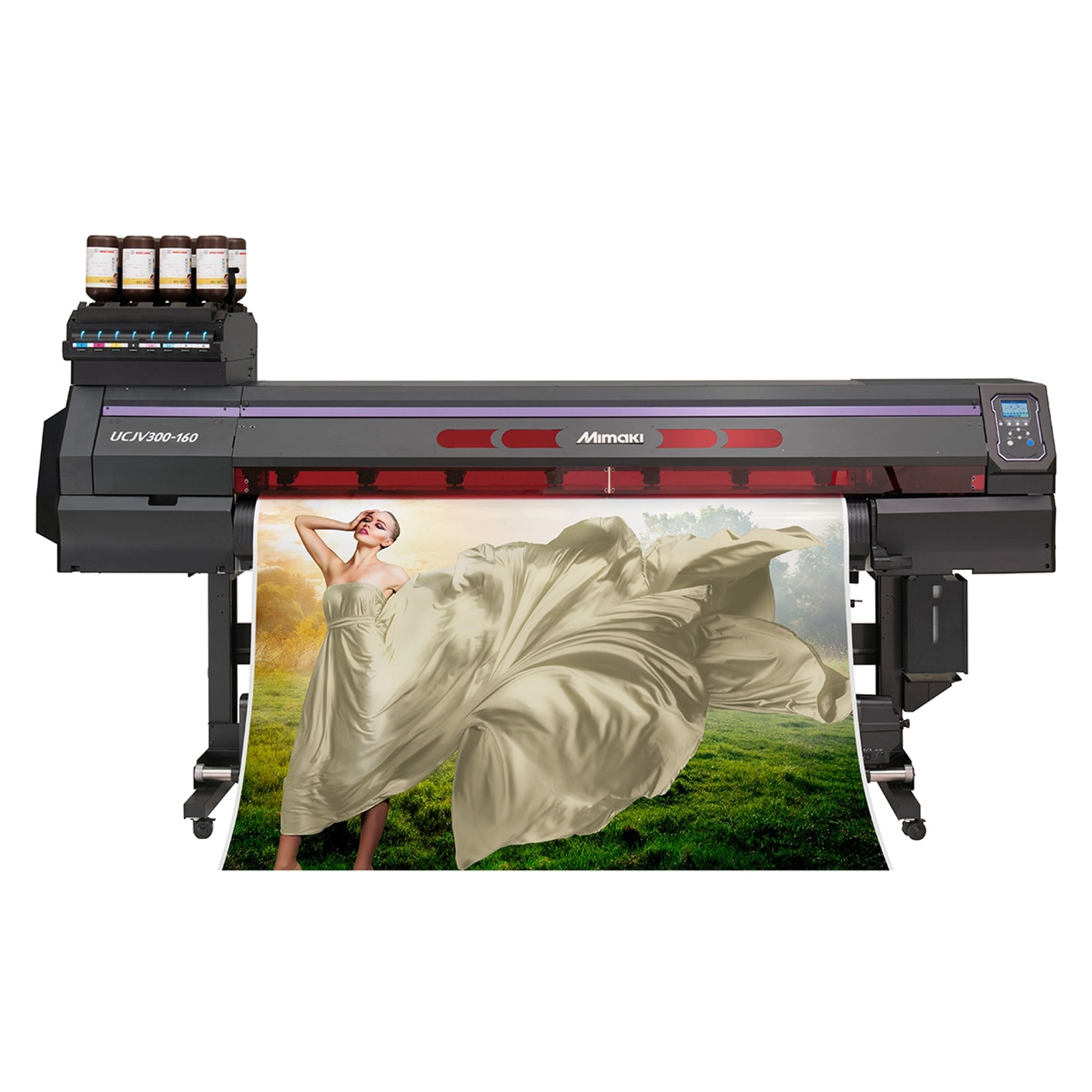

    The UCJV300-160 is a versatile inkjet printer, having a combined function of both printing and cutting mounted with UV-curable ink.

    The UCJV300-160 is a versatile inkjet printer, having a combined function of both printing and cutting mounted with UV-curable ink. The machine is a high-spec model equipped with the 4 layers print function in addition to UV-LED print and Print & Cut. It is a versatile model widely supporting job by short delivery time to advertisement sign with leading design.

    SKU: XP1829
    Brand: Mimaki

    Create…

    Outdoor Signage, Posters, Illumination signboard (with the UCJV300-160 only), Banners & flags, Swing P.O.P. (PET film), Labels, Wallpaper.

    High-specification LED-UV Printer/Cutter with 7 colours and 4-layer printing

    The UCJV300-160 is a high-spec model equipped with the 4 layers print function in addition to UV-LED print and Print & Cut. It is a versatile model widely supporting job by short delivery time to advertisement sign with leading design.

    Leading the Future of Sign Graphics through UV Innovation

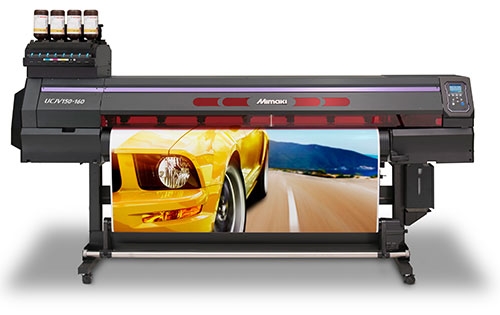

    Test Print speeds up to 25.8m2/h with the UCJV300-160 and Print speeds up to 13.4m2/h with the UCJV150-160. Maximum resolution of 1200dpi. 4 layers print (with the UCJV300-160 only). On-demand print utilizing UV characteristics: Quick access to next processing and sign applying due to UV ink property and wide range of applications. Newly developed environmentally friendly UV ink, LUS-170, and flexible UV ink, LUS-200, with stretch ability up to 200%. Productive cutting functions. A new function, [ID Cut] will highly improve the work efficiency. Upgraded RIP software; RasterLink6Plus.

    The UCJV300-160 is a versatile inkjet printer, having a combined function of both printing and cutting mounted with UV-curable ink. The machine is a high-spec model equipped with the 4 layers print function in addition to UV-LED print and Print & Cut. It is a versatile model widely supporting job by short delivery time to advertisement sign with leading design.

    UCJV300-75UCJV300-107UCJV300-130UCJV300-160
    Print head On-demand piezo head
    Print resolution 300dpi, 600dpi, 900dpi, 1200dpi
    Droplet size Min. 7pl, Max. 28pl
    Head gap 3 degrees adjustment (2.0/2.5/3.0 mm) by manual
    InkType/Color LED-UV ink: LUS-170 (C, M, Y, K, Lc, Lm, W, Cl)
    LED-UV ink: LUS-175 (C, M, Y, K, Lc, Lm, W, Cl)
    *Only available in specific countries
    LED-UV ink: LUS-200 (C, M, Y, K, W)
    Capacity 1L (Bottle supply)
    Max. print width 800 mm
    (31.5 in)
    1,090 mm
    (42.9 in)
    1,361 mm
    (53.5 in)
    1,610 mm
    (63.4 in)
    Max. media width 810 mm
    (31.9 in)
    1,100 mm
    (43.3 in)
    1,371 mm
    (54.0 in)
    1,620 mm
    (63.8 in)
    Media thickness 1.0 mm or less
    Media roll outer diameter φ250 mm or less
    Media roll weight 40 kg (88.2 lb) or less
    Cut speed Max. 300 mm/s (420 mm/s in 45 degrees direction)
    Cut pressure 10-450 gf
    Cutter Types Eccentric cutter, Blade for small character, Blade for reflective sheet,
    Blade for fluorescent sheet, Blade for PVC with low-pressure
    Safety standard VCCI Class A / FCC Class A / Compliant with UL 60950-1, ETL /
    CE Marking (EMC, Low voltage, Machinery directive) / RoHS /
    CB Report / REACH, ENERGY STAR® / RCM
    Interface USB2.0 / Ethernet 1000 BASE-T
    Power supply Single phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz)
    Power consumption AC100V: 1.44kW / AC200V: 1.92kW
    Operational environment Temperature: 20-30 degC / 68-86 degF
    Humidity: 35-65% Rh (Non condensing)
    Dimensions (W×D×H) 2,090 x 776 x 1,475 mm
    (82.3 x 30.6 x 58.1 in)
    2,380 x 776 x 1,475 mm
    (93.7 x 30.6 x 58.1 in)
    2,650 x 776 x 1,475 mm
    (104.3 x 30.6 x 58.1 in)
    2,900 x 776 x 1,475 mm
    (114.2 x 30.6 x 58.1 in)
    Weight 144 kg
    (317.5 lb)
    161 kg
    (354.9 lb)
    177 kg
    (390.2 lb)
    188 kg
    (414.5 lb)
    Products specifications
    Applications Display graphics
    Applications Signage
    Applications Wall graphics
    Applications Banners
    Applications Window graphics
    Ink Type UV
