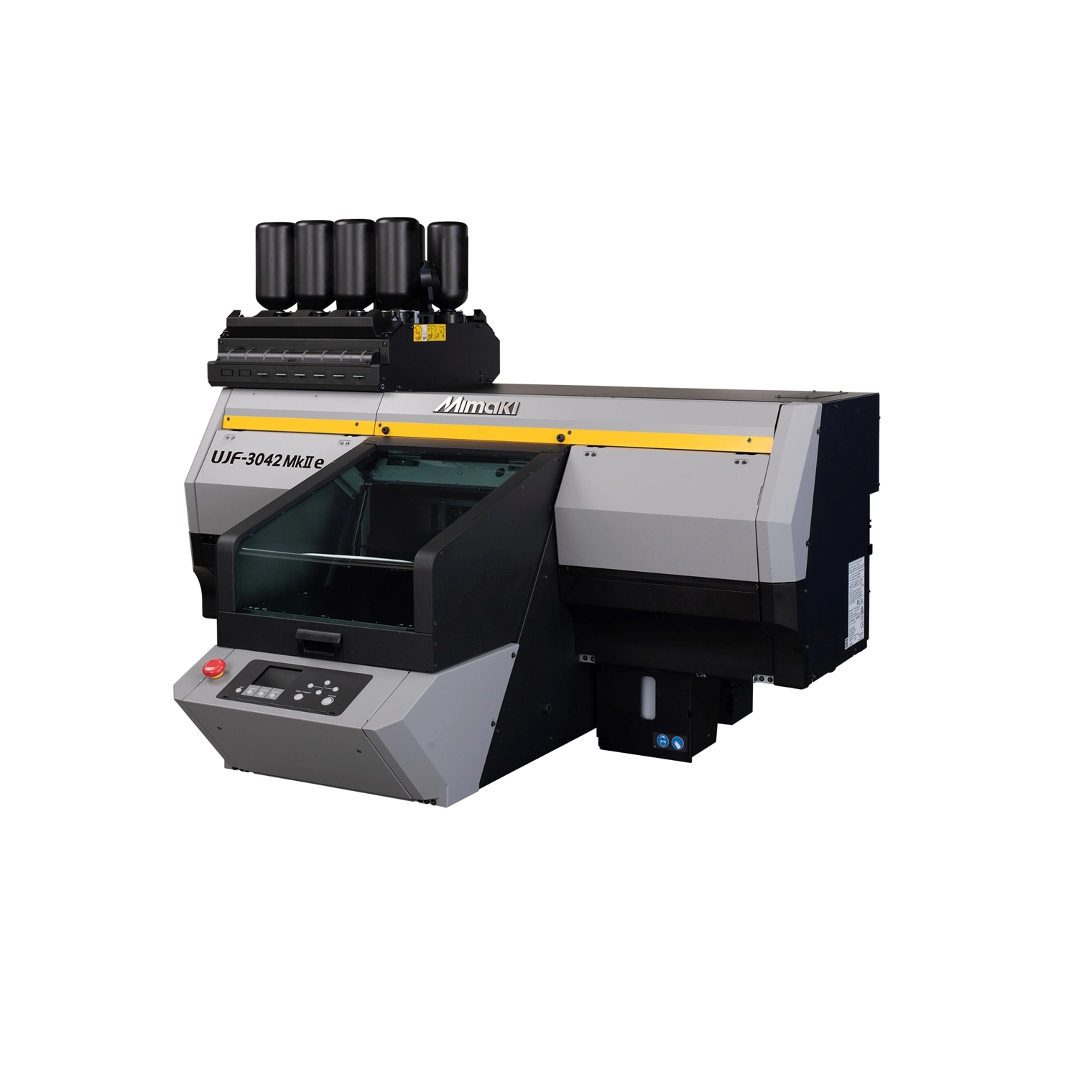

Mimaki UJF3042 - Mk. II e Flatbed UV Printer excludes Inks

£0.00

Mimaki UJF3042 - Mk. II e Flatbed UV Printer excludes Inks

Call 01332 855 085

£0.00

Mimaki’s latest UJF-3042 MkII flatbed LED UV printers bring increased productivity and ease of use to on-demand, direct to object printing.

Call 01332 855 085

SKU: XP1842

Brand: Mimaki

Available in A3 format, this new model builds on Mimaki’s peerless heritage to offer spectacular creativity and limitless opportunities when printing onto almost any material.

Overview
Technical
Specifications
Downloads
Enquire

Available in A3 format, this new model builds on Mimaki’s peerless heritage to offer spectacular creativity and limitless opportunities when printing onto almost any material.

UJF-3042MkII
Printhead		On-demand piezo printhead (3 printheads arranged in a staggered line)
Print resolution		Maximum: 1200 x 1200 dpi
Maximum printable area		Width: 300mm Length：420mm (A3 size)
Ink	Type/Color	LH-100 (C, M, Y, K, W, Cl) LUS-120 (C, M, Y, K, W, Cl) LUS-150 (C, M, Y, K, W) PR-200 (Primer)
Ink	Packaging	LH-100, LUS-120, PR-200: 250 ml bottle / 1 L bottle LUS-150: 1 L bottle
Media	Thickness	153 mm (6 in) or less
Media	Weight	5 kg (11 lb) or less
Certifications		VCCI class A / FCC class A / ETL UL 60950-1 / CB / CE Marking (EMC, Low voltage, Machinery directive, and RoHS)/ REACH / Energy Star / IEC60825-1
Interface		Ethernet / USB2.0
Noise level		Standby mode: 55dB or less (FAST-A, measured1 m away from the source) Continuous operation: 65 dB or less Discontinuous operation: 70 dB or less
Power supply		Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz
Power consumption		1,000W or less
Operational environment	Temperature	20 - 30 degC (68 - 86 degF)
	Humidity	35 - 65％Rh
	Recomended Temperature	20 - 25 degC (68 - 77 degF)
	Temperature change	±10 degC (±50 degF) /h or less
	Dust level	Equivalent to a general office floor level
RIP software		RasterLink6 (Bundled)
Dimensions (W × D × H) *1		1,355 mm × 1,290 mm × 856 mm (53.4 in × 50.8 in × 33.7 in)
Weight		135 kg (297.6 lb)

Products specifications

Applications	Promotional
Applications	Merchandising
Ink Type	UV

Downloads

Create…

Promotional items, Pens, Key rings, Small format signs & Point of sale, Phone and Electronics covers, Stationery, Bottles, USB sticks, Custom components, Boxes & packaging, Control panels and much more…

High performance, state-of-the-art, small format LED UV printers

20% increase in productivity when compared to UJF-3042/6042 Series*. Direct printing on substrates up to 153mm thick. MBIS bulk ink system with 250ml / 1,000ml bottles. Full cover protection prevents dust affecting print quality. Choice of rigid or flexible inks, with up to 9 colours including white, clear and primer. Exceptional print quality as a result of using Mimaki technologies including MAPS, MFD and variable dot. Uninterrupted printing through the use of MCT, NCU and NRS technologies.
