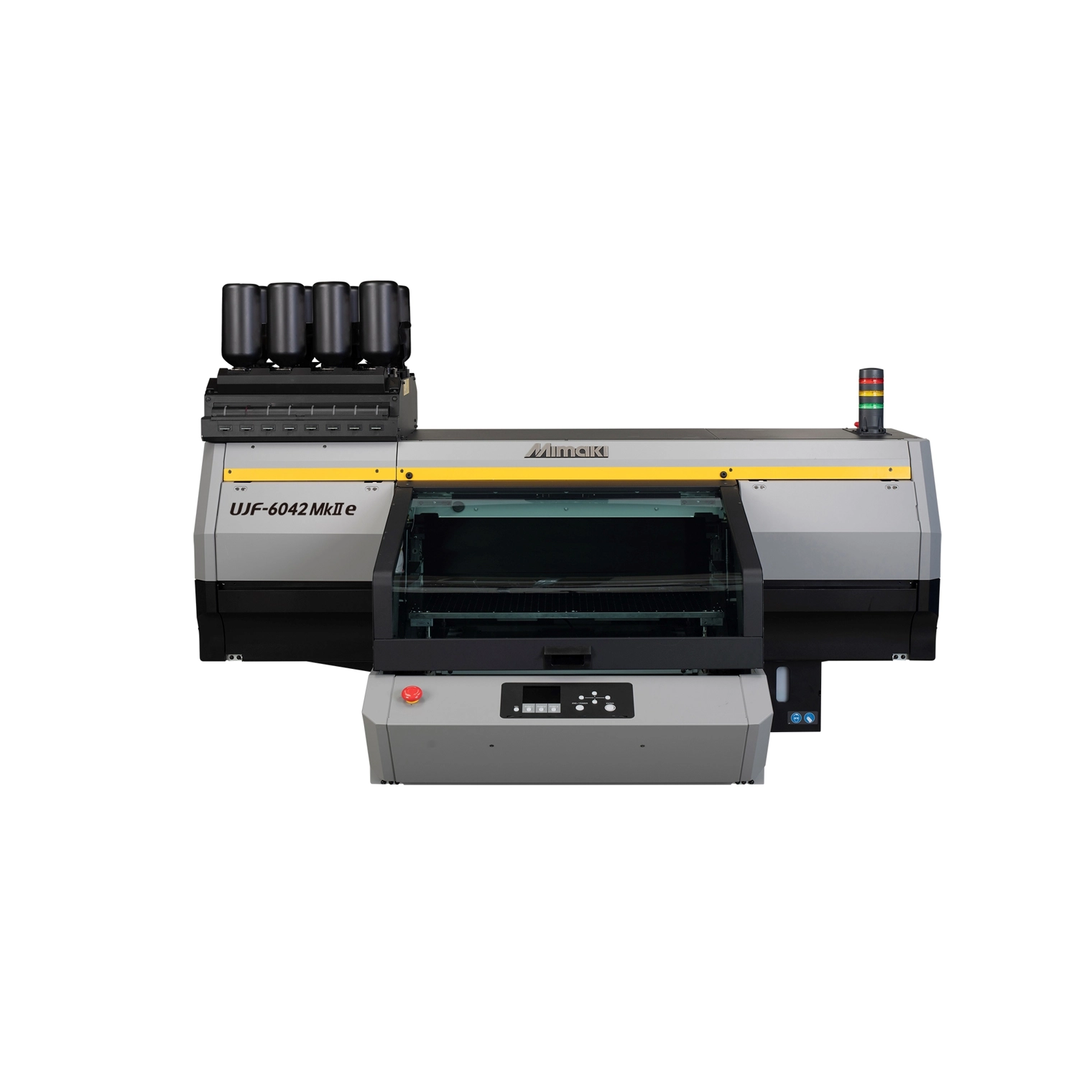

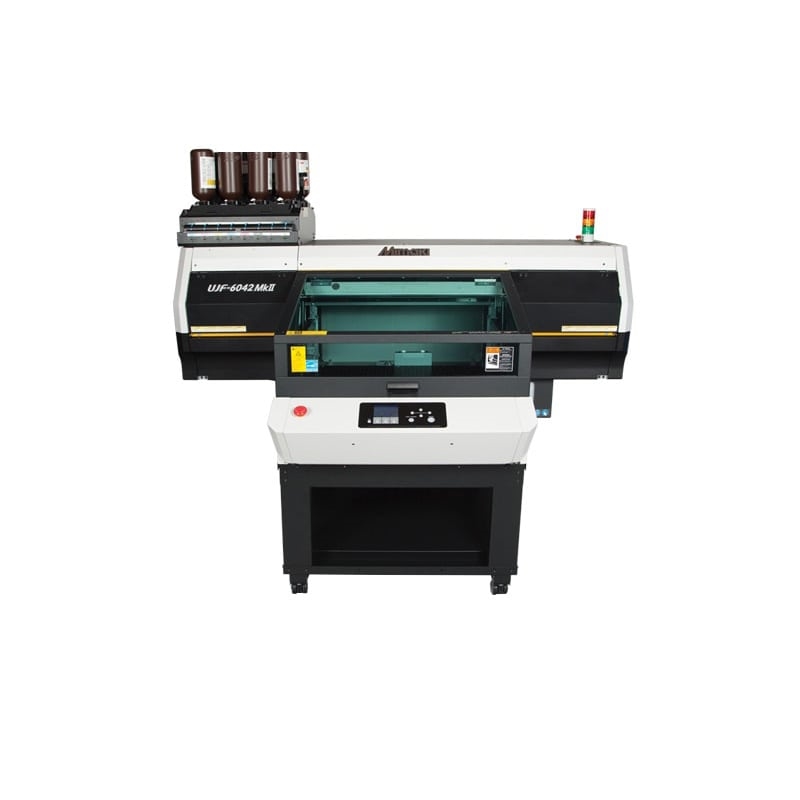

    Mimaki UJF6042 - Mk. II Flatbed UV Printer excludes Inks

    RRP £35,995.00


    Picture of Mimaki UJF6042 - Mk. II Flatbed UV Printer excludes Inks
    Picture of Mimaki UJF6042 - Mk. II Flatbed UV Printer excludes Inks

    Mimaki UJF6042 - Mk. II Flatbed UV Printer excludes Inks

    Xpres Plus - VIEW OUR SITE DEDICATED TO VOLUME PRODUCTION SOLUTIONS!

    Virtual demo available - call to book!

    RRP £35,995.00

    Mimaki’s latest UJF-6042 MkII flatbed LED UV printers bring increased productivity and ease of use to on-demand, direct to object printing.

    Mimaki’s latest UJF-6042 MkII flatbed LED UV printers bring increased productivity and ease of use to on-demand, direct to object printing.

    Available in A2 format, this new model builds on Mimaki’s peerless heritage to offer spectacular creativity and limitless opportunities when printing onto almost any material.

    SKU: XP1843
    Brand: Mimaki

    Creating more valuable products

    The new UJF-6042MkII is the successor model to the UJF-6042. Supports A2 size & 153 mm height. UJF-6042MkII is advanced flatbed UV-curable inkjet printer that create high-value-added product, achieve superior productivity and print quality, and have a greater ability to accommodate a wide range of application.

    Features

    Approximately 20% faster print speed than with conventional models. The best-in-class productivity delivers effective on-demand print production. Advanced mechanical structure improves value-added print products. High-performance inks expand the range of applications. Mimaki's unique print-quality management enhances color representation. Maintenance functions ensure worry-free print operation.

    Clear ink print to represent the texture and to enhance design

    Glossy finish, Matt effect, Embossed print. 129 types of texture library are ready.

    Mimaki’s latest UJF-6042 MkII flatbed LED UV printers bring increased productivity and ease of use to on-demand, direct to object printing.

    Available in A2 format, this new model builds on Mimaki’s peerless heritage to offer spectacular creativity and limitless opportunities when printing onto almost any material.

    UJF-6042MkII
    Printhead On-demand piezo printhead
    (4 printheads arranged in a staggered line)
    Print resolution Maximum: 1200 x 1200 dpi
    Maximum printable area Width:610mm
    Length:420mm (A2 size)

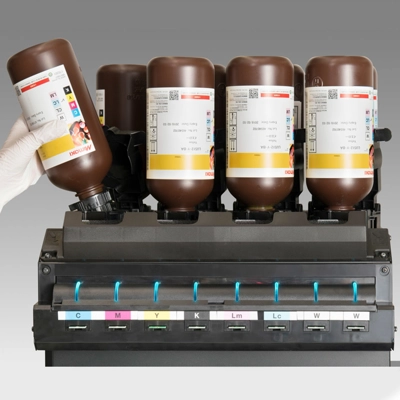

    InkType/Color LH-100 (C, M, Y, K, Lc, Lm, W, Cl)
    LUS-120 (C, M, Y, K, Lc, Lm, W, Cl)
    LUS-150 (C, M, Y, K, W)
    PR-200 (Primer)
    Packaging LH-100, LUS-120, PR-200: 250 ml bottle / 1 L bottle
    LUS-150: 1 L bottle
    MediaThickness 153 mm (6 in) or less
    Weight 8 kg (17.7 lb) or less
    Certifications VCCI class A / FCC class A / ETL UL 60950-1 / CB /
    CE Marking (EMC, Low voltage, Machinery directive, and RoHS)/ REACH / Energy Star / IEC60825-1
    Interface Ethernet / USB2.0
    Noise level Standby mode: 55dB or less (FAST-A, measured1 m away from the source)
    Continuous operation: 65 dB or less
    Discontinuous operation: 70 dB or less
    Power supply Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz
    Power consumption 1,000W or less
    Operational environmentTemperature 20 - 30 degC (68 - 86 degF)
    Humidity 35 - 65%Rh
    Recomended Temperature 20 - 25 degC (68 - 77 degF)
    Temperature change ±10 degC (±50 degF) /h or less
    Dust level Equivalent to a general office floor level
    RIP software RasterLink6 (Bundled)
    Dimensions (W × D × H) *1 1,665 mm × 1,290 mm × 856 mm
    (65.6 in × 50.8 in × 33.7 in)
    Weight 150 kg (330.7 lb)
    Products specifications
    Applications Promotional
    Applications Merchandising
    Ink Type UV
