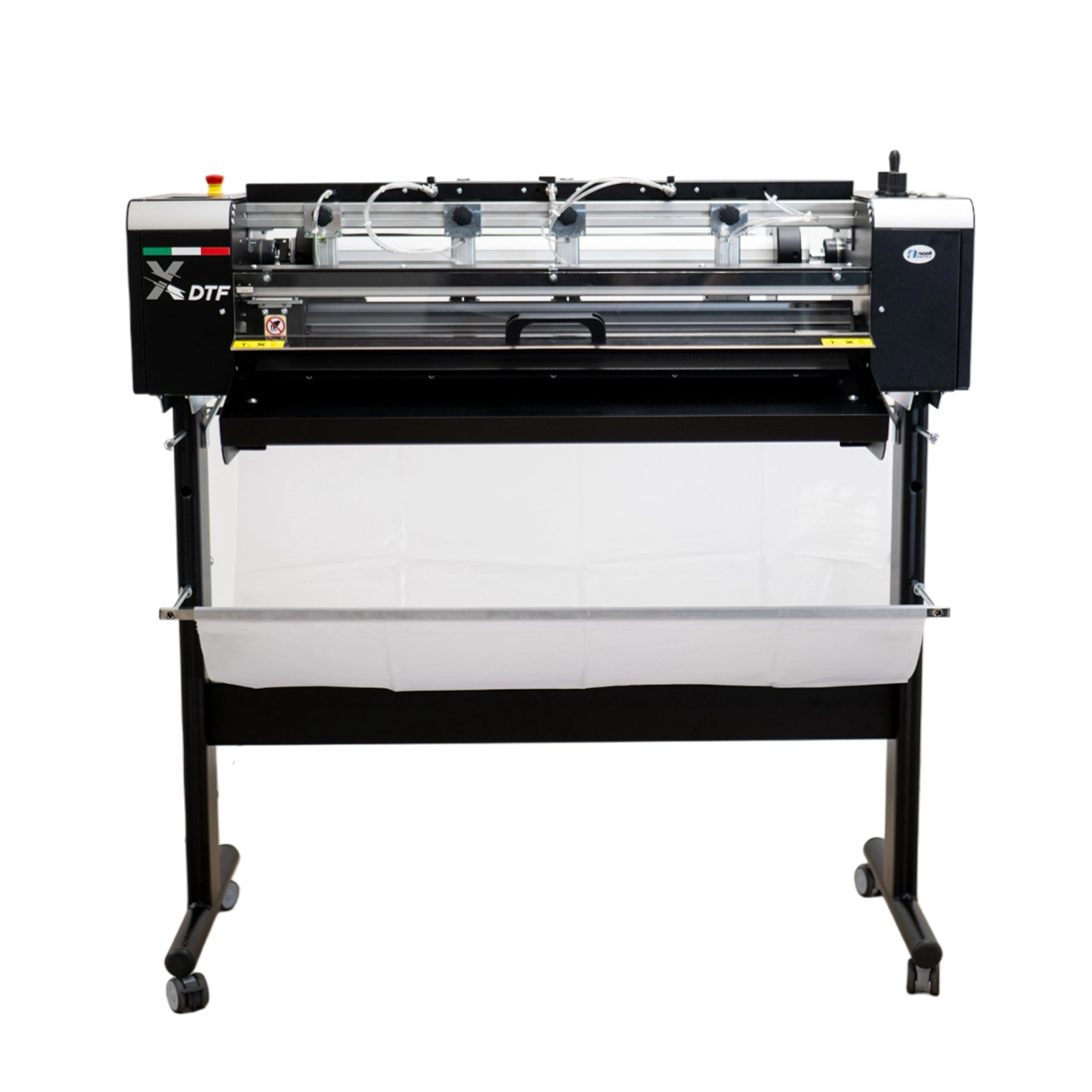

Neolt XY Cutter Bundle
XY DTF is the game changer cutter that will transform your dtf production, and make it fully automatic when paired with roll solutions that use up to 800mm media widths.
The XY Cutter comes equipped with 5 vertical cutting blades to enable automated cutting of transfers sized at a width of 134mm or more when using it's full width of 800mm. If using 600mm wide media the Neolt can cut transfers sized at a width of 100mm or more.
Additional vertical cuttings blades (XP8202) are available as an optional extra to enable users to cut smaller transfers.
Bundle includes:
- Neolt XY DTF Cutter
- Machine Stand & Waste Basket
- 40cm Collection Tray
- 5 x Vertical Cutting Units
Sku: XP8200BUN
£5,999.00
Finance available from £31.75 p/w
Equipped with an internal compressor that powers the pinch roll for the media feed and also the pneumatic vertical blade. Mechanical movement that allow you to modify the angle inclination of roll media.
With a smart interface you can choose between 2 main programs:
• Automatic mode (Programmed size and number of copy).
• Mark mode (2 marks line for automatic cutting).
Height
1250mm
Width
1370mm
Depth
500mm
Weight
75Kg
Maximum Working Width
850mm
Max Media Width
Max 800mm media width
Speed
Max 90 linear meters per hour
Maximum Horizontal Cutting Thickness
1.2mm
Maximum Vertical Cutting Thickness
0.5mm
Maximum Horizontal Cutting Speed
40 metres/min
Maximum Vertical Cutting Speed
15 metres/min
Suitable For
DTF, UV, Reflective, Flock, Vinyl, Glittered Vinyl
Power Supply
220-240 Volts
