Roland TrueVIS SG3-540

RRP £0.00

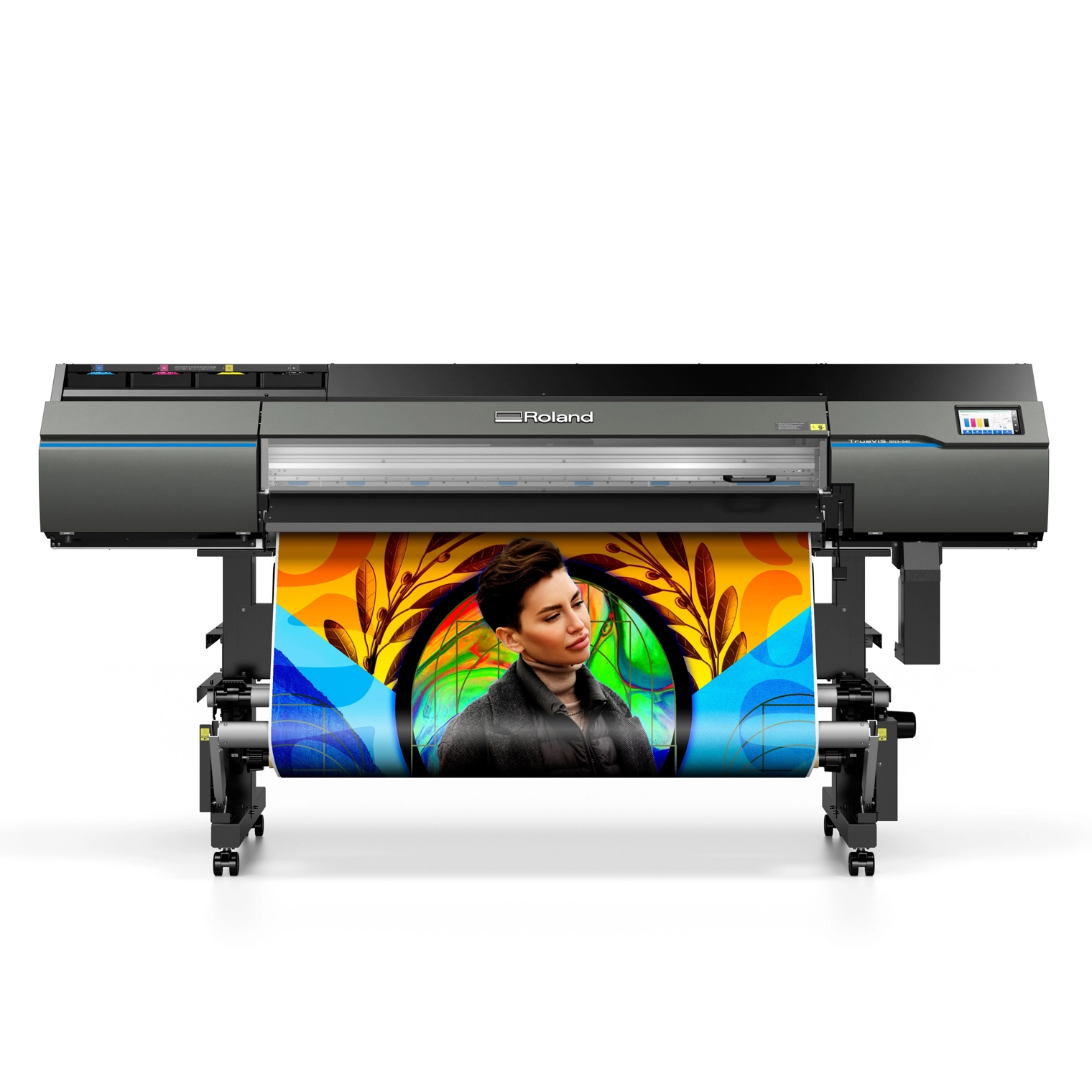

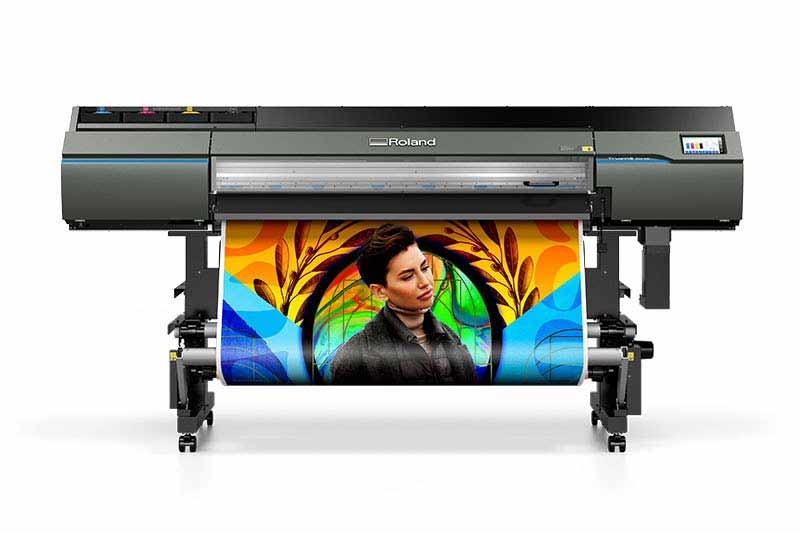

Picture of Roland TrueVIS SG3-540

Roland TrueVIS SG3-540

Call 01332 855 085

RRP £0.00

i h
The 54" SG3-540 is a perfect fit for new shops or existing businesses looking to expand production. The ideal blend of performance and affordability enables your business to succeed.

TrueVIS, the all-in-one solution that has transformed thousands of businesses worldwide, is now entering a new stage of evolution for the digital age. The new TrueVIS generation has been greatly enhanced to further exceed ease of use, increased efficiency and print quality.

SKU: XP2045
Brand: Roland

TrueVIS, the all-in-one solution that has transformed thousands of businesses worldwide, is now entering a new stage of evolution for the digital age. The new TrueVIS generation has been greatly enhanced to further exceed ease of use, increased efficiency and print quality.

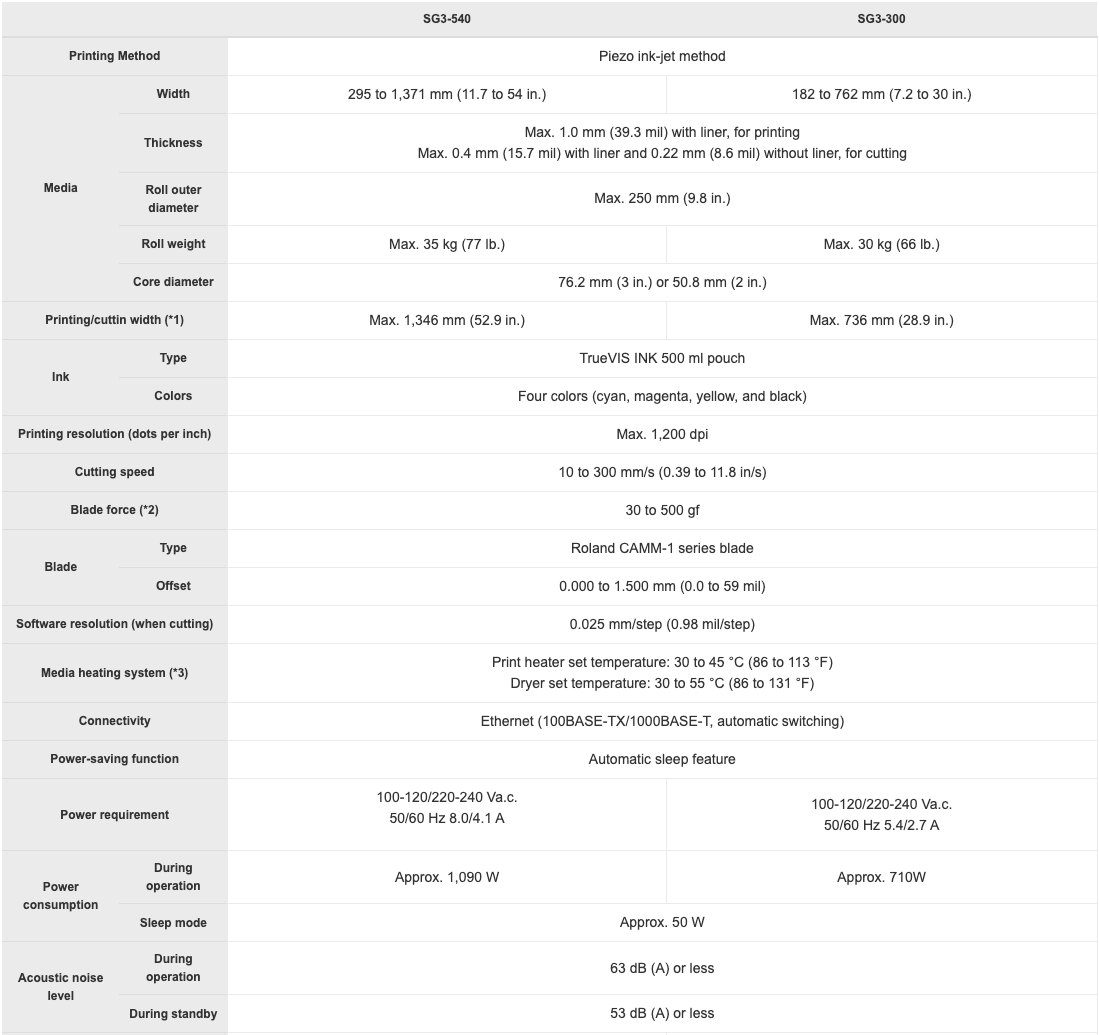

Products specifications
Printing Methods Piezo ink-jet method
Printing Methods 295 to 1,371 mm (11.7 to 54 in.)
Thickness Max. 1.0 mm (39.3 mil) with liner, for printing Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting
Roll Outer Diameter Max. 250 mm (9.8 in.)
Max Roll Weight Max. 35 kg (77 lb.)
Max Media Width Max. 1,346 mm (52.9 in.)
Ink Type TrueVIS INK 500 ml pouch
Ink Four colours (cyan, magenta, yellow, and black)
Max Print Resolution Max. 1,200 dpi
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Power 100-120/220-240 Va.c. 50/60 Hz 8.0/4.1 A

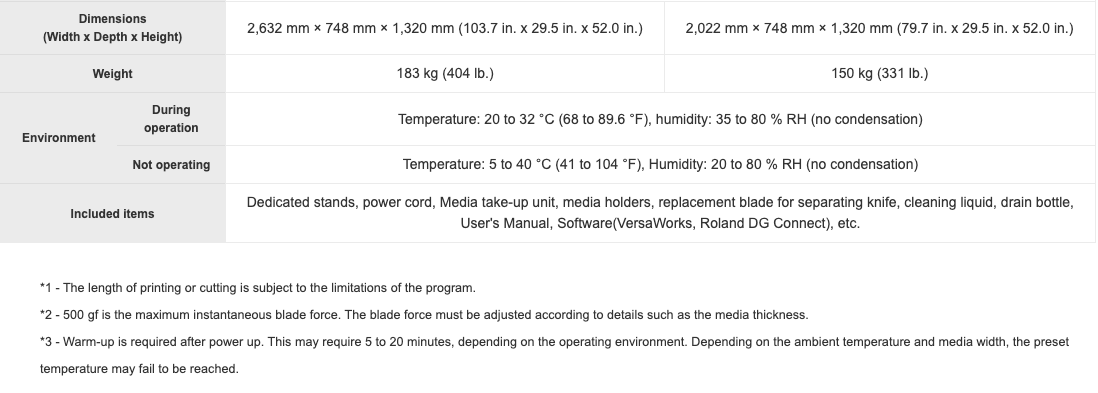

Dimensions 2,632 mm × 748 mm × 1,320 mm (103.7 in. x 29.5 in. x 52.0 in.)
Weight 183 kg (404 lb.)
Environmental Temperature: 20 to 32 °C (68 to 89.6 °F), humidity: 35 to 80 % RH (no condensation)
Included items Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, User's Manual, Software(VersaWorks, Roland DG Connect), etc.
Downloads

Start Stronger

FlexFire print heads, TR2 inks, and True Rich Color combined with user-friendly features make the SG3 the perfect performance-level printer.

A redesigned chassis, high-quality components, and a variety of media handling improvements make the SG3 perfect for runs of decals, small signs, partial wraps, and more.

Easy-to-operate, and intuitive 7" LCD touchscreen control panel.

Automatic media gap adjustment saves time and material.

Newly designed, adjustable media take-up unit accommodates rolls of diff erent sizes.

One-touch media clasp makes loading media rolls easy for a single operator.

With an array of features, plus TR2 inks in CMYK, the SG3 is amazing value for print providers and graphics creators.

Key Benefits

Affordable and powerful, the SG3 Series can quickly generate profits and pay for itself.

Seamlessly pair with a Roland DG cutter for high-intensity production.

Plug in and start working immediately thanks to Roland DG’s user-friendly interface.

Produce your work, your way with flexible job-management features.

Featuring Roland's most intuitive and user-focused system yet. The new 7" touch screen with clear and simple menus gives you the information and functionality you need, when you need it.

Media Take-Up system now included with all TrueVIS 3 devices.

Automatic Media Gap and Media calibration adjustment.

New VersaWorks functionality for simplified colour matching and proofing.

Detailed costings and support manager from Roland DG Connect.

Build a Business That Can Do It All

You know where you want to go - but where you start can really make a difference. With the TrueVIS SG3 solution, you are prepared from day-one to produce a variety of products from large wall graphics to small stickers, all on the same device, using the same software and supported by the same great partnership.

Create Your Perfect Workflow

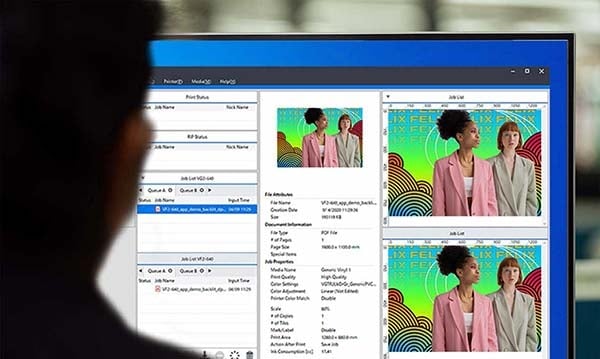

The TrueVIS SG3 solution comes with the most advanced release of VersaWorks 6 RIP software to date. This fast, flexible and feature-rich system gives you all you need to produce your work, your way.

Flexible Queue Settings: Multiple queues, hot folders and unlimited pre-sets.

Intuitive Interface: Simple, user-friendly drag-and-drop operation.

Rapid Native PDF File Processing: Easy handling and accurate reproduction of transparencies and shadows.

Onboard Cut Line Editing: Add contour cut and perforated cut lines directly within the RIP.

Seamless Productivity

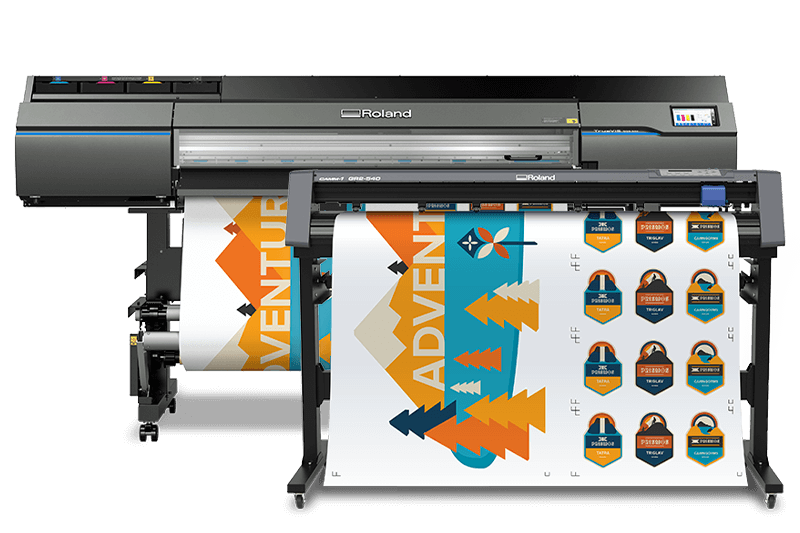

Enhance your capabilities and boost your productivity even further by adding our latest GR2 cutter to your workflow. Besides producing long runs of print and cut jobs, you can also simultaneously print on one device whilst cutting on another for intensive production.

Four Colours - Multiple Possibilities

Roland DG's advanced TR2 ink, exclusive to the TrueVIS range, has all you need to create a strong foundation for your print business. Whether just getting started or taking your next steps, you will always get a professional result with TR2 inks.

  • GREENGUARD Gold certified
  • Avery ICS certified
  • Fast outgassing times
  • Excellent durability
