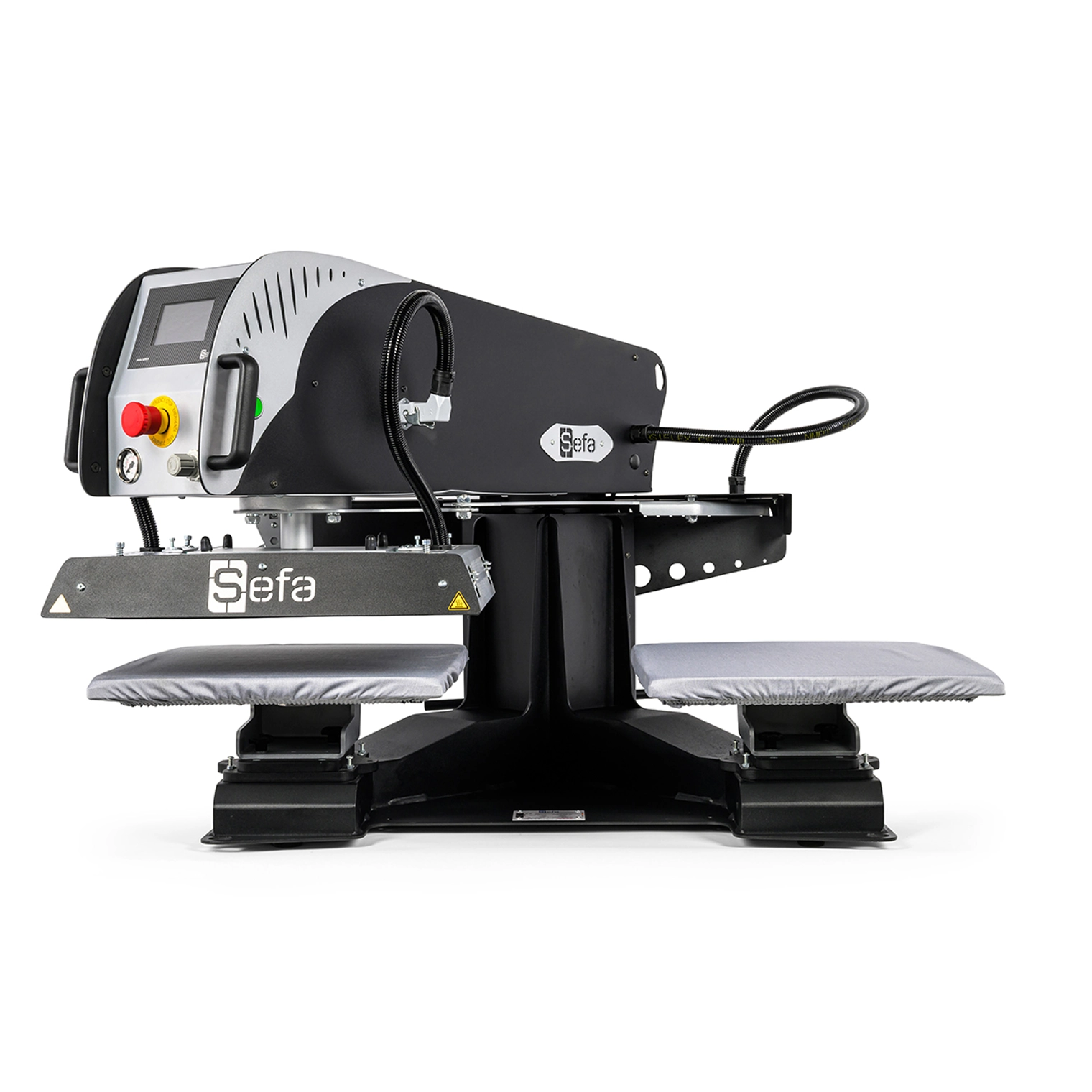

    Sefa Duplex Lite Manual Pneumatic V3

    Brand: Sefa
    The SEFA Duplex Pro Lite V3 is an efficient, robust, dual plate heat press with perfect pressure and heat distribution.
    SKU: XP7326
    Availability: This product is currently out of stock
    £0.00
    i h

    The SEFA Duplex Pro Lite V3 is a efficient, robust, dual plate heat press with perfect pressure and heat distribution.

    Key features:
    - Complete lateral clearance of the plate.
    - Reversible C-shaped part and quick release.
    - Manufactured in france.
    - 40x50cm plate to enable maximum garment coverage.
    - Automatic Closing
    - Automatic Opening
    - Quick Release
    - Robust frame


    The electronics on the Sefa Duplex Pro lite are developed by Sefa and have an accurate and fast regulation (PID control) for a wide range of heat transfer products. The press is suitable for laser transfer applications, sublimation on textile and rigid materials and other printing methods.



    The press has a user friendly touch screen and adaptive regulation parameters depending on the job.



    180º reversible C-shaped lower part and quick release system. To thread T-shirts either from the front or the back of the plate.

    Technical Specifications
    Weight: 74 Kg
    Pressure: 500 gr/cm2
    Max Temperature: 220°C
    Power Supply: 230V single phase + Gr
    Electric Power: 3200 W
    Amperage: 11 A
    Dimensions: 674x947x569 mm

    Products specifications
    template-video Y8xJWvfZcvc
    Width 107.9cm
    Height 71.3cm
    Depth 89.1cm
    Plate Width 40cm
    Plate Depth 50cm
    Weight 137kg
    Max Temperature 255°C
    Pressure 4 bars: 250g/cm², 6 bars: 375g/cm², 8 bars: 500g/cm²
    Power 3200 W
    Amperage 15A
