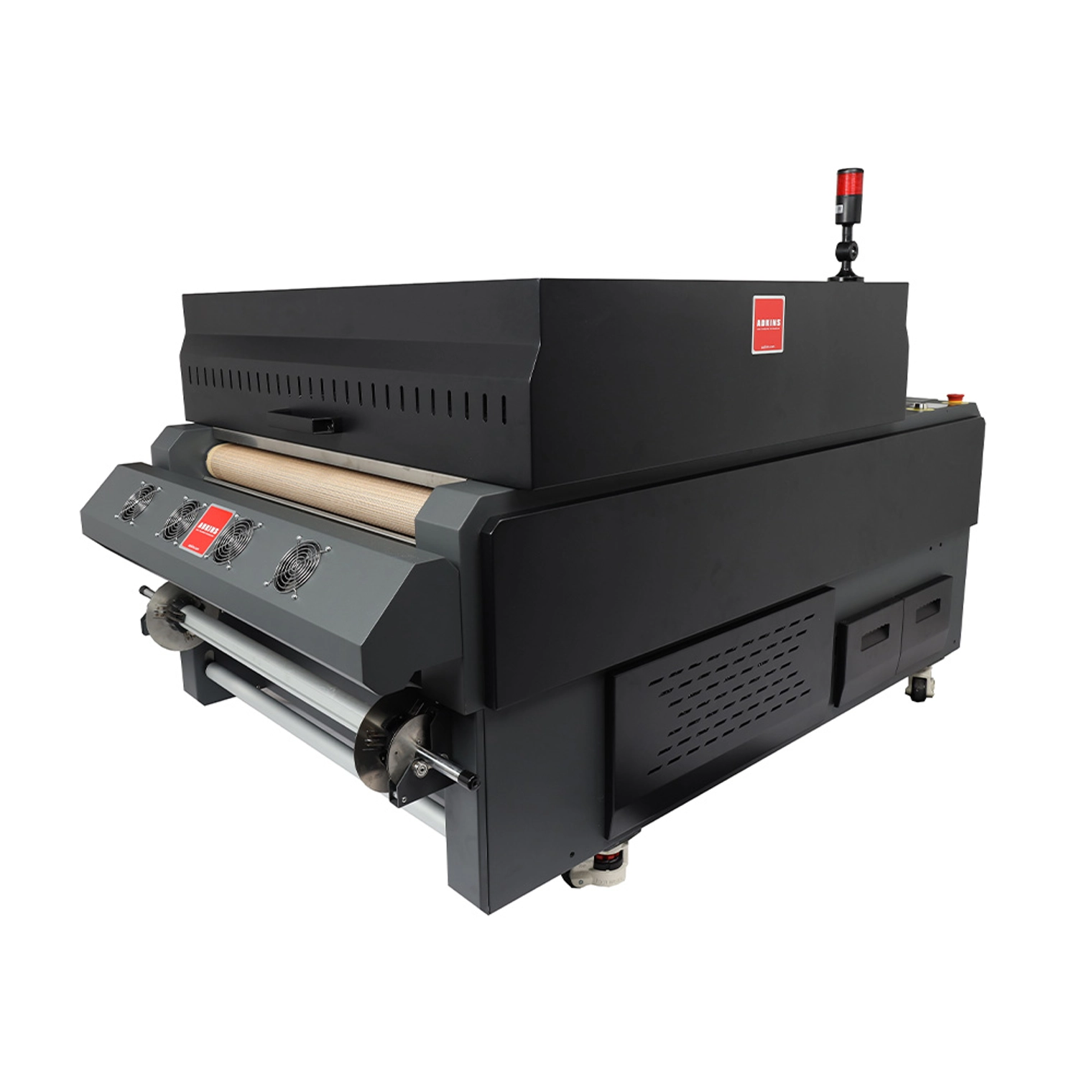

Adkins Inline 800 DTF Powder Shaker Cure Unit

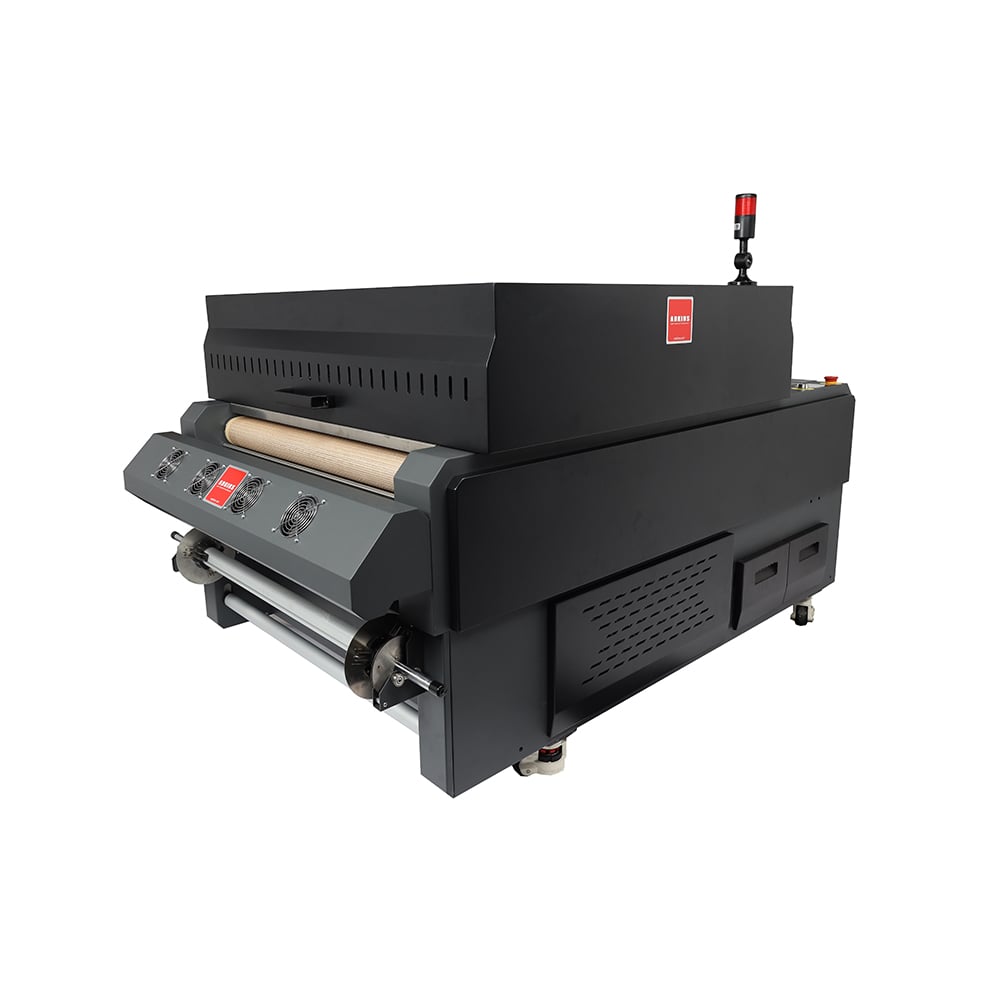

Picture of Adkins Inline 800 DTF Powder Shaker Cure Unit

Adkins Inline 800 DTF Powder Shaker Cure Unit

Call 01332 855 085

  • Branded end-to-end solution from renowned and trusted manufacturers.
  • Recommended by Mimaki as their in-line solution of choice.
  • Up to 800mm max media width for optimal print efficiency and production speed.
  • User-friendly operation and maintenance.

Call 01332 855 085

SKU: XP1350
Brand: Adkins


The Perfect Solution for High Volume Roll to Roll DTF Production

With its large 800mm wide capacity, low operating power, ease of use & fast curing times, the Adkins Inline 800 DTF powder shaker cure unit will meet your production demands without compromising quality or reliability.

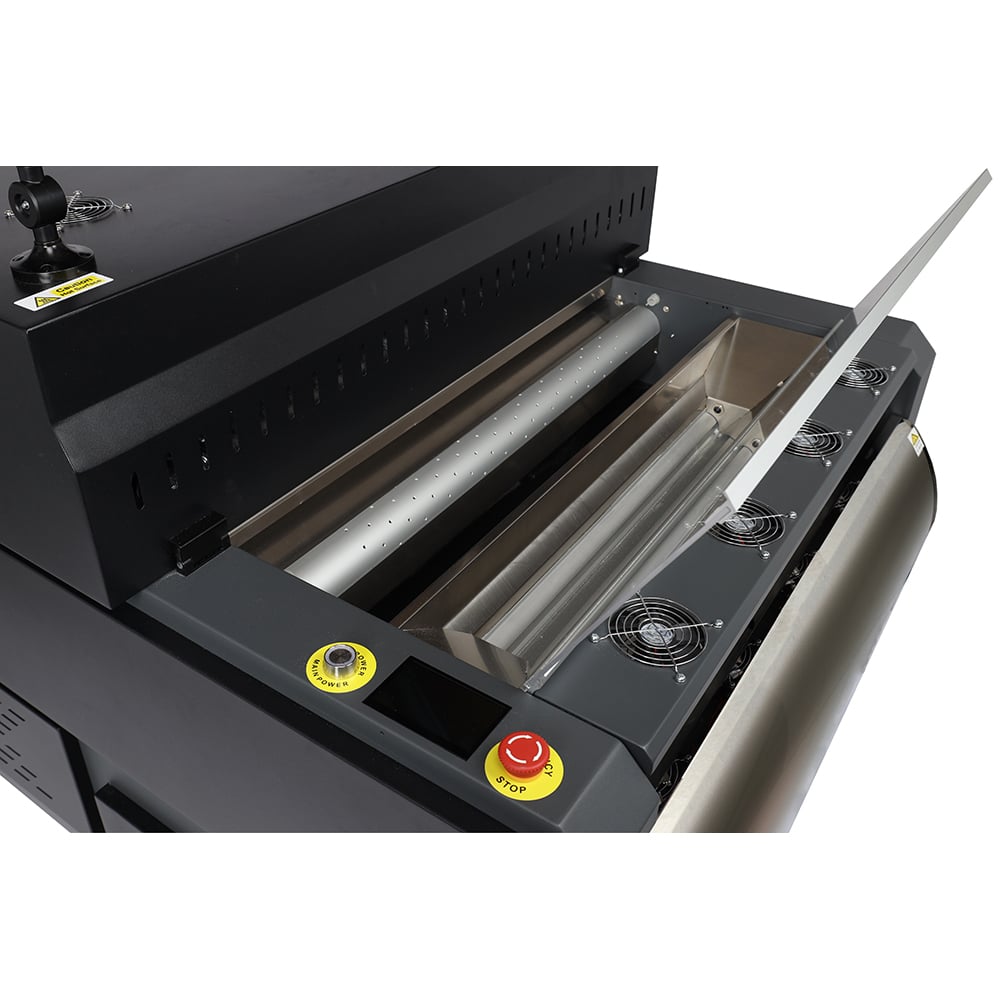

Featuring a powerful shaker that ensures even distribution of powder across DTF roll films of all sizes up to 800mm in width. The unit also features high-efficiency curing lamps that cure powder quickly and evenly, resulting in high-quality prints that last.


The Perfect Solution for High Volume Roll to Roll DTF Production

With its large 800mm wide capacity, low operating power, ease of use & fast curing times, the Adkins Inline 800 DTF powder shaker cure unit will meet your production demands without compromising quality or reliability.

Featuring a powerful shaker that ensures even distribution of powder across DTF roll films of all sizes up to 800mm in width. The unit also features high-efficiency curing lamps that cure powder quickly and evenly, resulting in high-quality prints that last.

Products specifications
Power Consumption 2.7KW
Power Supply 230 volts AC
Shaker Unit Automatic
Heating Elements 8
Take Up Automatic tension bar
Operating Conditions Manual control/Auto control
Belt Type Mesh
Powder Application Weighted powder distribution
Max Media Width 800mm
Machine weight 385KG
Machine size 130(w) x 102(h) x 187(d) cm
Air Purifier In-built extraction and filtration
Fuse 13 A
Downloads

Easy and Efficient to Run

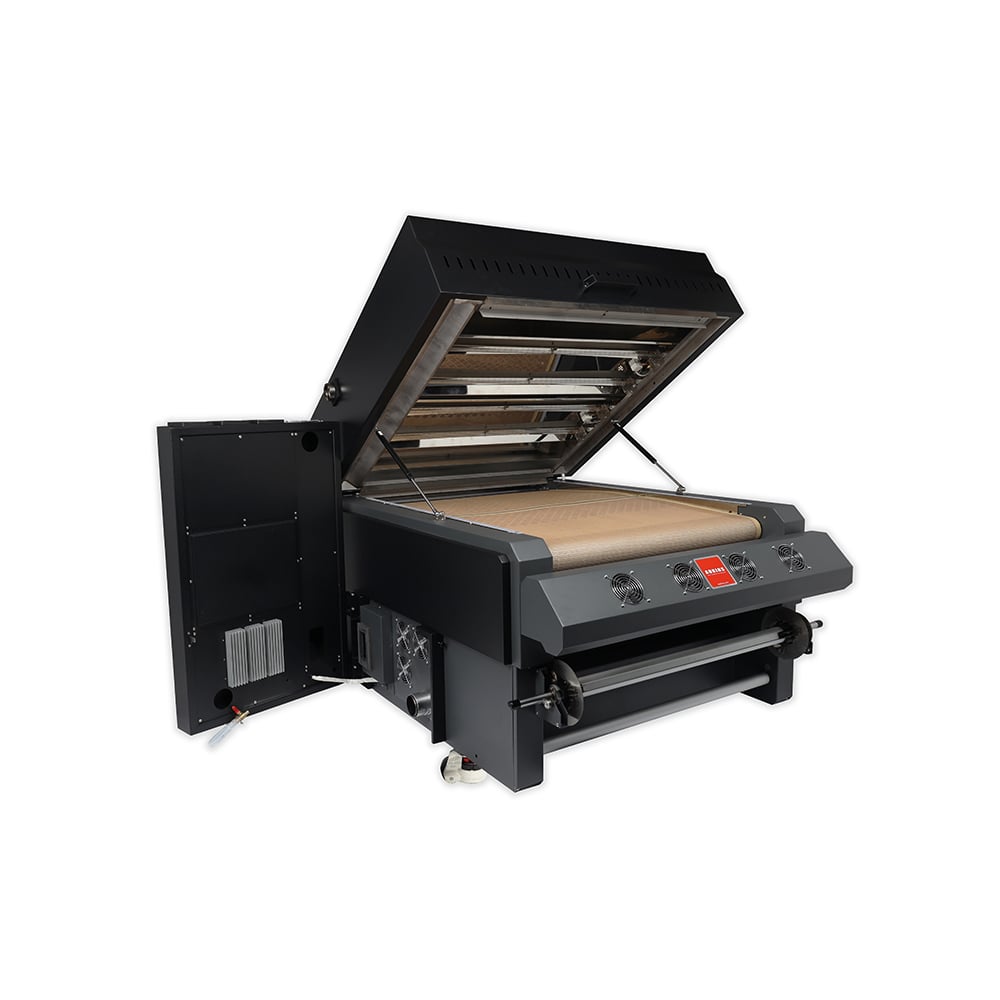

Easy to operate & maintain with it’s intuitive touch screen control panel, easy access for cleaning and built-in filtration unit. Compatible with a wide range of DTF roll to roll printers, making it a versatile and reliable solution for any DTF production environment.

Features

Large 800mm wide media feed & cure area

Low operating power consumption

Either automatic or manual operation settings

Built-in filtration meaning no extraction is required

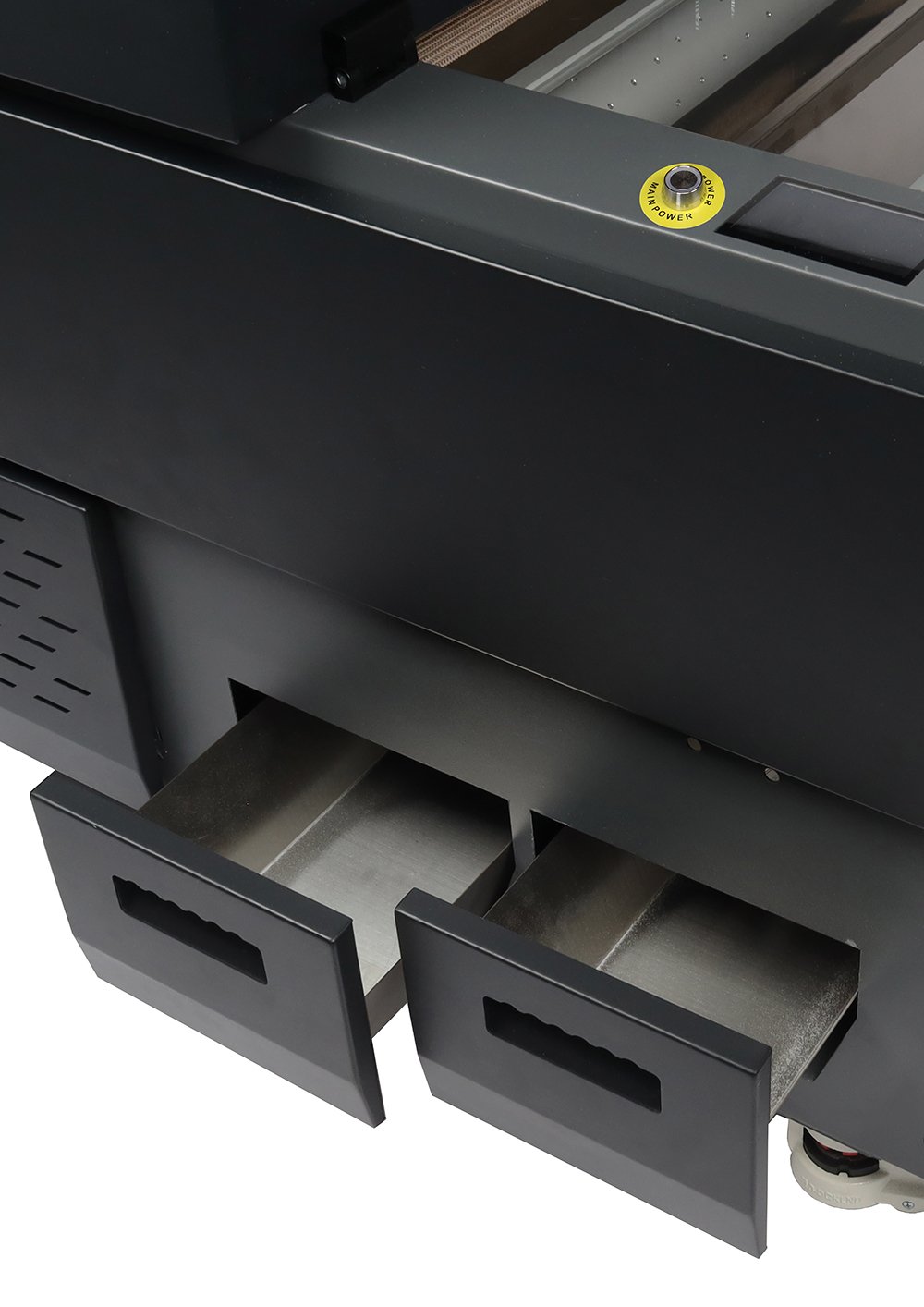

Excess powder catch trays for quick recycling ensuring efficiency

Media feed & powder applicator sensors

Media suction control with pre-heat settings

Smart media take-up unit

Finished print cooling fans allow for immediate handling

Technical Specification
Power consumption: 2KW
Power supply: 230 volts AC
Shaker unit: Automatic
Heating elements: 4
Take up: Automatic tension bar
Operation mode: Manual control/Auto control
Belt type: Mesh
Powder application: Weighted powder distribution
Max roll width: 800mm
Net weight: 355KG
Gross weight: 385KG
Machine size: 130(w) x 102(h) x 187(d) cm
Packing size: 135(w) x 110(h) x 193(d) cm
Air purifier: In-built extraction and filtration
Fuse: 13 A



All products within the ADKINS range are labelled with CE marking and are manufactured and tested to comply with EC safety regulations.
