Compact DTG Printer
For versatile digital print production
The Compact Series is a high-performance industrial textile printer. It is the ideal solution for new or experienced textile printing companies. The Compact Series offers high output, unmatched print quality in a smaller footprint than aeoon's flagship KYO Series.
aeoon's RIP software optimises high resolution artwork with a touch of a key, sends it to the printer and is ready to go. The software automatically adjusts the white underbase to optimise the cost per print which is significantly reduced versus competition. aeoon offer a large selection of pallets to offer the most flexibility for customers and, like all aeoon printers, deliver the high-resolution quality prints.
The Compact Series is a cost effective industrial DTG printer that prints efficiently, at the highest quality, with the flexibility aeoon is known for offering.

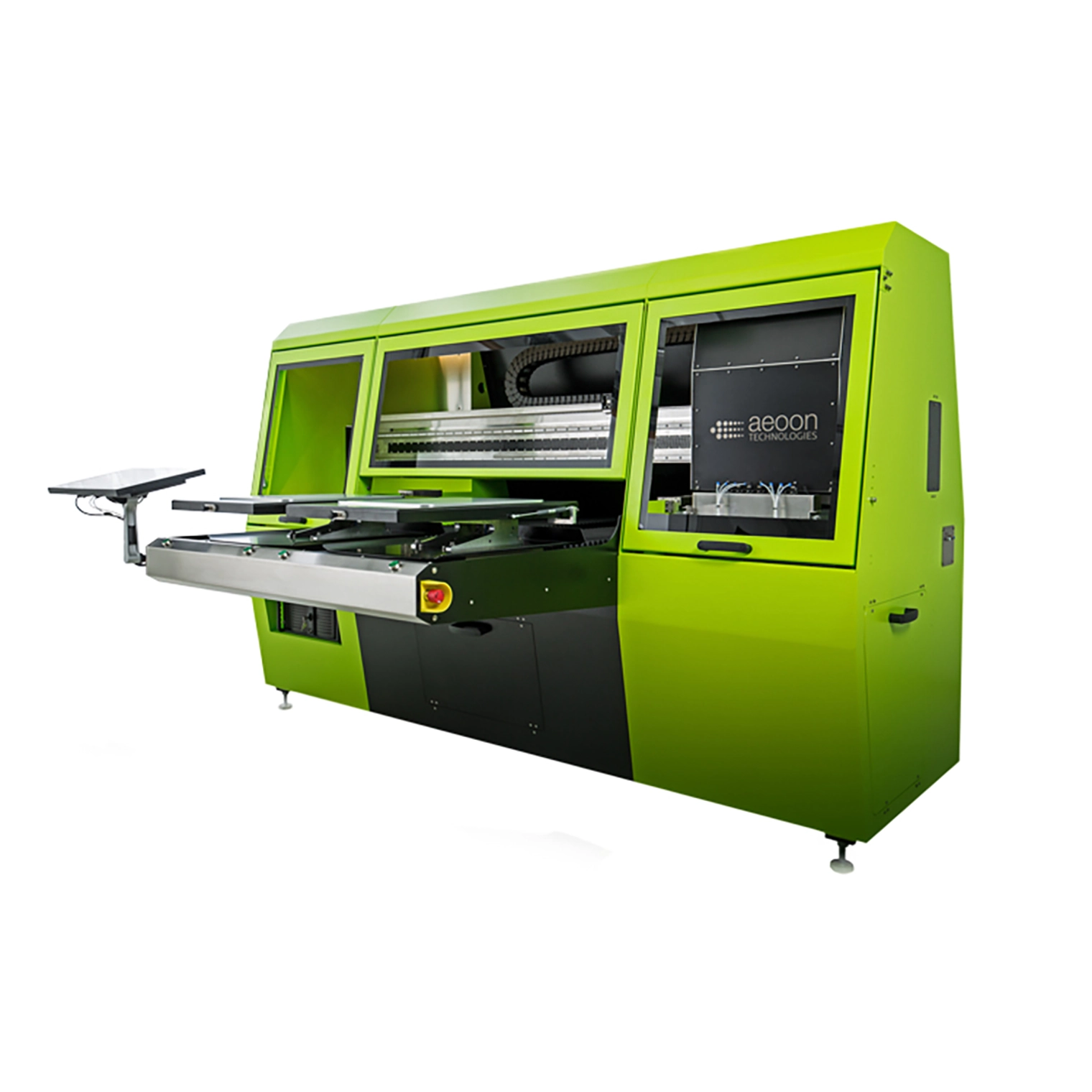

The Compact DTG Printer
The Compact Plus DTG Printer
Compact Benefits
- • Low capital expenditure enables entry into digital textile printing
- • No pretreatment for white garments - low printing costs
- • Industrial print heads - print resolution from 600-2400 dpi
- • Integrated OPC-UA interface
- • Wide range of pallets - also for special applications
- • Max. print size 120x80cm; ~47x31in - frameless pallet
- • Smaller footprint
Compact PLUS Benefits
- • Integrated Heat Press - Enhances print quality, No press marks, Save time, High washability.
- • Easily integrated into automated work flow.
- • Optional beamer system for exact positioning
- • Crash-prevention to protect print heads.
Output 8/2 - on a dark garment
Print size (40x20cm/ ~16x8n)*
Depending on the perfomance of the operator, on the material and design.
150*
Pieces per hour* (average)
Compact - Highlights at a glance

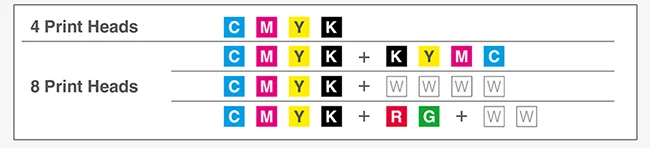

Ink Channel Configurations
Technical Specifications
| Print Heads: | Kyocera KJ4B |
| Printing Resolution: | 600 dpi up to 2400 dpi resolution |
| Max. Print Size: | with 2 print stations – with frame – 40 x 50 cm; ~16 x 20 in with 2 print stations – frameless – 50 x 70 cm; ~ 20 x 28 in with 1 print station – frameless – 120 x 80 cm; ~ 47 x 31 in |
| Operating System: | Linux OS |
| RIP Software: | aeoon RIP Software |
| Dimension: (LxWxH) | 280x220x170cm / ~110x87x67in |
| Weight: | 1500kg / 3307lb |
| Interface: | OPC-UA and REST interface |
| Environmental conditions: | Temperature 22 - 24°C; Humidity 50 - 80 % non-condensing |
| Electrical Supply: | 3x400V+N+PE(3x208V+N+PEam.) 50/60Hz (+/-5%) - max.power input: 6,3 kVA |
| Compressed Air Supply: | 7 bar - Quality Class 5 (residual oil: 25 mg/mÑ - residual dust: 40μm/10mg/mÑ - residual water + 7 DTP / 7.8 gm/m³) (max. air consumption: 500 l / min) |
| Printable Materials: | Cotton, synthetics, mixed fibers, canvas, wood, leather, ... |
Get in touch
Are you interested and want to find out more?
We are happy to advise by phone or email, call 01332 85 50 85 or email [email protected]
