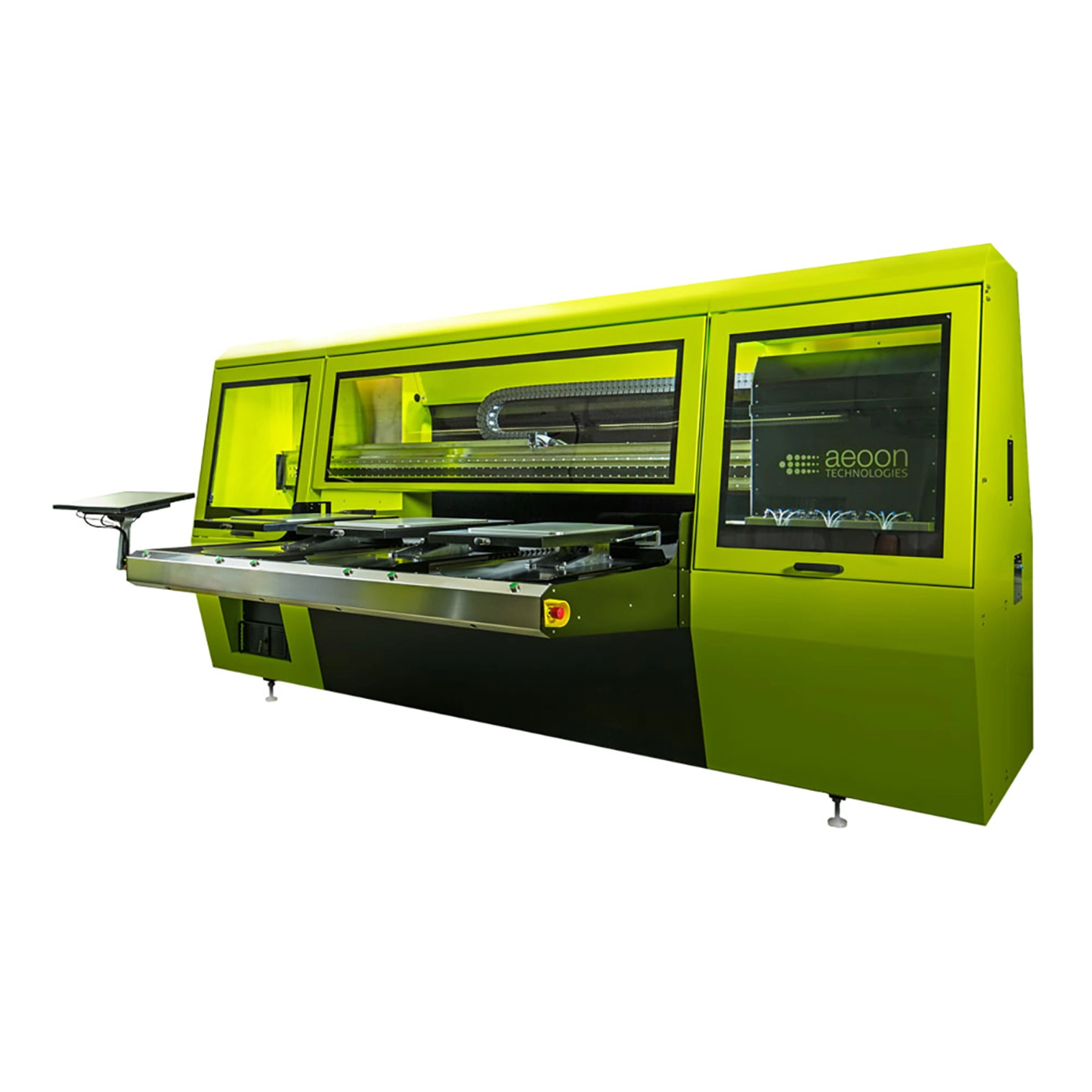

Kyo DTG Printer

1 2 3 4
Responsive image

High output and high-performance industrial DTG printing


The Kyo Series was developed for customers with high output needs, for either large runs of the same design or one offs. This proven platform offers excellent uptime of operation, which translates into the fastest return on investment of any DTG printing machines on the market.

The Kyo Series offers unsurpassed print quality, unbeatable print speed and contains the highest quality industrial components. For added flexibility, there are over 30 standard pallets with up to a maximum print area of 92 x 98 cm. With aeoon’s open architecture, implementation of workflow processes is easily attainable, improving on industry-low cost per print, based on optimised ink usage.

There is no better solution to set up or expand a high output, versatile and lucrative DTG production business. The Kyo Series offers you maximum output, maximum print area and maximum performance!



Output 12/3 - on a dark garment

Print size (40x20cm/ ~16x8n)*
Depending on the perfomance of the operator, on the material and design.

180*

Pieces per hour* (average)

Kyo Benefits

  • • Fastest return on investment (with good capacity utilisation)
  • • Fastest DTG printer on the market
  • • 24/7 – High-performance production in shift operation
  • • No pretreatment for white garments – low printing costs
  • • Industrial print heads - print resolution from 600-2400 dpi
  • • Wide range of pallets – also for special applications
  • • Max. print size 200 x 98 cm (frameless pallet)

Kyo PLUS Benefits

  • • Integrated Heat Press - Enhances print quality, No press marks, Save time, High washability.
  • • Easily integrated into automated work flow.
  • • Optional beamer system for exact positioning

Robert Hake, CEO & Founder of MyLocker

“Our company has more than 30 aeoons running 2 shifts/7 days a week. We have tested every commercial DTG machine and aeoon is by far the most scalable solution for POD fulfilment. Their high-definition prints, cost per/print, and up-time reliability are the best in the market. aeoon technologies blow the competition clean out of the water.”

Compact - Highlights at a glance

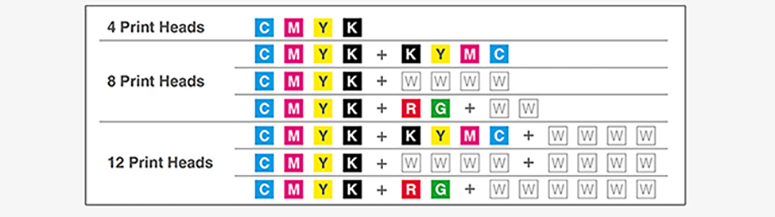

Ink Channel Configurations

Technical Specifications

Print Heads: Kyocera KJ4B
Printing Resolution 600 dpi up to 2400 dpi resolution
Max. Print Size with 3 print stations – with frame – 40x50 cm; ~16x20 in
with 3 print stations – frameless – 60x90 cm; ~ 24x35 in
with 1 print station – frameless – 200x98 cm; ~ 79x39 in
Operating System Linux OS
RIP Software aeoon RIP Software
Dimension (L x w x h) 410x290x200cm / ~161x114x79in
Weight 2000kg / 4409lb
Interface OPC-UA and REST interface
Environmental conditions: Temperature 22 - 24°C;
Humidity 50 - 80 % non-condensing
Electrical Supply 3x400V+N+PE(3x208V+N+PEam.)
50/60Hz (+/- 5 %) - max. power input: 8,5 kVA
Compressed Air Supply 7 bar - Quality Class 5 (residual oil: 25 mg/mÑ - residual dust: 40 μm / 10 mg/mÑ
- residual water + 7 DTP / 7.8 gm/m³) (max. air consumption: 500 l / min)
Printable Materials Cotton, synthetics, mixed fibers, canvas, wood, leather, ...



Get in touch

Are you interested and want to find out more?


We are happy to advise by phone or email, call 01332 85 50 85 or email [email protected]
