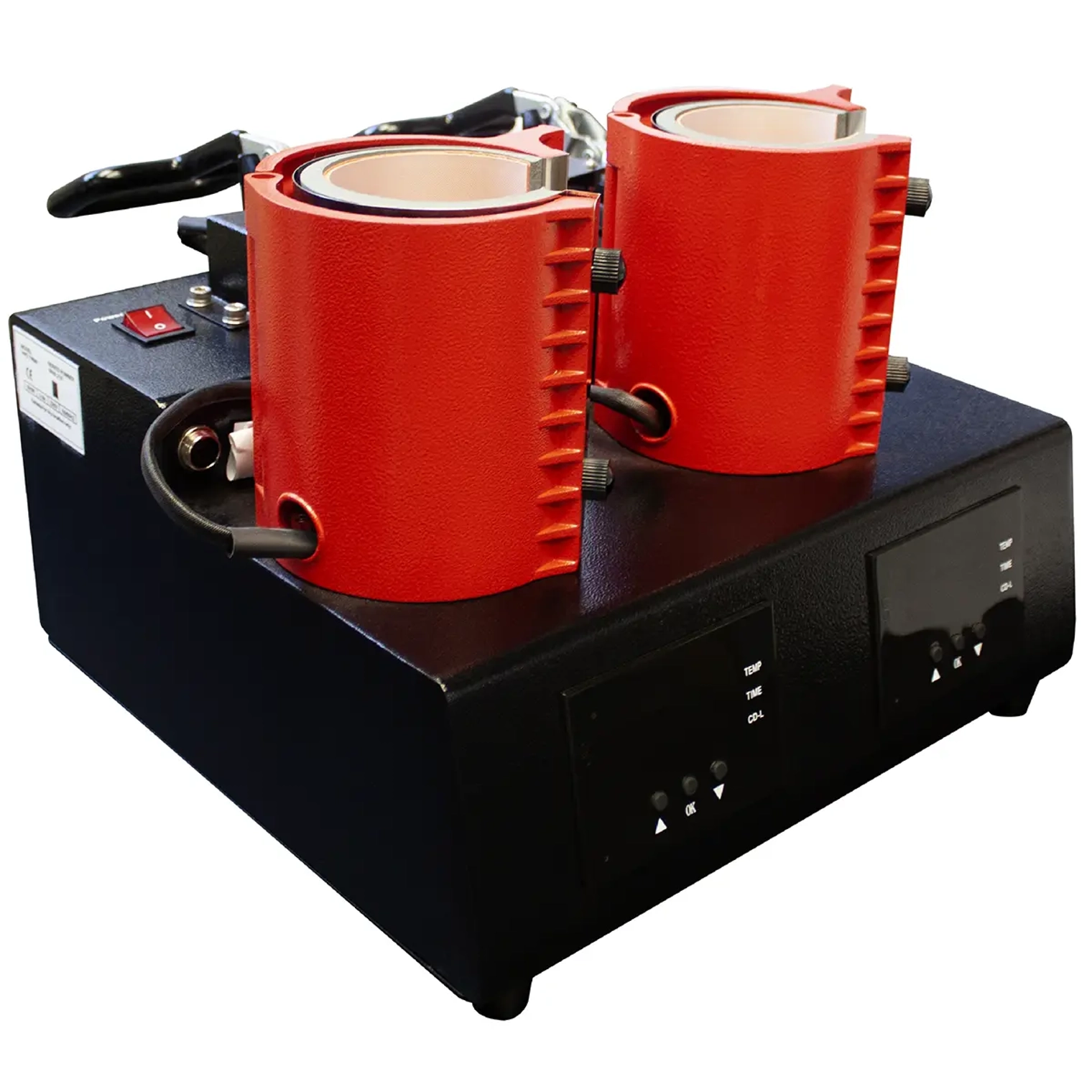

Xpres HPD 2 Station Mug Press
The Xpres HPD 2 Station Mug Press is a high quality manufactured press for volume production that has two independently controlled heating elements that can be used to apply transfers to most polyester coated drinkware such as mugs and water bottles when using the correct mug element.
This press comes with two of the 11oz mug elements (XP7069E) designed to accept most drinkware with a diameter between 75mm and 85mm.
Additional and replacement mug elements are available (as below) for the Xpres HPD 2 Station Mug Press to allow the pressing of different sized drinkware and cylindrical sublimation items.
XP7069E – 9oz Element designed to accept most drinkware with a diameter between 65mm and 74mm
XP7069E – 11oz Element designed to accept most drinkware with a diameter between 75mm and 85mm
In Stock
It’s lightweight, portable, simple to operate and requires minimum operating space, so is ideal for environments with limited working space or for use under a retail counter and suited customers with medium to high volume production.
Features includes a dual LED controller that provide a simple interface allowing you to set your required time and temperature on each element, fingertip pressure control, illuminated on/ off switches, counter display and a digital countdown timer to buzzer alarm.
Supplied with 2 of our large standard mug elements that accommodate Ø-80mm mugs. Additional mug elements are available for Ø-72mm mugs and coffee 'smugs' that can be quickly swapped out via 6 bolts and a wire plug and socket.
*For consistent results it's suggested to press 20mm from both ends of the mug element and 5mm from both the top and bottom of the mug. Anything outside of this may be possible but will require additional customer testing*
Features:
- Weight: 14.5Kg
- Power: 230 Volts AC / 3 Amp Fuse / 280 Watts
- Heat Elements: Mica Heating Element
- Frame Material: Cast Iron
- Control Unit: LED Digital Microprocessor Control
- Working Temperature: 0-260°C
- 12 Month Warranty (return to base)
