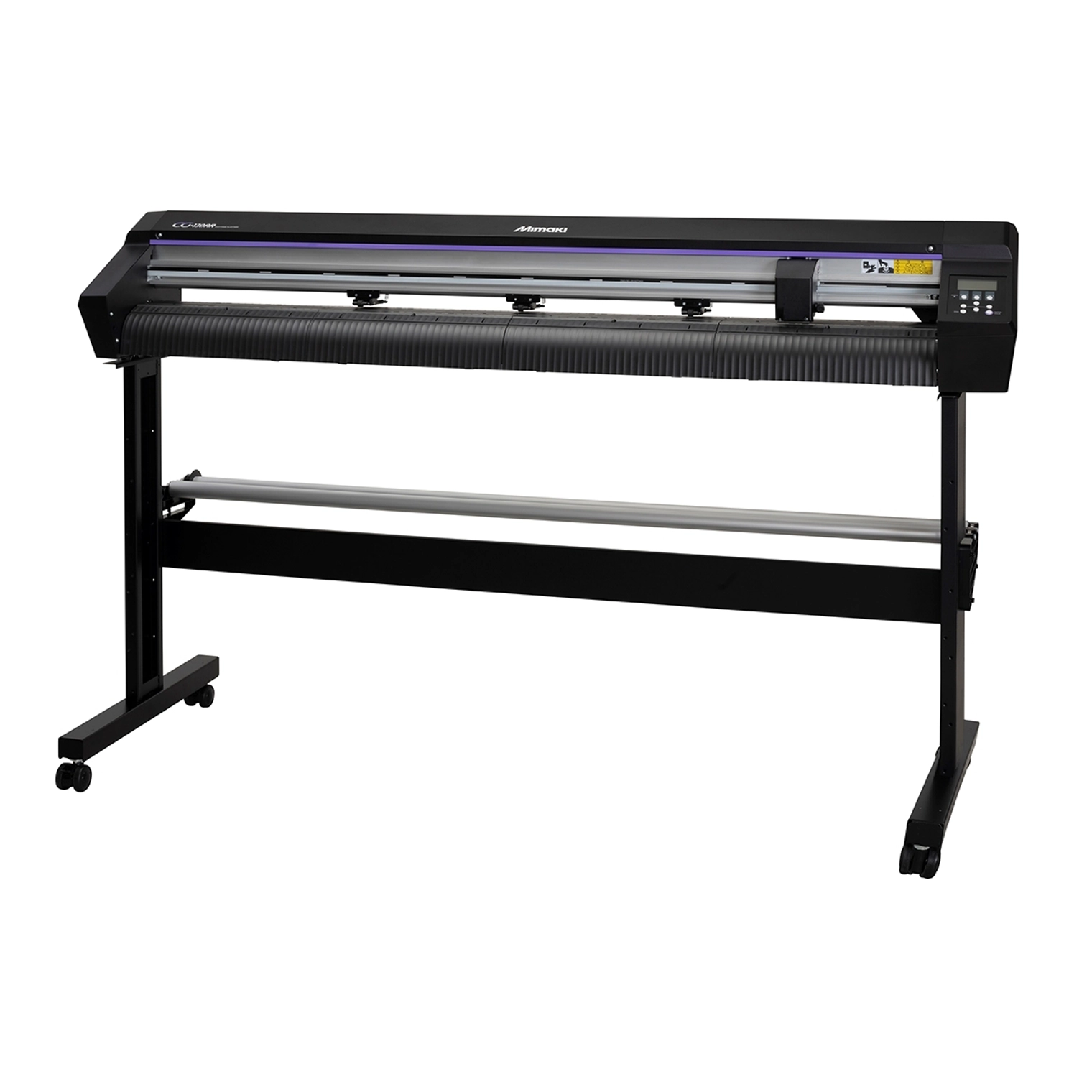

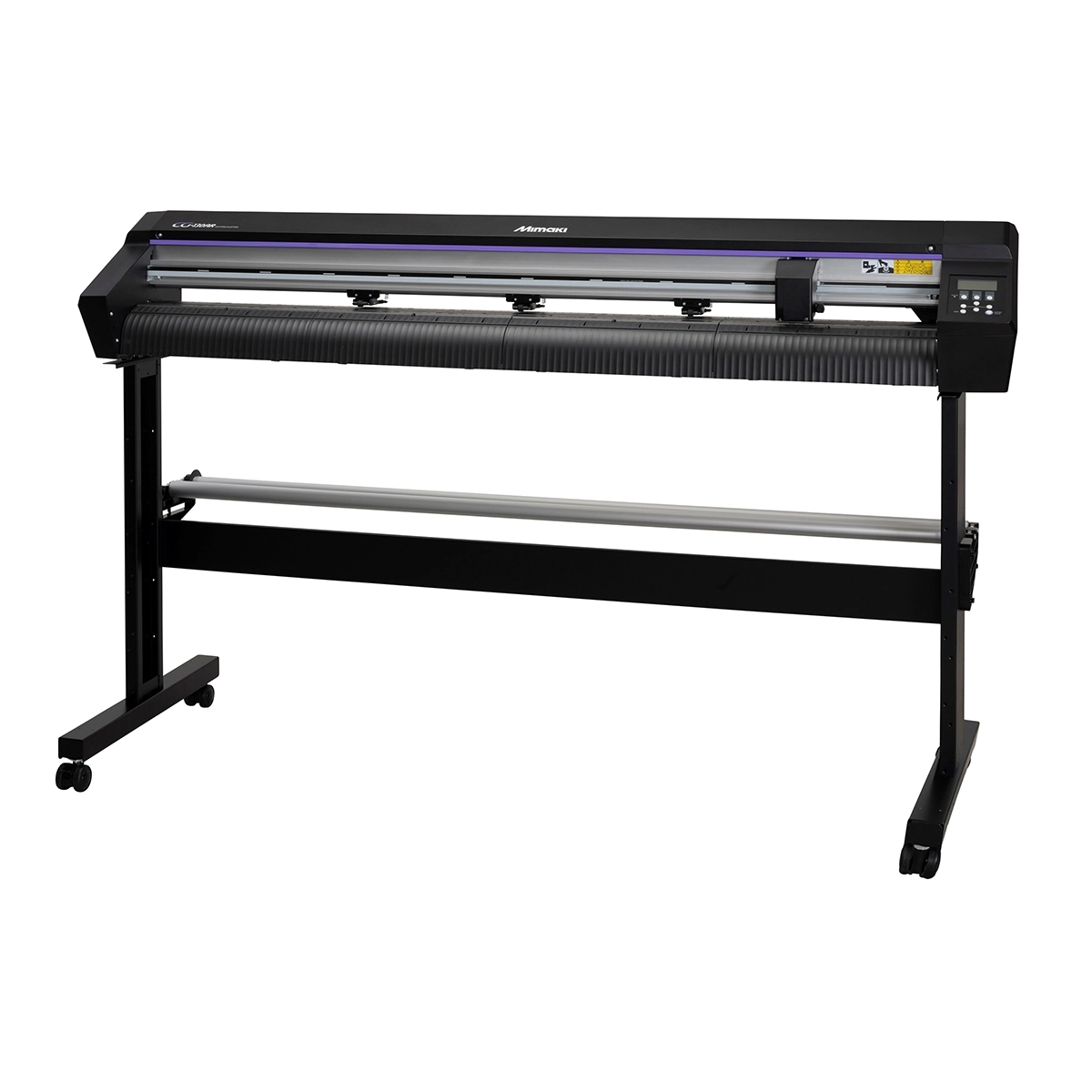

Mimaki CG-130AR Cutter

The new CG-AR series builds upon the strong heritage of its predecessor and comes with new intuitive features and enhanced specifications. With the unique ID-Cut function, higher downforce, and improved accuracy, it offers reliable and precise cutting while working seamlessly with Mimaki printers.

This entry-model of cutting plotter comes with improved cutting performance, compatibility with a wide range of cutting materials and enhanced usability, all at an affordable price.

In addition to cutting letters, labels, and stickers, the CG-AR newly supports full cutting and folding lines of cardboard. It can also produce packages up to A3 size by using dedicated options.

Sku: XP1808
Finance available from £72.96 p/m 01332 855 085




Cut pressure of 550g, which is the highest in the entry class, expanding the range of cuttable materials.

The maximum cutting speed is 105% of the previous model for greater productivity.

New lineup options for cardboard full cutting.

Easy to cut output from Windows plotter driver.

Equipped with an ID cut function, achieving efficient print & cut in seamless coordination with Mimaki's printers.

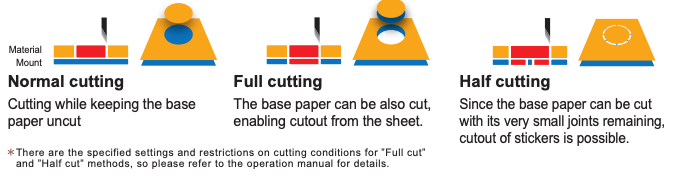

Cutting Methods


A cutting pressure of 550g, which is the highest in its class, expands the range of cut materials.

The highest-in-class cutting pressure enables the cutting of various materials such as sheets (e.g. PVC/fluorescent/reflective/rubber sheets) and the cutout of cardboard.






Cardboard cutting is possible: Dedicated options enable cutting from ordinary paper and cardboard. Creation of paper crafts and packages is possible with this machine alone. *1 *2

*1. Dedicated options: Sheet table, Cutting sheet, Blade for heavy paper, and Creasing tool

*2. Adaptable sizes: up to A3

Drawing is possible using Windows-compliant software (e.g. Microsoft Word and Excel), without the need for dedicated data preparation software. Easy cutting is possible, just like outputting with using a general office printer.

"ID cut" is a function for automatically cutting data included in an ID simply by scanning the ID register marks output by Mimaki's optionally available printer

*3. Data transmission from the PC is completed with one-time operation, which drastically saves labor for print & cut and enhances work efficiency.




Finance Calculator

Finance options are available for this product. These may vary on a case by case basis and should be discussed with a member of the Xpres team.

Xpres are not the lender, but are acting on the customers behalf to arrange contact between our finance partners.


Weekly Equivalent £86.77
24 Monthly Payments £375.99
Total Cost £9023.76
Tax Relief @ 19% £1714.51
Cost of Finance £7309.25

Computer Interface
USB, RS-232C, Ethernet
1,810 × 580 × 1,160 mm (71.3"× 22.8"× 45.7")
Max Print Width
90 - 1,550 mm (3.5"- 61.0")
Operating Conditions
Temperature: 5 to 35°C; Humidity: 35 to 75% Rh (without condensation)
43 kg (94.8 lb)
Printing Speed
Cutting: 73 cm/s 45°direction: 103 cm/s
Power Supply
AC 100 - 240 V 1A 50/60Hz
Power Consumption
228W or less
