Roland GS2-24 Desktop Vinyl Cutter

£0.00


Picture of Roland GS2-24 Desktop Vinyl Cutter

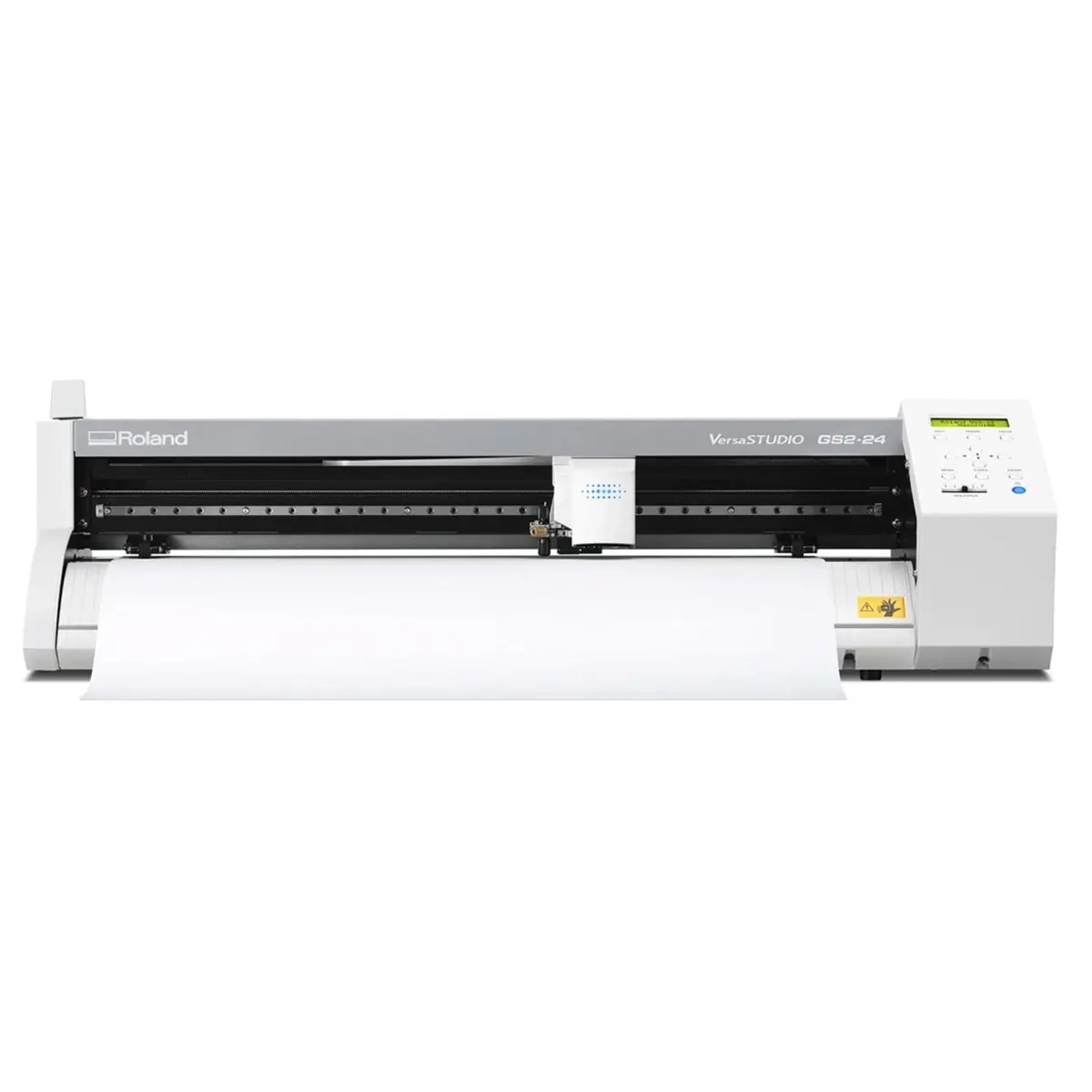

Roland GS2-24 Desktop Vinyl Cutter

Call 01332 855 085

£0.00

i h

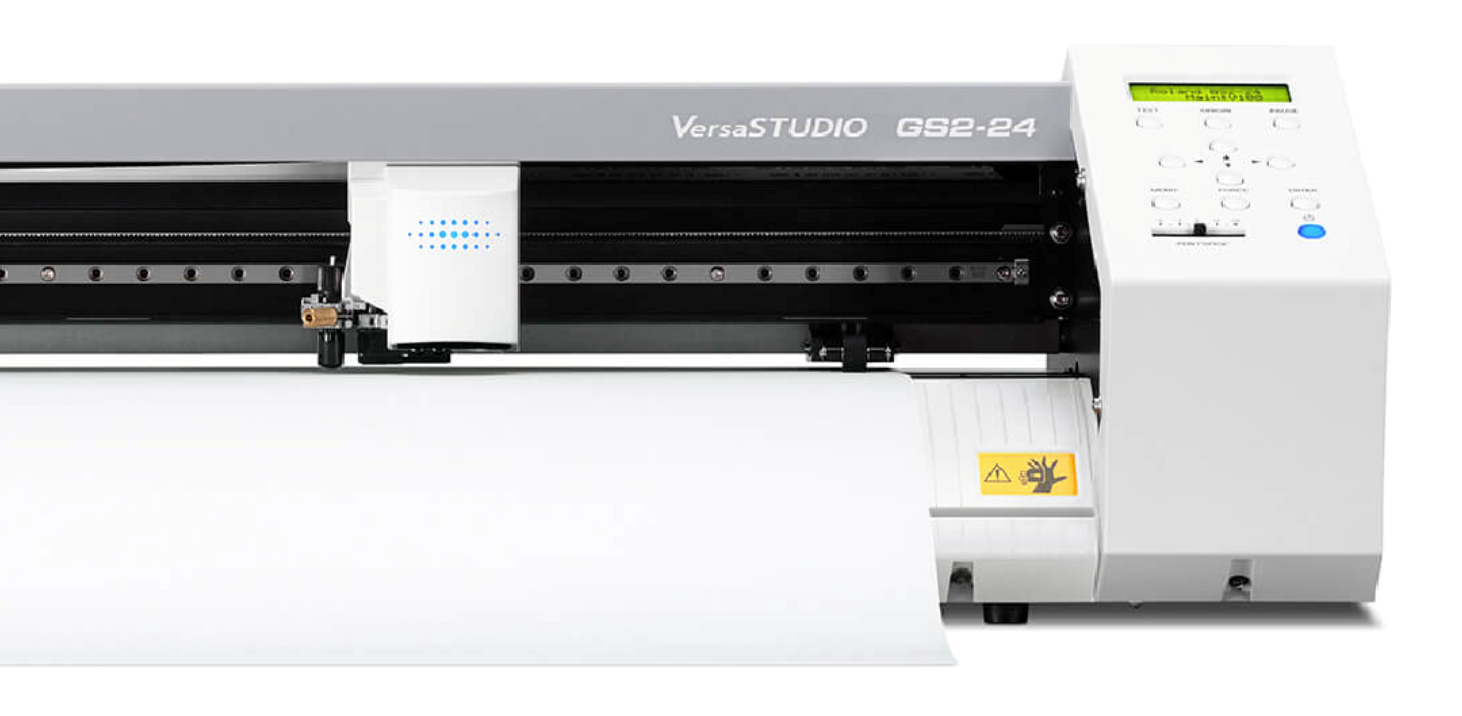

Compact, powerful and easy to use, the GS2-24 desktop cutting plotter is perfect for starting your graphics business or bringing graphics production in-house.

Call 01332 855 085

SKU: XP1984-2
Brand: Roland
  • Intuitive and user-friendly operation
  • Increased power to easily cut hundreds of materials
  • Fast and accurate cut performance
  • Built to fit into your workflow
  • Intuitive and user-friendly operation
  • Increased power to easily cut hundreds of materials
  • Fast and accurate cut performance
  • Built to fit into your workflow
Drive system Digital control servo motor
Cutting mechanism Media-moving method
Acceptable
material size
Width 50 - 700 mm (1.97 in. - 27.5 in.)
Length Roll material: no restriction
Flat material: 100 mm (3.94 in.) or more
Maximum cutting area 584 mm (Width) × 25,000 mm (Length) (22.9 in. × 984 in.)
Usable tools • CAMM-1 series blade (ZEC-U5032 / U5022 / U5025 / U3017)
• Flat Bed blade (ZEC-U1715 / U3050 / U3075 / U3100)
• Window film blade(ZEC-U5010)

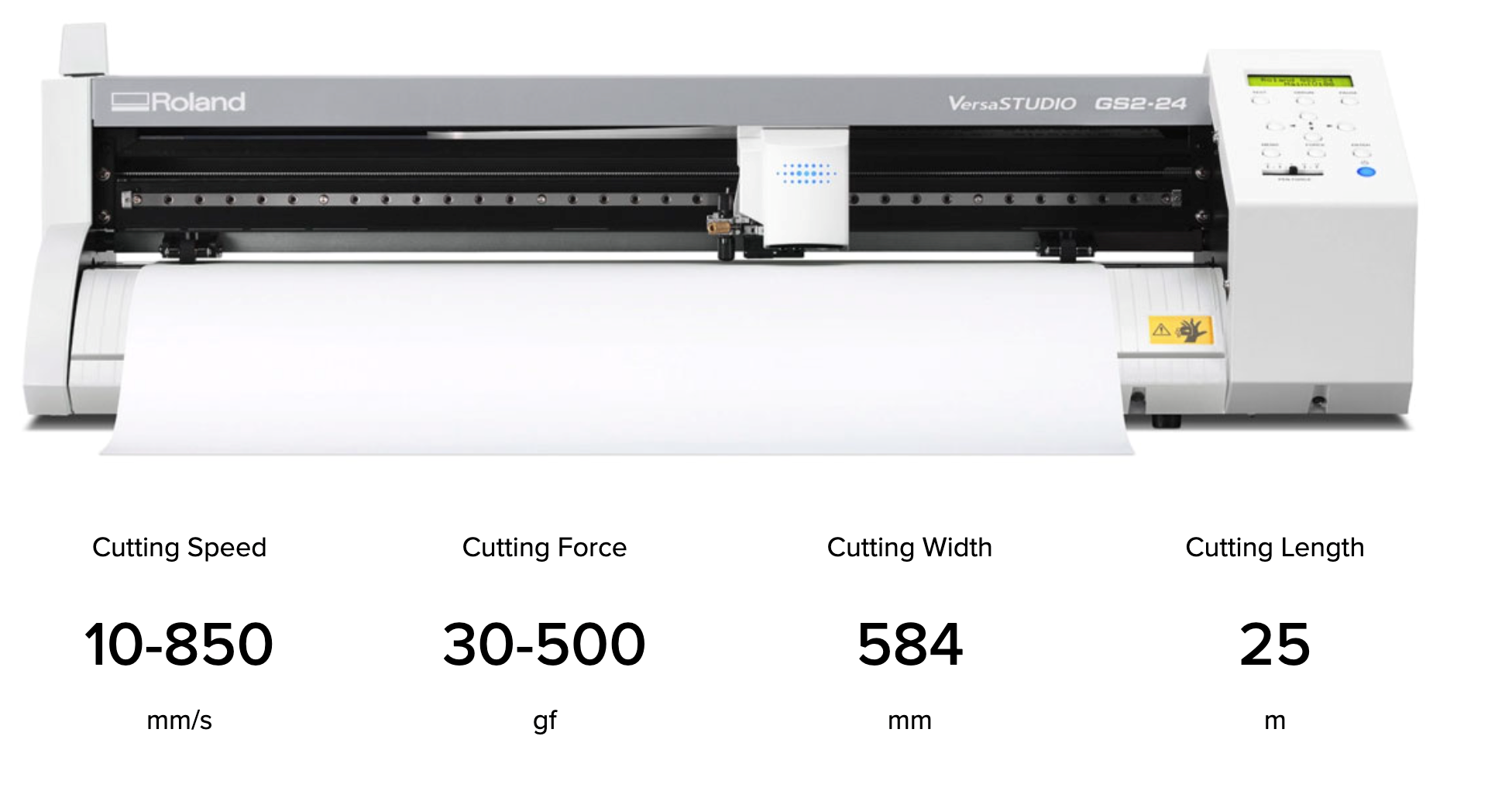

Cutting speed 10 - 850 mm/s (0.39 - 33.4 in./s)
Blade force 30 - 500 gf
Mechanical resolution 0.0125 mm/step (0.49 mil./step)
Software resolution 0.025 mm/step (0.98 mil./step)
Distance accuracy*1 Error of less than ±0.2% of distance traveled or 0.1 mm (3.94 mil.), whichever is greater
Repeatability *1, *2 0.1 mm (3.9 mil) or less
Alignment accuracy for cutting printed material *1, *3 ±1 mm (±39.4 mil.) or less for movement distance of 210 mm (8.3 in.) or less in material-feed direction and movement distance of 170 mm (6.7 in.) or less in width direction (Does not take influence of printer and material into account)
Connectivity • Ethernet (automatic switching between 10BASE-T and 100BASE-TX)
• USB 2.0 (FULL SPEED compliant)
Replot memory 2 MB (buffer size: 8 MB)
Command system CAMM-GLⅢ
Power supply Dedicated AC adapter
Input: 100 - 240 Vac, 50/60 Hz
Output: 24 Vdc 2.7 A
Rated current 1.0 A
Power consumption Approx. 24 W
Acoustic noise level  During operation 70 dB (A) or less
 During standby 40 dB (A) or less

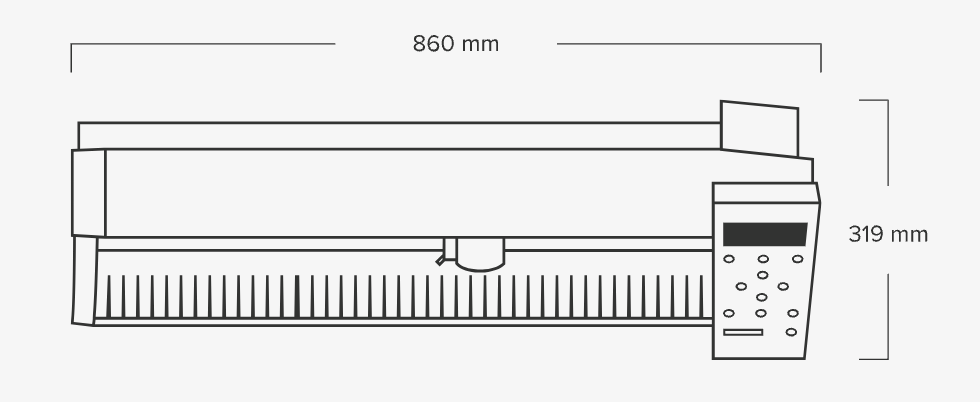

Outer dimensions 860 mm (Width) × 319 mm (Depth) × 235 mm (Height) (33.9 in. × 12.6 in. × 9.3 in.)
Weight 13.5 kg (30 lb.)
Environment Temperature 5 - 40 °C (41 to 104 °F)
Humidity 20 - 80 %RH (no condensation)
Included items Power cord, AC adapter, Blade, Blade holder, Roller base, USB cable, Alignment tool, Manuals



  • *1   According to material and cutting conditions as specified by Roland DG Corporation.
  • *2 • Excluding expansion/contraction of the media
  •      • Length in sheet feed direction: Within 1600 mm (62.9 in.)
  • *3   According to measurement standards as specified by Roland DG Corporation.
         • Software must be included Roland DG Corporation software.
         • Assumes use of a laser or inkjet printer with a resolution of 720 dpi or greater.
         • Excludes glossy and/or laminated material.
         • Excludes effects of warped printing due to accuracy of printer or effects of expansion/contraction of material.
         • May not be read correctly by the sensor depending on the printer ink (black) used.
Products specifications
Max Media Width 50 - 700 mm (1.97 in. - 27.5 in.)
Cutting Force 10 - 850 mm/s (0.39 - 33.4 in./s)
Connectivity • Ethernet (automatic switching between 10BASE-T and 100BASE-TX) • USB 2.0 (FULL SPEED compliant)
Power Approx. 24 W
Dimensions 860 mm (Width) × 319 mm (Depth) × 235 mm (Height) (33.9 in. × 12.6 in. × 9.3 in.)
Weight 13.5 kg (30 lb.)
Downloads

Time to Turn Pro

Featuring a selection of compact, easy-to-use and affordable solutions, the VersaSTUDIO range brings professional Roland DG quality to entrepreneurs and small businesses.

With the GS2-24, you can create professional-quality graphics from a huge range of materials and take your business to the next level. With everything you need to get started, this solution from Roland DG is the only choice for serious entrepreneurs.

Small Footprint - Big Potential

Whether you're just starting out or adding to your set-up, you can easily fit the GS2-24 cutter into your workflow. For home-based hobbyists who want to turn pro, or established businesses looking to produce graphics in-house, space is no barrier to success.

Create Without Limits

With 40% more cutting force than the previous model, you can cut the most intricate designs from a vast range of materials including:

Self-Adhesive Vinyl

Heat Transfer Vinyl

Specialist Materials

Magnetic Sheet

Papers and Cardboard

Window Frosting

Reflective Vinyl

Rubber Sheet

On Time Every Time

Meet the tightest deadlines and deliver larger orders with 70% more cutting speed. The GS2-24 lets you create more products, more quickly and meet your customers' demands.

Pinpoint Accuracy

Produce premium quality results whether you're creating large-scale wall art, decorative T-shirt designs or small directional signage. The precision cutting of the GS2-24 allows you to accurately reproduce the tightest corners and thinnest lines.

Intricate designs and shapes

Small letters, numbers and symbols

Consistent results up to 25m

Work Your Way

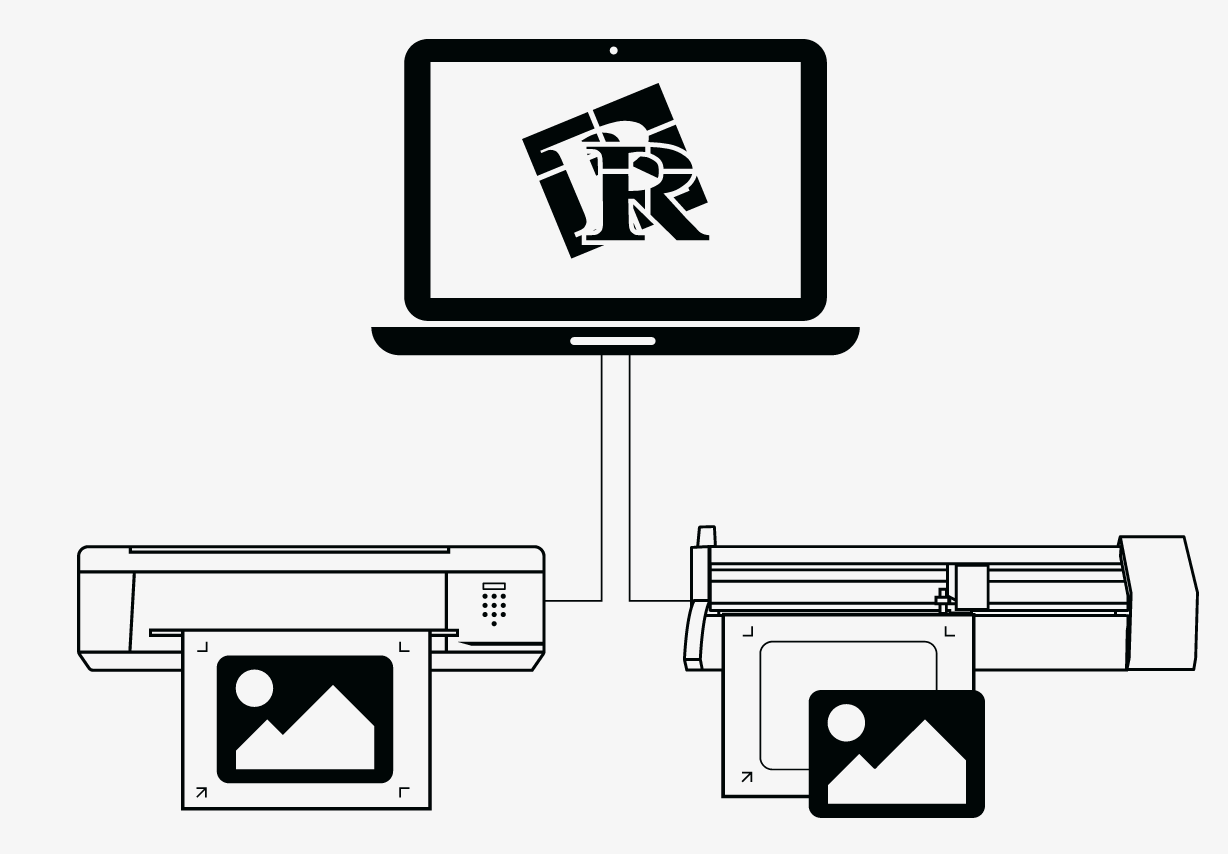

The GS2-24 solution includes the simple and versatile CutStudio software. This lets you create a compact and effective print-then-cut workflow. Simply add crop marks to your artwork, incorporate cut lines and the machine's intelligent registration tool will automatically cut your design with superb accuracy.
