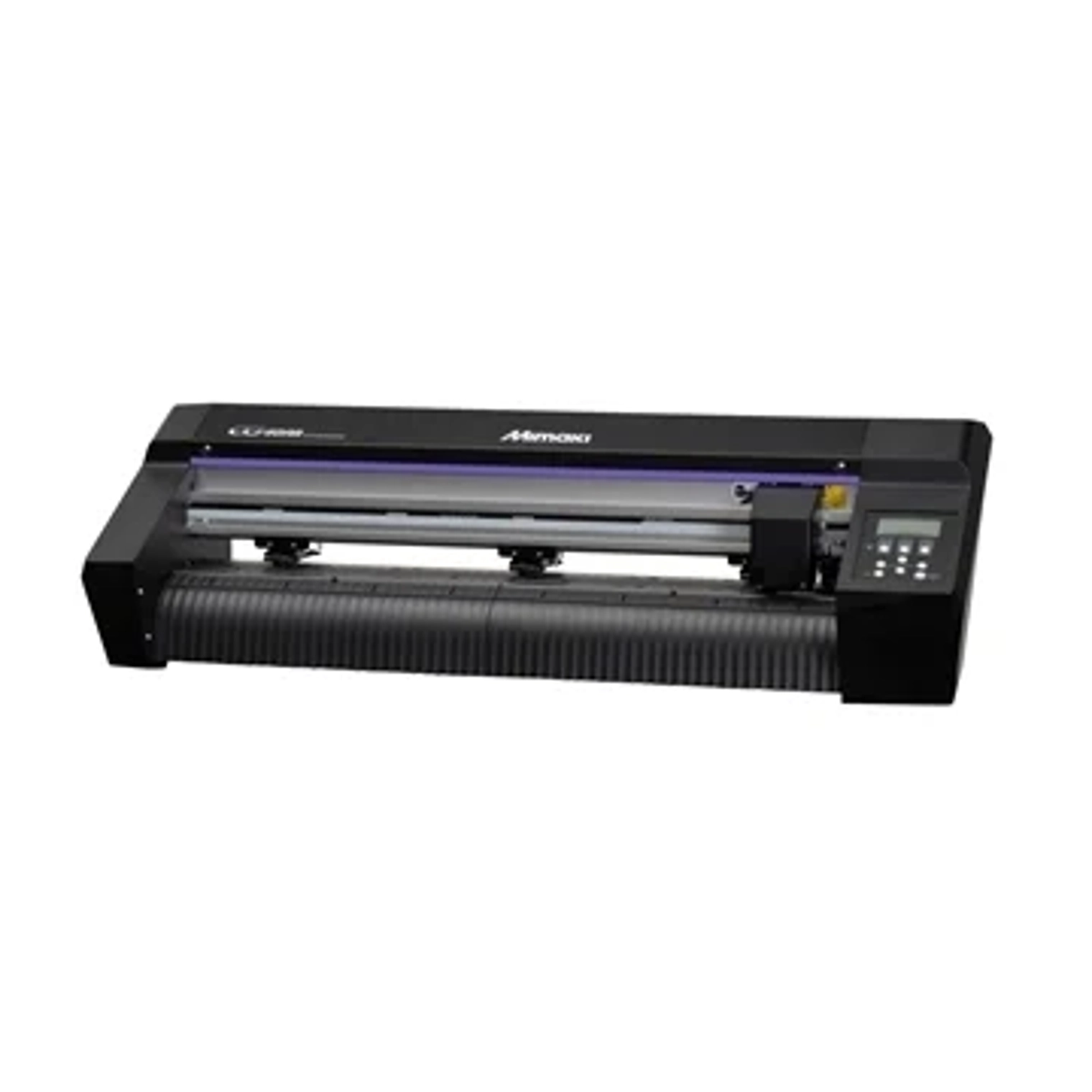

Mimaki CG-60AR Cutter


Picture of Mimaki CG-60AR Cutter

Mimaki CG-60AR Cutter

Call 01332 855 085

i h

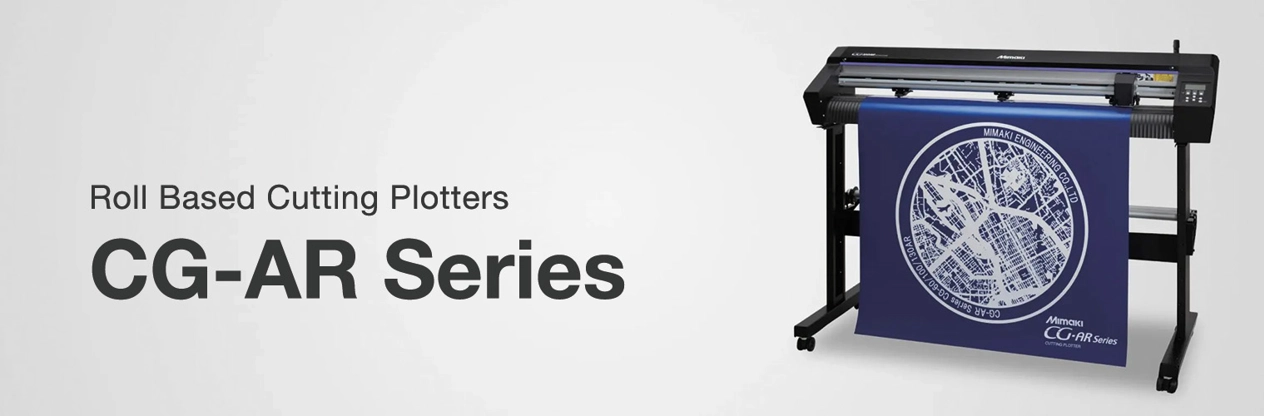

The new CG-AR series builds upon the strong heritage of its predecessor and comes with new intuitive features and enhanced specifications. With the unique ID-Cut function, higher downforce, and improved accuracy, it offers reliable and precise cutting while working seamlessly with Mimaki printers.

Call 01332 855 085

SKU: XP1809

This entry-model of cutting plotter comes with improved cutting performance, compatibility with a wide range of cutting materials and enhanced usability, all at an affordable price.

In addition to cutting letters, labels, and stickers, the CG-AR newly supports full cutting and folding lines of cardboard. It can also produce packages up to A3 size by using dedicated options.

This entry-model of cutting plotter comes with improved cutting performance, compatibility with a wide range of cutting materials and enhanced usability, all at an affordable price.

In addition to cutting letters, labels, and stickers, the CG-AR newly supports full cutting and folding lines of cardboard. It can also produce packages up to A3 size by using dedicated options.

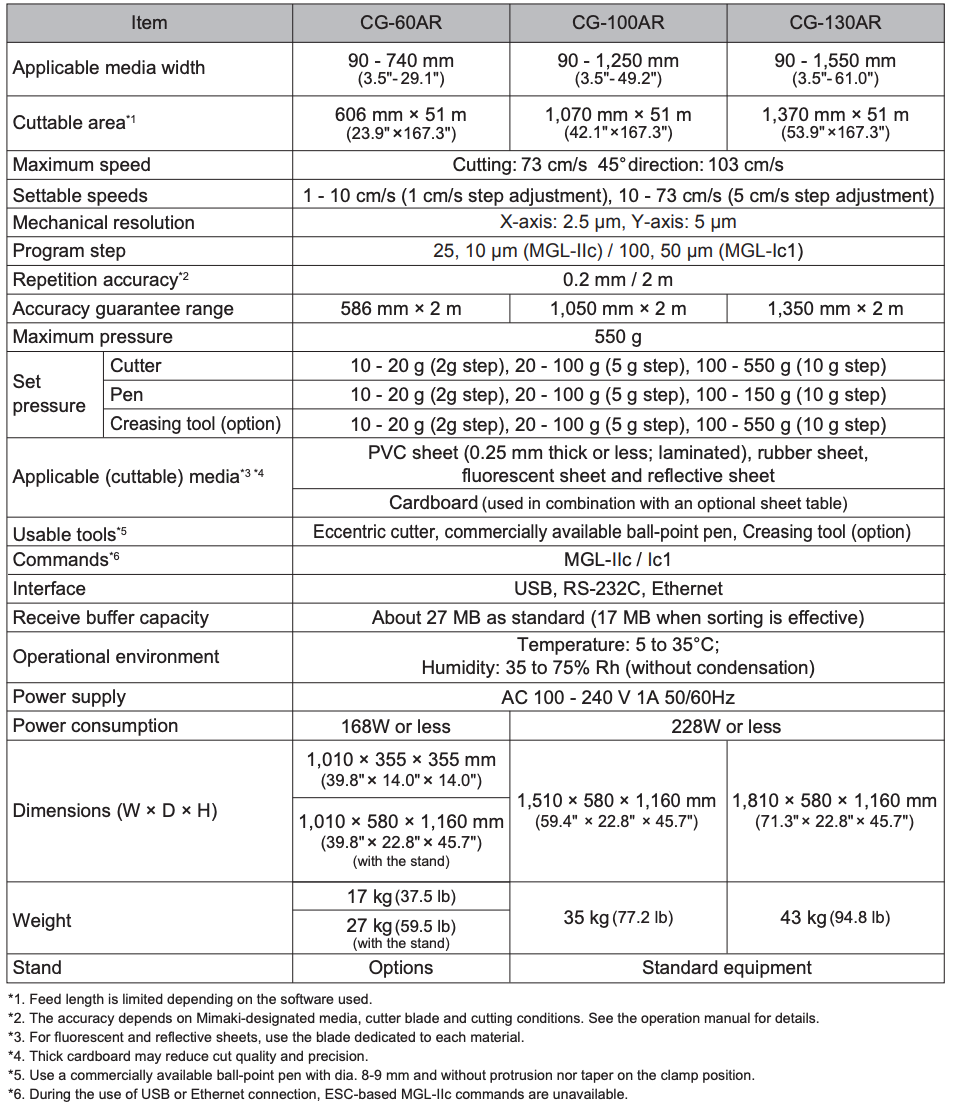

Products specifications
Max Print Width 90 - 740 mm (3.5"- 29.1")
Printing Speed Cutting: 73 cm/s 45°direction: 103 cm/s
Computer Interface USB, RS-232C, Ethernet
Operating Conditions Temperature: 5 to 35°C; Humidity: 35 to 75% Rh (without condensation)
Power Supply AC 100 - 240 V 1A 50/60Hz
Power Consumption 168W or less
Dimensions 1,010 × 355 × 355 mm (39.8"× 14.0"× 14.0")
Weight 17 kg (37.5 lb)
Downloads

Features

Realizing a cut pressure of 550 g, which is the highest in the entry class, expanding the range of cuttable materials.

The maximum cutting speed is 105% of the previous model for greater productivity.

New lineup options for cardboard full cutting.

Easy to cut output from Windows plotter driver.

Equipped with an ID cut function, realizing efficient print & cut in seamless coordination with Mimaki's printers.

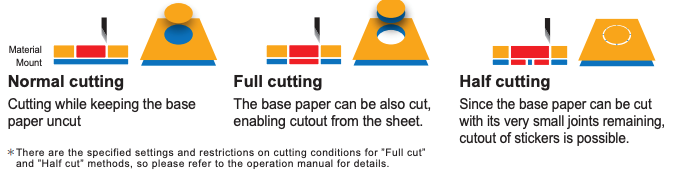

Cutting Methods

A cutting pressure of 550g, which is the highest in its class, expands the range of cut materials.

The highest-in-class cutting pressure enables the cutting of various materials such as sheets (e.g. PVC/fluorescent/reflective/rubber sheets) and the cutout of cardboard.

Applications

Cardboard cutting is possible: Dedicated options enable cutting from ordinary paper and cardboard. Creation of paper crafts and packages is possible with this machine alone. *1 *2

*1. Dedicated options: Sheet table, Cutting sheet, Blade for heavy paper, and Creasing tool *2. Adaptable sizes: up to A3

Drawing is possible using Windows-compliant software (e.g. Microsoft Word and Excel), without the need for dedicated data preparation software. Easy cutting is possible, just like outputting with using a general office printer.

"ID cut" is a function for automatically cutting data included in an ID simply by scanning the ID register marks output by Mimaki's optionally available printer*3. Data transmission from the PC is completed with one-time operation, which drastically saves labor for print & cut and enhances work efficiency.
