    Mimaki JFX200-2513EX Flatbed UV Printer

    RRP £67,995.00

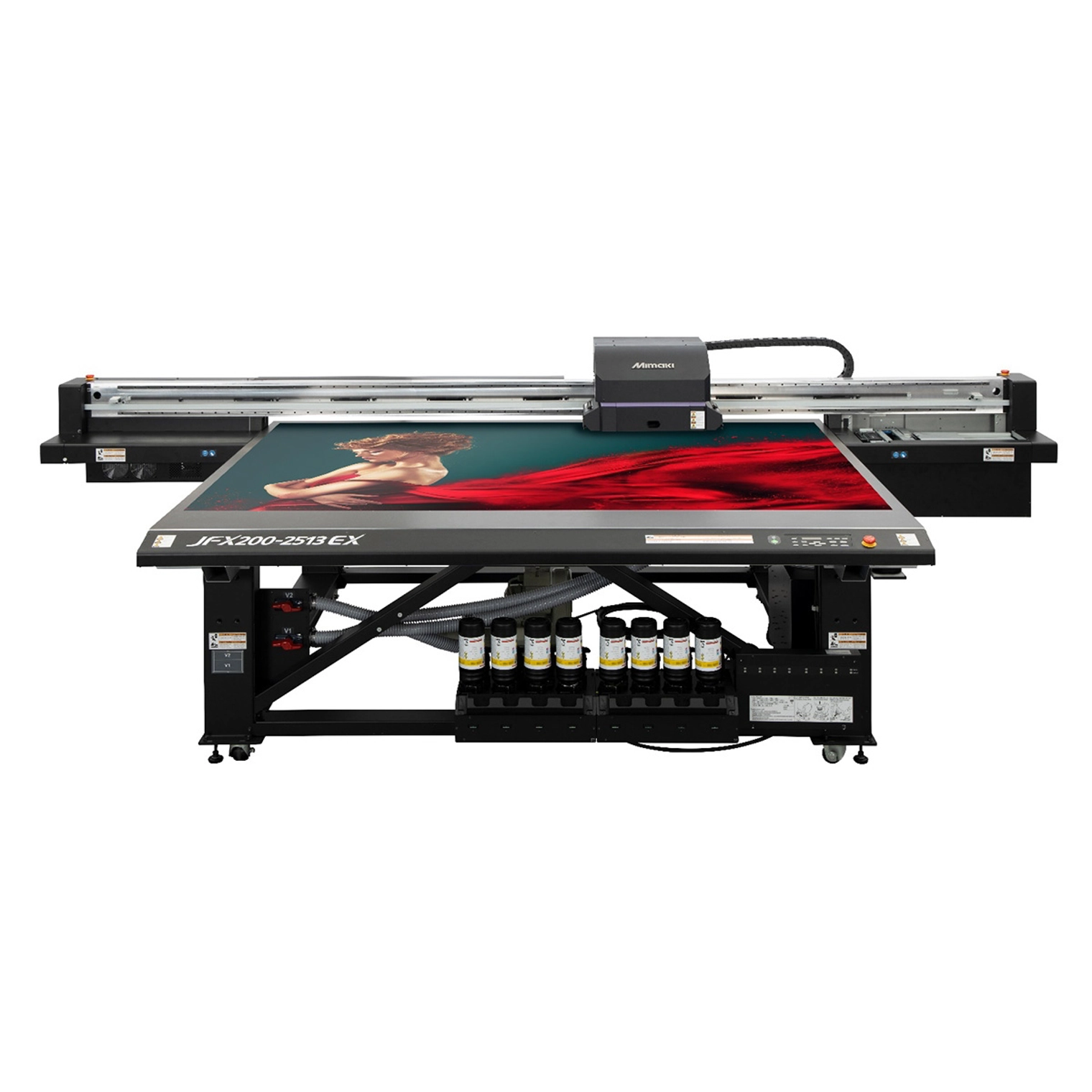

    Picture of Mimaki JFX200-2513EX Flatbed UV Printer

    Mimaki JFX200-2513EX Flatbed UV Printer

    Xpres Plus - VIEW OUR SITE DEDICATED TO VOLUME PRODUCTION SOLUTIONS!

    Virtual demo available - call to book!

    RRP £67,995.00

    The Mimaki JFX200-2513EX is a successor to the JFX200-2513 and is a large format flatbed UV inkjet printer that combines high-value-added printing and high productivity while being an entry model.

    The Mimaki JFX200-2513EX is a successor to the JFX200-2513 and is a large format flatbed UV inkjet printer that combines high-value-added printing and high productivity while being an entry model.



    Key improvements include stability and usability.

    SKU: XP1874EX
    Brand: Mimaki

    The Mimaki JFX200-2513EX is a successor to the JFX200-2513 and is a large format flatbed UV inkjet printer that combines high-value-added printing and high productivity while being an entry model.



    Key improvements include stability and usability.

    Head On-demand Piezo head (Array of 3 heads stagger)
    Print resolution 300, 450, 600, 900, 1,200dpi
    InkType UV curable ink : LUS-120 (C, M, Y, K, W, Cl)
    UV curable ink : LUS-150 (C, M, Y, K, Lc, Lm, W)
    UV curable ink : LUS-350 (C, M, Y, K, W, Cl) *1
    UV curable ink : LH-100 (C, M, Y, K, Lc, Lm, W, Cl) *2
    Primer: PR-200 *3
    Ink Supply system 1liter bottle, 250ml bottle (LH-100, LUS-120, PR-200 only) *4
    Ink circulation system *5 White ink circulation using Mimaki Circulation Technology (MCT)
    Maximum diagram dimensions (W×D) 2,500×1,300 mm (98.4×51.2")
    MediaDimensions (W×D) 2,500×1,300 mm (98.4×51.2")
    Height Max. 50 mm (2.0")
    Weight Less than 50 kg/m2 (110.2 lb./ft2), non concentrated load
    Media absorption  Blower adsorption type + foot switch
     Number of absorption
    area partitions
    2 partitions (X-axis direction)
    Curing device LED-UV system
    Interface USB2.0, Ethernet
    Safety standard VCCI class A, CE mark, CB report, U.S. safety standard UL (UL62368-1), RoHS Directive, FCC Class A, Machinery directive, EAC, RCM
    Input power supply Single phase, 200 V AC-240 V AC, 50 Hz/60 Hz, less than 12 A
    Power consumption Less than 2.88 kVA
    Installation environmentTemperature 15 – 30 °C (59 – 86 °F)
    Relative humidity 35 – 65 %Rh
    Accuracy maintained temperature 20 – 25 °C (68 – 77 °F)
    Temperature gradient Less than ± 10 °C/h (± 18 °F/h)
    Dust Similar to standard office environments
    Assembled Dimensions (W×D×H) 4,400×2,450×1,250 mm (173.2×96.4×49.2")
    Weight 650 kg (1,433 lbs.)
    Products specifications
    Width 440cm
    Depth 245cm
    Height 125cm
    Max Print Width 250cm
    Ink LUS-120
    Ink LUS-150
    Ink LUS-350
    Ink LUS-100
    0.0 0
    Write your own review Close
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
    Downloads

    Finance



    Finance options are available for the loading.... These may vary on a case by case basis and should be discussed with a member of the Xpres team.

    Xpres are not the lender, but are acting on the customers behalf to arrange contact between our finance partners.









    Enquire About Finance

    *
    *
    *
    World’s first flatbed inkjet printer

    Mimaki Europe, a leading manufacturer of inkjet printers and cutting systems, today announces the European launch of the new JFX200-2513 EX large flatbed UV inkjet printer at the FESPA Global Print Expo 2019 (Munich, Germany – 14-17 May 2019). Introducing a new print mode and an extra printhead, the JFX200-2513 EX boasts substantial productivity increases on previous JFX models – 280% faster in new draft mode when printing in four colours plus white, and 100% faster for all other print modes. This entry-level printer also uses Mimaki’s 2.5D Texture Maker to enable smooth embossed print at the touch of a button. For the first time, this allows print service providers to offer large format digital print with enticing-to-touch dimensional textured effects without lengthy file preparation.

    Opening new and valuable application opportunities for customers

    The new Mimaki layering technology has been designed for supreme simplicity and ease of use. Eradicating the previous time-consuming and skilled process of creating multiple Photoshop files featuring stacked stepped layers for smooth expression, Mimaki’s genuine RIP software ‘RasterLink6Plus’ completes the process in seconds. It achieves this by adding a greyscale image of the original coloured file in the RIP.

    Mimaki’s 3D printing technology

    It takes large format print applications to a different dimension, Mimaki print houses can now offer exceptional printed textures such as simulated woodgrain, oil painting on canvas, as well as raised, high-visibility lettering for more traditional signage applications.
