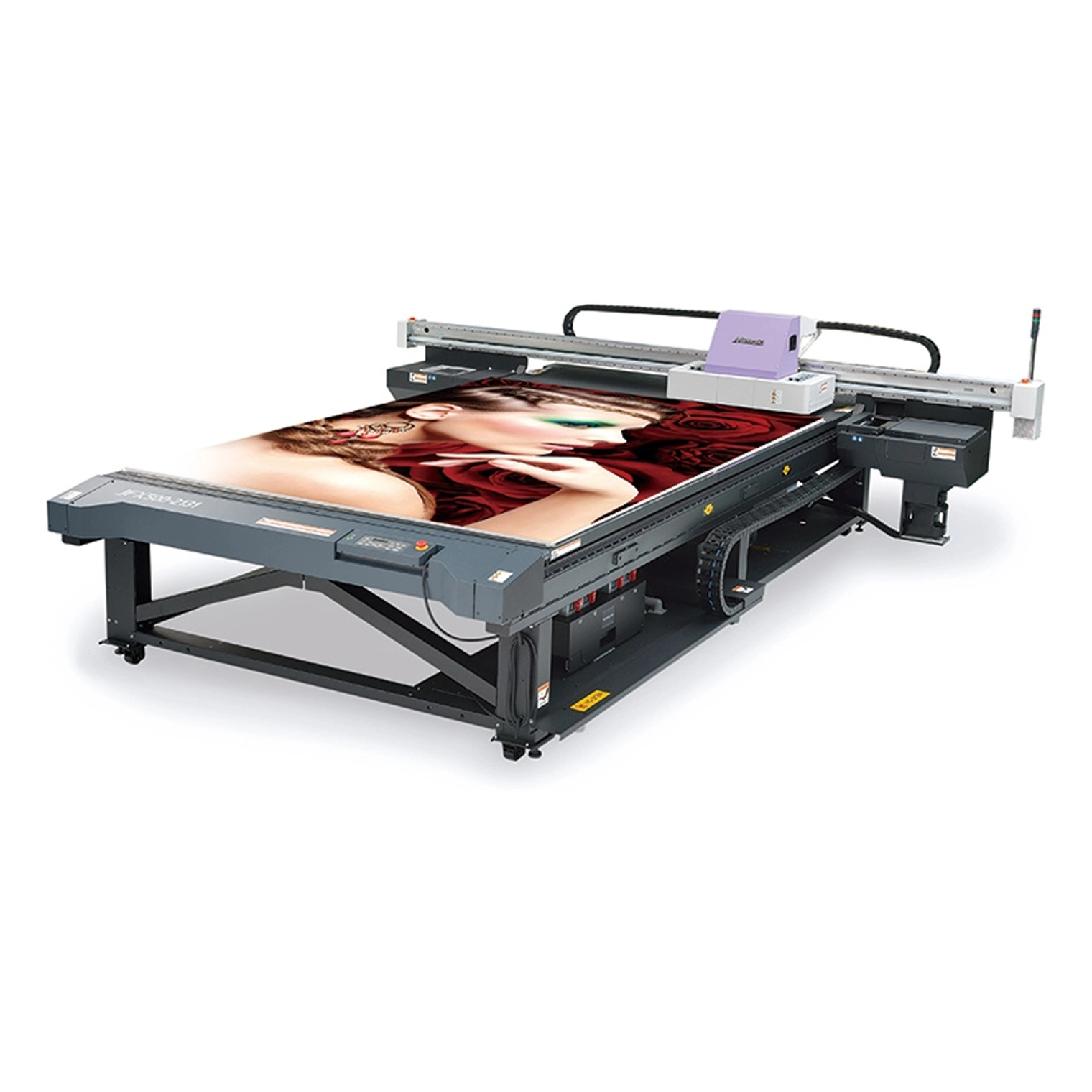

    Mimaki JFX500-2131 Flatbed UV Printer

    RRP £115,995.00


    Picture of Mimaki JFX500-2131 Flatbed UV Printer

    Mimaki JFX500-2131 Flatbed UV Printer

    Xpres Plus - VIEW OUR SITE DEDICATED TO VOLUME PRODUCTION SOLUTIONS!

    Virtual demo available - call to book!

    RRP £115,995.00

    The new JFX500-2131 from Mimaki is a Ultra high speed, High precision flatbed UV LED printer.

    The new JFX500-2131 from Mimaki is a Ultra high speed, High precision flatbed UV LED printer.

    Brimming with powerful new features the groundbreaking printer delivers extraordinary productivity, high print quality and also has some crucial environmental advantages.

    With production speeds of up to 60sqm/h, an automatic primer facility and unbelievably high quality prints, this grand format LED UV printer breaks all the established records and defiantly ticks all the boxes! Fantastic for producing High-quality signage, display, POS, packaging and gift items.




    SKU: XP1849
    Manufacturer: Mimaki

    Create…

    Art Reproduction, Backlit Graphics, Construction Signs, Displays, Exhibition Signs, Rigid Packaging, Lenticular (printing with 3D effects),ID Cards, Logos (3D), Operation Panels, Promotional Items, Relational Gifts, Accessories and much more…

    Substrates

    Acrylics, polycarbonates, PVC, glass, aluminium, Metal, Polyesters, Foam Board, Styrene, Wood, Stone Attention should be paid to ink adhesion, even though it will print onto almost any substrate, levels of adhesion do differ between materials.

    Included Features

    Amazing print speeds up to 60sqm/h with CMYK and 45sqm/h with white ink printing. Maximum print size of 2.1 x 3.1 m. Intelligent Microstepping System (IMS) for accurate prints, even 2pt characters can be legibly printed. Variable dot printing with a minimum size of 7 picolitre. Mimaki Advance Pass System reduces bandings. Mimaki Circulation Technology prevents pigment sedimentation of white ink. Reliable nozzle recovery function. Vacuum unit and high performance Rasterlink RIP software included as standard.

    The new JFX500-2131 from Mimaki is a Ultra high speed, High precision flatbed UV LED printer.

    Brimming with powerful new features the groundbreaking printer delivers extraordinary productivity, high print quality and also has some crucial environmental advantages.

    With production speeds of up to 60sqm/h, an automatic primer facility and unbelievably high quality prints, this grand format LED UV printer breaks all the established records and defiantly ticks all the boxes! Fantastic for producing High-quality signage, display, POS, packaging and gift items.




    Print head On-demand piezo head (6 print heads with 3 staggered configurations)
    Maximum print area 2100 x 3100 mm
    Printing resolutions 300 dpi, 600 dpi, 900 dpi, 1200 dpi
    Ink type LUS-120 Superior durability and flexibility (CMYK + W)
    LUS-150 Stretchable (150%) UV ink (CMYK + W)
    LUS-200 Stretchable (200%) UV ink (CMYK + W)
    LH-100 Hard UV Ink (CMYK + W)
    Ink supply system Supplied by 2L ink station
    Media Size 2100 x 3100 mm (w x d)
    Media thickness Up to 50 mm
    Media weight Up to 50 kg / sqm
    Media set device Air suction by vacuum
    UV device Equipped with UV LED
    Interface USB 2.0
    Power consumption Less than 2.4 kVA
    Dimensions (w x d x h) 4100 mm x 4462 mm x 1490 mm
    Weight 1353 kg
    Products specifications
    Applications Display graphics
    Applications Signage
    Applications Wall graphics
    Applications Banners
    Applications Window graphics
    Applications Promotional
    Applications Merchandising
    Ink Type UV
