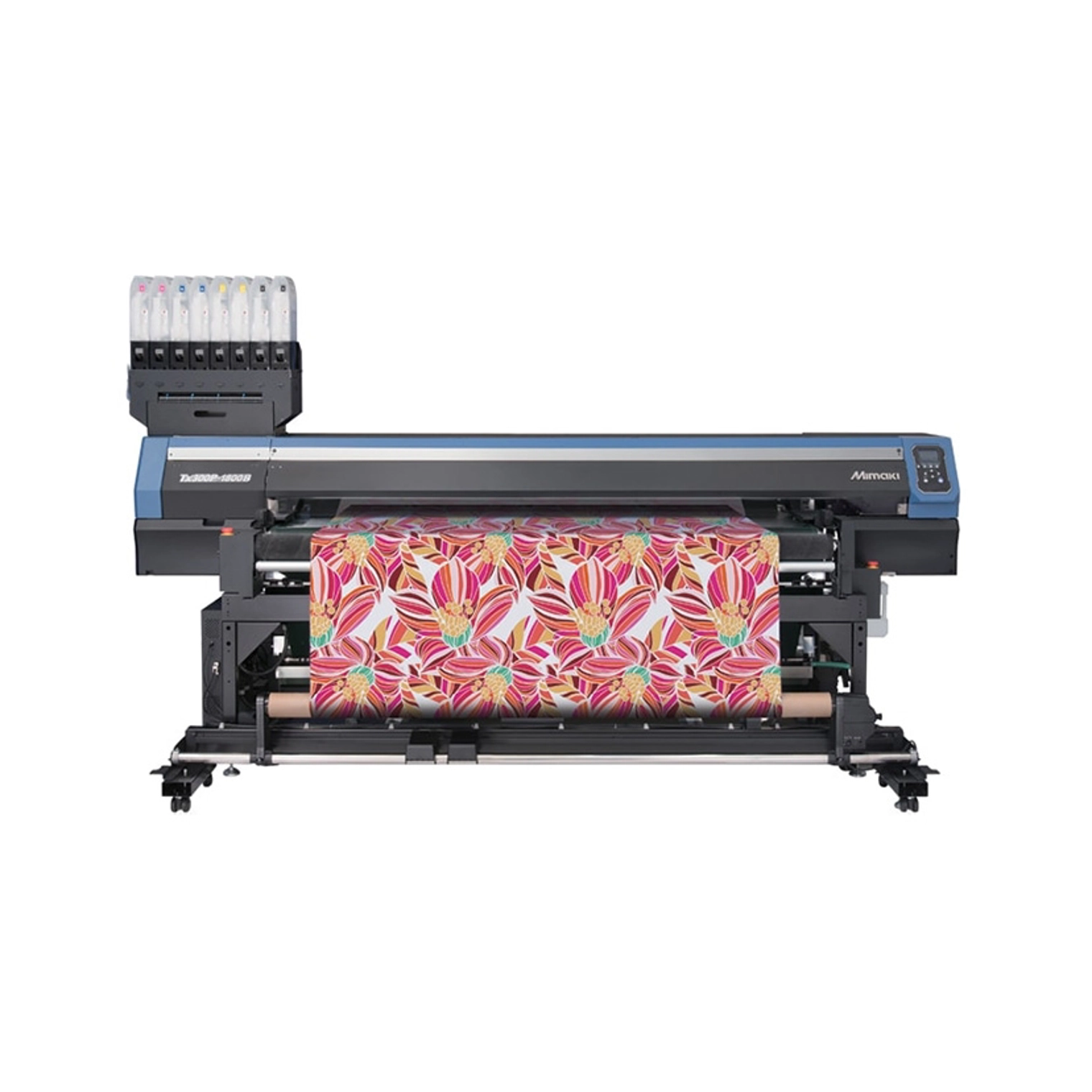

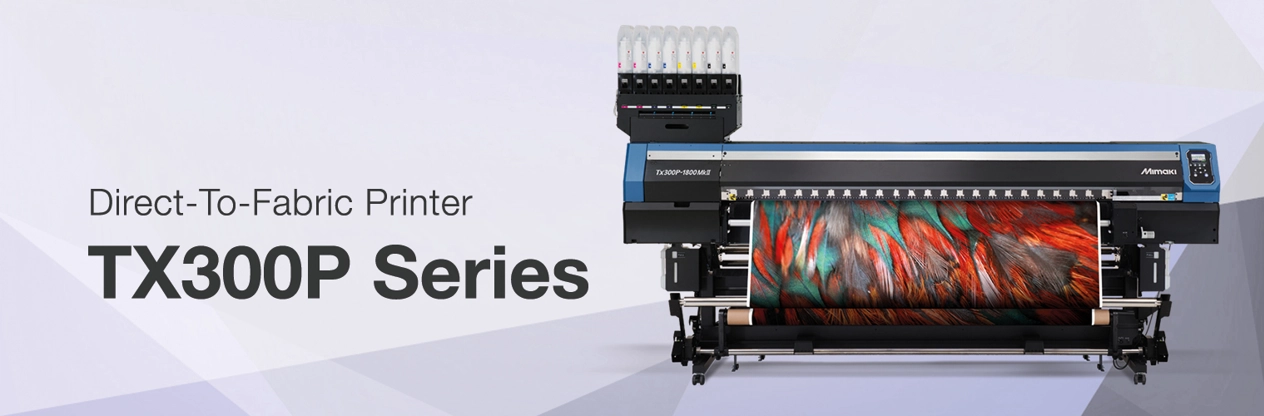

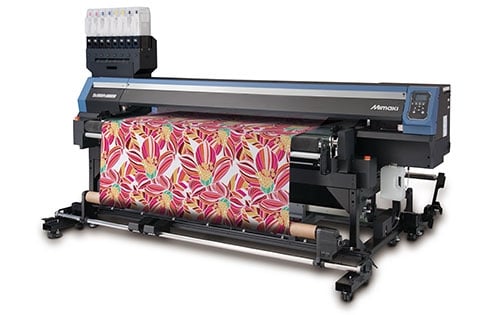

    Mimaki TX300P-1800B Direct Textile InkJet Printer

    RRP £69,995.00


    Picture of Mimaki TX300P-1800B Direct Textile InkJet Printer
    Picture of Mimaki TX300P-1800B Direct Textile InkJet Printer
    Picture of Mimaki TX300P-1800B Direct Textile InkJet Printer

    Mimaki TX300P-1800B Direct Textile InkJet Printer

    Xpres Plus - VIEW OUR SITE DEDICATED TO VOLUME PRODUCTION SOLUTIONS!

    Virtual demo available - call to book!

    RRP £69,995.00

    TX300P-1800B DELIVERS Maximum print speed of 50m2/h (Draft speed; in 4-colour mode).

    WIDE CHOICE OF INK TYPES
    Sublimation, disperse, pigment, reactive and acid inks ensure almost any natural or man-made fabric can be printed to, with vibrant and long-lasting results.

    BELT TRANSFER SYSTEM FOR OPTIMUM FABRIC FEEDING
    Mimaki’s advanced fabric-feed technology incorporates a ‘sticky belt’ transport system to ensure high levels of accuracy and image quality even when working on stretchable fabrics.

    SKU: XP1833
    Manufacturer: Mimaki

    High quality belt-fed direct- to-textile printer for stretchable fabrics

    With its winning combination of quality, high speed and innovative automated belt-fed conveyance system, the Mimaki Tx300P-1800B has been developed to print direct to a broad range of natural and man-made fabrics. Particularly effective for printing on modern stretchable materials, the Tx300P-1800B is ideally suited to the production of fashion, clothing and soft furnishings.

    Create…

    Fashion and Apparel including Dresses, Shirts and Scarves; Upholstery and Soft Furnishing Fabrics including Bed Linen, Cushions, Curtains and much more…

    Included Features

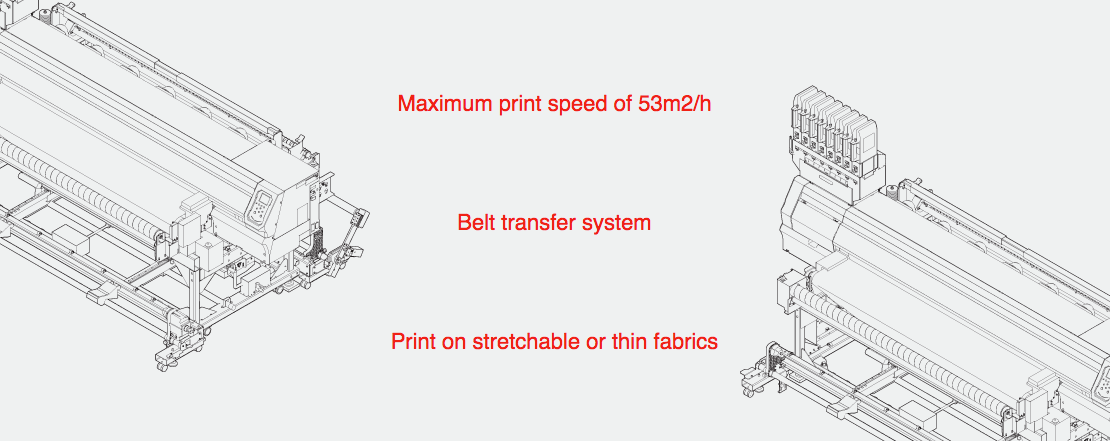

    Maximum print speed of 53m2/h (Draft speed – in 4-colour mode). Sublimation, disperse, reactive & acid dye and textile pigment inks. Belt transfer system for accurate print on stretchable or thin fabrics. Mimaki Mimaki Bulk Ink System (MBIS) and large volume ink packs. Latest Mimaki Advanced Pass System (MAPS). Nozzle Check Unit (NCU) ensures reliable continuous print operation. Adjustable head gap setting for thick and woven textiles. Unique dual ink capability to simultaneously load textile pigment and sublimation dye. inks on one printer

    WIDE CHOICE OF INK TYPES
    Sublimation, disperse, pigment, reactive and acid inks ensure almost any natural or man-made fabric can be printed to, with vibrant and long-lasting results.

    BELT TRANSFER SYSTEM FOR OPTIMUM FABRIC FEEDING
    Mimaki’s advanced fabric-feed technology incorporates a ‘sticky belt’ transport system to ensure high levels of accuracy and image quality even when working on stretchable fabrics.

    Item Tx300P-1800B
    Printhead On-demand piezo head (4 in-line printheads)
    Print resolution 360dpi, 540dpi, 720dpi, 1,080dpi, 1,440dpi
    Drop size Minimum 6pl, Maximum 24pl (Varies depend on ink type)
    Head height Manual adjustment (2.0mm~7.0mm)*Standard:3mm
    Maximum print width 1,880mm
    Maximum media width 1,900mm
    Ink Type/Colour Sublimation dye ink: Sb420 (Bl, M, Y, K, Lbl, Lm)
    Disperse dye ink: Dd400 (C, M, Y, K, R, Grey, Violet, Pink)
    Textile pigment ink: TP400 (C, M, Y, K)*1
    Reactive dye ink: RC400 (C, M, Y, K, Bl, R, Or, Lk)
    Acid dye ink: AC400 (C, M, Y, K, Bl, R, Or, Lk)*2
    Package size 2L Ink pack
    Media thickness 1.0mm or less
    Roll media weight 40kg or less
    Roll diameter φ250 mm or less
    Media type Natural fibre (cotton, silk, hemp etc.) Chemical fibre (polyester, nylon etc.)
    Certification VCCI class A, FCC class A, ETL UL 60950-1
    CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
    CB, REACH, RCM
    Power supply Single-phase (AC100~120V/200~240V ±10%)×2     50/60Hz±1Hz
    Power consumption AC100V : 1.44kW x2 / AC200V : 1.92kW x2
    Interface For print data: Ethernet 1000BASE-T / USB 2.0 Hi-speed
    For e-mail: Ethernet 10BASE-T / 100BASE-TX / 1000BASE-T
    Operational environment Temperature: 20 – 30 °C (68 – 86 F°) Humidity: 35 – 65% Rh (Non condensing)
    Dimensions (WxDxH) 3,197 x 1,798 x 1,845mm
    Weight 627kg
    Products specifications
    Applications Textiles
    Applications Display graphics
    Applications Sportswear
    Applications Soft signage
    Ink Type Dye Sub
    Ink Type Pigment
    Ink Type Reactive
    Ink Type Acid
