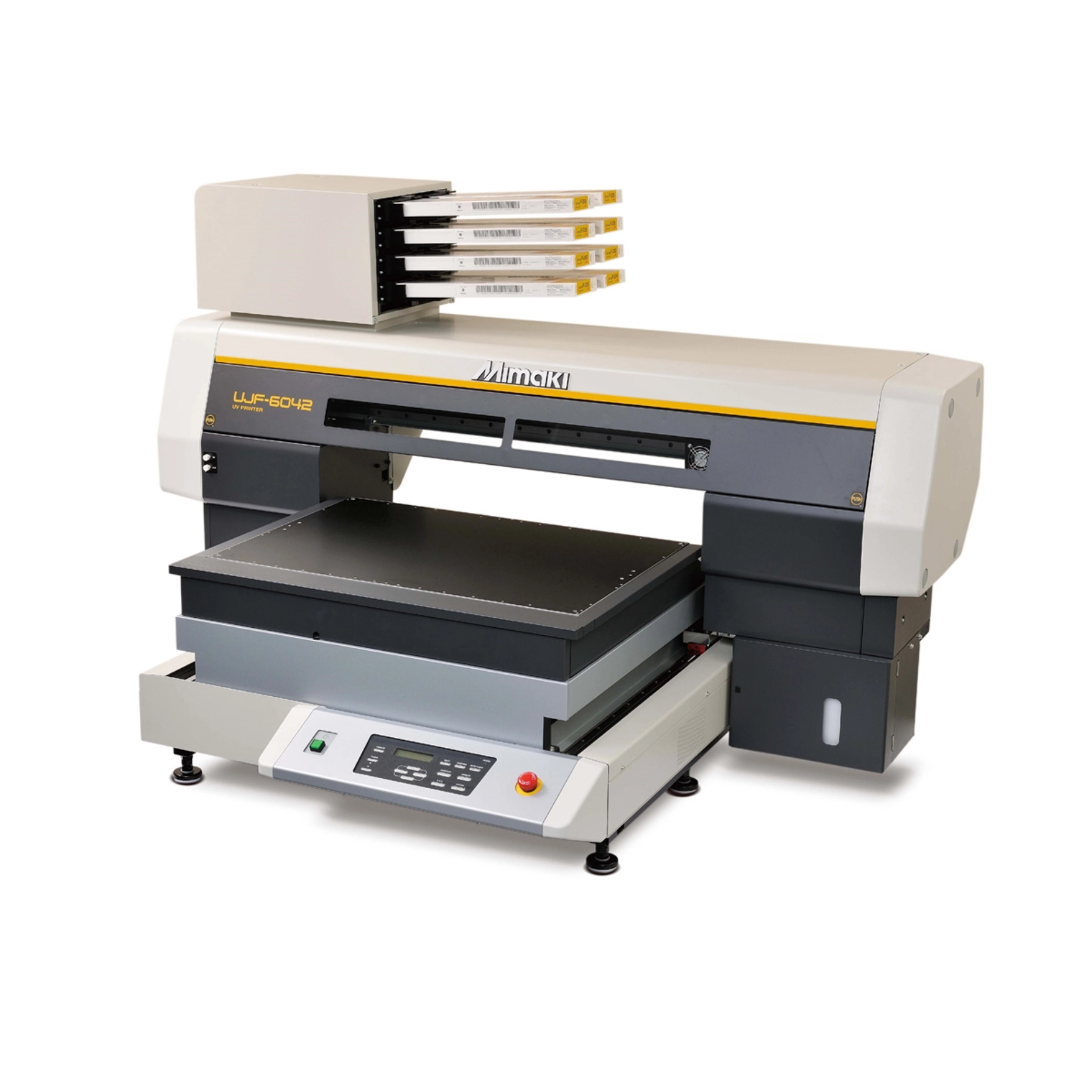

    Mimaki UJF-6042 Flatbed LED UV A2 Printer

    RRP £34,995.00


    Picture of Mimaki UJF-6042 Flatbed LED UV A2 Printer

    Mimaki UJF-6042 Flatbed LED UV A2 Printer

    Xpres Plus - VIEW OUR SITE DEDICATED TO VOLUME PRODUCTION SOLUTIONS!

    Virtual demo available - call to book!

    RRP £34,995.00

    The new UJF-6042 offers all the benefits of the smaller UJF-3042 in a larger A2 format, with even greater versatility and spectacular photo-quality print reproduction onto an almost limitless range of materials, objects and substrates.

    The new UJF-6042 offers all the benefits of the smaller UJF-3042 in a larger A2 format, with even greater versatility and spectacular photo-quality print reproduction onto an almost limitless range of materials, objects and substrates.

    UJF-6042, with its larger print area opens up a whole new world of possibilities for the end-user in the higher volume production market, where even higher quality is demanded.

    SKU: XP1895
    Brand: Mimaki

    A2 Format UV LED Flatbed Printer

    Building on the success of the UJF-3042 series, the Mimaki UJF-6042 offers all the benefits of the smaller UJF-3042 in a larger A2 format version with even greater versatility and spectacular photo-quality print reproduction onto an almost limitless range of materials, objects and substrates. UJF-6042, with its larger print area opens up a whole new world of possibilities for the end-user in the higher volume production market, where even higher quality is demanded.

    Features

    Outstanding print quality of up to 1800 x 1800 dpi A2 size flatbed for a wider range of media Direct printing on subtrates up to 150 mm thick Energy saving eco-friendly LED UV curing Multiple ink options, including white ink, clear varnish, and inkjet primer Special applications, e.g. 3D lenticular and unique textures on metals

    Create…

    Gifts and novelties, 3D lenticular, photo albums, name plates, membrane switches and much more…

    The new UJF-6042 offers all the benefits of the smaller UJF-3042 in a larger A2 format, with even greater versatility and spectacular photo-quality print reproduction onto an almost limitless range of materials, objects and substrates.

    UJF-6042, with its larger print area opens up a whole new world of possibilities for the end-user in the higher volume production market, where even higher quality is demanded.

    UJF-6042
    Head On-demand Piezo head
    Print
    resolution
    Y axis 720 dpi, 1,440 dpi, 1,800 dpi
    X axis 600 dpi, 900 dpi, 1,200 dpi, 1,800 dpi
    InkType UV curable ink :LH-100 (C/M/Y/K/W/Lc/Lm/Cl)
    UV curable ink :LF-140 (C/M/Y/K/Lc/Lm/W)
    UV curable ink :LF-200 (C/M/Y/K/W)
    Supply system 220ml cartridge / 600ml ink pack
    Ink circulation White ink circulation by MCT (Mimaki Circulation Technology)
    Maximum print size(W×D) 610 × 420 mm (24.0" × 16.5")
    MediaSize(W×D) 610 × 420 mm (24.0" × 16.5")
    Height Less than 150 mm (5.9")
    Weight Less than 7 kg (15.4 lbs) /
    When using a height adjuster, less than 4 kg (8.8 lbs)
    Media suction Air suction by vacuum
    Print
    accuracy
    Absolute accuracy ± 0.3 mm (0.01") or ± 0.3 % from specified print distance
    Repeatability ± 0.2 mm (0.01") or ± 0.1 % from specified print distance
    UV unit  Equipped with UV LED (Light Emitting Diodes)
    Lifetime *1 About 10,000 hours
    Interface USB2.0
    Applicable standard VCCI class A, FCC Class A, CE Marking, RoHS Directive, REACH Regulation
    Power specifications AC100V ~ AC240V (Automated voltage conversion), 50 / 60 Hz
    Power consumption Less than 450 VA
    Operational
    environment
    Temperature 20℃ ~ 35℃ (68°F ~ 95°F)
    Humidity 35~65%Rh
    Temperature accuracy 20℃~25℃ (68°F ~ 77°F)
    Temperature gradient Less than ± 10℃/h (± 18°F/h)
    Dust Equivalent to normal office level
    Dimensions(W×D×H) 1,510 × 966 × 960 mm (59.4 × 38.0 × 37.8")
    Weight 150 kg (330.7 lbs)
    Products specifications
    Applications Promotional
    Applications Merchandising
    Ink Type UV
