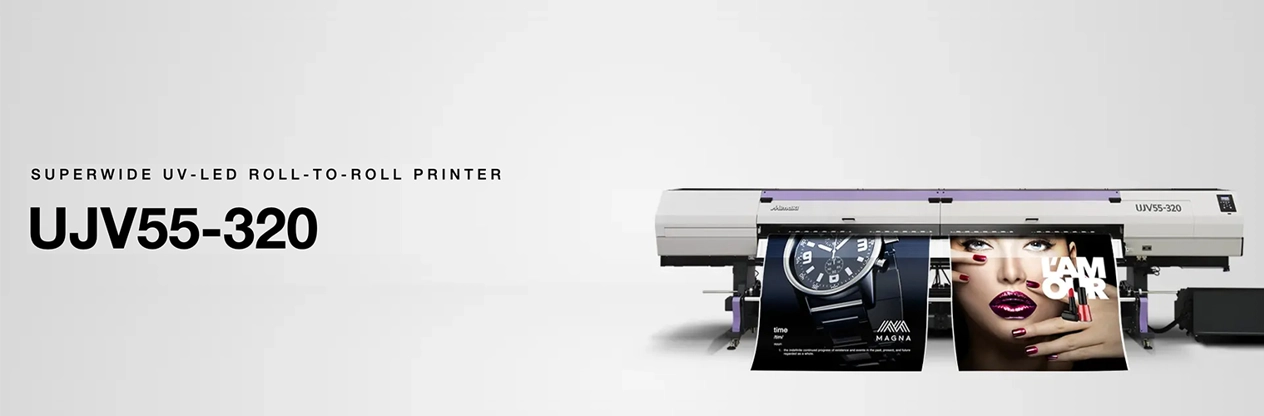

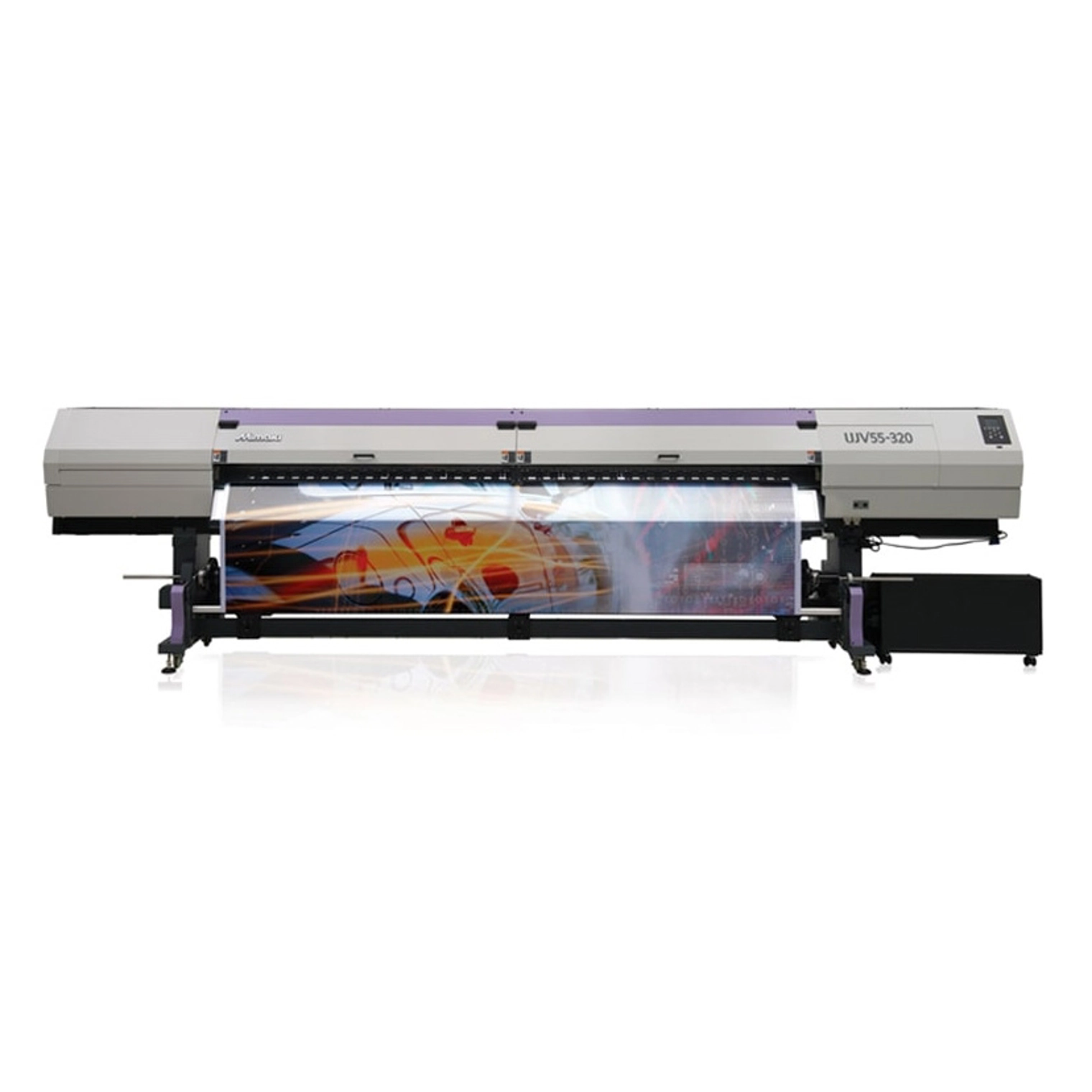

Mimaki UJV55-320 LED UV Roll-Fed Printer

£0.00

Mimaki UJV55-320 LED UV Roll-Fed Printer

Call 01332 855 085

£0.00

Limited time offer: Free 1 year warranty. Call 01332 85 50 85 for details.

The all new Mimaki UJV55-320 grand format LED UV inkjet printer delivers a unique combination of high quality super wide output for volume production.

Call 01332 855 085

SKU: XP1835

Brand: Mimaki

Perfect for banners, retail, exhibition and window graphics and other similar applications up to 3.2m wide, with the added versatility of twin-roll simultaneous printing.

Overview
Technical
Video
Specifications
Downloads
Enquire

Perfect for banners, retail, exhibition and window graphics and other similar applications up to 3.2m wide, with the added versatility of twin-roll simultaneous printing.

Head		On-demand piezo head (4 printheads / in 2 staggered array)
Print resolution		300dpi, 600dpi, 900dpi, and 1200dpi
Ink droplet size		Minimum: 7pl Maximum: 36pl
Head gap (Manual adjustment)		1.7mm / 1.9mm / 2.6mm / 3.3mm (Distance between the platen and the print head)
Ink	Type	LED-UV ink LUS-120
	Colour	4 – Colour (C, M, Y, K) / 7 – Colour (C, M, Y, K, Lc, Lm, W)
	Packaging	1 litre ink bottle, Ink can be filled up to 3 litres per ink colour.
Maximum print width		3,200mm
Maximum media width		3,250mm (Twin rolls printing with a small drive shaft: 1,524mm × 2)
Minimum media width		210mm
Media thickness		1.0mm or less
Roll outer diameter		Large drive shafts: Φ250mm or less. Small drive shaft with roll holders: Φ180mm or less.
Roll weight		Large drive shafts: 100kg or less. Small drive shaft with roll holders: 25kg or less
Dimensions (W × D × H)		5,410mm × 995mm × 1,440mm excl. ink supply unit 5,680mm x 1,220mm x 1,440mm incl. ink supply unit
Shipping dimensions (W × D × H)		5,714mm × 1,136mm × 1,203mm
Weight		910kg
Power supply		AC 200 – 240V ± 10% 50/60 Hz ± 1 Hz, 18 A or less. * 100V Power not available
Power consumption		4.3kW or less
Operational environment	Temperature	20 – 30 °C (68 – 86 °F)
	Humidity	35 – 65%Rh (No condensing)
	Temperature accuracy	20 – 25 °C (68 – 77 °F)
	Temperature gradient	Less than ± 10 °C/h (± 18 °F/h)
	Dust	0.15mg/m³ (Equivalent to normal office level)

Products specifications

Applications	Display graphics
Applications	Signage
Applications	Wall graphics
Applications	Banners
Applications	Window graphics
Ink Type	UV

Downloads

Create…

Indoor and outdoor signage, Exhibition, Display and window graphics, Front and backlit signage, Retail PoS and much more…

High performance grand format LED UV inkjet printer

It delivers a unique combination of high quality super wide output for volume production of banners, retail, exhibition and window graphics and other similar applications up to 3.2m wide, with the added versatility of twin-roll simultaneous printing.

Included Features

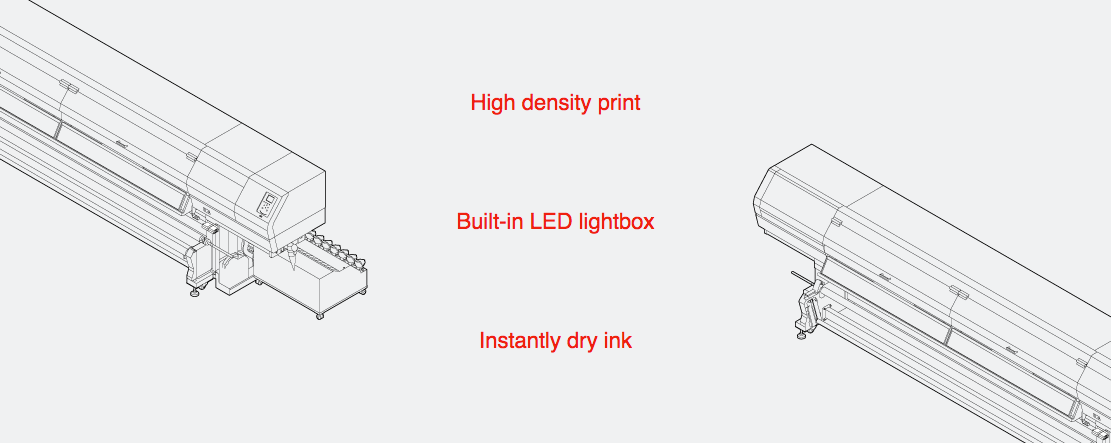

Super wide format printing (up to 3.2m). High speed printing up to 110m2/h. Newly developed LUS-120 high performance UV curing ink including white. High density print mode for front/backlit applications. Inline LED Lightbox for backlit print inspection. MAPS, MFD1, NCU & NRS for optimal print quality & performance. Simultaneous twin-roll print facility. Media roll weights up to 100kg.
