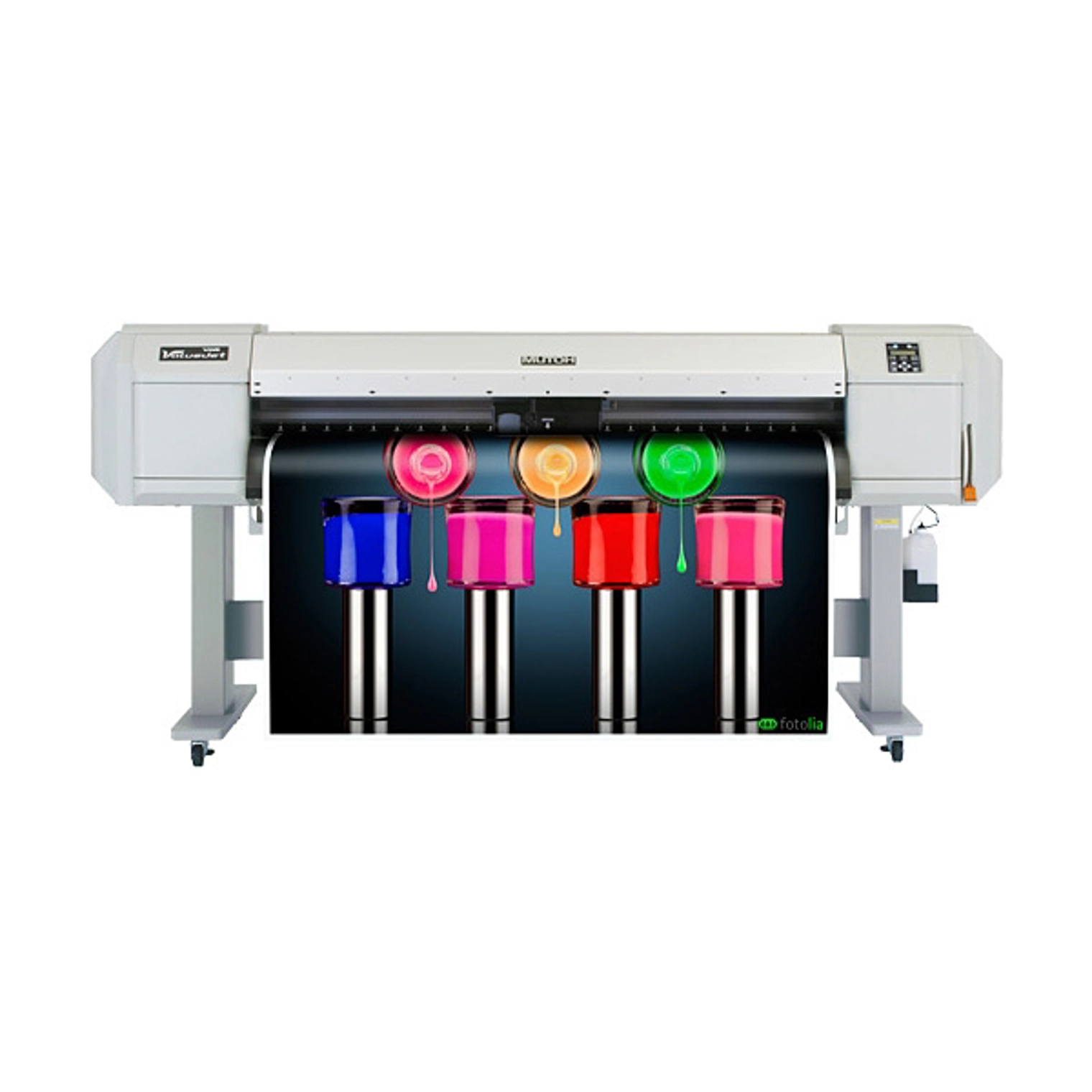

Mutoh ValueJet 1624W Waterbased Printer
The compact ValueJet 1624W (1625 mm; 64”) is ideally suited for your daily sublimation needs. The printer will deliver speeds ranging from 9sqm/h to 38sqm/h making it suitable for both startups and established businesses wanting to extend their product portfolio.
Sku: XP2410
Out Of Stock
The compact ValueJet 1624W (1625 mm – 64”) is ideally suited for your daily sublimation needs.
The printer will deliver speeds ranging from 9m²/h to 38m²/h making it suitable for both startups and established businesses wanting to extend their product portfolio.
You don’t need to be an expert to run the VJ-1624W printer, as it is very easy to operate and maintain. Competitively priced, ValueJet 1624W will deliver constant quality for volume production runs as well as short print runs.
ValueJet 1624WX - Technical Key Specifications |
|
| Print Technology | Drop-on-demand Micro Piezo Inkjet Technology |
| Print Head | 1 |
| Nozzle Configuration | 180 nozzles x 8 lines - 360 nozzles per colour |
| Drop Mass Range (pl) | 3.3 to 34.1 |
| Head Heights | Low: 1.5 mm Middle: 2.5 mm High: 4.0 mm |
ValueJet 1624WX - Media Specifications |
|
| Max. Media Width | 1625 mm (63,97”) |
| Max. Print Width | 1615 mm (63,58”) |
| Max. Media Thickness | 0.3 mm / 1.3 mm / 2.8 mm * |
| * : Max. media thickness is specified per head height |
|
| Media Measurements * | Ø 150 mm / 2” & 3” / 30 kg |
| * : Standard non-motorised roll-off system | |
ValueJet 1624WX - Performance |
|
| High Quality (540 x 720) | 9.0 m²/h |
| Quality (720 x 720) | 14.0 m²/h |
| Production (360 x 720) | 20.5 m²/h |
| Speed Production (360 x 360) | 27.5 m²/h |
| Billboard (360 x 360) | 38.0 m²/h |
ValueJet 1624WX - Ink Specifications |
|
| Ink Type | Disperse Dye Sublimation |
| Ink Volume | 1000 ml |
| Ink Colours | CMYK |
| Ink Consumption | 8,5 ml / m² |
| UV durability - without lamination | 3 to 6 months outdoor |
ValueJet 1624WX - Power Consumption |
|
| During Printing | < 210 W |
| In Stand-by | 38 W |
| Power Supply | AC 100-120 V / AC 200-240 - 60/50 Hz |
ValueJet 1624WX - Recommended Working Environment |
|
| Temperature | 20 °C - 30 °C with Δt: max. 2 °C/h |
| Humidity | 40 % - 60 % (no condensation) with ΔRH: max. 5 % RH/h |
ValueJet 1624WX - Machine Measurements |
|
| Width x Depth x Height | 2698 x 885 x 1261 mm |
| Weight | 160 kg |
