    Roland Texart XT-640 Sub Printer w/Take Up & ErgoSoft RIP

    RRP £21,999.00

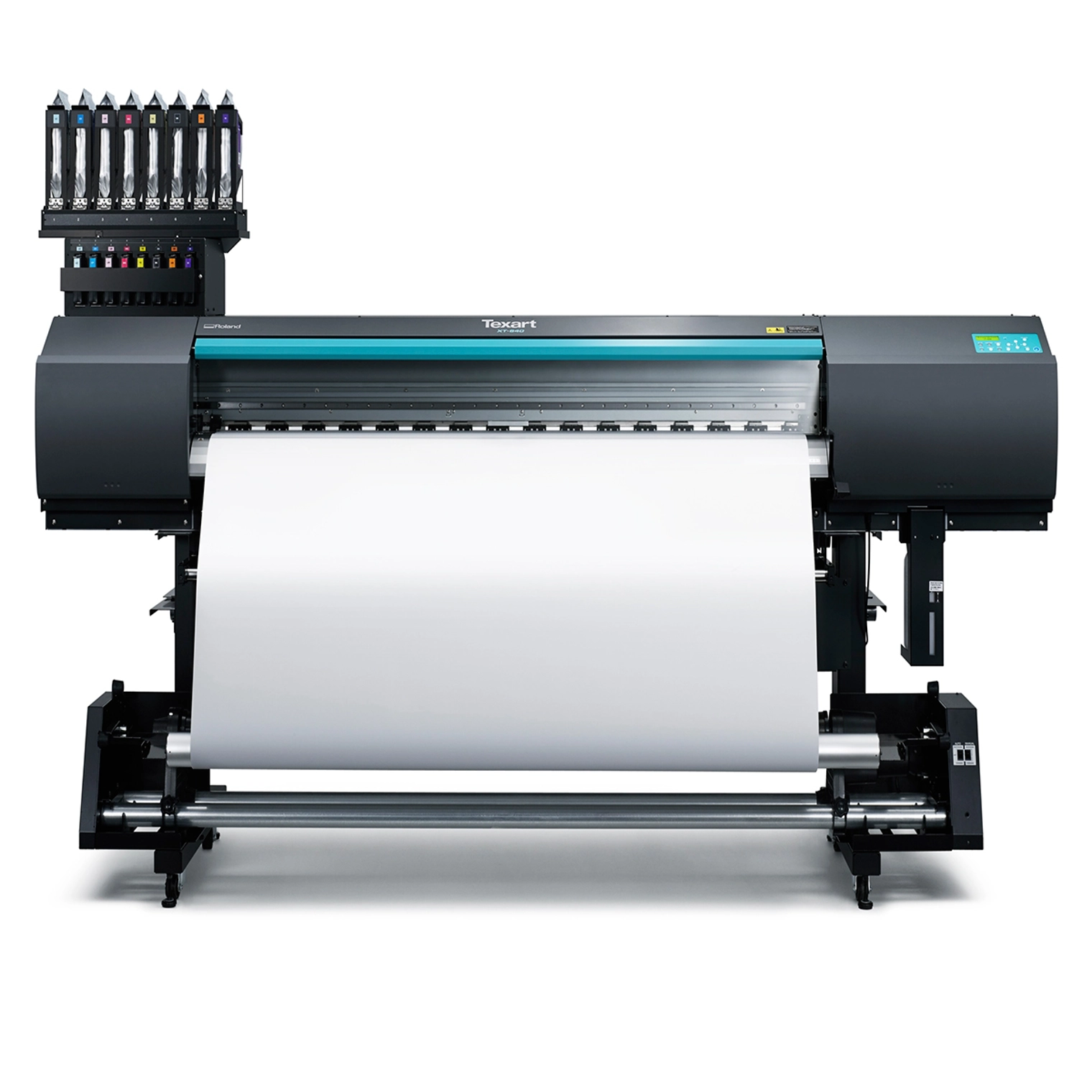

    Picture of Roland Texart XT-640 Sub Printer w/Take Up & ErgoSoft RIP
    Picture of Roland Texart XT-640 Sub Printer w/Take Up & ErgoSoft RIP
    Picture of Roland Texart XT-640 Sub Printer w/Take Up & ErgoSoft RIP
    Picture of Roland Texart XT-640 Sub Printer w/Take Up & ErgoSoft RIP

    Roland Texart XT-640 Sub Printer w/Take Up & ErgoSoft RIP

    Xpres Plus - VIEW OUR SITE DEDICATED TO VOLUME PRODUCTION SOLUTIONS!

    Virtual demo available - call to book!

    RRP £21,999.00

    Developed specifically for dye sublimation transfer printing, the Texart XT-640 delivers outstanding productivity, exceptional print quality and renowned reliability, thanks to its exclusive printing technology.

    Developed specifically for dye sublimation transfer printing, the Texart XT-640 delivers outstanding productivity, exceptional print quality and renowned reliability, thanks to its exclusive printing technology.

    Increase the strength and style of your output across a wide range of applications including sportswear, fashion, soft signage, interior decoration, promotional merchandise and much more. The XT-640 is available in two configurations: with 4 colours (dual CMYK) or 8 colours (CMYKLcLm + Orange + Violet).

    SKU: XP1980
    Brand: Roland

    A Perfect Balance of Productivity and Quality

    With its rugged construction and staggered print heads, the XT-640 Dye-Sublimation Printer is built to meet the most demanding production and quality requirements, in both speed and quality. It provides machine stability, a choice of ink configurations and is one of the fastest dye-sublimation printers on the market. Equipped with an Ink Switching System in dual CMYK mode which automatically switches to another ink pouch to enable continuous printing, for increased production efficiency and unattended printing on long print runs, even in high-speed modes.

    Distinguishing Features

    Durable and lasting build quality for long print runs and non-stop production

    Dual-print heads increase production speed and maximize colour quality with 7-droplet technology

    4-colour high-speed printing or 8-colour printing for wider colour gamut and smooth color gradients

    Roland DG Fluor Color Library offers hundreds of new colours with new Fluorescent Pink and Yellow inks

    Automatic ink-switching and iPad printer assist for unattended printing

    Error-free media alignment with new feed adjuster, take-up system and powerful vacuum

    Print Error-Free with Advanced New Features

    The XT-640 offers exceptional media tracking to prevent alignment errors during production. An advanced vacuum system keeps transfer paper flat for printing, while a convenient new feed adjuster and take-up system prevents media skewing and ensures a correctly wound roll for smooth transition to the heat transfer process.

    Roland DG’s Dye Sublimation Guide

    Roland DG’s Digital Inkjet Dye Sublimation Guide is a comprehensive resource that provides a succinct and inspirational overview of this fast-growing and exciting market – a great asset to those wanting to know more about dye sublimation or get into the business for the first time.

    Seven Droplet Print Heads Give You More Colour Choice

    The XT-640 Dye-Sublimation Printer features dual-staggered print heads to maximise productivity. Each Piezo inkjet print head has 8-channels containing with up to seven different dot sizes. This allows the XT-640 to achieve smoother gradations, finer details and richer colour density for photographic quality graphics and high-resolution vector output.

    More Choice with 4-Colour or 8-Colour Ink Modes

    In 4-colour (CMYK) high-speed print mode, the XT-640 is fast and efficient, producing fine details and deep colour contrast at speeds of up to 102 m/2 per hour. In an 8-colour configuration (CMYK+LcLmOrVi / CMYK+OrViFpFy), the XT-640 delivers an extremely wide colour gamut with Orange, Violet, Light Cyan, Light Magenta, Fluorescent Pink and Fluorescent Yellow inks at speeds up to 31 m/2 per hour. In 8-colour set-up, users have the ability to reproduce Pantone Solid Coated colours as well as having a vast choice of vibrant fluorescents and soft pastel shades.

    New Media Feed System for Non-Shift Printing

    The XT-640 Dye-Sublimation Printer has a new media feed system that prevents media shifting and supports a range of thick and thin transfer paper. The new media holder keeps everything evenly tensioned and properly aligned while a powerful vacuum holds the paper flat. The front feed adjuster keeps media taut on the take-up reel and the whole system prevents transfer paper from buckling or shifting.

    Simply Print and Go with Precision Take-up System

    To support long runs, the XT-640 comes standard with a take-up system that features a front-mounted roller and a tension-controlled take-up unit. The following features offer easy and unattended feeding and tracking:

    Supports heavy roll media up to 110 lbs. (50 kg)

    Dancer roller with light-tension for stable take-up and easy-release

    Fully-adjustable take-up operation allows for precision feeding and versatile media use

    Decreased media resistance to dramatically improve feeding accuracy

    Automatic Bulk Ink-Switching System

    When configured in 4-colour mode, the XT-640 can print continuously. Once the primary ink pouch and subtank for a particular colour are empty, the ink switching system activates automatically and begins pulling ink from the secondary ink pouch, allowing for maximum productivity and efficiency.

    Remote Controlled Printing with Roland Printer Assist

    Instantly observe ink levels and waste bottle status with the free Roland Printer Assist iPad App, and receive notifications of when consumable parts need to be replaced. Manage one or multiple XT-640 remotely from your tablet.

    Available for download from the Apple App Store, Roland Printer Assist allows users to perform common printer functions such as power on/off, test printing and cleaning, remotely from within the printer network. Processes such as manual cleanings and part replacement feature step by step diagrams that walk you through the procedures, making maintenance tasks a breeze.

    ErgoSoft RIP Roland Edition 2

    ErgoSoft is widely regarded as the premier RIP software in the textile and dye-sublimation market. ErgoSoft Roland Edition 2 is specifically designed for use with the XT-640 and RT-640 in all colour modes.

    Works in print environments and print modes for the most common fabrics.

    Up to 40% faster RIP speed with improved dot placement accuracy for smooth prints.

    8 simultaneous RIP servers to ensure optimal RIP performance for multiple jobs.

    Superior colour management with Color Replacement feature to identify existing Spot Channels within EPS/PDF and PSD/ TIFF files.

    Create or import printable Color Books from custom or industry-standard charts, including FOGRA and Pantone®. Step & Repeat for duplication and layout of repeating patterns with no gap for a seamless finish and maximum media efficiency.

    Unlimited Hot Folder creation allows multiple users to submit jobs.

    Job cost calculation and other advanced production features.

    Add Impact with Fluorescent Inks

    Choose from 375 predefined colours in the Roland DG Fluor Color Library with new Fluorescent Pink (Fp) and Fluorescent Yellow (Fy) SBL3 Texart inks. Combine Fp+Fy with CMYKOrVi to incorporate brilliant fluorescent colours into expressive sportswear, apparel, soft signage and décor.

    Real-Time Support with Roland OnSupport®

    Roland OnSupport provides online feedback on machine status via e-mail alerts to the user’s computer or smart phone. The system automatically notifies users of job completion, ink consumption, machine usage metrics, maintenance issues and firmware updates. It also provides access to manuals, guides and other support info.

    RolandCare Included

    Built to provide years of reliable service – even in the most demanding print environments – the XT-640 also comes with a one-year Original RolandCare warranty*.

    Roland DG has earned a reputation for long-lasting, high-performance devices, backed by first-rate customer service. This support includes expert technical assistance, videos and free Roland software updates for the lifetime of the machine.

    Roland DG's international ISO certifications are your assurance of quality products and service.

    *Terms and conditions apply. See warranty page for details.

    Developed specifically for dye sublimation transfer printing, the Texart XT-640 delivers outstanding productivity, exceptional print quality and renowned reliability, thanks to its exclusive printing technology.

    Increase the strength and style of your output across a wide range of applications including sportswear, fashion, soft signage, interior decoration, promotional merchandise and much more. The XT-640 is available in two configurations: with 4 colours (dual CMYK) or 8 colours (CMYKLcLm + Orange + Violet).

    Printing Technology Piezoelectric inkjet
    Media Width 259 to 1625 mm (10.2 to 64 in.)
    Thickness Max. 1 mm (39 mil)
    Roll outer diameter Max. 210 mm (8.3 in.)
    Roll weight Max. 40 kg (88 lb)
    Core diameter *1 76.2 mm (3 in.) or 50.8 mm (2 in.)
    Printing width *2 Max. 1615 mm (63.6 in.)
    Ink Type Texart ink, 1000 cc pouch
    Colours 4 colours (Cyan, Magenta, Yellow and Black)
    8 colours (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Orange, Violet)
    8 colours (Cyan, Magenta, Yellow, Black, Fluorescent Pink, Fluorescent Yellow, Orange, Violet)
    Print resolution (dots per inch)
    Max. 1440 dpi
    Distance accuracy *3  Error of less than ±0.3 % of distance travelled, or ±0.3 mm, whichever is greater
    Dryer *4 Setting range for the preset temperature: 30 to 40°C (86 to 104°F)
    Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
    Power-saving function Automatic sleep feature
    Power requirements AC 100 to 120V ±10%, 5.5 A, 50/60 Hz or AC 220 to 240V ±10%, 2.8A, 50/60 Hz
    Power consumption During operation Approx. 750 W
    Sleep mode Approx. 70 W
    Acoustic noise level During operation 62 dB (A) or less
    During standby 45 dB (A) or less
    Dimensions (with stand) 2835 (W) x 830 (D) x 1650 (H) mm (111.7 x 32.7 x 65 in.)
    Weight (with stand) 214 kg (471.8 lb)
    Environment Power on Temperature: 18 to 25°C (64.4 to 77°F), humidity: 35 to 65%RH (no condensation)
    Power off Temperature: 15 to 30°C (59 to 86°F), humidity: 20 to 80%RH (no condensation)
    Included items ErgoSoft Roland Edition 2 RIP Software, take-up system, exclusive stands, power cable, media clamps, media holder, replacement blade for separating knife, User’s Manual, etc.
    Products specifications
    Applications Textiles
    Applications Sportswear
    Applications Soft signage
    Ink Type Dye Sub
