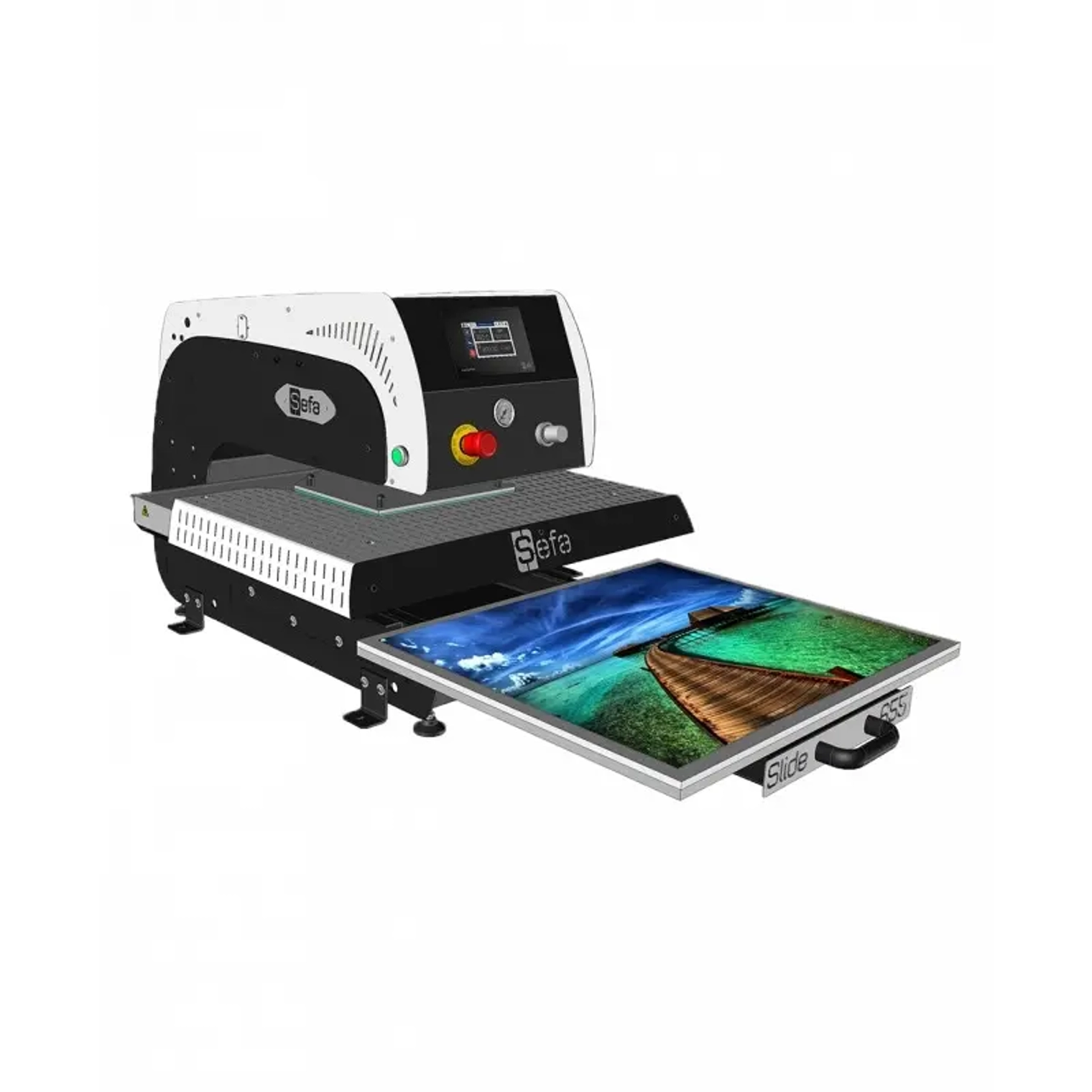

Slide 655

The SLIDE 655 was created in partnership with ChromaLuxe, the world-leading manufacturer of high-quality rigid substrates for sublimation printing.
SKU: XP7293
Call 01332 855 085

Large format, air-operated, manual-drawer press.

Suitable for: large-format textile prints, sublimation on large-format textiles and large-format rigid substrates.

Strengths:

  • Suitable with a 24" printer
  • Can be used on conventional 240V power supply
  • Pneumatic pressing
  • Almost full clearance of the lower plate on the front which gives a real ease to use while pressing
  • Programmable Smart touch screen
  • Pre-heating time in option
  • Manufactured in France
  • 2-year- warranty on the machine
  • 10-year warranty on heating elements

Electronic:

  • Touch screen electronics developed by SEFA
  • Precise and fast regulation (PID control)
  • 10 recordable programs
  • Pieces counter with reset
  • Double timer
  • Energy saving mode
Type Pneumatic
Operation Slide - Tray with drawer
Platen size 64x54 cm / 25x21 "
Useful size 60x50 cm / 24x20 "
Max thickness 45 mm
Weight 120 Kg / 265 lbs
Pressure 363 g/cm²
°C / °F Max 220 °C / 429 °F
Power 3300W
Power supply 240 V Single-phase + Neutral + Ground
Amperage 14 A
Applications ChromaLuxe, Sublimation Rigid Substrate, Textile Sublimation, Flex
Dimension 665x870x722 mm / 26x34x28 "
Products specifications
Additional Information Pneumatic
Operating Conditions Slide - Tray with drawer
Plate Width 64cm / 25"
Plate Depth 54cm / 21"
Max Print Width 60x50 cm / 24x20 "
Thickness 45mm
Weight 120 Kg / 265 lbs
Pressing Pressure 363 g/cm²
Pressing Temperature 220 °C / 429 °F
Power 3300W
Power Supply 240 V Single-phase + Neutral + Ground
Suitable For ChromaLuxe, Sublimation Rigid Substrate, Textile Sublimation, Flex
Dimensions 665x870x722mm / 26x34x28 "
Downloads


Large format, air-operated, manual-drawer press.

Suitable for: large-format textile prints, sublimation on large-format textiles and large-format rigid substrates.

Strengths:

  • Suitable with a 24" printer
  • Can be used on conventional 240V power supply
  • Pneumatic pressing
  • Almost full clearance of the lower plate on the front which gives a real ease to use while pressing
  • Programmable Smart touch screen
  • Pre-heating time in option
  • Manufactured in France
  • 2-year- warranty on the machine
  • 10-year warranty on heating elements

Electronic:

  • Touch screen electronics developed by SEFA
  • Precise and fast regulation (PID control)
  • 10 recordable programs
  • Pieces counter with reset
  • Double timer
  • Energy saving mode
Products specifications
Additional Information Pneumatic
Operating Conditions Slide - Tray with drawer
Plate Width 64cm / 25"
Plate Depth 54cm / 21"
Max Print Width 60x50 cm / 24x20 "
Thickness 45mm
Weight 120 Kg / 265 lbs
Pressing Pressure 363 g/cm²
Pressing Temperature 220 °C / 429 °F
Power 3300W
Power Supply 240 V Single-phase + Neutral + Ground
Suitable For ChromaLuxe, Sublimation Rigid Substrate, Textile Sublimation, Flex
Dimensions 665x870x722mm / 26x34x28 "
