    Sefa SubliMaxi 2513 LF Pneumatic Heat Press - 255cm x 130cm

    RRP €0.00


    Picture of Sefa SubliMaxi 2513 LF Pneumatic Heat Press - 255cm x 130cm
    Picture of Sefa SubliMaxi 2513 LF Pneumatic Heat Press - 255cm x 130cm

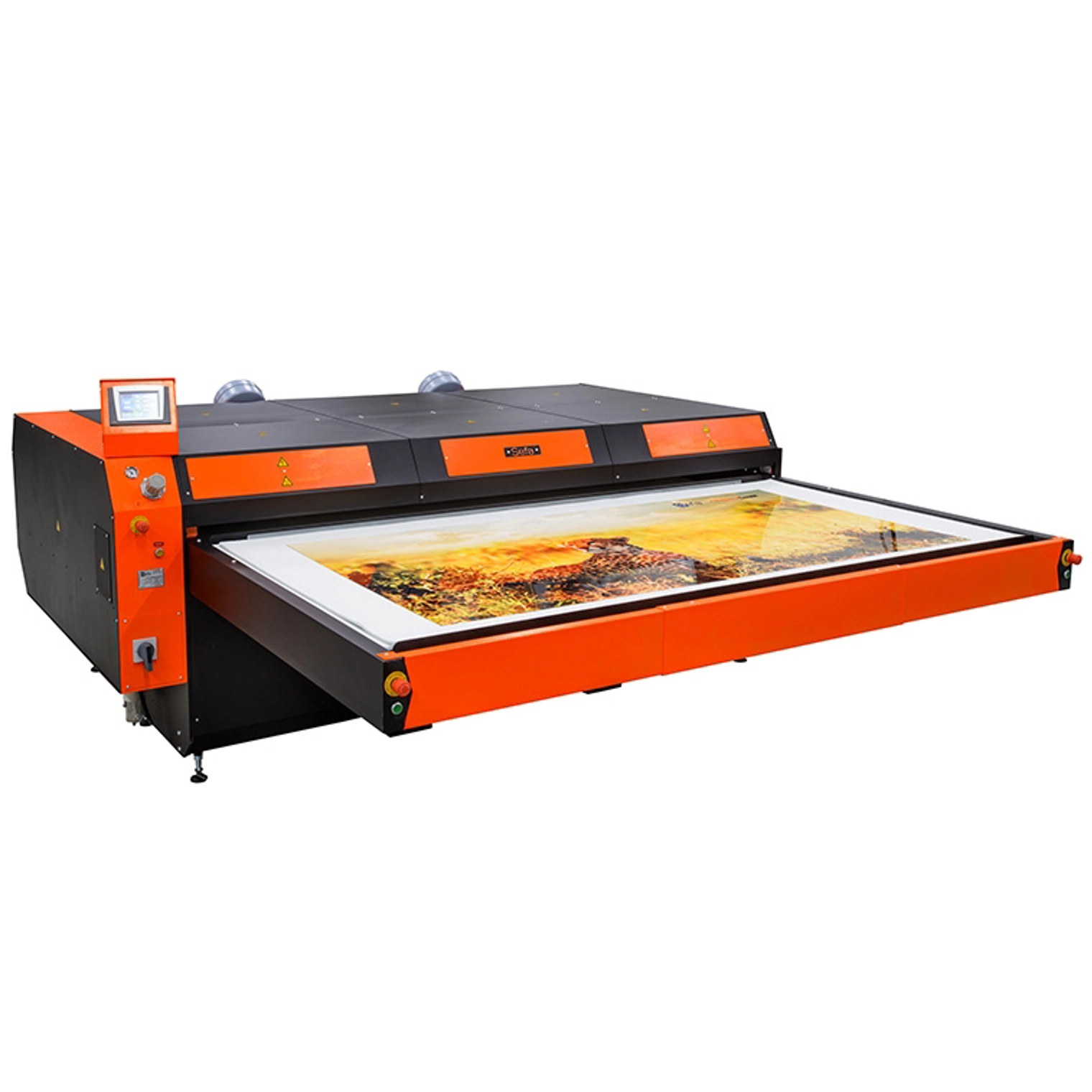

    Sefa SubliMaxi 2513 LF Pneumatic Heat Press - 255cm x 130cm

    Xpres Plus - VIEW OUR SITE DEDICATED TO VOLUME PRODUCTION SOLUTIONS!

    Virtual demo available - call to book!

    RRP €0.00

    The Sefa SubliMaxi 2513 LF pneumatic heat press features specific electronics to able sublimation on rigid substrates & textiles. It has double motorised drawer plates, 4 independent heating zones and has nomex attached on the heating plate.


    Ideal for sublimation with good productivity and flexibility the Sefa SubliMax 2513 LF has touch screen facility developed by Sefa.

    SKU: XP7323
    Brand: Sefa

    Large format, motorised two-drawer pneumatic press

    Suitable for: large-format textile prints, sublimating on large-format textiles and large-format rigid substrates.

    Key Features

    Automatic drawer opening, closing and switching functions

    - Four independent, concentric heating surfaces for uniform heat application across the whole platen

    - Allows background tasking on the free platen

    - Six pneumatic cylinders ensure uniform pressure across the whole platen

    - Large touch-screen control panel

    - Includes Nomex-covered heat platen

    - Includes dual air extractor.

    - Designed and manufactured in France

    - Two-year machine warranty

    - Ten-year warranty on heating elements

    Electronics

    Touch electronics developed by Sefa

    - Precise and fast regulation (PID control)

    - 4 recordable programs

    - Counter with reset

    - Double timer

    - Energy saving

    The Sefa SubliMaxi 2513 LF pneumatic heat press features specific electronics to able sublimation on rigid substrates & textiles. It has double motorised drawer plates, 4 independent heating zones and has nomex attached on the heating plate.


    Ideal for sublimation with good productivity and flexibility the Sefa SubliMax 2513 LF has touch screen facility developed by Sefa.

    Type Pneumatic
    Operation Slide - Tray with drawer
    Platen size 255x130 cm / 100x51 "
    Useful size 250x125 cm / 98"x49"
    Max thickness 45 mm
    Weight 2180 Kg / 4806 lbs
    Pressure 318 gr/cm²
    °C / °F Max 220 °C / 429 °F
    Power 37000 W
    Power supply 400 V 3-phases + Neutral + Ground
    Amperage 56 A
    Applications ChromaLuxe, Sublimation Rigid Substrate, Textile Sublimation
    Dimension 1446x3202x3007 mm / 57x126x118 "
