    Sefa Subli-1510 Large Format Heat Press

    RRP £16,595.00


    Picture of Sefa Subli-1510 Large Format Heat Press
    Picture of Sefa Subli-1510 Large Format Heat Press

    Sefa Subli-1510 Large Format Heat Press

    Xpres Plus - VIEW OUR SITE DEDICATED TO VOLUME PRODUCTION SOLUTIONS!

    Virtual demo available - call to book!

    RRP £16,595.00

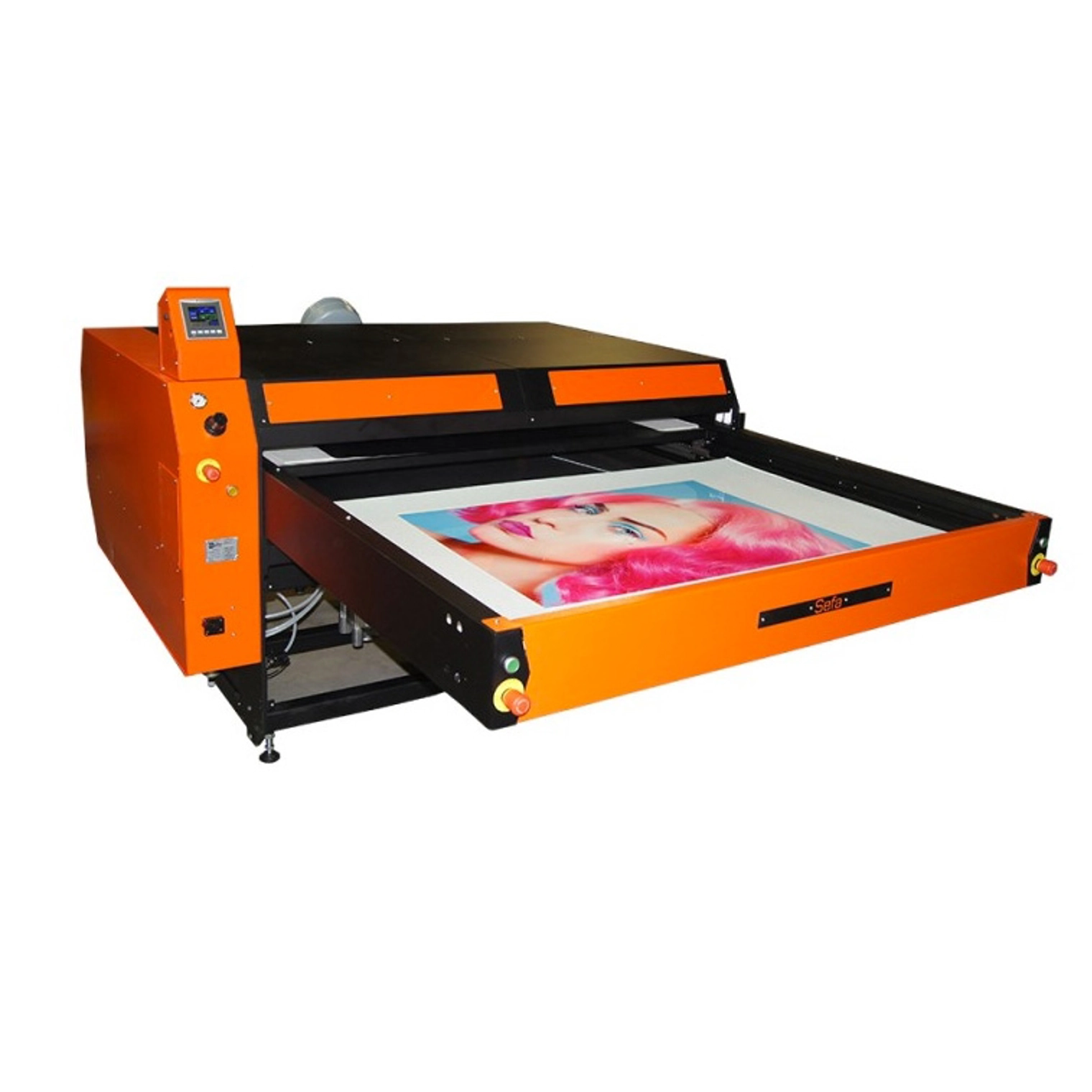

    Sefa Subli-1510 Large Format Heat Press (1500mm x 1000mm).

    Sefa Subli-1510 Large Format Heat Press (1500mm x 1000mm).

    This machine is designed and built for large scale and high-volume production runs. It features double-driven plates working alternately and powerful pressure is applied by 4 air cylinders.

    Safety is held in high-regard with an optical detection sensor and 3 emergency stop buttons.

    This European manufactured machine features touch screen panels and an intuitive interface for ease of usability.

    SKU: XP7308
    Brand: Sefa

    Large format, motorised two-drawer pneumatic press

    Suitable for: large-format textile prints, sublimating on large-format textiles and large-format rigid substrates.

    Key Features

    Automatic drawer opening, closing and switching functions

    - Two independent, concentric heating surfaces for uniform heat application across the whole platen

    - Allows background tasking on the free platen

    - Four pneumatic cylinders ensure uniform pressure across the whole platen

    - Large touch-screen control panel

    - Includes Nomex-covered heat platen

    - Designed and manufactured in France

    - Two-year machine warranty

    - Ten-year warranty on heating elements

    Electronics

    Touch electronics developed by Sefa

    - Precise and fast regulation (PID control)

    - 4 recordable programs

    - Counter with reset

    - Double timer

    - Energy saving

    Sefa Subli-1510 Large Format Heat Press (1500mm x 1000mm).

    This machine is designed and built for large scale and high-volume production runs. It features double-driven plates working alternately and powerful pressure is applied by 4 air cylinders.

    Safety is held in high-regard with an optical detection sensor and 3 emergency stop buttons.

    This European manufactured machine features touch screen panels and an intuitive interface for ease of usability.

    Type Pneumatic
    Operation Slide - Tray with drawer
    Platen size 157x107 cm / 62x42 "
    Useful size 152x102 cm / 60x40 "
    Max thickness 45 mm
    Weight 1000 Kg / 2205 lbs
    Pressure 296 gr/cm²
    °C / °F Max 220 °C / 429 °F
    Power 17500 W
    Power supply 400 V 3-phases + Neutral + Ground
    Amperage 28 A
    Applications ChromaLuxe, Sublimation Rigid Substrate, Textile Sublimation
    Dimension 1370x2740x2019 mm / 54x108x79 "
