Adkins Alpha Industrial Pneumatic Series 5 - 100cm x 120cm

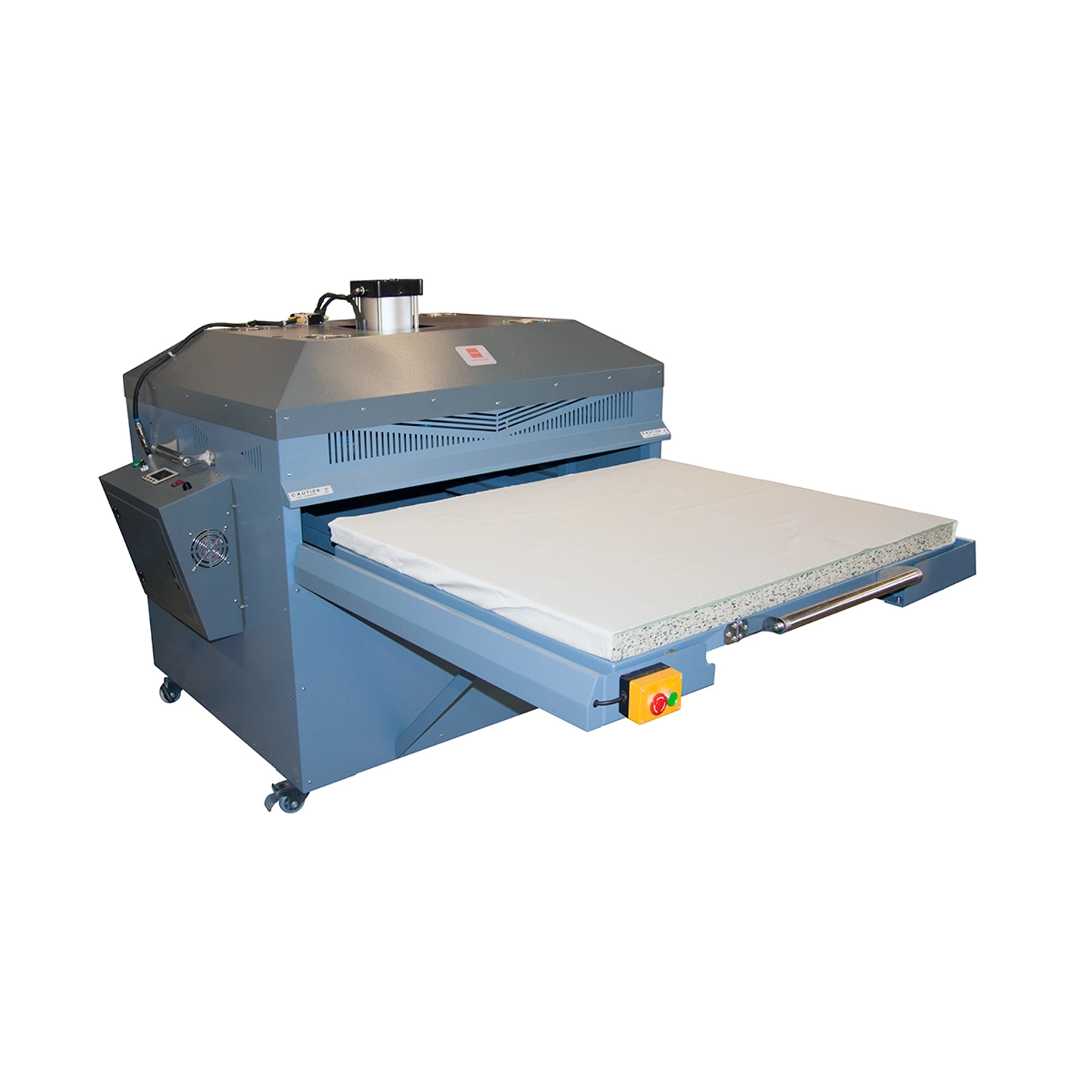

The Alpha Industrial Pneumatic Transfer Press is a pneumatically operated heat press for transfer printing and material fusing and comes supplied with either a single or double table configuration making it ideal for high volume production with low operator fatigue.
Available with options for either single or double table configuration, the Adkins Industrial Pneumatic heat press can be used for printing garment panels and similar larger items. This robust machine is powered by a micro-processor for control of both heat and dwell accuracy and ease of operation and requires minimal operating space. The Alpha Industrial Pneumatic Press also features either an automatic or manual table operation and benefits from an automatic release system at the end of the pressing cycle.
Key Features
The Alpha Industrial Flatbed Series 7 Press boasts an impressive range of features including:
PLC control system.
Cartridge based, replaceable heating elements.
Twin button control system ensures the operators hands are clear of the pressing area.
Manual or automatic operating modes with auto open release system.
Heat plate will not operate until directly aligned over the lower table.
Fully adjustable temperature and pressure control.
Electronic countdown timer.
Emergency stop button that shuts off machine operation.
Inbuilt thermal cut out on the heating element shuts off power to heating element should the temperature exceed 235°C +/- 15°C (455°F +/-27°F).
120 cm x 170 cm pressing area
The large pressing area measuring 80 cm x 100 cm, with twin reciprocating sliding lower tables. This enables operators to be preparing the next item to be pressed, whilst the first table is being pressed therefore maximising productivity.
Ideally suited for printing garments and large panels
Perfect for Sportswear, Flags, Upholstery Materials and Soft/ Hard signage applications.
Easily replicate exact pressure
The pneumatic operation means that you can easily replicate exact pressure with every press cycle and operator fatigue is kept to a minimum, resulting in improved operator output and reducing mistakes due to fatigue.
Innovative cartridge based heating element
The Alpha Industrial Series 7 range has an innovative cartridge based heating element that replaces the older single continuous cast in aluminium style element. The benefit of the cartridge system is that it has multiple, individually replaceable elements, allowing replacement of just a single cartridge should the need arise.
Simple, fully adjustable air pressure gauge
The operator controls the pressure via a simple, fully adjustable air pressure gauge and locking air pressure control. Fully adjustable time and temperature are set via the controller and the LED display features a countdown timer.
PLC Digital Controller
The Alpha Industrial Flatbed Series 7 Press features a PLC Controller (Programmable Logic Controller) that allows for ultimate control over heat and dwell settings, with a large LCD screen displaying all data clearly for the benefit of the operator.
Twin Reciprocating Table
The operator loads the machine via the sliding lower table. Once loaded the operator sends the loaded bed into the press and commences the pressing cycle. The second bed slides out into the loading position and enables the operator to commence preparing the next item to be pressed, whilst the first bed is being pressed.

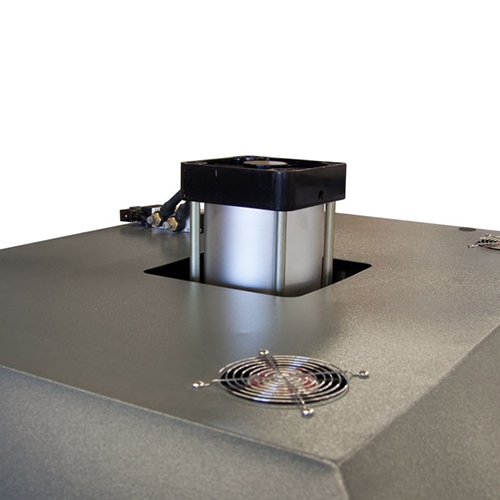

Pneumatic Operation
The Alpha Industrial Flatbed Series 7 Press is pneumatically operated which allows it to achieve a maximum of 6 bar. pressure. This makes it ideal for all forms of pressing work even in the most demanding high pressure environments. The pneumatic operation drastically reduces operator fatigue.
Finance Calculator
Finance options are available for this product. These may vary on a case by case basis and should be discussed with a member of the Xpres team.
Xpres are not the lender, but are acting on the customers behalf to arrange contact between our finance partners.
| Weekly Equivalent | £86.77 |
|---|---|
| 24 Monthly Payments | £375.99 |
| Total Cost | £9023.76 |
| Tax Relief @ 19% | £1714.51 |
| Cost of Finance | £7309.25 |
| Working Area (W x H x D): | 170.1 x 152.2 x 229.3 cm |
| Weight: | Gross 764 Kg / Net 536 Kg |
| Power Requirements: | 230 Volts AC / 64 Amps |
| Fuse: | 34 Amps |
| Heat Element: | Cartridge Elements (x6) - Replaceable |
| Table Size (L x W): | 100 cm x 120 cm |
| Maximum compressed air supply: | 6 bar. max. (87 psi. max) |
| Suggested compressed air supply: | 5 bar. (65 psi) |
| Compressed air consumption: | 40 litres/min (1.41 cu. ft./min) @ 5 bar. |
| Frame Material: | Steel |
| Control Unit: | PCB Control |
| Working Temperature: | 70 - 225°C |
| Display Timer Range: | 0 - 480 sec |
| Warranty: | 12 months (machine and heating element) |
