    Adkins Alpha Industrial Pneumatic Heat Press - 100cm x 160cm

    RRP £9,795.00

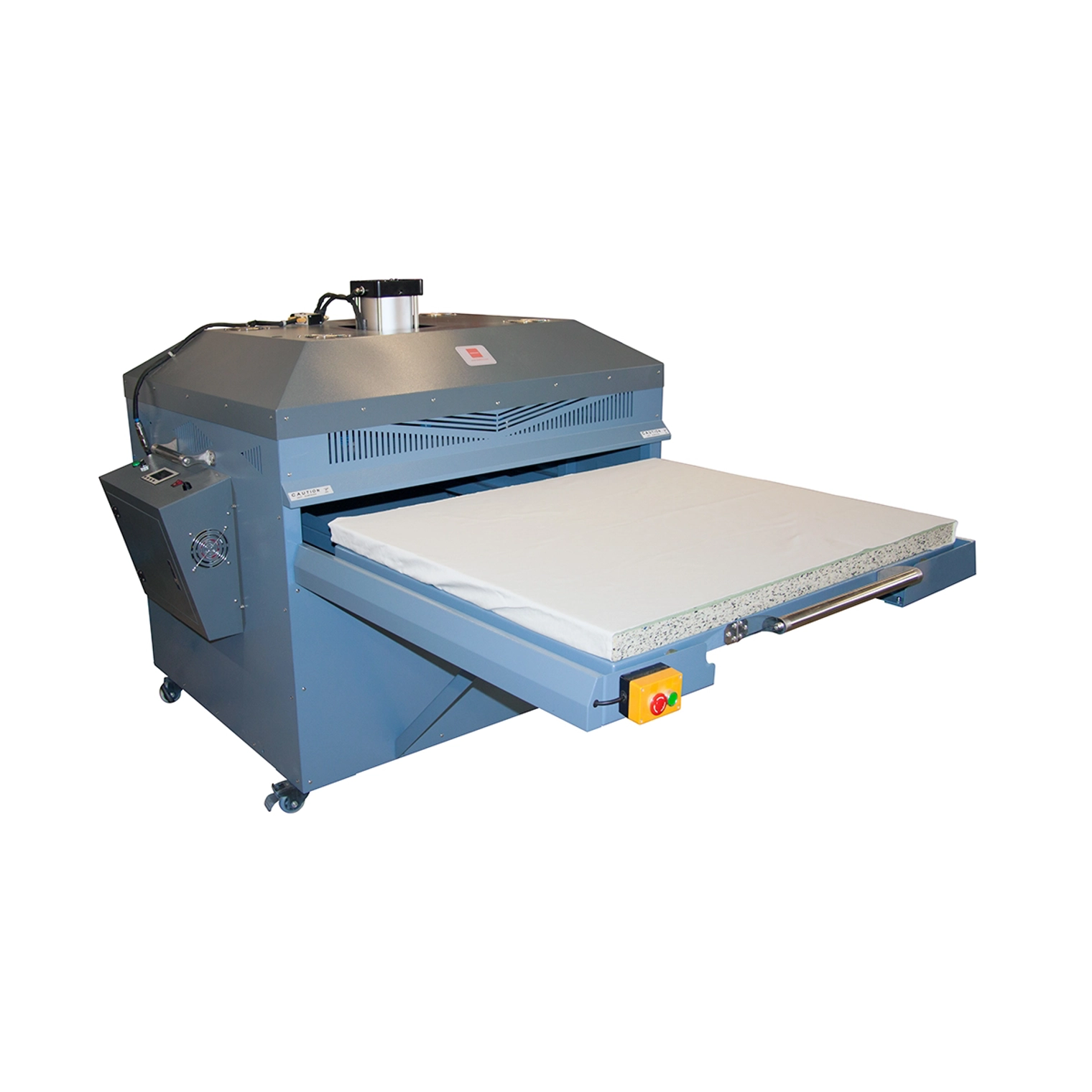

    Picture of Adkins Alpha Industrial Pneumatic Heat Press - 100cm x 160cm

    Adkins Alpha Industrial Pneumatic Heat Press - 100cm x 160cm

    Xpres Plus - VIEW OUR SITE DEDICATED TO VOLUME PRODUCTION SOLUTIONS!

    Virtual demo available - call to book!

    RRP £9,795.00

    The Alpha Industrial Pneumatic Transfer Press is a pneumatically operated heat press for transfer printing and material fusing and comes supplied with either a single or double table configuration making it ideal for high volume production with low operator fatigue.

    The Alpha Industrial Pneumatic Transfer Press is a pneumatically operated heat press for transfer printing and material fusing and comes supplied with either a single or double table configuration making it ideal for high volume production with low operator fatigue.

    Available with options for either single or double table configuration, the Adkins Industrial Pneumatic heat press can be used for printing garment panels and similar larger items. This robust machine is powered by a micro-processor for control of both heat and dwell accuracy and ease of operation and requires minimal operating space. The Alpha Industrial Pneumatic Press also features either an automatic or manual table operation and benefits from an automatic release system at the end of the pressing cycle.


    SKU: XP7062
    Manufacturer: Adkins

    Key Features

    This fully featured, pneumatically operated press boasts an impressive range of features including:

    - PCB control system.

    - Cartridge based, replaceable heating elements.

    - Manual or automatic operating modes with auto open release system.

    - Heat plate will not operate until directly aligned over the lower table.

    - Fully adjustable temperature and pressure control.

    - Electronic countdown timer.

    - Emergency stop button that shuts off machine operation.

    - Inbuilt thermal cut out on the heating element shuts off power to heating element should the temperature exceed 235°C +/- 15°C (455°F +/-27°F).

    Large Single Table Pressing Area

    The large single table pressing area measuring 100 cm x 160 cm, with a sliding lower table. Ideally suited for printing larger garment panels such as Sportswear, Flags, Upholstery Materials and Soft/ Hard signage applications.

    Easily Replicate Exact Pressure

    The pneumatic operation means that you can easily replicate exact pressure with every press cycle and operator fatigue is kept to a minimum, resulting in improved operator output and reducing mistakes due to fatigue.

    Innovative Cartridge Based Heating Element

    The Alpha Industrial Flatbed Series 5 range has an innovative cartridge based heating element that replaces the older single continuous cast in aluminium style element. The benefit of the cartridge system is that it has multiple, individually replaceable elements, allowing replacement of just a single cartridge should the need arise.

    Fully Adjustable Air Pressure Gauge

    The operator controls the pressure via a simple, fully adjustable air pressure gauge and locking air pressure control. Fully adjustable time and temperature are set via the controller and the LED display features a countdown timer.

    Compliance

    Manufactured and tested to comply with EC safety regulations. CE labelled.

    Multiuse

    Ideal for use with flex, flock, laser, sublimation, bonding, laminating, reactivation and DTG.

    LED Digital Microprocessor

    The Industrial Flatbed Series 5 Press is controlled by a Digital Microprocessor that ensures accuracy in temperature and dwell time.

    Sliding Lower Table

    The operator loads the machine via the sliding lower table. This allows the operator to have a perfect view of the transfer area for accurate and easy loading and application.

    Pneumatic Operation

    The Alpha Industrial Flatbed Series 7 Press is pneumatically operated which allows it to achieve a maximum of 6 bar. pressure. This makes it ideal for all forms of pressing work even in the most demanding high pressure environments. The pneumatic operation drastically reduces operator fatigue.

    The Alpha Industrial Pneumatic Transfer Press is a pneumatically operated heat press for transfer printing and material fusing and comes supplied with either a single or double table configuration making it ideal for high volume production with low operator fatigue.

    Available with options for either single or double table configuration, the Adkins Industrial Pneumatic heat press can be used for printing garment panels and similar larger items. This robust machine is powered by a micro-processor for control of both heat and dwell accuracy and ease of operation and requires minimal operating space. The Alpha Industrial Pneumatic Press also features either an automatic or manual table operation and benefits from an automatic release system at the end of the pressing cycle.


    Working Area (W x H x D): 210 x 155.2 x 229.3 cm
    Weight: Gross 900 Kg / Net 641 Kg
    Power Requirements: 3-Phase, 5 line (Neutral + Earth) / 380 - 440 Volts AC / 32 Amps (18 Amps per phase)
    Fuse: 34 Amps
    Heat Element: Cartridge Elements (x6) - Replaceable
    Table Size (L x W): 100 cm x 160 cm
    Maximum compressed air supply: 6 bar. max. (87 psi. max)
    Suggested compressed air supply: 5 bar. (65 psi)
    Compressed air consumption: 40 litres/min (1.41 cu. ft./min) @ 5 bar.
    Frame Material: Steel
    Control Unit: PCB Control
    Working Temperature: 70 - 225°C
    Display Timer Range: 0 - 480 sec
    Warranty: 12 months (machine and heating element)
