    Mimaki Kebab System (to suit UJF-6042 and 3042HG Printers)

    RRP £2,995.00

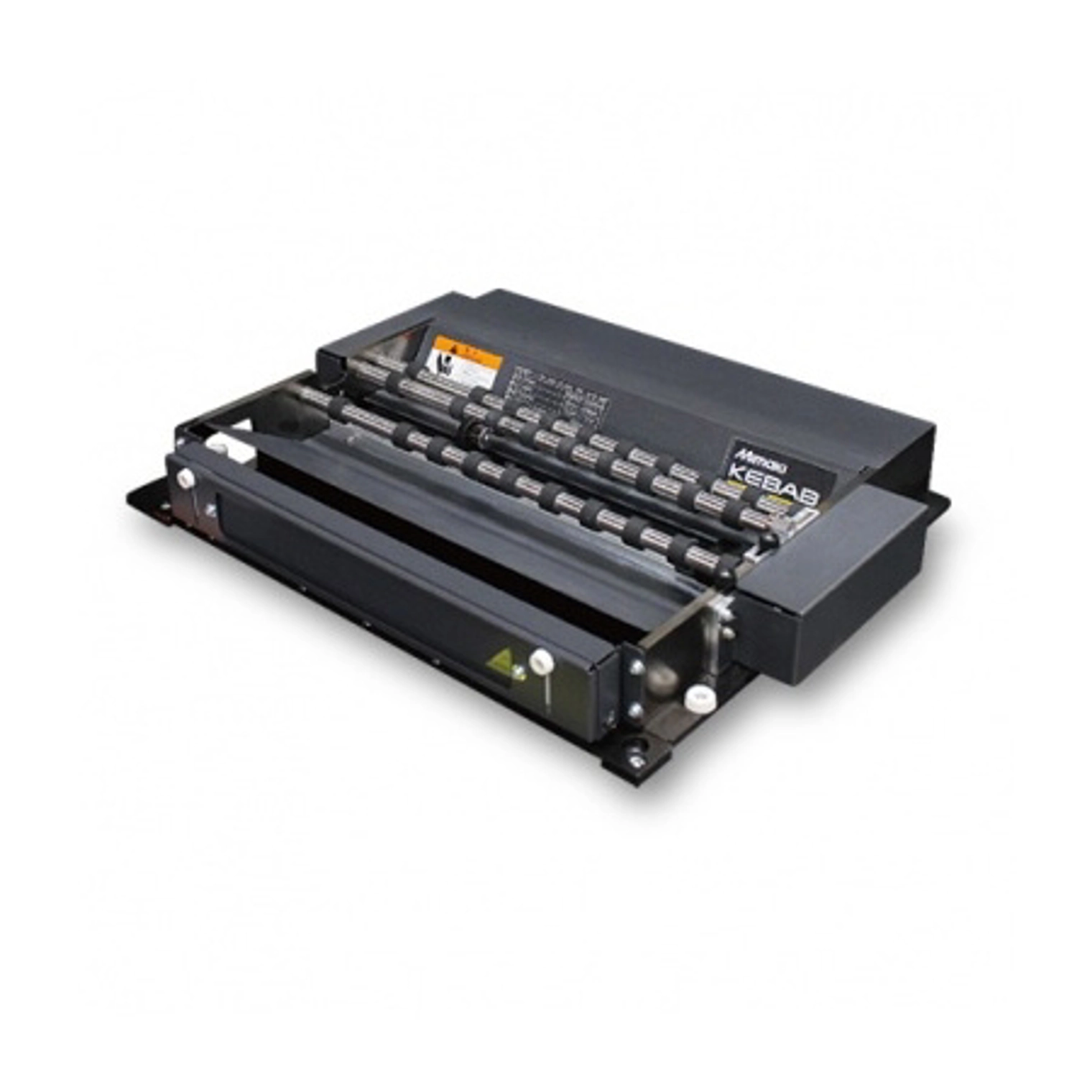

    Picture of Mimaki Kebab System (to suit UJF-6042 and 3042HG Printers)

    Mimaki Kebab System (to suit UJF-6042 and 3042HG Printers)

    Xpres Plus - VIEW OUR SITE DEDICATED TO VOLUME PRODUCTION SOLUTIONS!

    Virtual demo available - call to book!

    RRP £2,995.00

    Using rotary rollers, the Mimaki Kebab option rotates objects, allowing UJF-3042HG/UJF-6042 to print on the entire surface of such cylindrical items.

    Using rotary rollers, the Mimaki Kebab option rotates objects, allowing UJF-3042HG/UJF-6042 to print on the entire surface of such cylindrical items.

    The Mimaki Kebab option enables printing on various cylindrical objects with length ranging from 30mm to 330mm (12.99in) and diameter from 10mm to 110mm (0.39 to 4.33in). This allows users to create more varied print applications.

    RasterLink 6 makes print management simple, with:

    Print image measuring:
    Outer circumference of a print object is automatically calculated by entering a diameter on the dedicated screen, and the ruler with a calculated circumference is displayed beside the print image accordingly.

    Image scaling function:
    Print image is automatically scaled according to the calculated outer circumference. No caliculation and scaling is required.

    Fits both Mimaki UJF-6042 and 3042HG UV printers.

    SKU: XP1895K
    Brand: Mimaki

    360-degree direct printing on cylindrical products!

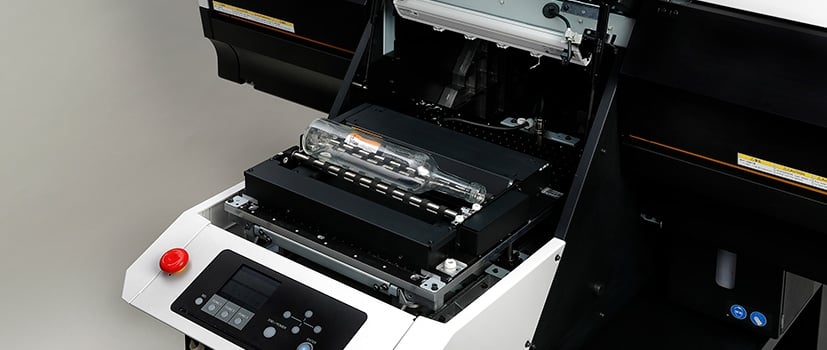

    Using the rotary rollers, the KEBAB option rotates the object, allowing UJF-3042HG/UJF-6042 to print on the entire surface of the cylindrical item. Beautiful seamless 360 degree surface printing with simple steps. Digital-on-demand printing enables to produce customized print products with a minimum order quantity from one piece. The Kebab upgrades the existing decoration-printing on 3D object of UJF-3042HG and UJF-6042. Printing on curved surface Mount KEBAB on the UJF-3042HG/UJF-6042, set the product on the rollers, and start automatic 360 degree printing by the dedicated software "RasterLink6".

    Printing on a wide range of material sizes

    The KEBAB option enables printing on various cylindrical objects with length ranging from 30mm to 330mm (12.99in) and diameter from 10mm to 110mm (0.39 to 4.33in). This allows users to create more varied print applications. Maximum weight of print material: 3 kg / Maximum print width: 300mm.

    Easy mounting on the UJF-3042HG, UJF-6042

    Setting up KEBAB on a UJF-3042HG/UJF-6042 is very easy. Just mount it on the printer, screw on the unit, and insert a connector. In order to use KEBAB, PCB of the UJF-3042HG/UJF-6042 must be replaced by a technician.

    Using rotary rollers, the Mimaki Kebab option rotates objects, allowing UJF-3042HG/UJF-6042 to print on the entire surface of such cylindrical items.

    The Mimaki Kebab option enables printing on various cylindrical objects with length ranging from 30mm to 330mm (12.99in) and diameter from 10mm to 110mm (0.39 to 4.33in). This allows users to create more varied print applications.

    RasterLink 6 makes print management simple, with:

    Print image measuring:
    Outer circumference of a print object is automatically calculated by entering a diameter on the dedicated screen, and the ruler with a calculated circumference is displayed beside the print image accordingly.

    Image scaling function:
    Print image is automatically scaled according to the calculated outer circumference. No caliculation and scaling is required.

    Fits both Mimaki UJF-6042 and 3042HG UV printers.

    Compatible printer model UJF-3042HG, UJF-6042
    Rotary unitRotary degree of
    print material
    Over ±360 degree
    Rotation system Rollers under print material
    Print materialApplicable objects Cylindrical objects (uneven surface may affect rotation)
    Printable size Diameter:10mm~110mm (0.39in~4.33in)
    * When the diameter is less than 64mm, attach a suction table.
    Length:30mm~330mm (1.18in~12.99in)
    Maximum weight of
    print material
    3kg (6.61lb)
    Printable area of UJF-3042HG on KEBAB Feeding direction (X): Entire surface of the material
    Print head moving direction (Y): 300mm (11.81in) or narrower
    Interface Exclusive connector
    Installation
    environment
    Temperature 20℃~35℃
    Relative humidity 35~65%Rh
    Guaranteed
    precision range
    20℃~25℃ (Allowable rate of change of temperature: ±10℃/h)
    Dust level General office level
    Weight Approx. 3kg (6.61lb)
    Dimensions(W×D×H) 410mm×330mm×57mm (16.14in×12.99in×2.24in)
    Products specifications
    Applications Promotional
    Applications Merchandising
