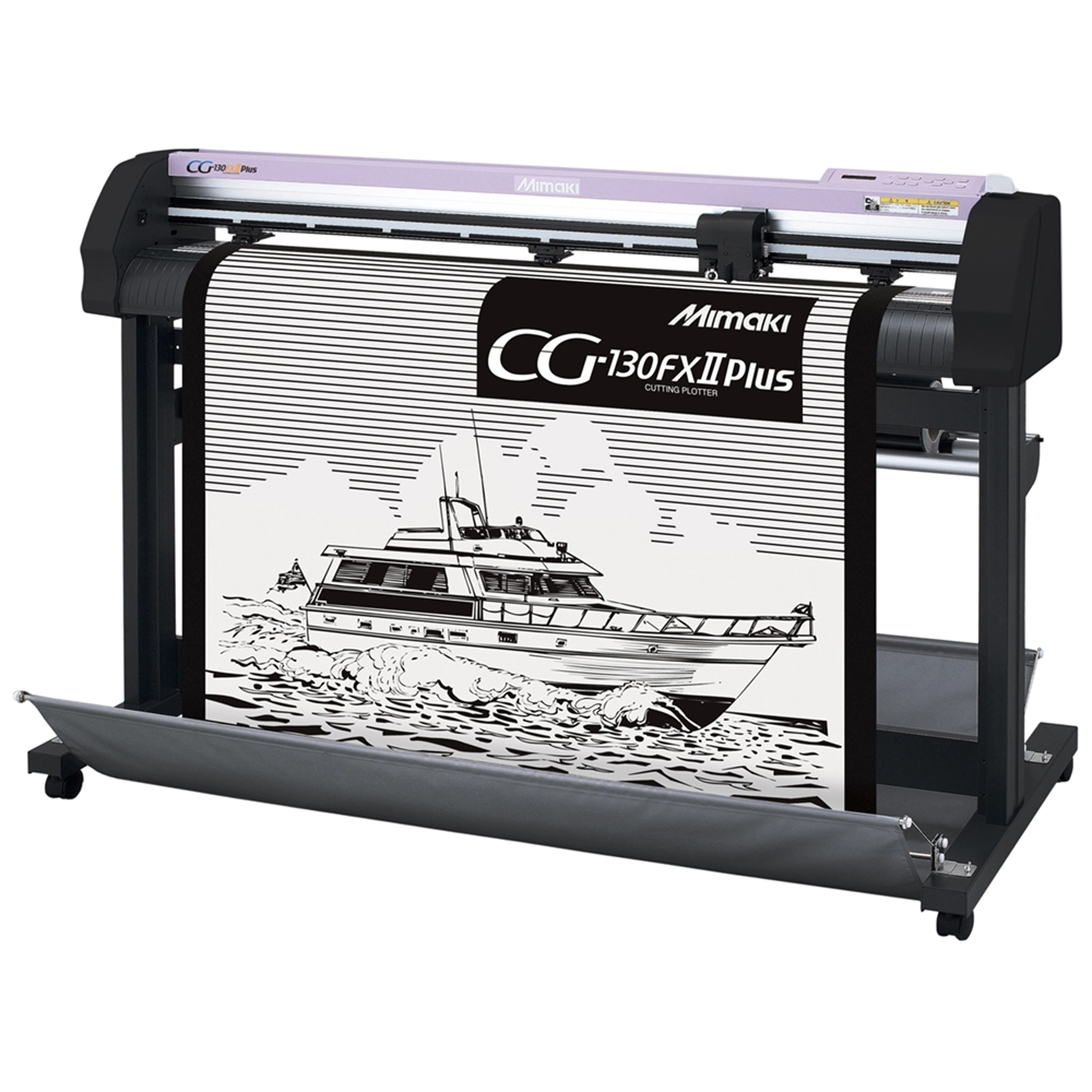

Mimaki CG-130FXIIPlus Vinyl Cutter and Stand

Brand: Mimaki
This 130cm wide Mimaki cutting plotter provides a practical and cost effective solution for every sign and graphics need.
SKU: XP1901
£0.00

This 130cm wide Mimaki cutting plotter provides a practical and cost effective solution for every sign and graphics need.

  • Acceptable sheet width: 9–158cm
  • Effective cutting area (1): 1300mm x 51m
  • Max. speed (2): 140cm/s
  • Max. cutting speed: 100cm/s
  • Repeatability: ± 0.2 mm (excluding shrinkage / expansion caused by film temperature)
  • Guaranteed range of accuracy (3): 1300mm x 10m
  • Max. pressure:400g
  • Acceptable sheet (4): Vinyl up to 0.25 mm thickness, fluorescent type vinyl, reflective sheet
  • Applicable tools (5): Cutter, water-based ball-point pen, oil-based ball-point pen. Also pouncing tool for CG-SRII and CG-FXII series.
  • Interface: USB, RS-232C
  • Power consumption: AC100V-240V, 130VA or less
  • Dimensions (WxDxH): 1825 x 700 x 1217mm
  • Weight: 60kg


For further details of the Mimaki CG-130FXII download this PDF brochure.

1. Max. sheet feeding length differs depending on the software
2. Max. moving speed at 45o direction with pen up
3. Depending on the specified film and cutting conditions
4. Provided that the blade specific for fluorescent type vinyl or for reflective sheet are used
5. The goods on the market are 8 – 9 mm pen. No guarantee on accuracy

Please note: this item will require specialist delivery and installation which we will have to arrange with the customer, additional costs may occur.

Products specifications
Width 183cm
Height 70cm
Length 122cm
Quantity per pack 1
Extra Information 1. Max. sheet feeding length differs depending on the software
Extra Information 2. Max. moving speed at 45° direction with pen up
Extra Information 3. Depending on the specified film and cutting conditions
Extra Information 4. Provided that the blade specific for fluorescent type vinyl or for reflective sheet are used
Extra Information 5. The goods on the market are 8 – 9 mm pen. No guarantee on accuracy
